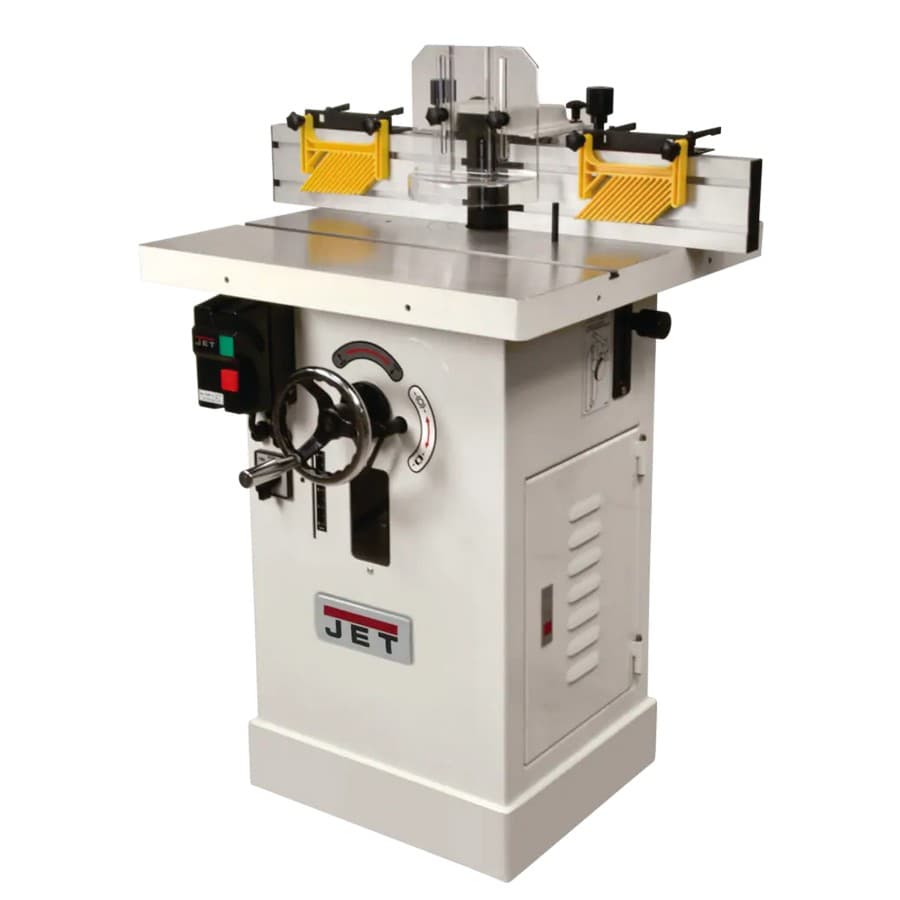

Jet Tools 708309 JWS-25X Jet Shaper 3HP Single Phase 230V
This item may incur additional shipping costs and lead times.
Product Details
The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4” dust port.
Features
- 4” Dust port built into fence for convenient hookup to any dust collection system
- Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
- Large 25” X 25-1/2” precision ground cast iron table provides a durable work area
- Powerful 3HP, 1Ph motor with magnetic controls
- Reversible spindle speeds for diverse shaping jobs
- Spindle lock for safe and easy cutter set up
- Starting Pins for irregular shaping
- Two-speeds let you select the best speed and torque for different cutter diameters
- V-belt transfers maximum power to the spindle
Specifications
Spindle Travel (In.) - 3-1/2
Table Size (L x W) (In.) - 25-1/2 x 25
Table Opening Diameter (In.) - 6-9/32
Table Inserts (In.) - 2
Motor Power (HP) - 3
Table Height from Floor (In.) - 33
Dust Collection Minimum CFM Required (CFM) - 600
Dust Port Outside Diameter (In.) - 4
Motor Voltage (V.) - 230
Prewired Voltage (V.) - 230
Motor Amps - 16
Recommended Circuit Size (Amps.) - 30
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Shaper |
| Power | |
| Phase | 1 |
| Length | |
| Width | |
| Height | |
| Horsepower | 3 HP |
| Rangeof Speeds | |
| Electrical Controls | |
| Table Inserts (In.) | |
| Reversible | |
| Spindle Size Under Nut (In.) | |
| Recommended Circuit Size (Amps.) | |
| Table Travel (In.) | |
| Maximum Diameter Cutter Above Table (In.) | |
| Wiring Remarks | |
| Table Opening | |
| Maximum Diameter Cutter Below Table (In.) | |
| Motor Phase | |
| Router Bit Collet Included | |
| Dust Collection Minimum CFM Required (CFM) | |
| Fence Travel (Major and Minor) (In.) | |
| Spindle Stroke | |
| Motor Voltage (V.) | |
| Table Size (In.) | |
| Fence Size (L x H) (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Maximum Spindle Diameter (In.) | |
| Style (Type) | |
| Spindle Pivot | |
| Spindle Travel (In.) | |
| Digital Readouts | |
| Prewired Voltage (V.) | |
| Table T-Slot (In.) | |
| Spindles Included | |
| Sliding Table Size (In.) | |
| Motor Power | |
| Table Insert Opening Diameter (In.) | |
| Table Height from Floor (In.) | |
| Warranty | |
| Control | |
| Control Panel | |
| Rotational Speeds | |
| Display Resolution | |
| Repeat Accuracy | |
| Extraction Connections | |
| Drive Motor | |
| Range of Speeds |
