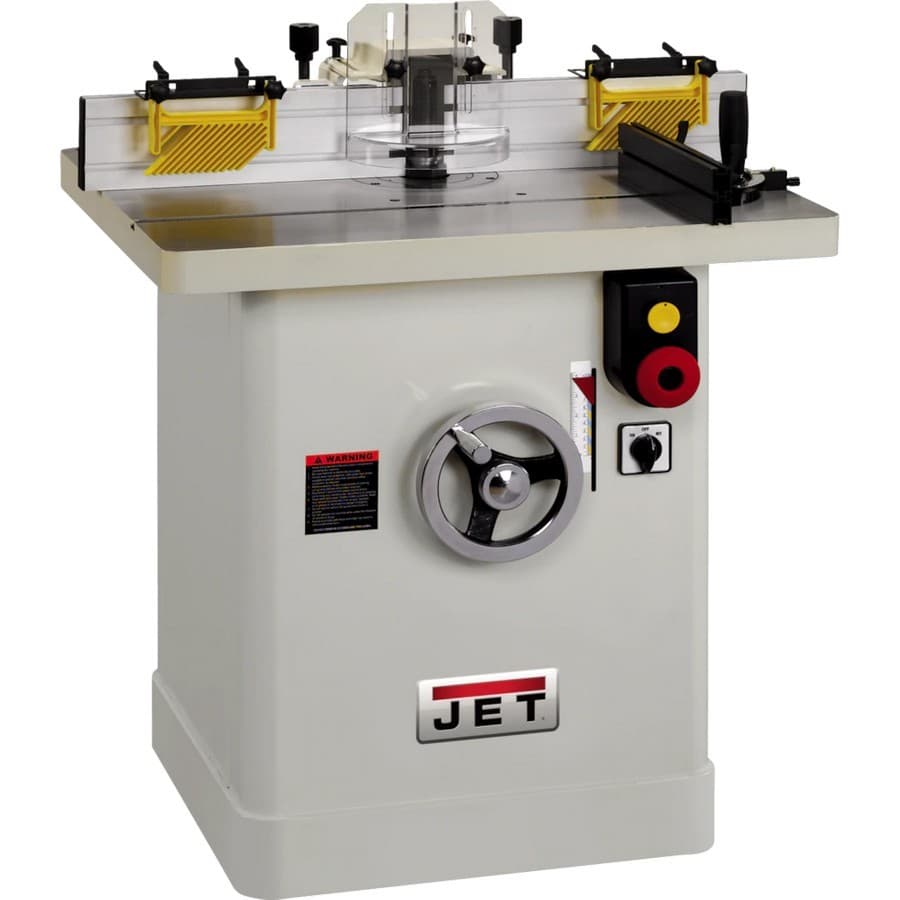

Jet Tools 708323 JWS-35X3-1 Shaper 3HP Single Phase 230V
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
This heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.
FEATURES
- 4" Dust port built into fence for convenient hookup to any dust collection system
- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
- Poly-V-belt transfers maximum power to the spindle
- Powerful 3HP, 1Ph motor with magnetic controls
- Reversible spindle speeds for diverse shaping jobs
- Starting Pins for irregular shaping
- V-belt transfers maximum power to the spindle
SPECIFICATIONS
Maximum Spindle Diameter (In.) - 1-1/4
Spindle Travel (In.) - 4
Spindle Size Under Nut (In.) - 4
Table Size (L x W) (In.) - 32-1/4 x 26-3/4
Table Opening Diameter (In.) - 6-19/64
Table Inserts (In.) - 2
Motor Power (HP) - 3
Table Height from Floor (In.) - 33-1/4
Dust Collection Minimum CFM Required (CFM) - 600
Dust Port Outside Diameter (In.) - 4
Motor Voltage (V.) - 230
Prewired Voltage (V.) - 230
Motor Amps - 14
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Product Type | Shaper |
| Power | |
| Phase | 1 |
| Length | |
| Width | |
| Height | |
| Horsepower | 3 HP |
| Rangeof Speeds | |
| Electrical Controls | |
| Table Inserts (In.) | |
| Reversible | |
| Spindle Size Under Nut (In.) | |
| Recommended Circuit Size (Amps.) | |
| Table Travel (In.) | |
| Maximum Diameter Cutter Above Table (In.) | |
| Wiring Remarks | |
| Table Opening | |
| Maximum Diameter Cutter Below Table (In.) | |
| Motor Phase | |
| Router Bit Collet Included | |
| Dust Collection Minimum CFM Required (CFM) | |
| Fence Travel (Major and Minor) (In.) | |
| Spindle Stroke | |
| Motor Voltage (V.) | |
| Table Size (In.) | |
| Fence Size (L x H) (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Maximum Spindle Diameter (In.) | |
| Style (Type) | |
| Spindle Pivot | |
| Spindle Travel (In.) | |
| Digital Readouts | |
| Prewired Voltage (V.) | |
| Table T-Slot (In.) | |
| Spindles Included | |
| Sliding Table Size (In.) | |
| Motor Power | |
| Table Insert Opening Diameter (In.) | |
| Table Height from Floor (In.) | |
| Warranty | |
| Control | |
| Control Panel | |
| Rotational Speeds | |
| Display Resolution | |
| Repeat Accuracy | |
| Extraction Connections | |
| Drive Motor | |
| Range of Speeds |
