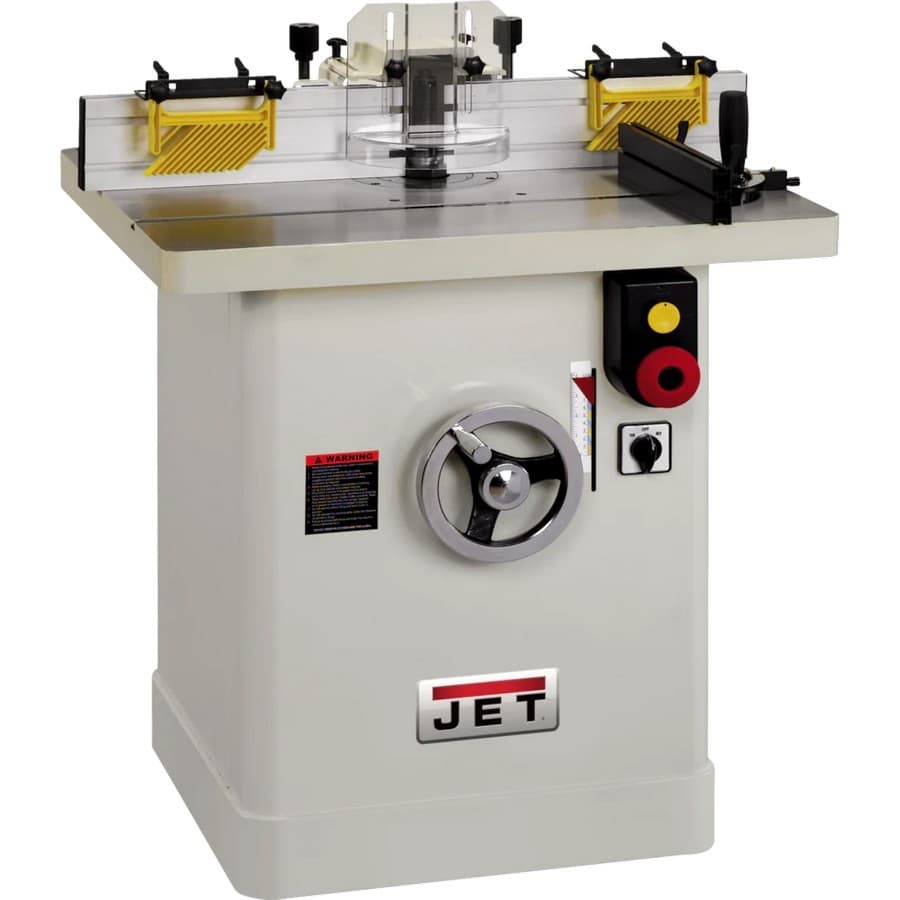

Jet Tools 708326 JWS-35X5-1 Industrial Shaper 5HP Single Phase 230V
This item may incur additional shipping costs and lead times.
Product Details
This heavy-duty JET Shaper is available with a powerful 5HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.
FEATURES
- 4" Dust port built into fence for convenient hookup to any dust collection system
- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
- Poly-V-belt transfers maximum power to the spindle
- Powerful 5HP, 1Ph motor with magnetic controls
- Reversible spindle speeds for diverse shaping jobs
- Starting Pins for irregular shaping
- V-belt transfers maximum power to the spindle
SPECIFICATIONS
Maximum Spindle Diameter (In.) - 1-1/4
Spindle Travel (In.) - 4
Spindle Size Under Nut (In.) - 4
Table Size (L x W) (In.) - 32-1/4 x 26-3/4
Table Opening Diameter (In.) - 6-19/64
Table Inserts (In.) - 2
Motor Power (HP) - 5
Table Height from Floor (In.) - 33-1/4
Dust Collection Minimum CFM Required (CFM) - 600
Dust Port Outside Diameter (In.) - 4
Motor Voltage (V.) - 230
Prewired Voltage (V.) - 230
Motor Amps - 17
