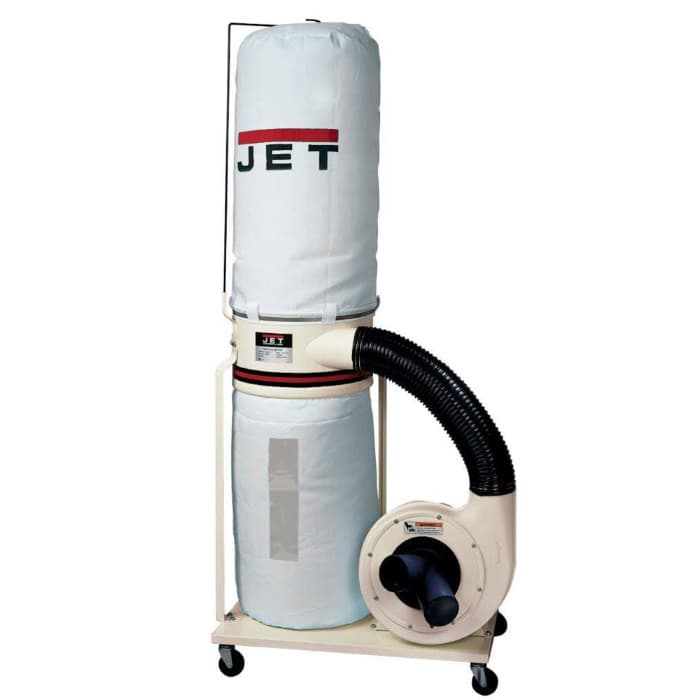

Jet Tools 708658K DC-1100VX-5M Dust Collector with 5-Micron Bag Filter Kit 1-1/2HP Single Phase 115/230V
This item may incur additional shipping costs and lead times.
Product Details
The JET® DC-1100VX-5M features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.
FEATURES
- Eliminates premature filter clogging for sustained performance
- High air velocity (CFM) design stands up to any competitive specifications
- Includes four casters for maneuverability and total portability
- Industrial controls designed for years of trouble-free use
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- Single-stage design for economical and quiet operation
- Vortex Cone improves chip separation and collector bag packing efficiency
Specifications
Air Flow @ 4" (CFM) - 1100
Style (Type) - Bag
Velocity @ 4" (FPM) - 12,571
Static Pressure (Wc.) - 10-1/2
Efficiency (Micron) - 5
Bag Diameter (In.) - 20
Collection Bag Capacity (Cu. Ft.) - 5-3/10
Collection Bag Length (In.) - 30
Sound Rating (Db.) - 70 - 80
Impeller Material - Steel
Motor Power (HP) - 1-1/2
1-Hose Connection Diameter (In.) - 6
2-Hoses Connection Diameter (In.) - 4
Prewired Voltage (V.) - 115
Motor Amps - 11/5.5
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
