Product Details

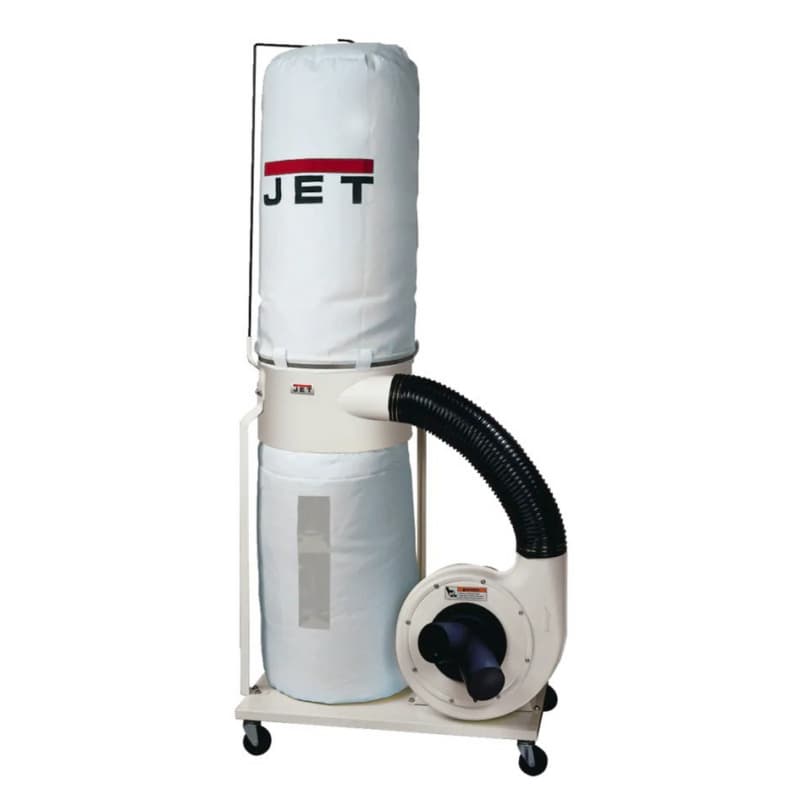

The JET® DC-1100VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have an elastic band for fast installation and removal. Swivel casters offer maneuverability within the shop. Visit http://www.vortexcone.com for more information.
FEATURES
- Eliminates premature filter clogging for sustained performance
- High air velocity (CFM) design stands up to any competitive specifications
- Industrial controls designed for years of trouble-free use
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- Single-stage design for economical and quiet operation
- Vortex Cone improves chip separation and collector bag packing efficiency
SPECIFICATIONS
Air Flow @ 4" (CFM) - 1100
Style (Type) - Bag
Static Pressure (Wc.) - 10-1/2
Efficiency (Micron) - 30
Bag Diameter (In.) - 20
Collection Bag Capacity (Cu. Ft.) - 5-3/10
Collection Bag Length (In.) - 30
Sound Rating (Db.) - 70 - 80
Impeller Material - Steel
Motor Power (HP) - 1-1/2
1-Hose Connection Diameter (In.) - 6
2-Hoses Connection Diameter (In.) - 4
Prewired Voltage (V.) - 115
Motor Amps - 11/5.5
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Dust Collector |
| Power | |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | |
| Height | |
| Drive Motor | |
| Belt Size | |
| Depth | |
| Motor Phase | |
| Horsepower | |
| Phase | |
| Range of Speeds | |
| Length | |
| Voltage | |
| Backing Material | |
| Material | |
| Recovery Time |
