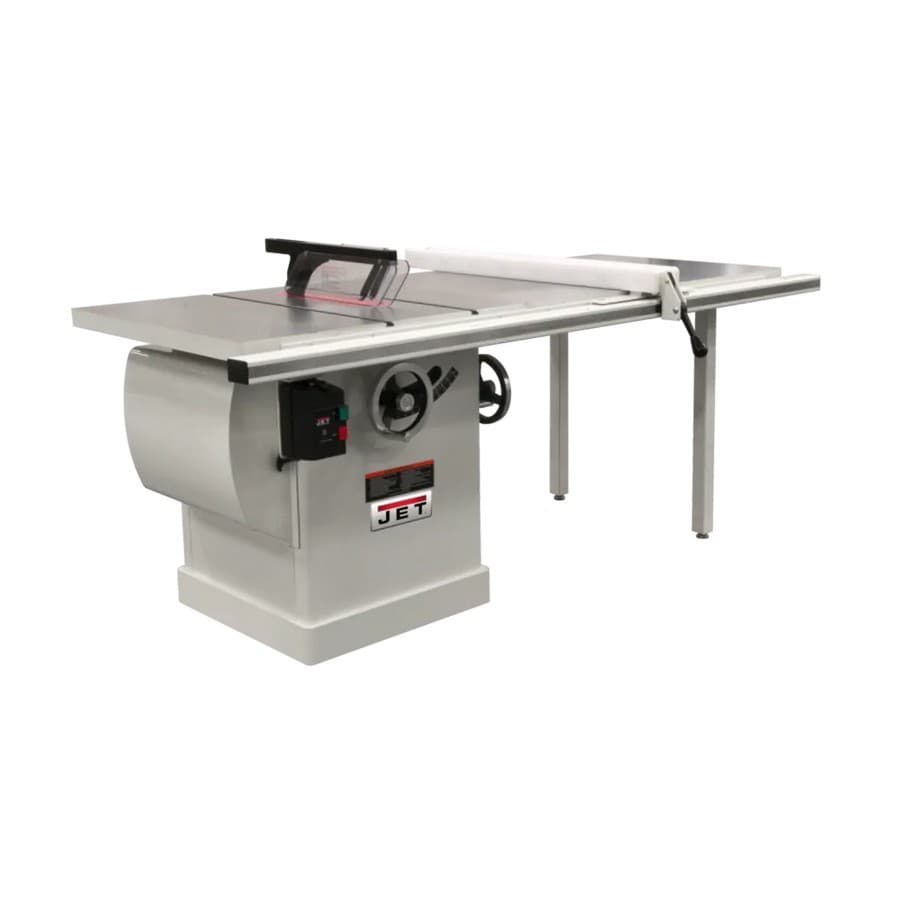

Jet Tools 708546PK JTAS-12-DX 12" Xacta Saw 5HP Single Phase 230V

With a riving knife and 80” of solid cast iron work surface, this saw will see you through all your projects. The weight of this machine ensures stability for smooth cutting operation. The JTAS-12-DX also features a maximum rip of 14” left of the blade, giving you more capacity. Dust collection is improved thanks to a collection shroud around the blade and an integrated hose. All of this is backed by JET’s industry-leading 5-year warranty and knowledgeable customer service professionals.

FEATURES

• 40-1/2” fence provides greater stability and better support when ripping
• 80” of solid cast iron provides a massive work surface
• Collection shroud around the blade and integrated hose improve dust collection
• External tool storage for the fence and miter gauge
• Integrated arbor lock is accessed from table top for rapid blade change
• Poly V-Belt increases efficiency and reduces slipping and vibration
• Removal of blade guard, pawls and riving knife takes only seconds
• Riving knife maintains close blade proximity to reduce chance of kickback

SPECIFICATIONS

Blade Diameter (In.) - 12

Style (Type) - Cabinet

Arbor Diameter (In.) - 1

Maximum Depth of Cut (In.) - 4

Maximum Diameter of Dado (In.) - 8

Table Size (L x W) (In.) - 31-1/2 x 24

Maximum Rip Right of Blade (In.) - 50

Maximum Rip Left of Blade (In.) - 14

Maximum Width of Dado (In.) - 13/16

Table Type - Cast Iron

Motor Power (HP) - 5

Miter Gauge Type - T-Slot with Stops

Dust Collection Minimum CFM Required (CFM) - 350

Dust Port Outside Diameter (In.) - 4

Motor Voltage (V.) - 230

Prewired Voltage (V.) - 230

Motor Amps - 20
