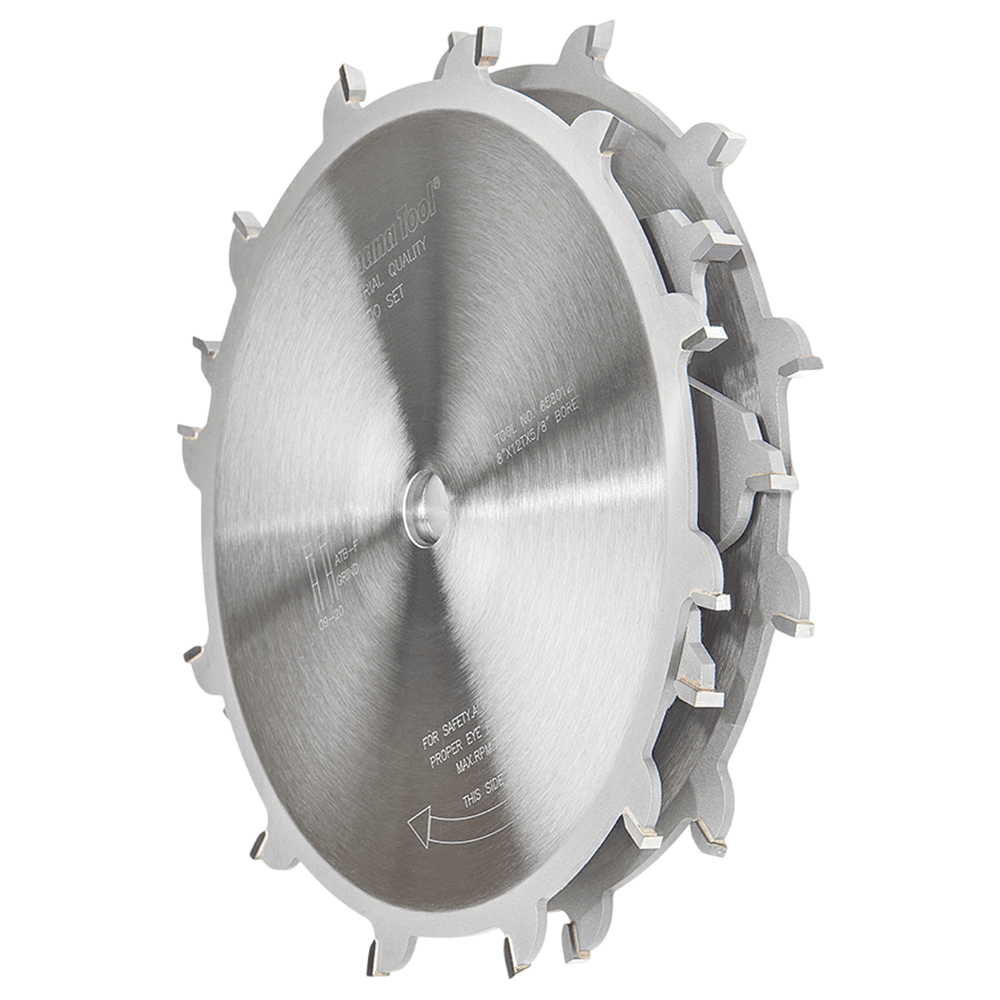

8" Dia x 12 Teeth Dado Set with Three 2-Wing Chippers
Product Details

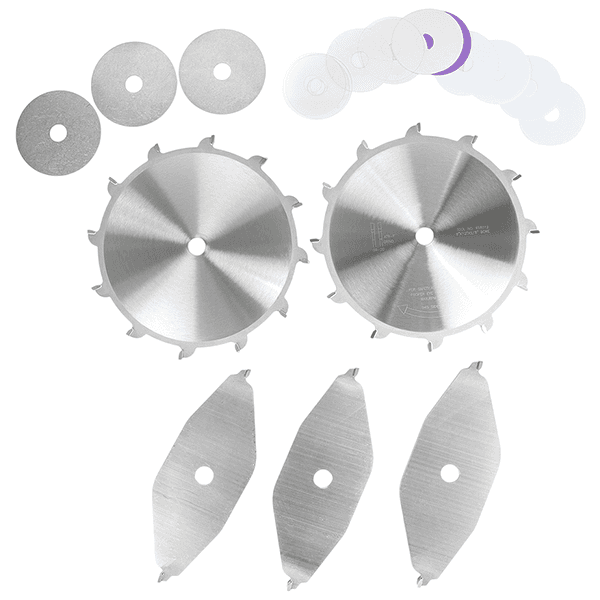

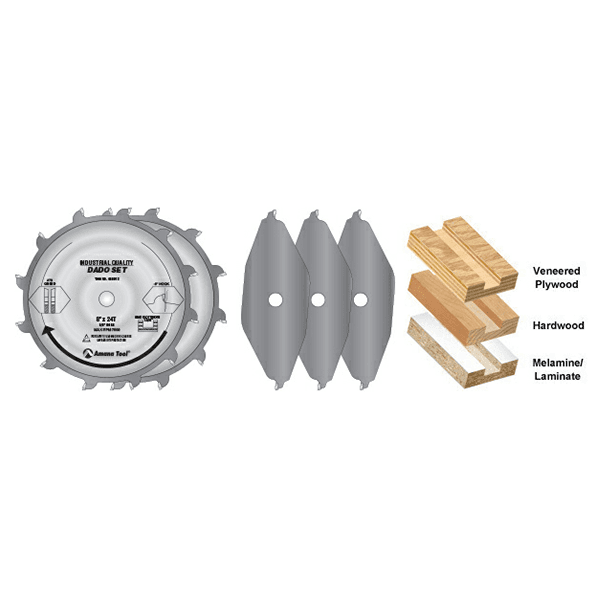

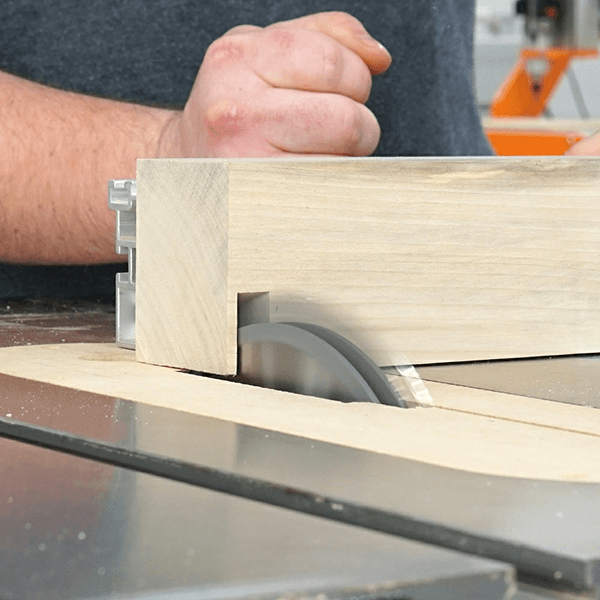

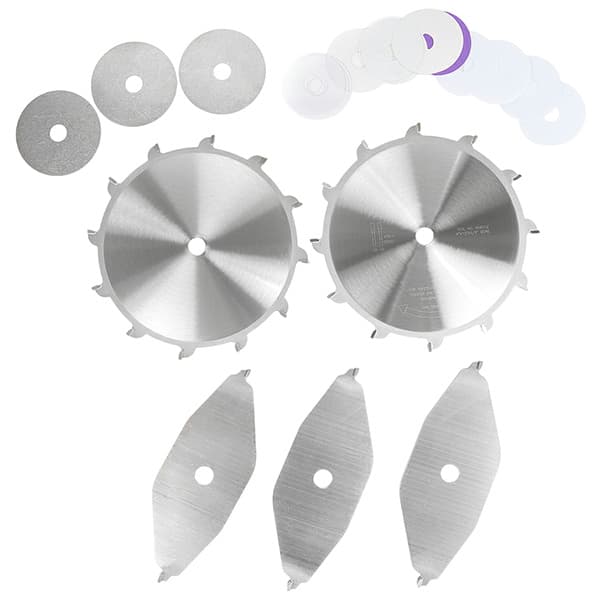

Dadoes (cross-grain cuts) and grooves (cuts with the grain) are cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool makes dado stack sets for every machine and every type of woodworking material. The standard width capacity ranges from 1/4" to 13/16". The standard set, regardless of diameter or tooth count, consists of two outside saw blades, three inside chippers and shims. The outside blades feature alternate top bevel (ATB) with flat ground (FT) grind. For hardwood, veneered plywood and melamine/laminate, the sets with 46-tooth outside blades are recommended. Teeth refers to the number of teeth for each outside saw blade.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Product Type | |
| Application | |
| Arbor | |
| Blade Diameter | 8" |
| Blade Type | |
| Blade Material | |
| Kerf | 1/4 - 13/16 |
| Number of Teeth | 12 |
| Bore Diameter | 5/8" |
| Hook Angle | -5° |
| Tooth Grind Type | ATB/FT |
