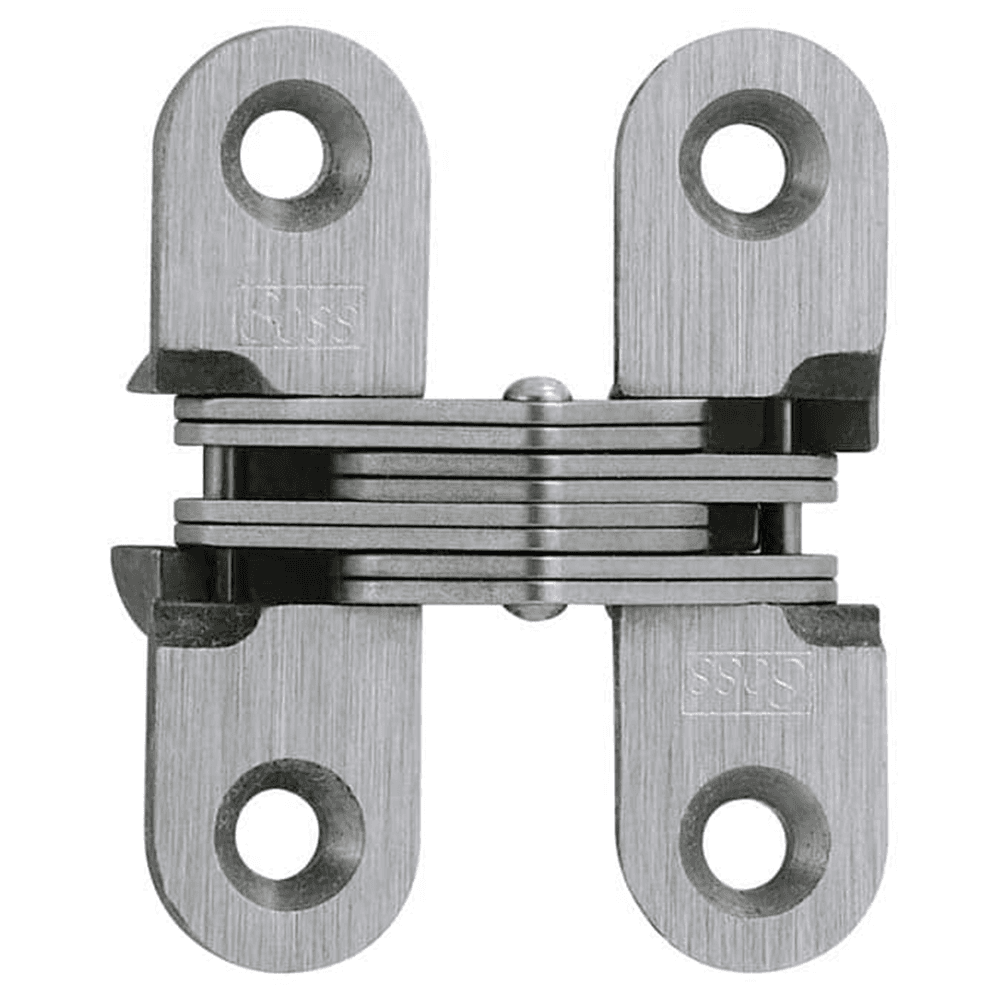

203SS Invisible 180° Opening Hinge, Satin Stainless Steel
Finish: Satin Stainless Steel
Product Details
Invisible Hinge model #203 is for use in wood or metal applications that are 3/4" to 1" thick. This cabinet style hinge will provide superior appearance and durability. Made of complete 316 stainless steel. Our Hinges are found in many applications where flush fit, compact size, smooth operation, and corrosion resistance are necessary features. Invisible Hinges open a full 180° and are a single action hinge. Feature: • 203SS Invisible 180° opening hinge in satin stainless steel finish • Wood Screw Sizes: #6 × 1" • Soft Wood Pilot Hole: No. 52 • Hard Wood Pilot Hole: No. 44 • Machine Screw Size: #6-40 × 1/2" • Hinge Weight: .11 lbs
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Satin Stainless Steel |
| Opening Angle | |
| Hinge Type | Invisible Hinge |
| Material | Stainless Steel |
| Length | 1-3/4" |
| Barrel Diameter | |
| Material Thickness | 3/4" - 1" |
| Screw Hole | |
| Door Thickness | |
| Height | |
| Width | |
| Closing Type |
