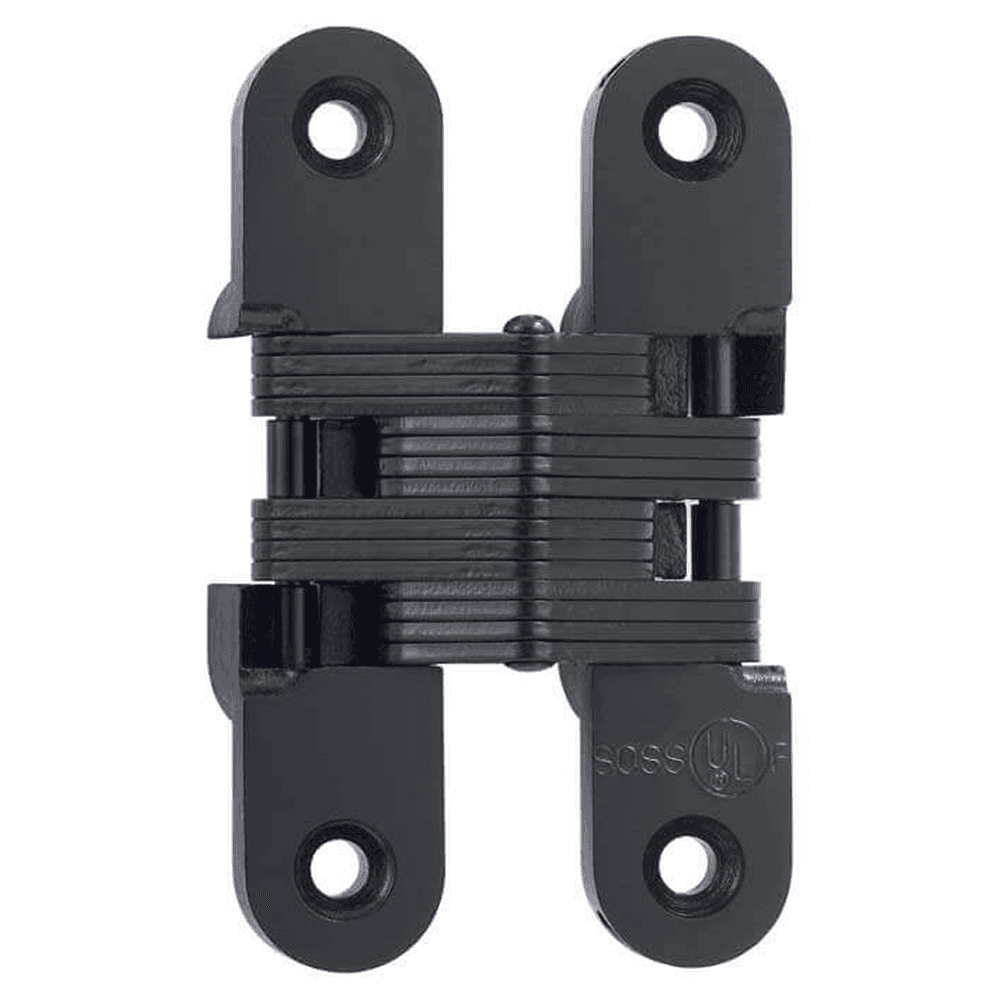

1-3/8" 416 Invisible Hinge, Black

Invisible Hinge model #416 is for use in wood or metal applications that are 1-3/8" thick. The model #416 is made of alloy steel. This full size door style hinge will provide superior appearance and durability. Our hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. Invisible Hinges open a full 180° and are a single action hinge. The Underwriters Laboratories labeled the model #416 Invisible Hinge can be used on hollow metal, sheet metal, tin clad, and steel composite swinging type fire doors and frames rated up to and including 3 hours. They can also be used on wood core doors and frames rated up to 20 minutes. Additionally, they can be used on wood/plastic composite doors and frames constructed with Georgia Pacific FS 1 or FS 2 banding for a rating up to and including 90 minutes. Use at least one fire-rated hinge for every 20" of door height or portion thereof, or one hinge for every 60 lbs. or fraction thereof, whichever calculation demands more hinges. Wood and machine screws are included.

Features:
• 1-3/8" 416 Invisible hinge in black e-coat finish
• Wood Screw Sizes: #14 x 2-1/2"
• Soft Wood Pilot Hole: No. 32
• Hard Wood Pilot Hole: No. 10
• Machine Screw Sizes: #1/4-20 x 1"
• Hinge Weight: 1.92 lbs
