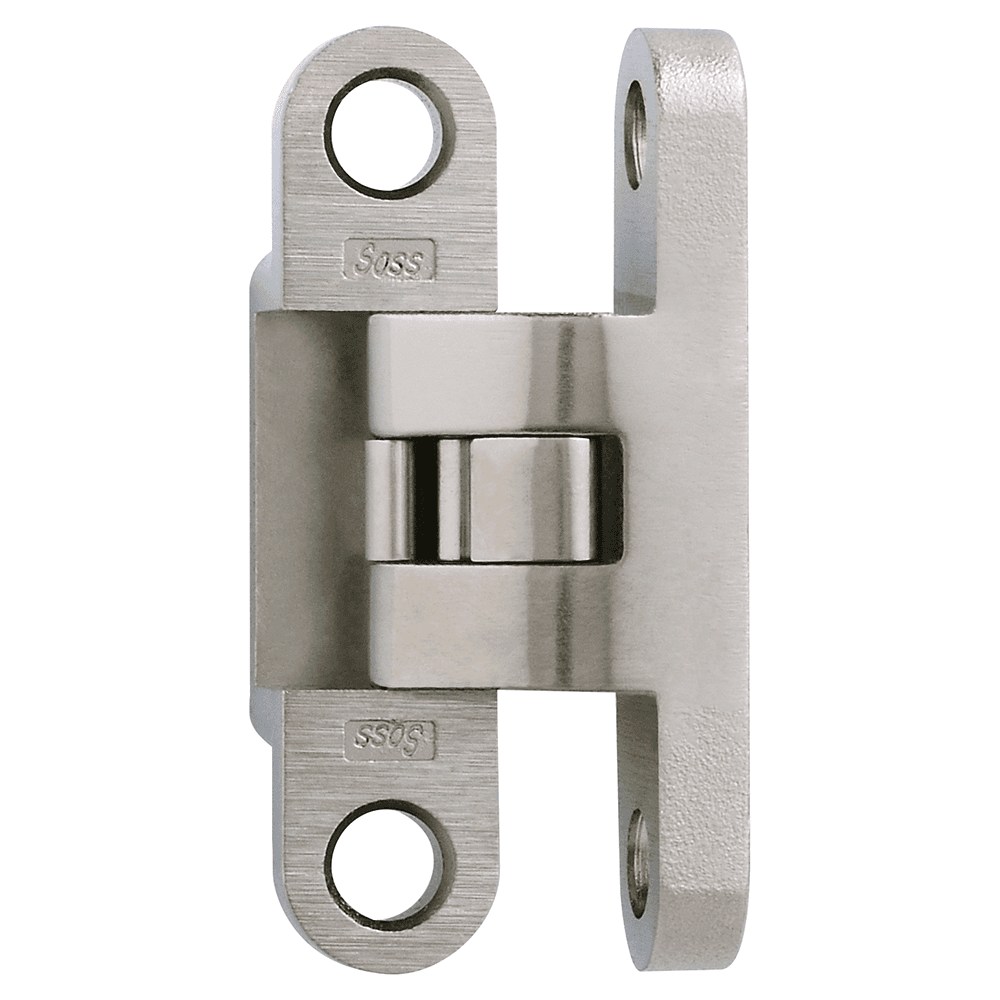

504 Wrap Around Invisible 92° Opening Hinge, Satin Nickel

Invisible Hinge model #504 is for use in wood or metal applications that are a minimum of 3/4". Model #504 is made of zinc and alloy steel materials. Solid alloy steel links add extra strength and durability. This cabinet door style hinge is unique as it allows the door to wrap around applied molding, trim or overlay. Our hinges are found in many applications where flush fit, compact size, and smooth operation are necessary features. This is the second Invisible Hinge designed to open only 92°. Screws are included.

Feature: • 504 Wrap around invisible 92° opening hinge in satin nickel finish
• Wood Screw Sizes: #6 × 1" and #8 × 1"
• Soft Wood Pilot Hole: No. 52 and No. 48
• Hard Wood Pilot Hole: No. 44 and No. 35
• Machine Screw Sizes: #6-40 × 1/2" and #8-32 × 5/8"
• Hinge Weight: .50 lbs
