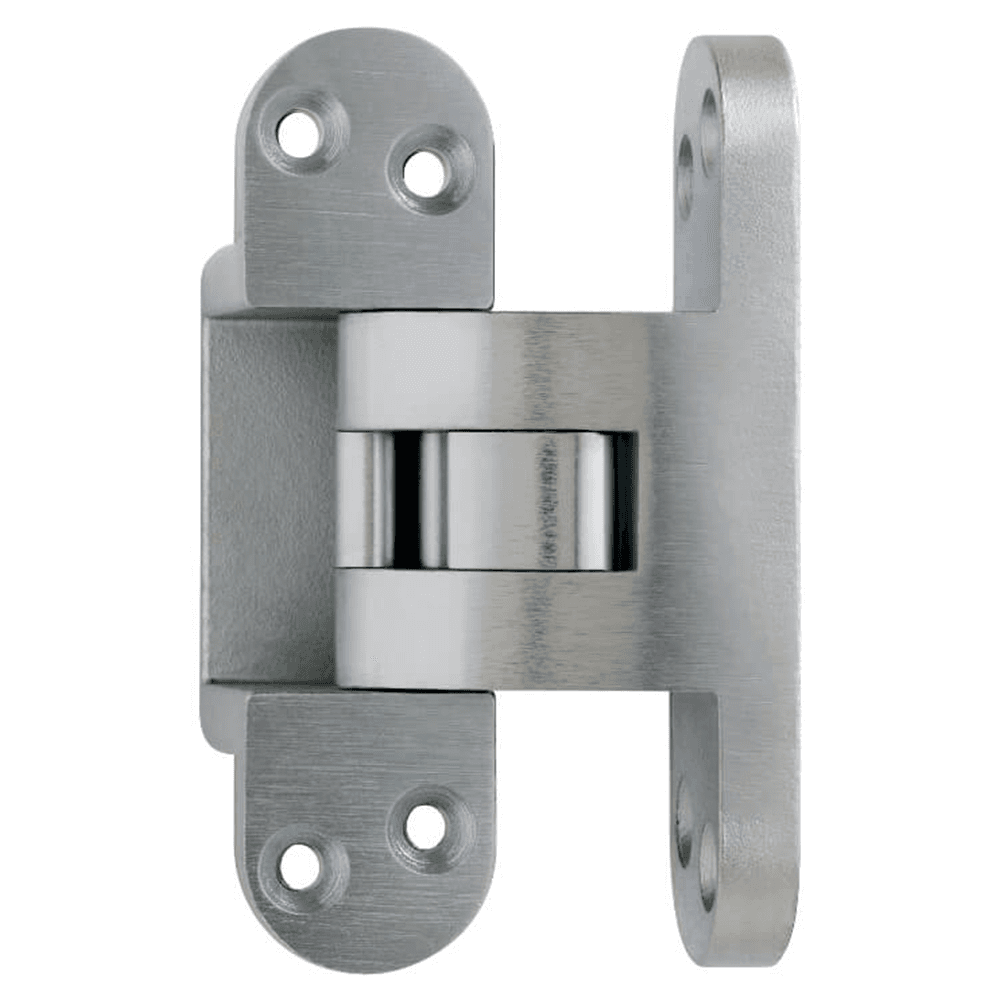

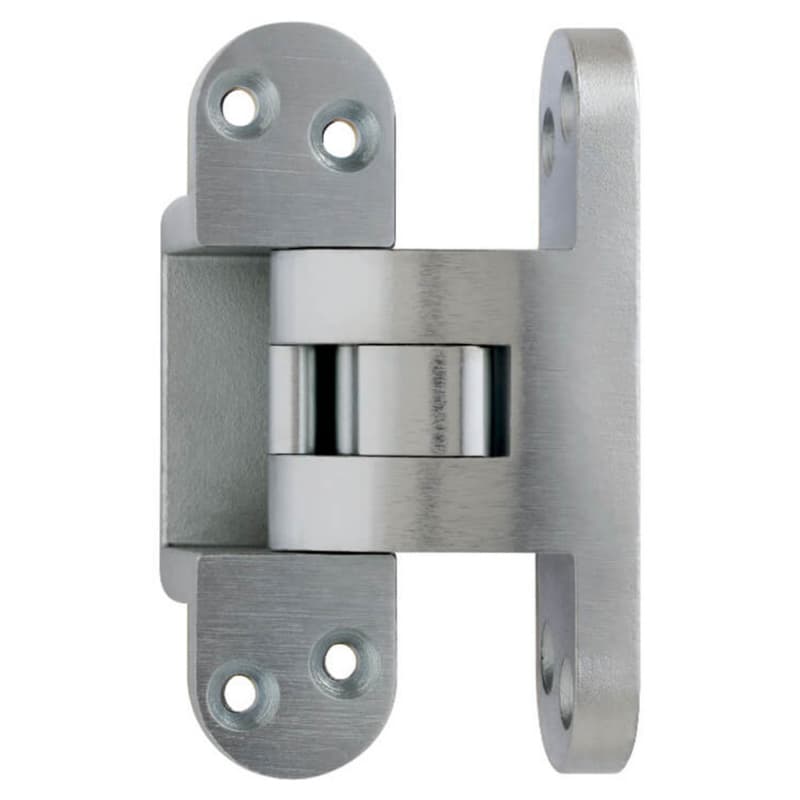

518 Wrap Around Invisible 92° Opening Hinge, Satin Chrome

Invisible Hinge model #518 is for use in wood or metal applications that are a minimum of 1-3/4″. The model #518 is made of alloy steel materials. Solid alloy steel links add extra strength and durability. This full size door style hinge is unique as it allows the door to wrap around applied molding or trim. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. This is one of the only Invisible Hinges that stops at 92°. Screws are included.

Feature: • 518 Wrap around invisible 92° opening hinge in satin chrome finish
• Wood Screw Sizes: #10 × 1-1/2" and #14 × 1-1/2"
• Soft Wood Pilot Hole: No. 43 and No. 38
• Hard Wood Pilot Hole: No. 31 and No. 25
• Machine Screw Sizes: #10-24 × 1" and #1/4-20 × 1"
• Hinge Weight: 1.95 lbs
