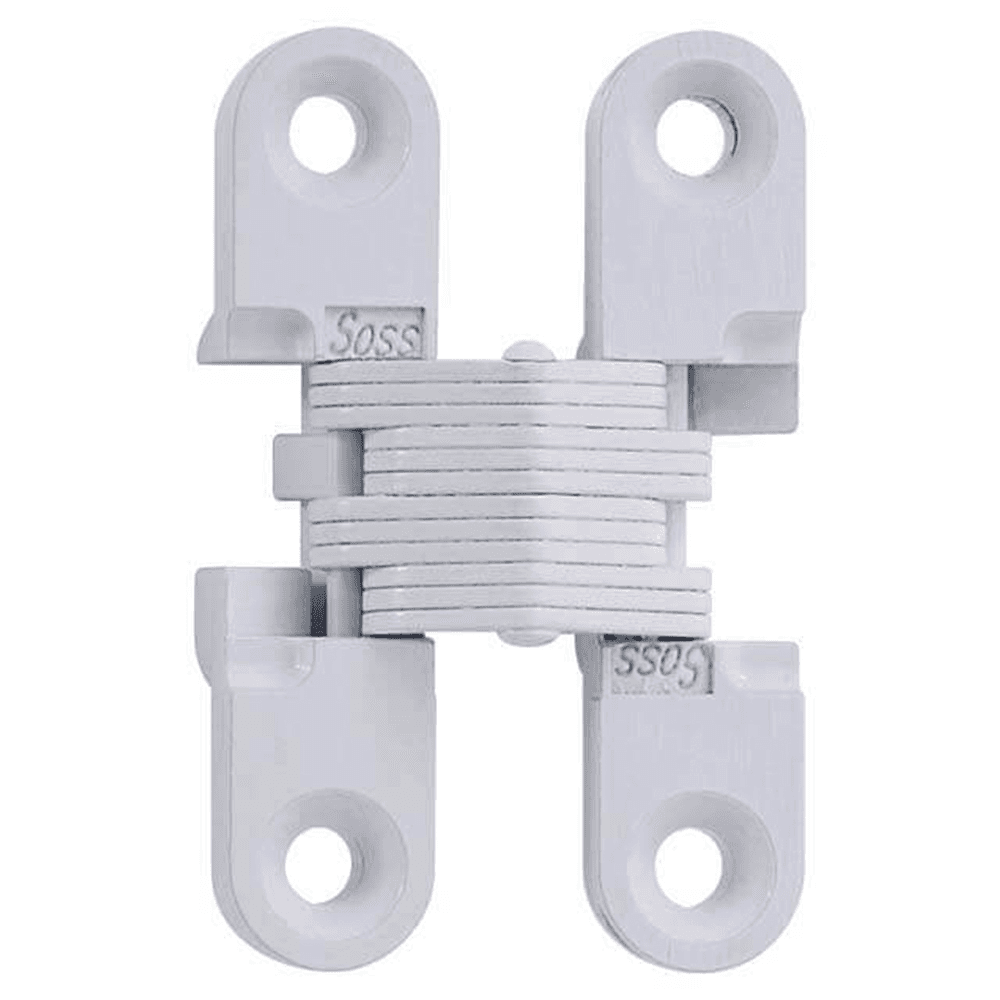

101 Invisible 180° Opening Hinge, White E-Coat
10 items
Finish: White E-Coat
Product Details
Invisible Hinge model #101 is for use in wood or metal applications that are 1/2" to 3/4" thick. The model #101 is made of zinc and steel materials. This cabinet style hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. Invisible Hinges open a full 180° and are a single action hinge. Feature: • 101 Invisible 180° opening hinge in white finish • Wood Screw Sizes: #5 × 3/4" (3.5x19mm) • Soft Wood Pilot Hole: No. 53 • Hard Wood Pilot Hole: No. 47 • Machine Screw Sizes: #4-40 × 1/2" • Hinge Weight: .07 lbs
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | White E-Coat |
| Opening Angle | |
| Hinge Type | Invisible Hinge |
| Material | Steel |
| Length | 1-11/16" |
| Barrel Diameter | |
| Material Thickness | 1/2" - 3/4" |
| Screw Hole | |
| Door Thickness | |
| Height | |
| Width | |
| Closing Type |
