| Box Quantity | 1 |
| Opening Angle | 93 Degree |
| Overlay (in) | Inset |
| Motion Technology | Self-close |
| Mount Type | Screw-on |
| Product Type | Concealed Long Arm European Hinges |
| Manufacturer Series |
| J95 |
| Boring Pattern | 48 mm |
| Arm Style | Full crank |
| Cabinet Type | Face-frame, Frameless |
| Cup Diameter (mm) | 40 mm |
| Maximum Door Thickness (in) | 1-5/16 in |
| Color/Finish | Nickel |
| Cup Depth(mm) | 15 mm |
| Height (in) | 1-3/4 in |
| Width (in) | 1-13/16 in |
| Material Type | Steel |
| Weight Rating per Pair | 55 lb |

| Box Quantity | 1 |
| Opening Angle | 93 Degree |
| Overlay (in) | Inset |
| Motion Technology | Self-close |
| Mount Type | Screw-on |
| Product Type | Concealed Long Arm European Hinges |
| Manufacturer Series | J95 |
| Boring Pattern | 48 mm |
| Arm Style | Full crank |
| Cabinet Type | Face-frame, Frameless |
| Cup Diameter (mm) | 40 mm |
| Maximum Door Thickness (in) | 1-5/16 in |
| Color/Finish | Nickel |
| Cup Depth(mm) | 15 mm |
| Height (in) | 1-3/4 in |
| Width (in) | 1-13/16 in |
| Material Type | Steel |
| Weight Rating per Pair | 55 lb |
Features:

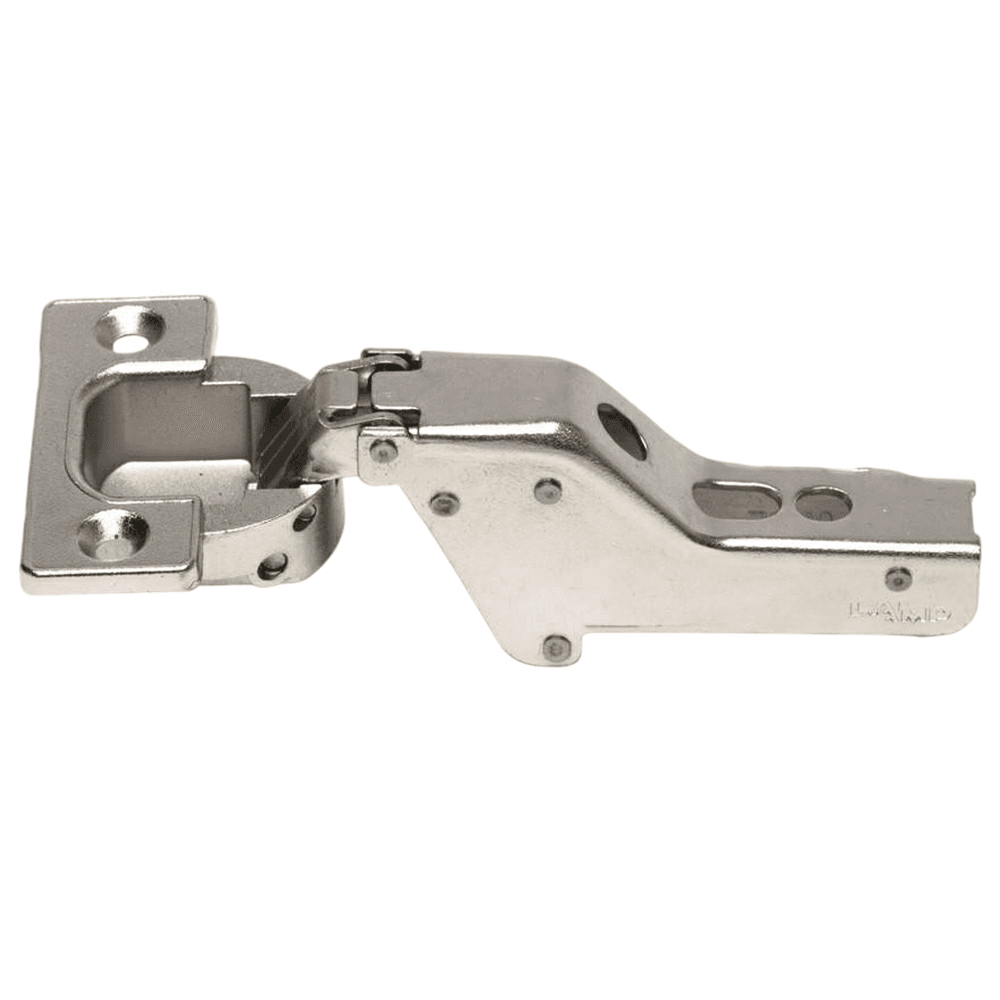

• 93° opening standard euro hinge in nickel finish
• Heavy duty concealed hinge eliminates the need to use 5 or more standard euro hinges in cabinets or furniture. This reduces installation cost and time, and provides a better overall aesthetic
• 2 hinges hold 55 lbs (25 kg) and 3 hinges hold up to 88 lbs (40 kg). Because of the high load capacity, short and wide panels can easily be supported
• Clip-on type for easy installation, and 3-way adjustability with door installed
• Ideal for wide, heavy custom door applications such as large cabinets and furniture, glass display cases, or enclosures
• Options available for 1? overlay, 5/8? overlay, and inset panels in nickel or black nickel finishes
Features:
• 93° opening standard euro hinge in nickel finish
• Heavy duty concealed hinge eliminates the need to use 5 or more standard euro hinges in cabinets or furniture. This reduces installation cost and time, and provides a better overall aesthetic
• 2 hinges hold 55 lbs (25 kg) and 3 hinges hold up to 88 lbs (40 kg). Because of the high load capacity, short and wide panels can easily be supported
• Clip-on type for easy installation, and 3-way adjustability with door installed
• Ideal for wide, heavy custom door applications such as large cabinets and furniture, glass display cases, or enclosures
• Options available for 1? overlay, 5/8? overlay, and inset panels in nickel or black nickel finishes
