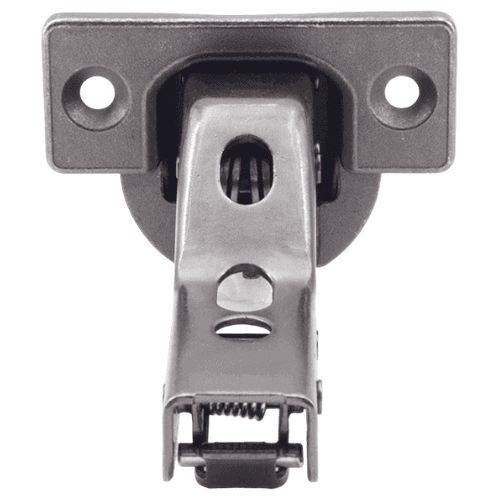

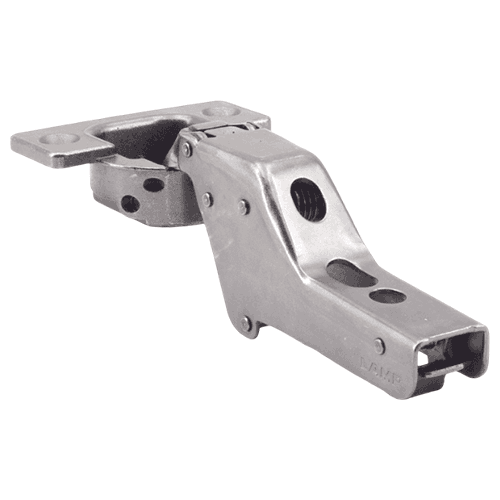

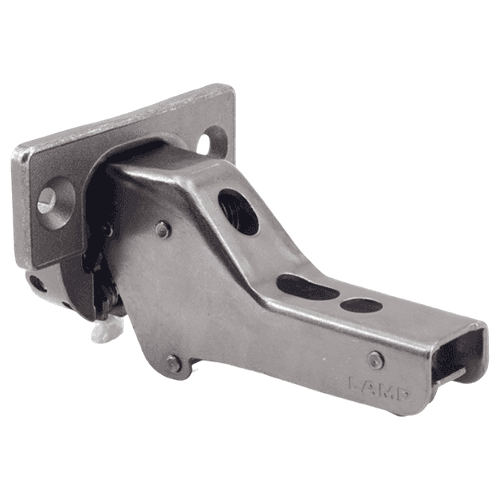

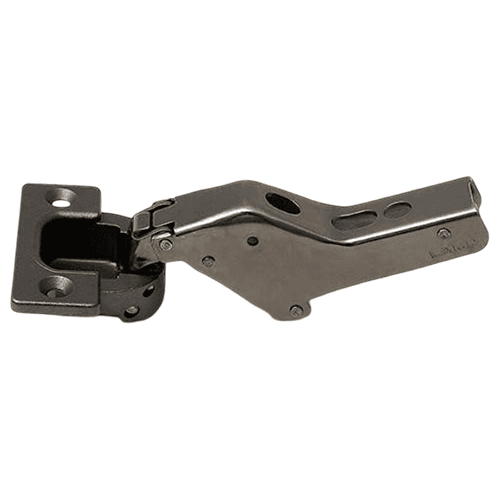

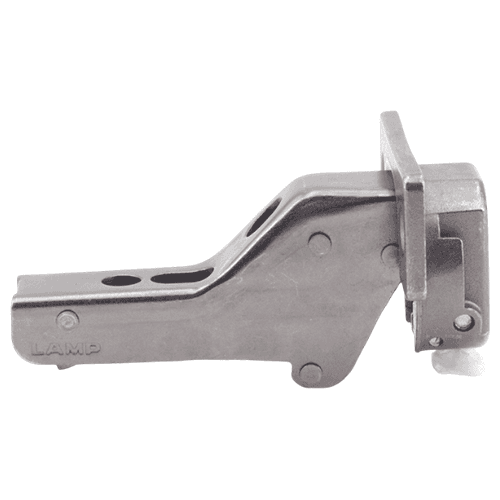

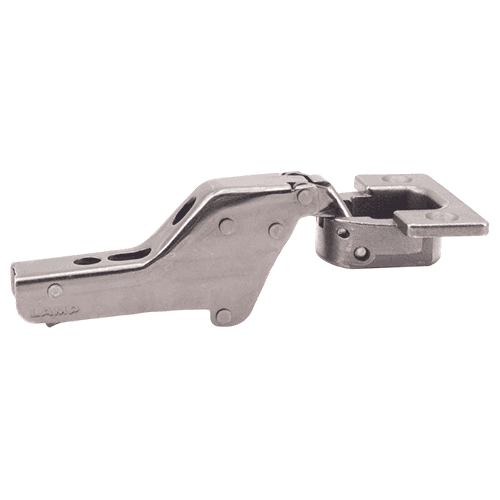

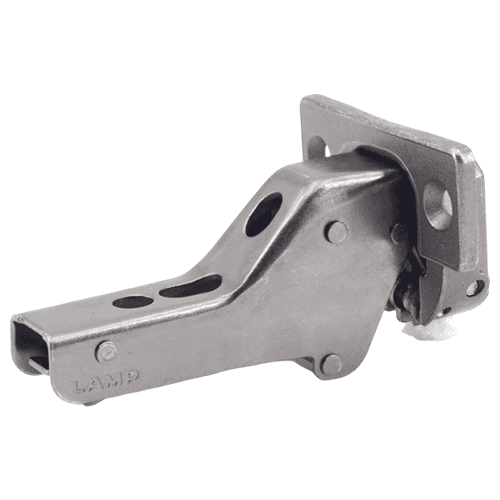

93° Opening Standard Euro Hinge, Self Closing, Black Nickel, Inset
Product Details
Features: • 93° opening standard euro hinge in black nickel finish • Heavy duty concealed hinge eliminates the need to use 5 or more standard euro hinges in cabinets or furniture. This reduces installation cost and time, and provides a better overall aesthetic • 2 hinges hold 55 lbs (25 kg) and 3 hinges hold up to 88 lbs (40 kg). Because of the high load capacity, short and wide panels can easily be supported • Clip-on type for easy installation, and 3-way adjustability with door installed • Ideal for wide, heavy custom door applications such as large cabinets and furniture, glass display cases, or enclosures • Options available for 1? overlay, 5/8? overlay, and inset panels in nickel or black nickel finishes
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Inset |
| Overlay | |
| Closing Type | Self Closing |
| Opening Angle | 93° |
| Model | |
| Hinge Type | |
| Finish | Black Nickel |
| Boring Pattern | |
| Cup Diameter | 40mm |
| Cup Depth | |
| Material | Steel, Zinc Alloy |
| Cabinet Type |
