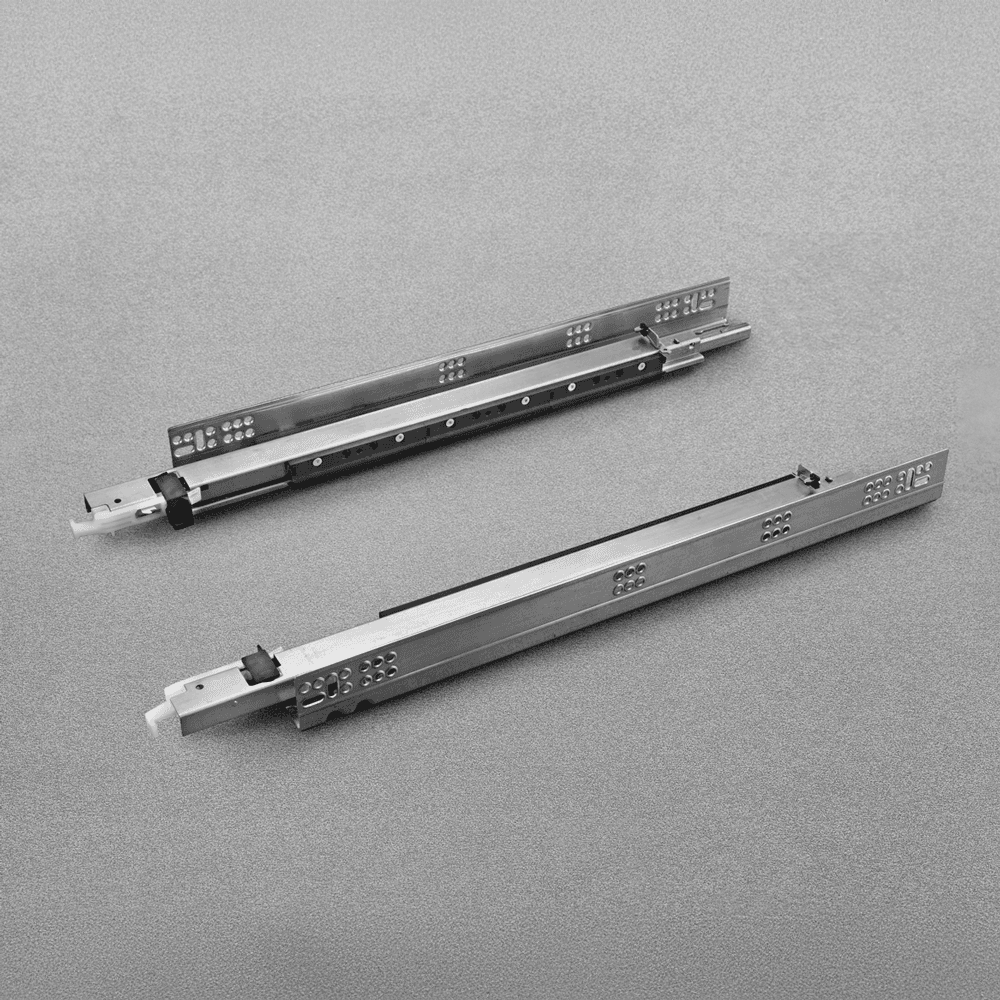

15" Progressa+ Undermount Drawer Slide for Faceframe or Frameless Applications, 3/4" Material, 170lb Capacity Full Extension with SMOVE Soft-Closing
Item # SALF70FFSC19-15B
•Mfr # G7U9S381XXF6
$32.30
/Pair
6 items
$31.43/Pair
24 items
$31.01/Pair
Drawer Length: 15"
Cabinet Type: Faceframe (Full Length)
Material Thickness: 3/4"
Min Order: 1
Qty mult. by: 1
Product Details
Progressa+ SMOVE Heavy Duty Undermount Drawer Slides for Faceframe or Frameless Applications, Up To 3/4" Drawer Thickness
Progressa+ SMOVE is a new generation of heavy duty drawer slides. Rated at 170 Lbs Static load capacity they are suitable for all drawer opening applications.
• 170 Lbs Static load capacity
• Full extension with a synchronized mechanism
• Enhanced smooth soft closing action
• Elongated holes for depth and height adjustment
• Adjustable clips allow for easy drawer insertion and removal;
• Special clip for narrow drawers
• Tool free height adjustments + 2.5 mm
• Tool free depth adjustments +/- 3 mm
• Tool free side adjustments +/- 1.5 mm
• Meets and exceeds Ansi BHMA A156.9-2020 Grade 1 standard; WI approved
• Optional tool free tilt adjustment +3 mm
• 19 mm (3/4") drawer material thickness
• Compatible with Lineabox drawers
• Finish: bright zinc-plated
• 100% Made in Italy
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
NOTE: REAR MOUNTING BRACKET FOR FACEFRAMES SOLD SEPERATELY
Progressa+ SMOVE is a new generation of heavy duty drawer slides. Rated at 170 Lbs Static load capacity they are suitable for all drawer opening applications.
• 170 Lbs Static load capacity
• Full extension with a synchronized mechanism
• Enhanced smooth soft closing action
• Elongated holes for depth and height adjustment
• Adjustable clips allow for easy drawer insertion and removal;
• Special clip for narrow drawers
• Tool free height adjustments + 2.5 mm
• Tool free depth adjustments +/- 3 mm
• Tool free side adjustments +/- 1.5 mm
• Meets and exceeds Ansi BHMA A156.9-2020 Grade 1 standard; WI approved
• Optional tool free tilt adjustment +3 mm
• 19 mm (3/4") drawer material thickness
• Compatible with Lineabox drawers
• Finish: bright zinc-plated
• 100% Made in Italy
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
NOTE: REAR MOUNTING BRACKET FOR FACEFRAMES SOLD SEPERATELY
Specifications
| Box Quantity | 6 |
| Length | |
| Finish | Bright Zinc-Plated |
| Drawer Length | 15" |
| Closing Type | Soft-Closing |
| Model | Progressa+ |
| Load Capacity | 170lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | Faceframe (Full Length) |
| Mounting Type | Undermount |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 3/4" |
| Cabinet Width | |
| Thickness | |
| Overlay |
