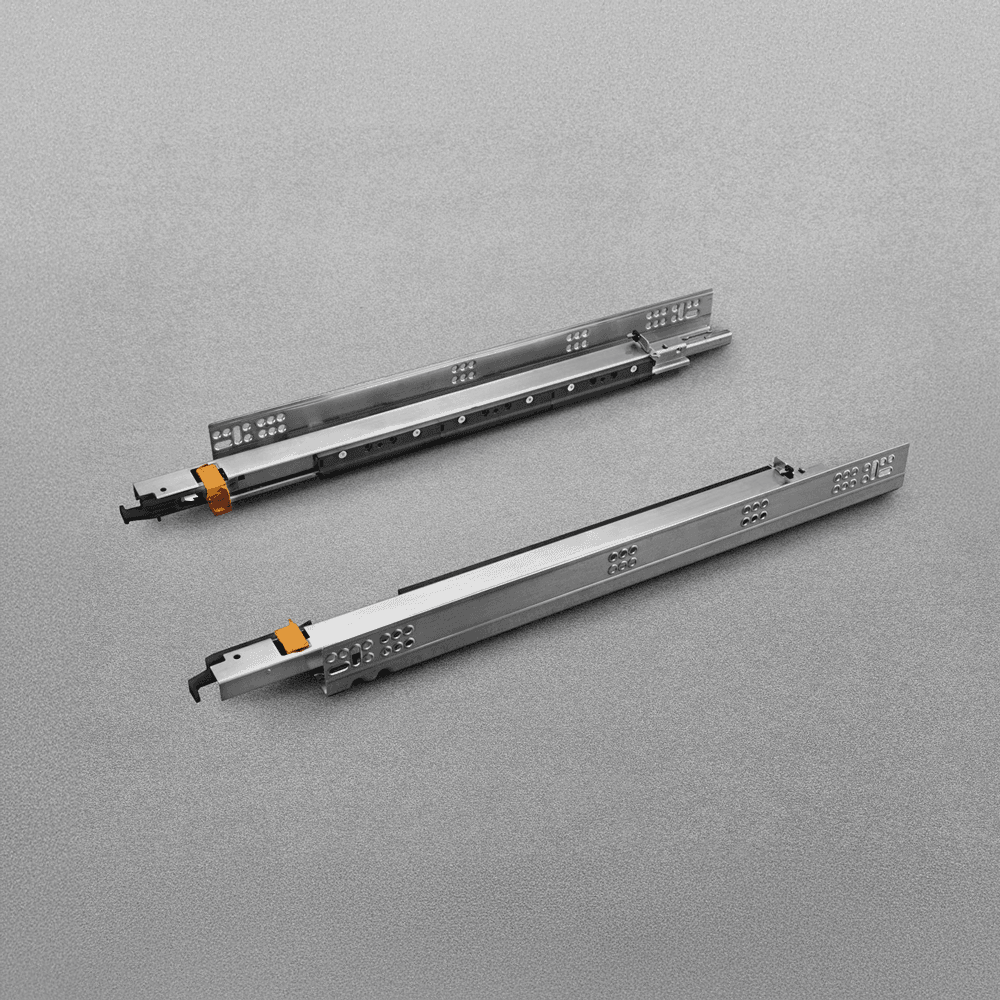

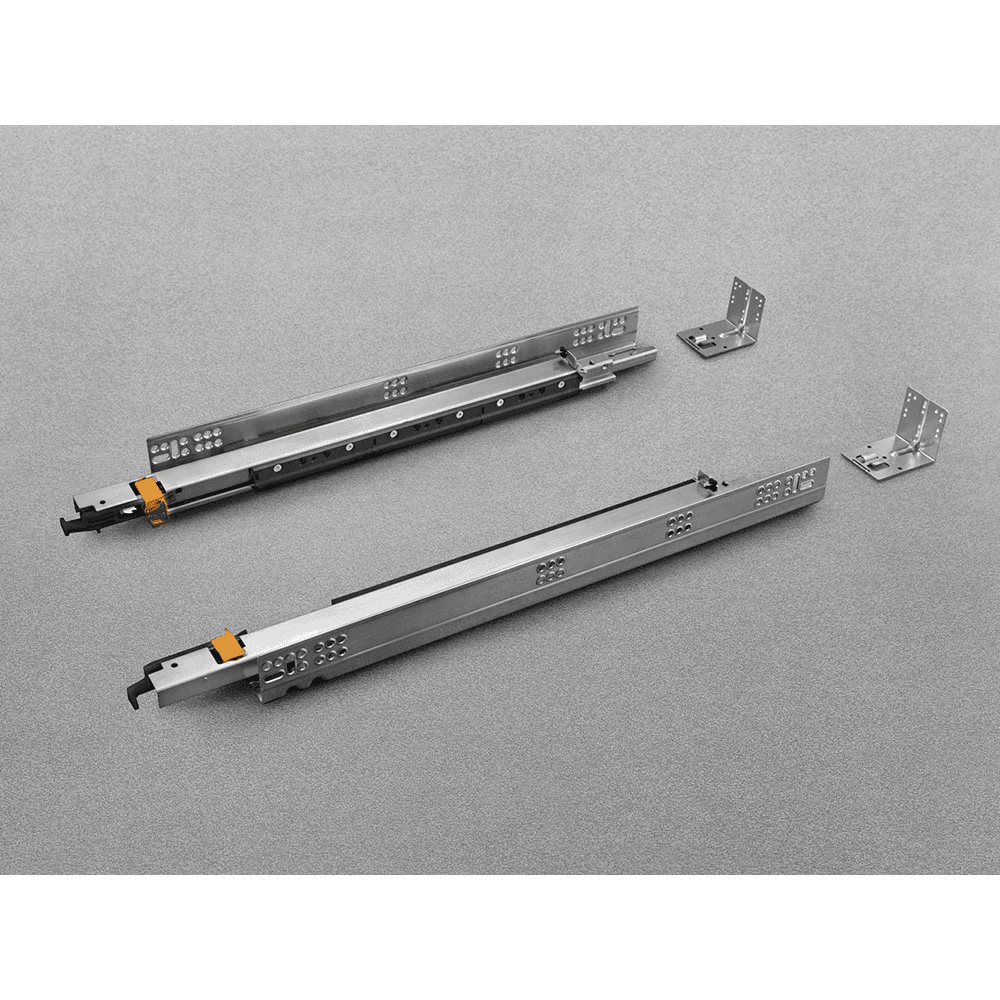

Progressa Undermount Drawer Runner with 120lb Capacity, Full-Extension, Soft-Closing, 15", Bright Zinc-Plated
6 items
Length: 392mm
Drawer Length: 15"
Product Details
Progressa SMOVE Undermount Drawer Slides for Faceframe or Frameless Applications, Up To 3/4" Drawer Thickness. Progressa SMOVE is a new generation of drawer slides. Rated at 120 Lbs Static load capacity they are suitable for all drawer opening applications. Features: • 120 Lbs Static load capacity • Full extension with a synchronized mechanism • Enhanced smooth soft closing action • Elongated holes for depth and height adjustment • Adjustable clips allow for easy drawer insertion and removal, special clip for narrow drawers • Tool free height adjustments + 2.5 mm • Tool free depth adjustments +/- 3 mm • Tool free side adjustments +/- 1.5 mm • Meets and exceeds Ansi BHMA A156.9-2020 Grade 1 standard; WI approved • Optional tool free tilt adjustment +3 mm • 19 mm (3/4”) drawer material thickness • Compatible with Lineabox drawers
Specifications
| Box Quantity | 6 |
| Length | 392mm |
| Finish | Bright Zinc-Plated |
| Drawer Length | 15" |
| Closing Type | Soft-Closing |
| Model | Progressa |
| Load Capacity | 120lb |
| Travel | Full-Extension |
| Product Type | Drawer Runner |
| Left or Right | |
| Cabinet Type | |
| Mounting Type | |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
