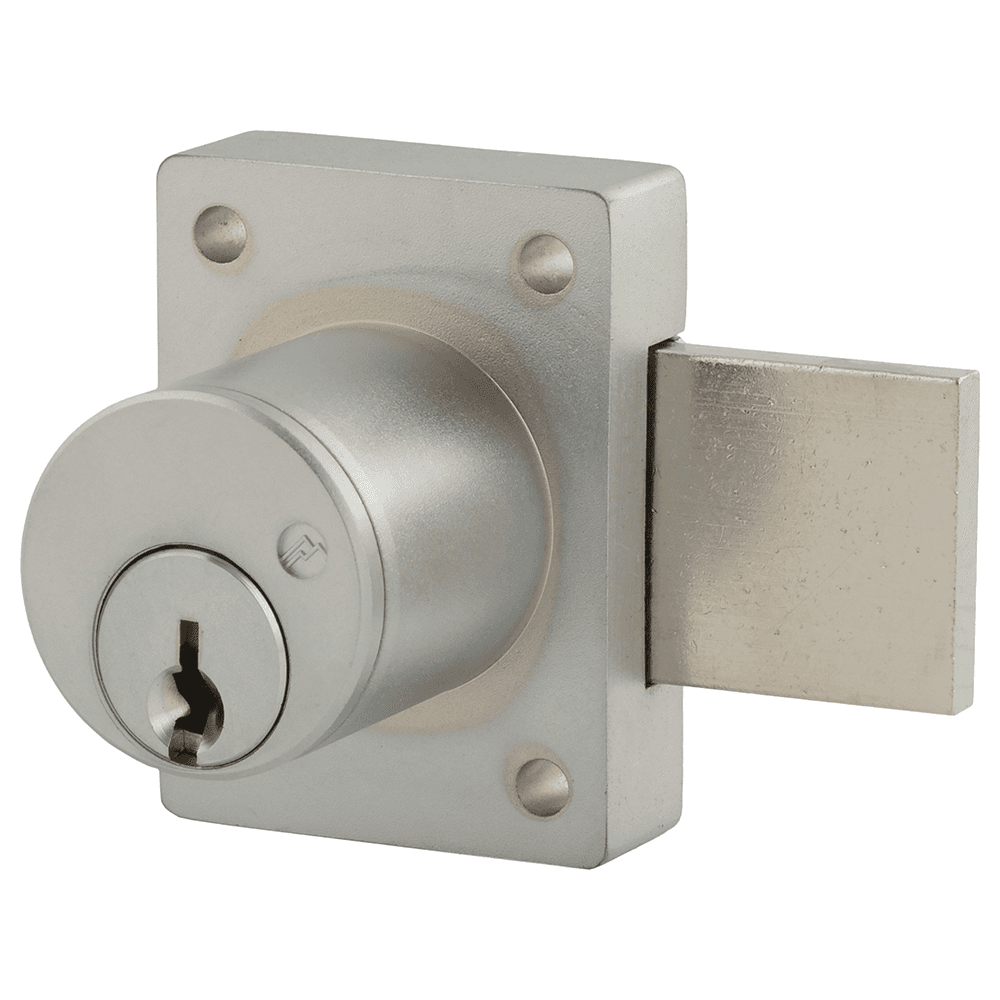

700 Schlage C Keyway Pin Tumbler Deadbolt Drawer Lock, Satin Chrome, Keyed to Alike #102, Cylinder Length 1-1/8"
10 items
Keyed As: Keyed Alike #102
Finish: Satin Chrome
Product Details
Features: • Schlage C keyway pin tumbler deadbolt drawer lock in satin chrome, keyed alike #102 key • Can be keyed together with other Schlage C Keyway locks • Easily rekeyable via set screw cylinder release mechanism • Passed ANSI/BHMA A156.11 Grade 1 performance requirements • Key removable in locked or unlocked position. Standard function locks are non-handed • Body: Zinc die cast; Cylinder: Solid Brass • Will accept other manufacturer′s Schlage compatible key-in-knob cylinders • Includes: (1-1/8" barrel length locks): 10-350 plastic spacers (qty 2), 10-054 1/4" plastic bar strike, 10-055 1/2" plastic bar strike; (1-3/8" barrel length locks): 10-054 1/4" plastic bar strike • Application: Drawers
Specifications
| Box Quantity | 15 |
| Keyed As | Keyed Alike #102 |
| Finish | Satin Chrome |
| Product Type | Deadbolt Lock |

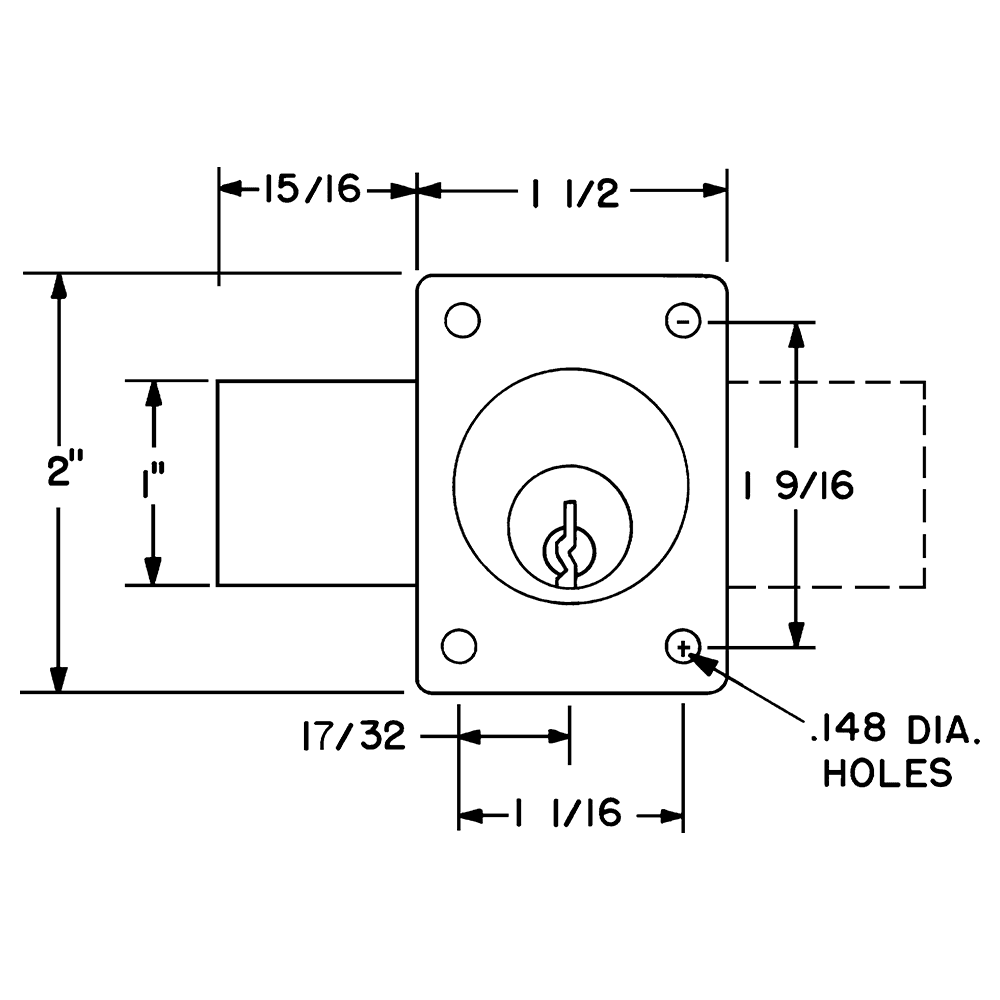

| Width | 1-1/2" |
| Height | 2" |
| Cam Length | |
| Depth | |
| Material | Zinc/Solid Brass |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | Doors |

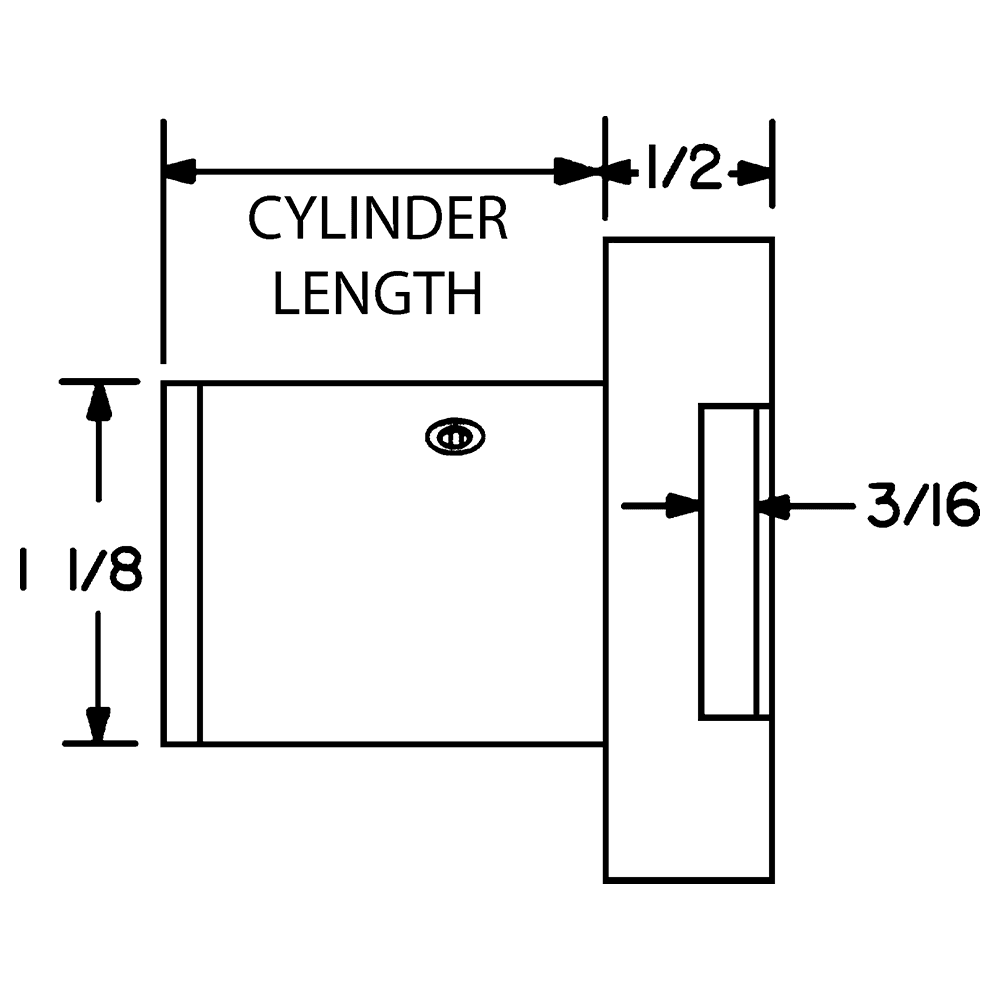

| Cylinder Diameter | 1-1/8" |
| Certifications | ANSI/BHMA A156.11 Grade 1 |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Pin |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
