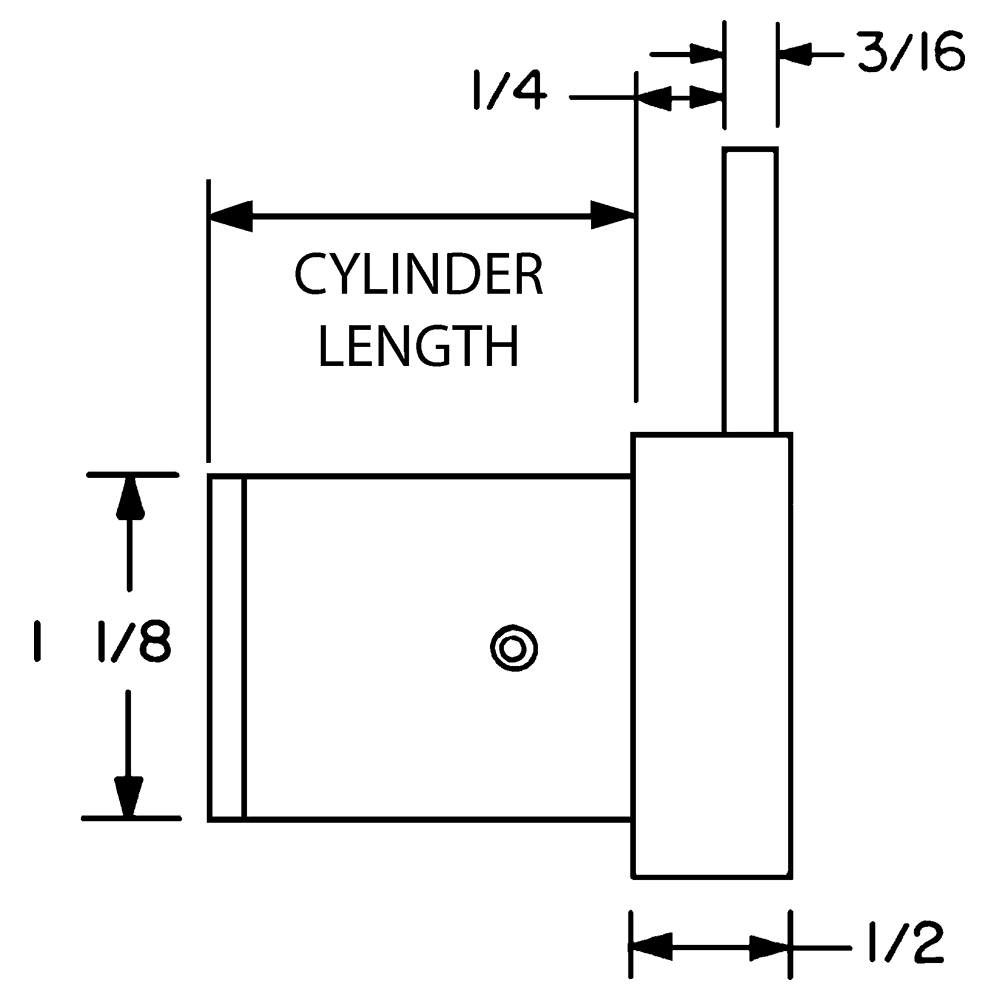

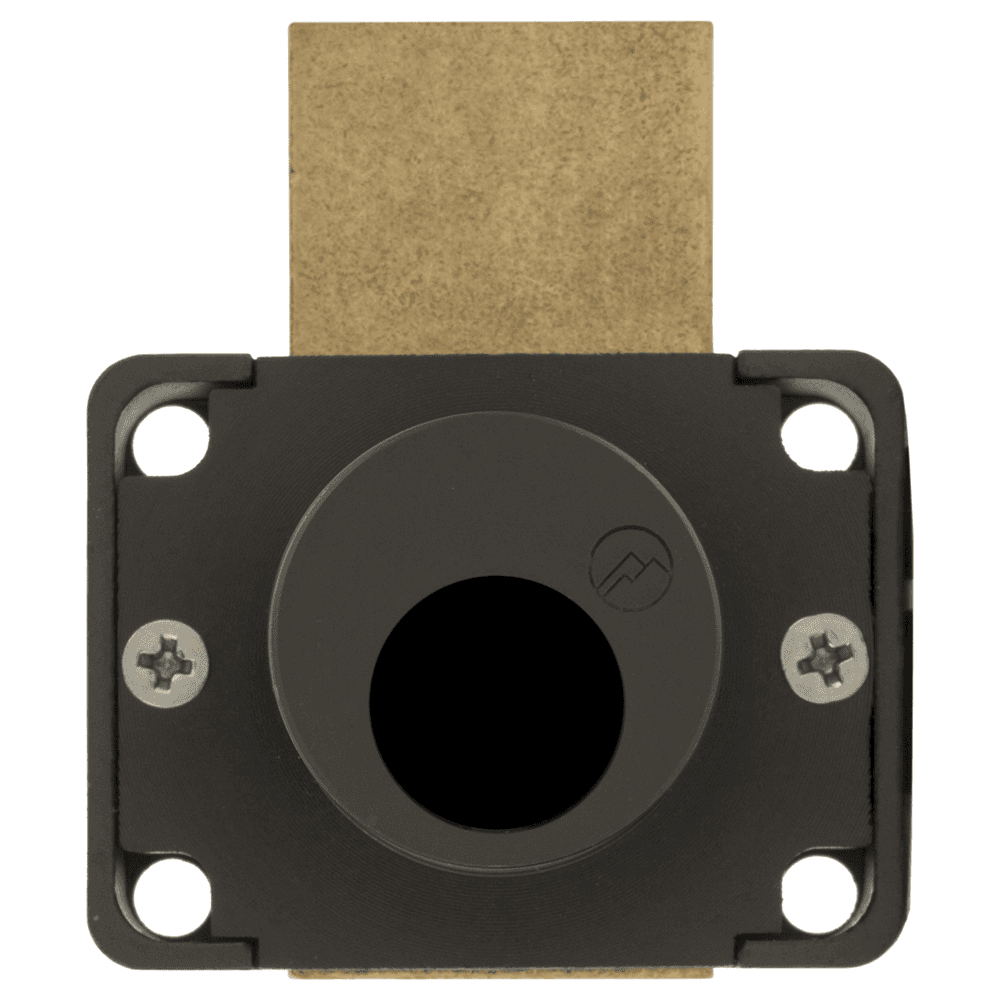

800LCM Schlage Less Deadbolt Drawers Lock Body, Oil Rubbed Bronze, Cylinder Length 1-3/8"
10 items
Finish: Oil Rubbed Bronze
Product Details
Features: • 800LCM schlage less cylinder deadbolt Drawers lock body in oil rubbed bronze finish • Easily rekeyable via set screw cylinder release mechanism • Passed ANSI/BHMA A156.11 Grade 1 performance requirements • Will accept other manufacturer′s Schlage compatible key-in-knob cylinders (not included) • Note: Cylinder not included • Keying: Not Included • Includes: 10-054 1/4" plastic bar strike, 10-360 universal driver, and 3 tailpieces for use with Schlage (10-362) compatible, Medeco (10-363) or Assa (10-364) cylinders
Specifications
| Box Quantity | 15 |
| Keyed As | |
| Finish | Oil Rubbed Bronze |
| Product Type | Lock Body |

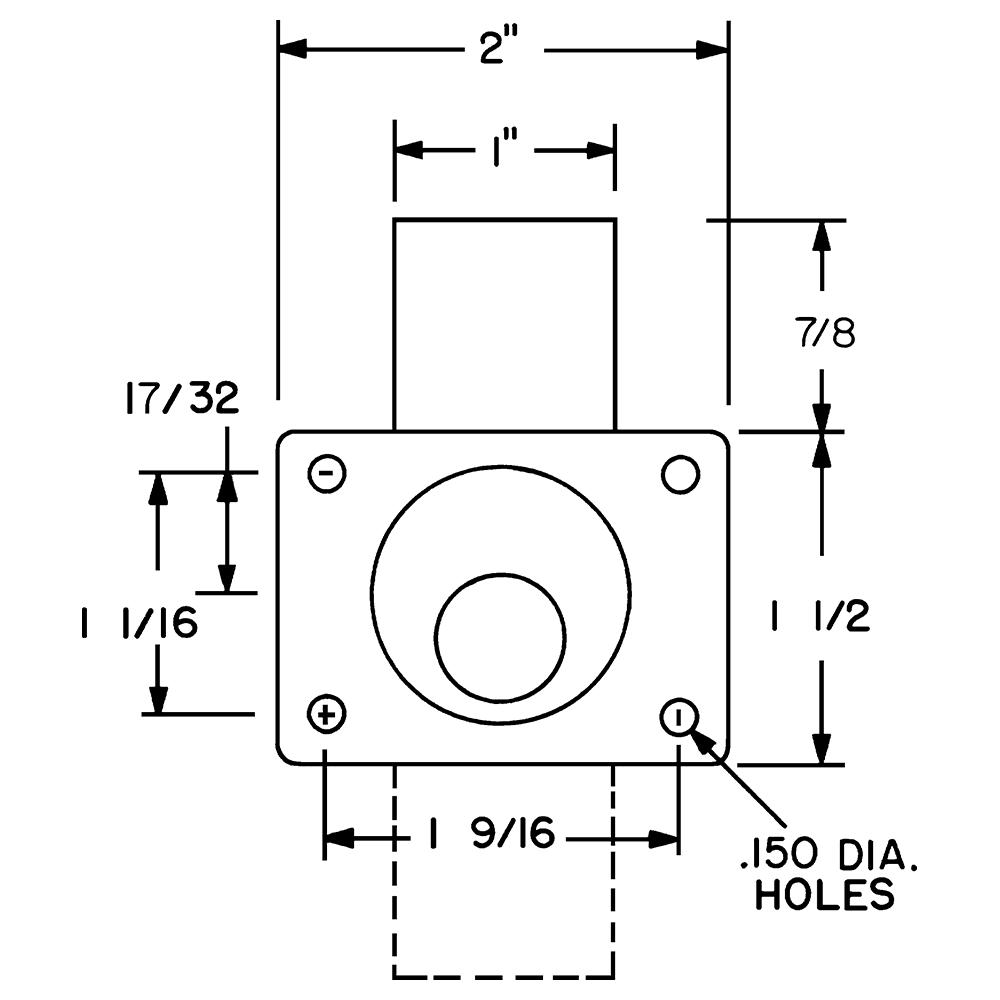

| Width | 2" |
| Height | 1-1/2" |
| Cam Length | |
| Depth | |
| Material | Zinc |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | Drawers |
| Cylinder Diameter | 1-3/8" |
| Certifications | ANSI/BHMA A156.11 Grade 1 |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
