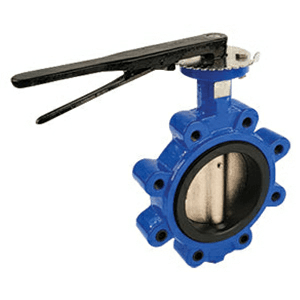

8" Lug Style Epoxy Coated Iron Body Butterfly Valve with EPDM Seal
Item # UNIPP703005
•Mfr # PP703005
Size: 8"
Product Details

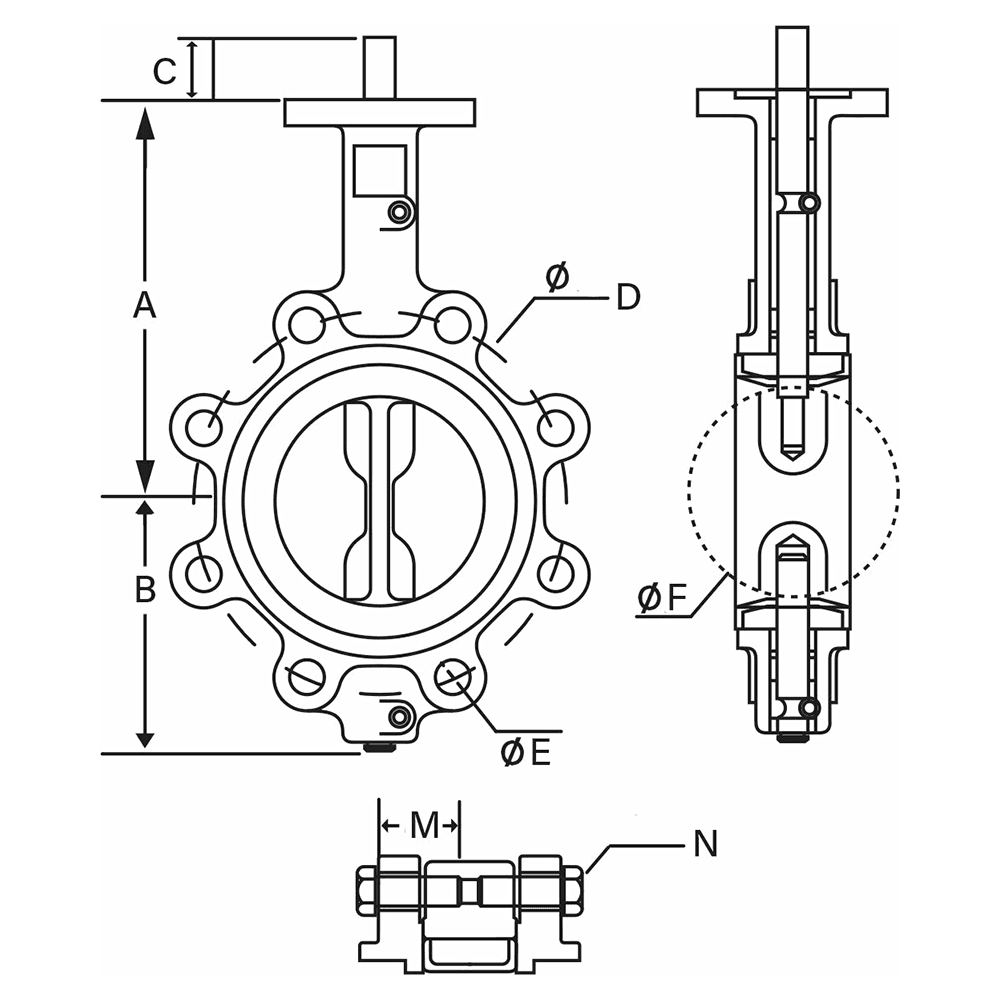

Features: • 8" Lug Style Epoxy Coated Iron Body Butterfly Valve with EPDM Seal • Weight: 40 lb • Max Working Pressure 225 PSI (15.5 bar) • Dimension of A Size: 10-15/64" • Dimension of B Size: 6-57/64" • Dimension of C Size: 1-39/64" • Dimension of D Size: 11-3/4" • Dimension of F Size: 7-51/64" • Dimension of M Size: 2" • Dimension of N Size: 3/4-10" UNC
Specifications
| Box Quantity | 1 |
| Product Type | Butterfly Valve |
| Gauge | |
| Size | 8" |
