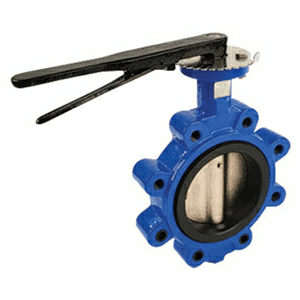

10" Lug Style Epoxy Coated Iron Body Butterfly Valve with EPDM Seal
Item # UNIPP703006
•Mfr # PP703006
$2,800.00
/Each
Size: 10"
Min Order: 1
Qty mult. by: 1
Product Details

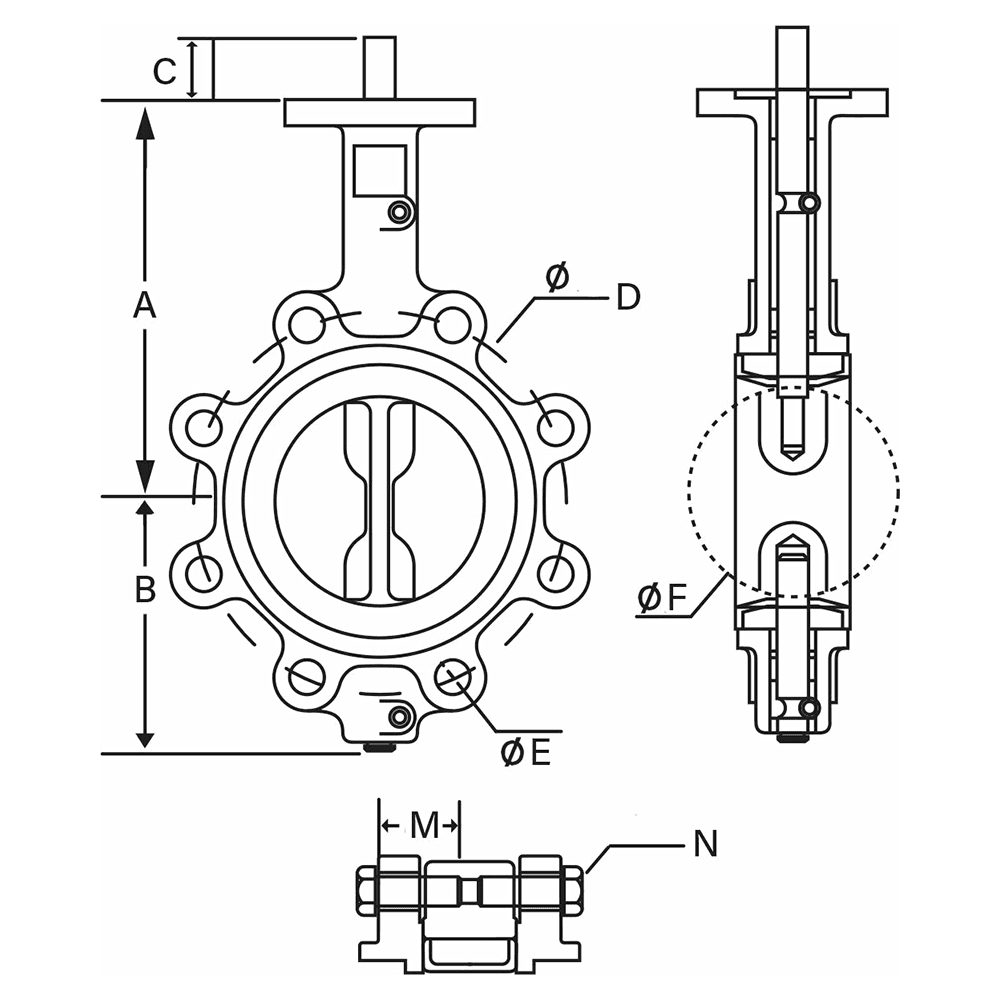

Features: • 10" Lug Style Epoxy Coated Iron Body Butterfly Valve with EPDM Seal • Weight: 59 lb • Max Working Pressure 225 PSI (15.5 bar) • Dimension of A Size: 11-1/2" • Dimension of B Size: 3-47/64" • Dimension of C Size: 1-17/64" • Dimension of D Size: 6" • Dimension of F Size: 9-55/64" • Dimension of M Size: 2-1/4" • Dimension of N Size: 7/8-9" UNC
Specifications
| Box Quantity | 1 |
| Product Type | Butterfly Valve |
| Gauge | |
| Size | 10" |
