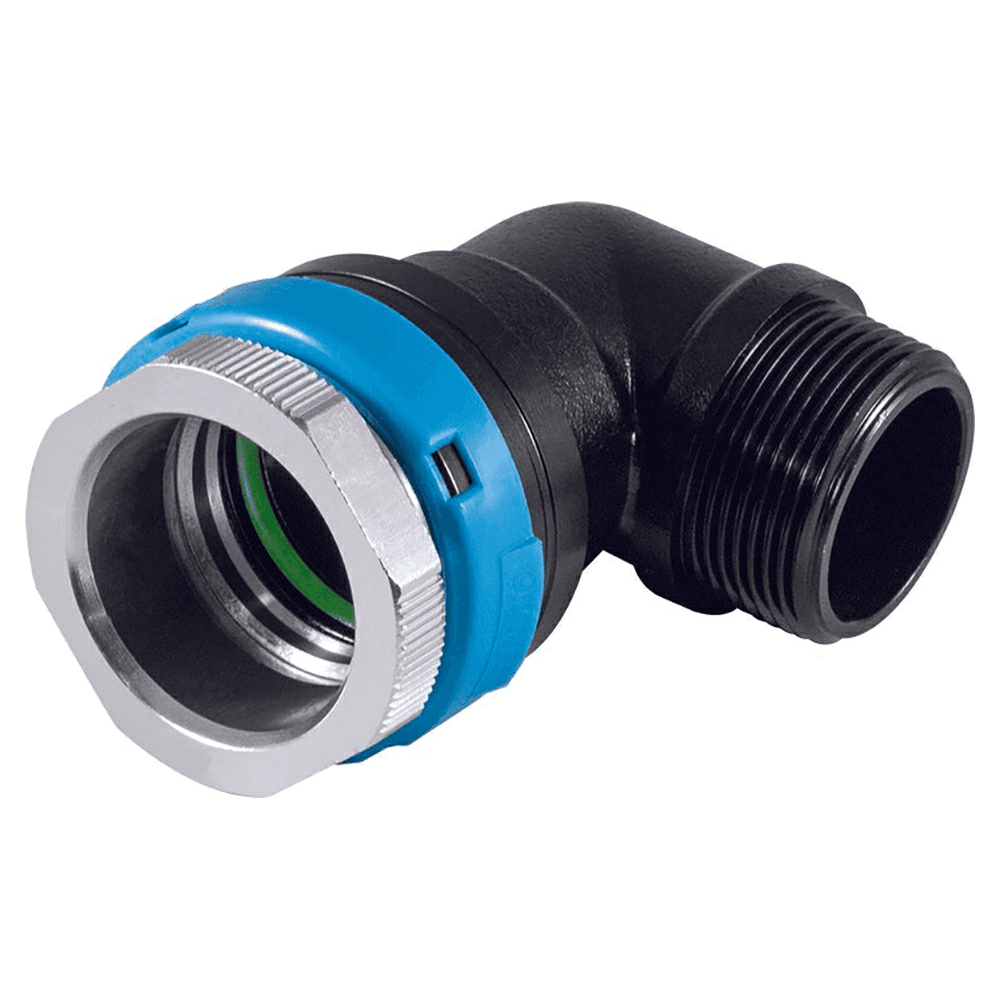

20mm x 90° Elbow with 1/2" MNPT
Item # UNIUACM9.020015N
•Mfr # UACM9.020015N
Size: 20mm
Product Details

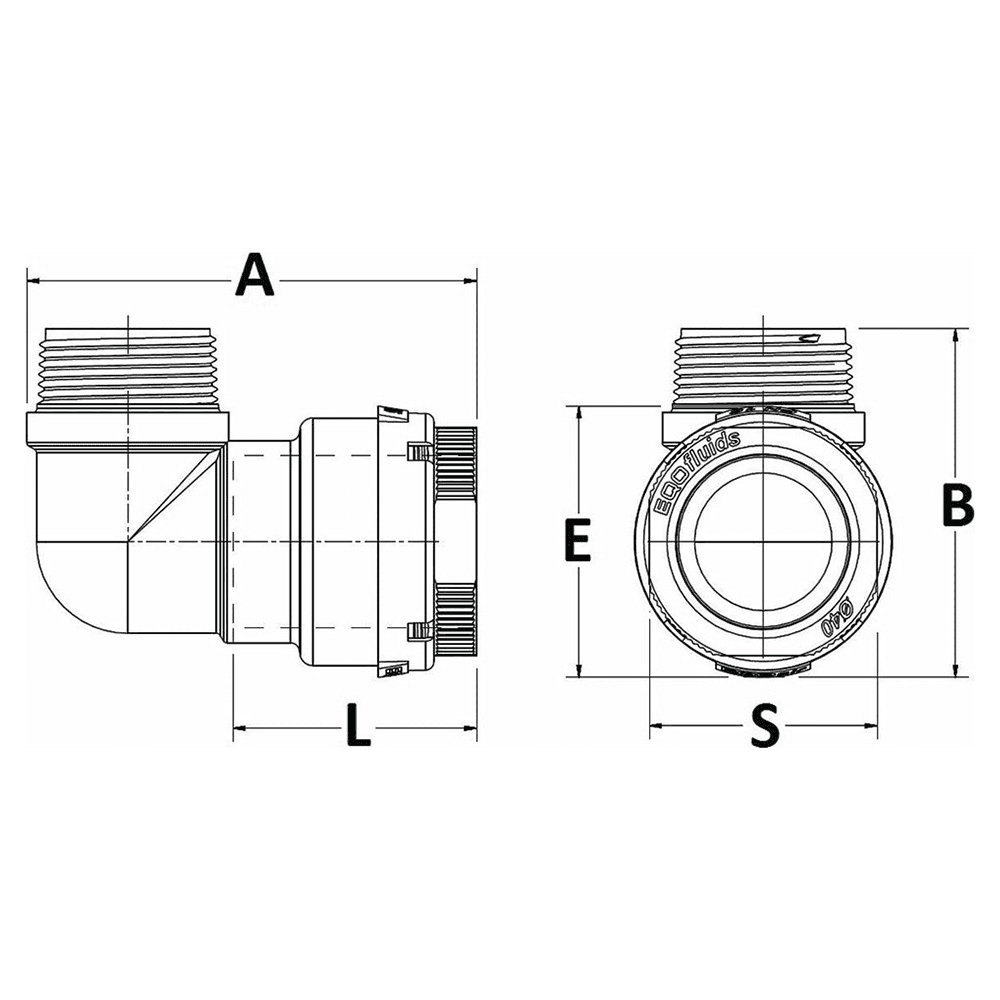

Features: • 20mm x 90° Elbow with 1/2" MNPT • Weight: 1.8 oz • For Compressed Air (also rated for oils and coolants) • Max Working Pressure 232 PSI (16 bar) • Dimension of A Size: 62mm • Dimension of B Size: 48mm • Dimension of E Size: 37mm • Dimension of L Size: 35mm • Dimension of S Size: 29mm
Specifications
| Box Quantity | 1 |
| Product Type | Elbow |
| Gauge | |
| Size | 20mm |
