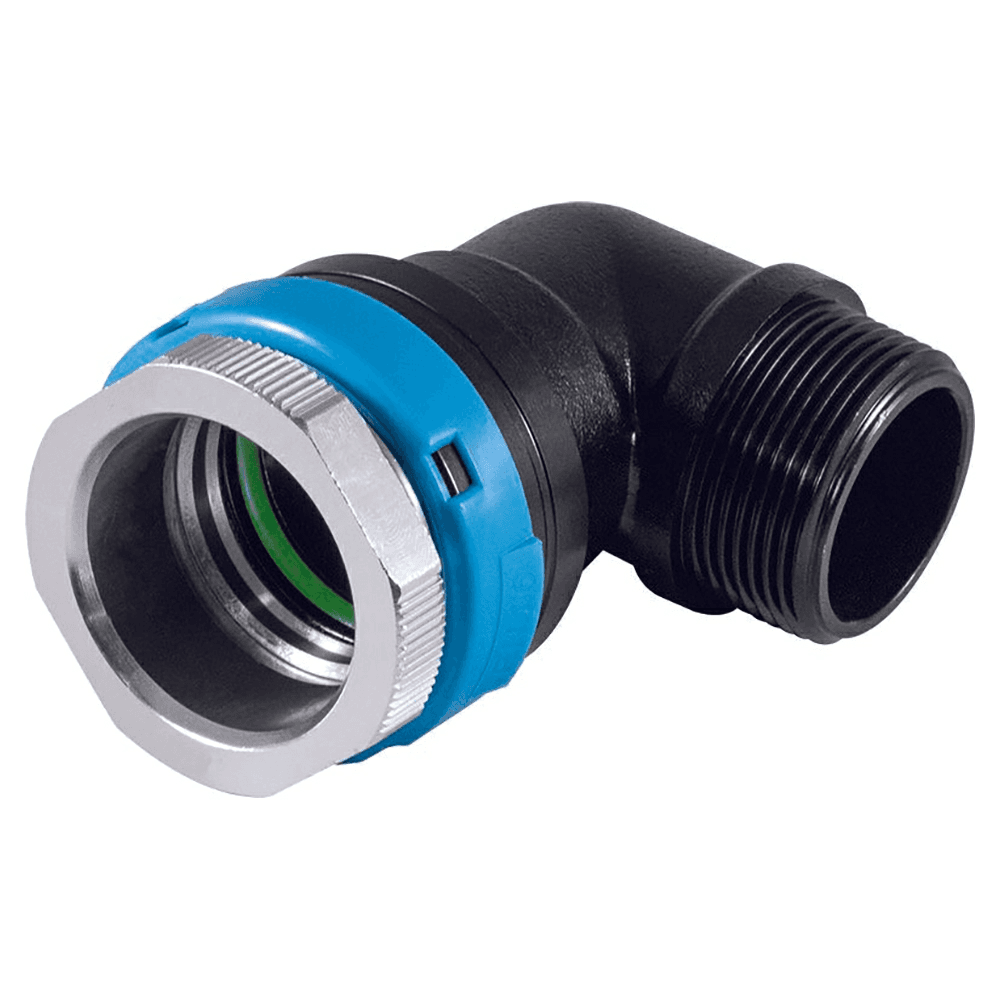

32mm x 90° Elbow with 1" MNPT
Item # UNIUACM9.032025N
•Mfr # UACM9.032025N
Product Details

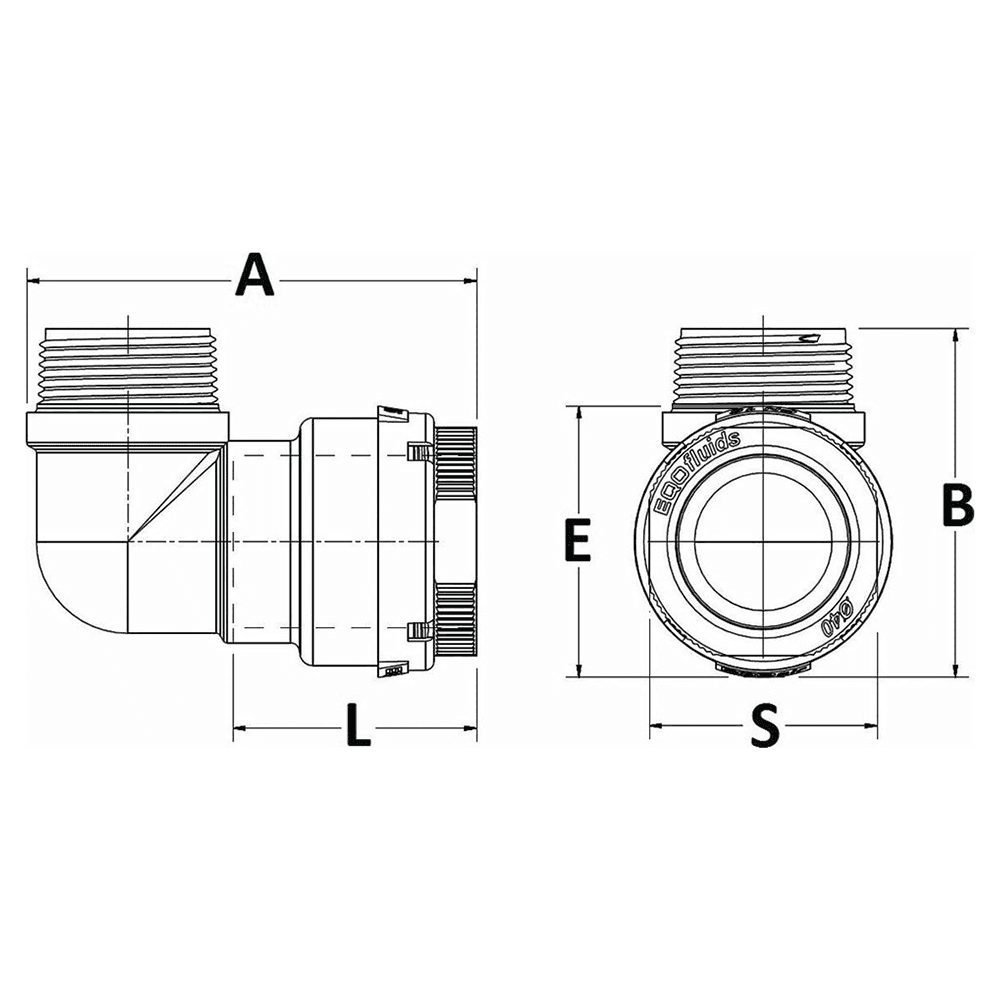

Features: • 32mm x 90° Elbow with 1" MNPT • Weight: 4.9 oz • For Compressed Air (also rated for oils and coolants) • Max Working Pressure 232 PSI (16 bar) • Dimension of A Size: 87mm • Dimension of B Size: 70mm • Dimension of E Size: 51mm • Dimension of L Size: 46mm • Dimension of S Size: 43mm
Specifications
| Box Quantity | 1 |
| Product Type | Elbow |
| Gauge | |
| Size | 32mm |
