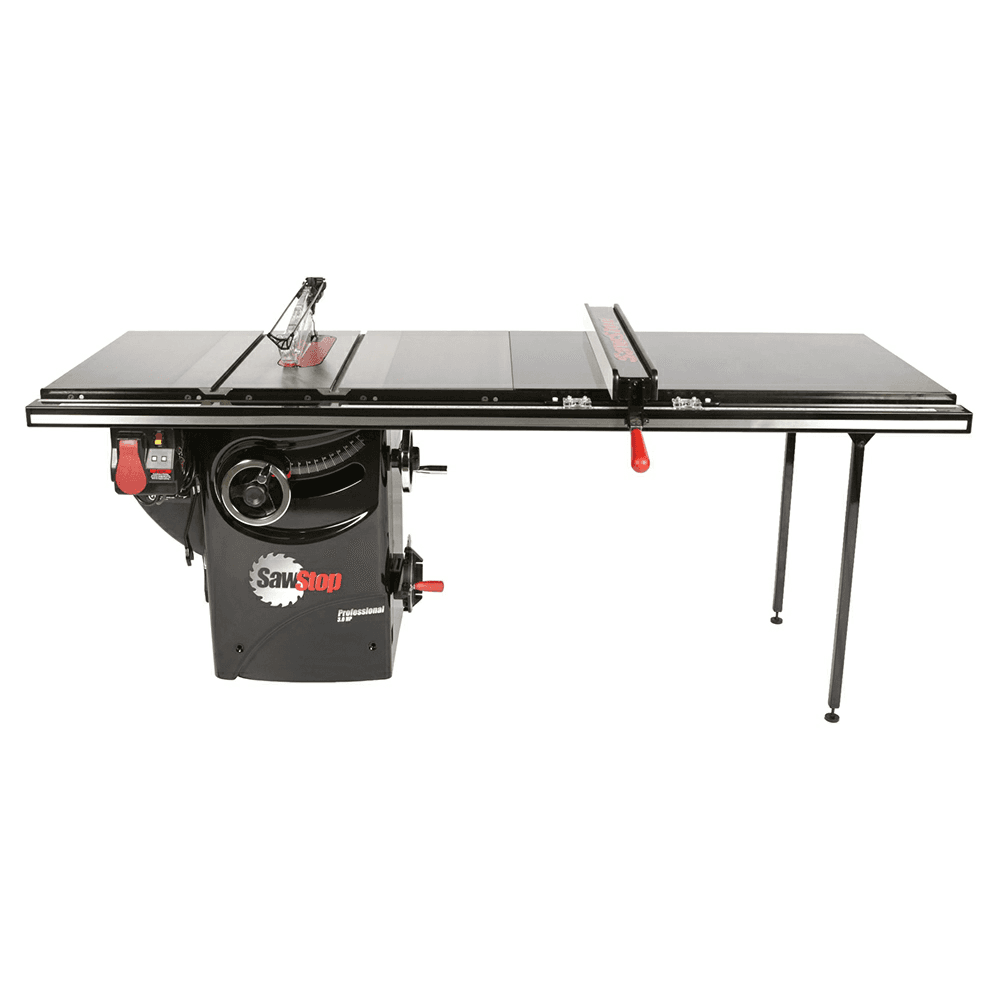

The SawStop 3HP Professional Cabinet Saw with 52" Professional T-Glide Fence System offers versatility and safety. It delivers the performance you need with the peace of mind only SawStop's revolutionary safety system can provide.
The Professional Cabinet Saw is SawStop™s top selling cabinet saw, offering unmatched fit and finish and best-in class-cutting performance.
52" Premium Fence Assembly:
• This aluminum fence assembly provides smooth operation and precise measurement
Unmatched Quality:
• The trunnion and arbor are built for precision, strength and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at 0.010" maximum gap
Dust Collection:

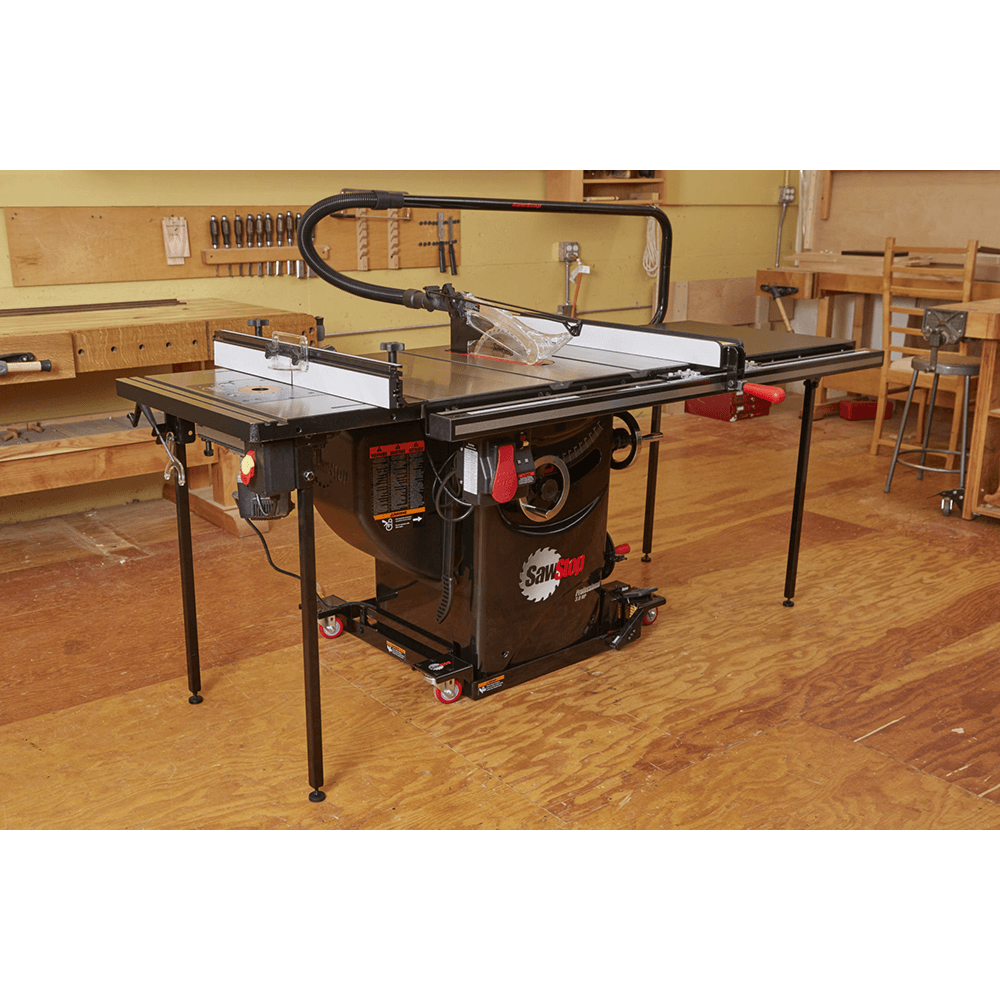

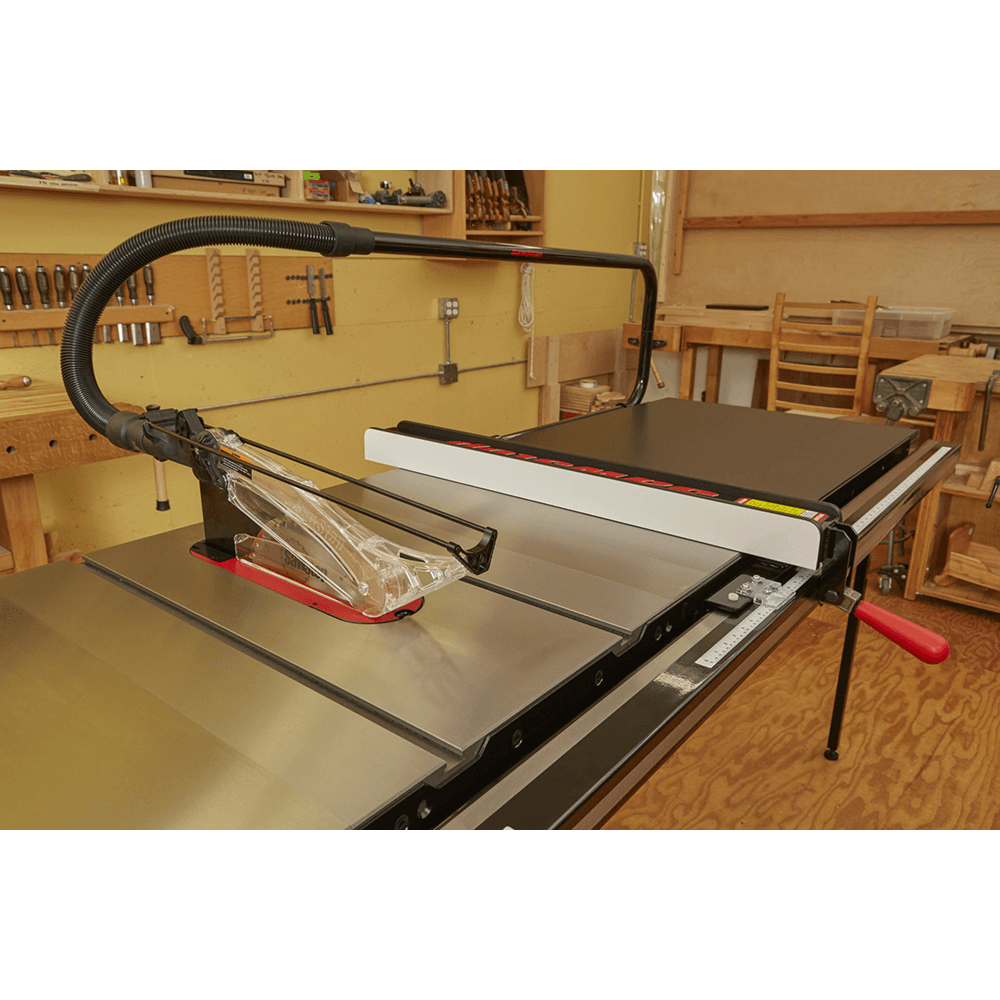

• 99% dust collection is delivered above the table with the available dust collection blade guard and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4" port
SawStop Patented Safety System:
• Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch
Reliability:
• The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe
3HP Motor:
• The 3HP motor gives you the extra power you need to quickly rip most materials you come across
Features:
• The PCS is SawStop's most popular table saw featuring best-in-class cutting performance
• Revolutionary SawStop Safety System stops on contact with skin
• Unmatched fit and finish with a keen attention to detail
• The 52" Professional T-Glide Rip Fence is a heavy-duty T-square-style fence that is familiar, intuitive and reliable
• Compatibility: PCS
• 2 Years warranty
• 52" Rip Capacity: PCS175 or PCS31230 -TGP252: 52" T-Glide Fence Assembly
• Motor Option(s) (60Hz TEFC): 1.75 or 3 HP available
• Motor Configuration 2 PCS31230: 3 HP, 1 phase, 230v, 13 A, Plug: NEMA 6-15P w/9™ cord
• Saw body footprint: 19-3/8" W x 19-3/8" D (Cabinet)
• Cast iron table: 20" W x 27" D
• Extension wings: 12" W x 27" D each
• Cast iron table (w/ extension wings): 44" W x 27" D
• Extension table 52 in: 40-1/8" W x 27" D
• Assembled weights - w/ 52 in fence systems: 449 lbs.
• Weights - table saw only: 335 lbs.
• Blade: 40-tooth, prof. grade, 5/8" arbor
• Blade diameter: 10"
• Blade tilt: Left
• Blade kerf: 0.118" (3mm)
• Blade plate thickness: 0.078" (2mm)
• Max. depth of cut, blade at 0º: 3 1/8"
• Max. depth of cut, blade at 45º: 2-1/4
• Max. rip, left of blade (w/36" or 52" T-Glide Fence): 12-1/2"
• Max. rip, right of blade (w/52" Fence): 52-1/2" (w/optional 52" rails)
• Dado diameter: 8" (requires dado brake cartridge & insert)
• Dado max. width: 29/32"
• Arbor diameter at blade: 5/8"
• Main bearing size: 62mm OD x 30mm ID
• Second bearing size: 52mm OD x 25mm ID
• Table in front of blade (max. elevation): 10-1/4"
• Table behind blade (max. elevation): 7-1/2"
• Arbor Runout: 0.001" Maximum allowable runout
• Table flatness measured diagonally: 0.010" Maximum gap
• Blade alignment with miter slot: 0.010" Maximum displacement
• Deviation of miter gauge indexing stops from actual: ±0.25º
• Alignment between splitter and blade: 0.010" Maximum difference
• Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
• Miter slots center: 11-1/8" center-to-center
• Miter slots info: 5-1/2" (arbor flange to center of right slot)
• Dust collection port diameter: 4"
• Riving knife / splitter thickness: 0.090" (2.3 mm)

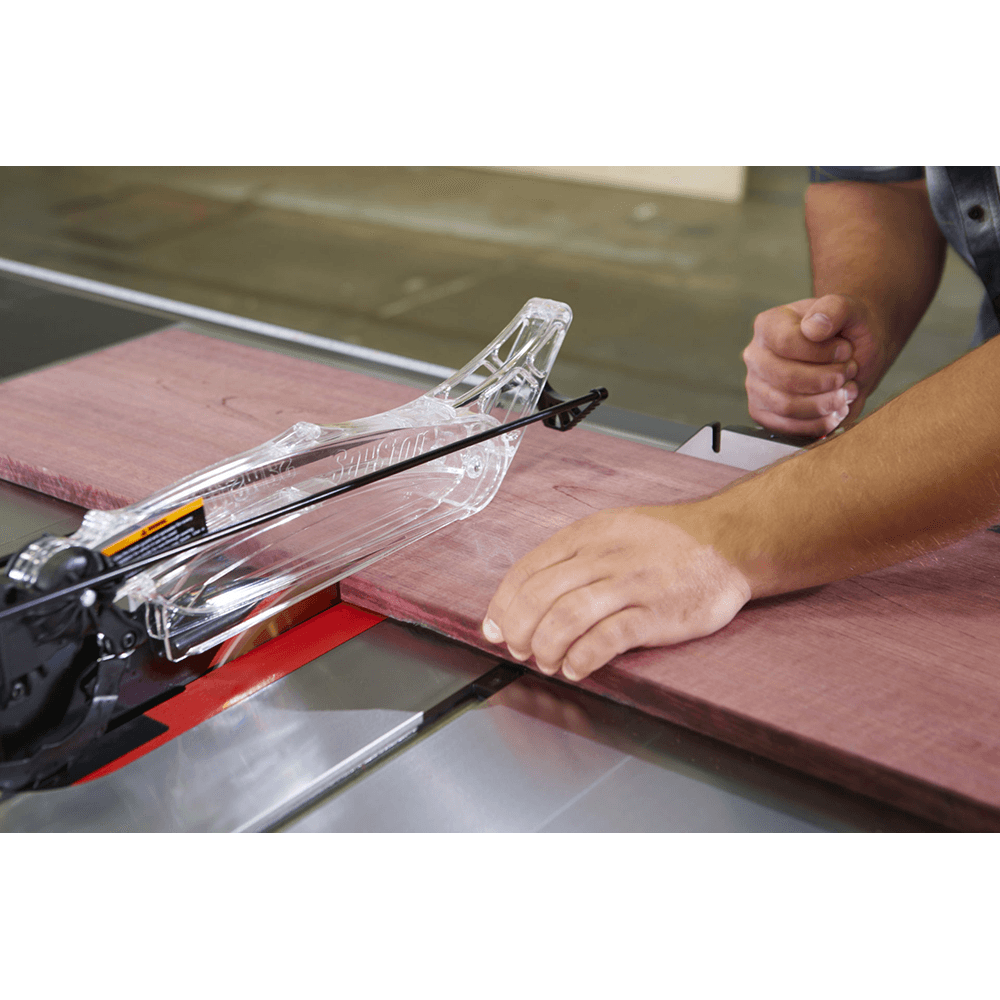

• Dust collection blade guard (standard on 3 HP saws) polycarbonate, extends 1-3/16" right of blade
• Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
• Insert: zero clearance, phenolic core, melamine surfaces

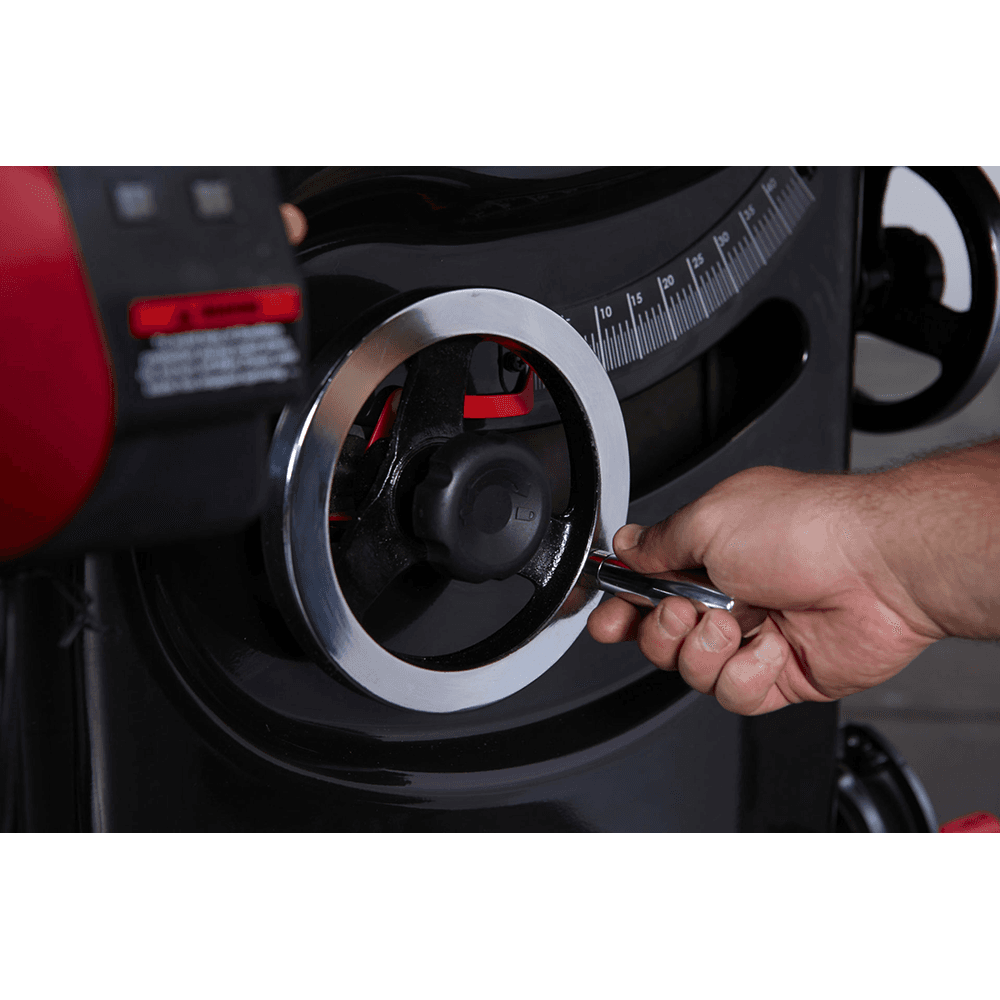

• Hand wheels: 7" diameter, cast iron w/ chrome handle
• Belts: 2 V-ribbed belts - arbor b. static dissipative
Includes:
• (2) Cast Iron Extension Wings
• (1) Miter Gauge
• (1) Micro Blade Guard (1.75HP Models)
• (1) Dust Collection Blade Guard (3HP Models)
• (1) Riving Knife
• (2) Blade Wrenches
• (1) Push Stick
• (1) 10" Blade
• (1) Standard Lockdown Insert
• (1) Standard Brake Cartridge
• (1) Owner™s Manual
• (2) Hardware Packs
• (1) 3mm Hex Key
• (1) 5mm Hex Key
• (1) 8mm Hex Key
• (1) Blade Spacing Adjustment Gauge
