Edgebanding For Thick Panels and Tall Door Faces

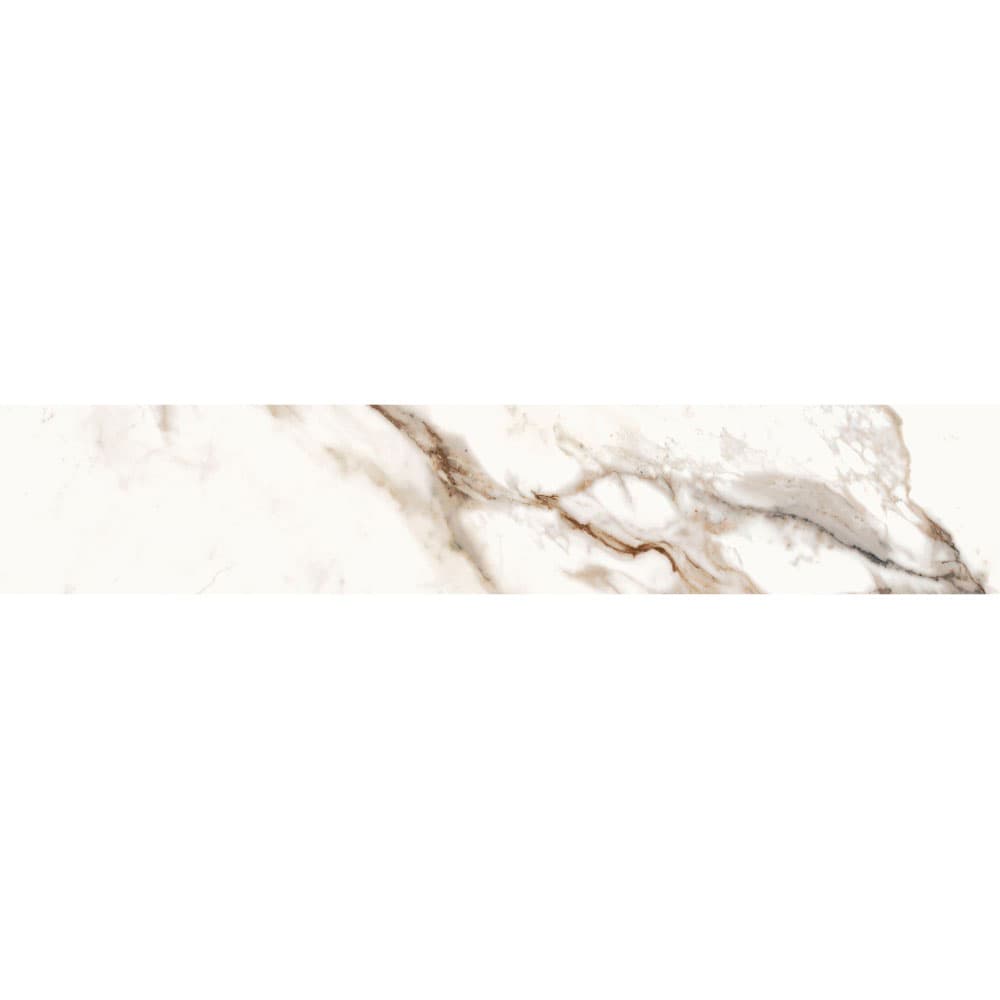

This is the Saviola collection's GSA83 Calacatta ABS edgebanding in 65mm width, supplied on a 328-foot production roll at 1 mm thick with a blunt finish. At 65mm, the strip is wide enough to band a thick panel or a stacked construction and still leave a clean trimming margin on both faces. The Calacatta decor carries the stone-veined look of the matching Saviola panel line right to the cut edge, so the finished component reads as a continuous surface rather than a faced board with an exposed core.
Key Features
- 65mm width provides enough overhang to trim flush on thicker substrates and stacked panel constructions.
- ABS polymer construction is chlorine-free, satisfying specifications that restrict PVC edgebanding.
- 1 mm thickness delivers a solid, durable edge that machines and scrapes cleanly on standard edgebanding equipment.
- Blunt finish means the roll ships with square, uncoated ends ready for machine application without additional prep.
- 328-foot production roll is sized for shop runs and volume work, minimizing roll changes across a large job.
- GSA83 Calacatta decor matches the Saviola panel collection, so the veined stone pattern continues from face to edge without a visible color break.
Where This Width Earns Its Place
Most panel programs stock edgebanding in 23mm as the workhorse width, with 43mm and 65mm serving specific situations. The 65mm width becomes the right call when the substrate is thicker than a standard 19mm board — think stacked tops, post-formed components, or structural panels in the 25mm to 40mm range. It also suits designs where the edge is deliberately featured, such as a thick floating shelf or a waterfall countertop transition, because the wider band allows a deeper reveal before the trim cut. On a Calacatta-patterned panel the stone veining should carry through the edge seamlessly, and the 65mm format gives the pattern enough width to read rather than disappear into a narrow strip.
Material and Construction
ABS edgebanding is the European decorative panel industry's standard because the polymer is chlorine-free and dimensionally stable, making close color and texture matching possible across different materials. Where a specification restricts PVC — increasingly common in healthcare, education, and commercial interiors — ABS is the direct substitute that does not require a product change on the panel side. At 1 mm, this banding is thick enough to survive the scraping and routing steps on an automatic edgebander without risking a tear-through, and thin enough that the edge profile stays tight against the face rather than building a visible step. The blunt finish indicates the roll is ready for hot-melt machine application straight off the spool.
Who Stocks This Roll
Cabinet shops running Saviola panels in the Calacatta decor will pull this roll to close every cut edge on the job. At 328 feet per roll, a single roll covers a meaningful production run without mid-job reordering. Design-build firms and commercial millwork houses specifying stone-look casework for hospitality or healthcare interiors will find the 65mm width necessary anywhere the panel thickness pushes past the standard 19mm. For smaller one-off projects, the 328-foot length is a larger commitment, so it makes the most sense when a shop is running multiple Calacatta jobs in sequence or carrying the color as a house stock.
Does this edgebanding require a special adhesive or machine setting?
This is an unglued ABS roll, applied with standard hot-melt adhesive on an automatic edgebander. No special adhesive type is required beyond what the machine already uses for other ABS banding. Follow the equipment manufacturer's temperature settings for 1 mm ABS stock.
Can this 65mm banding be trimmed down for use on a thinner panel?
Yes. A 65mm band trims flush on panels from 19mm up through the full 65mm width. On a standard 19mm panel the overhang is significant but the edgebander's flush trim removes it cleanly. Shops often stock the wider width intentionally so a single roll covers multiple panel thicknesses in the same color.
Is this the only roll length available in GSA83 Calacatta at 65mm?
In the Saviola collection, the 65mm width is available in the 328-foot production roll. The shorter 54-foot roll is offered only in the narrower 43mm width within this collection, so the 328-foot roll is the stocking unit for 65mm.
How does the Calacatta decor hold up against the matching panel after trimming and scraping?
ABS banding is produced with the decor layer integrated through the material, not printed on a surface skin, so the trim and scrape step does not expose a plain substrate layer at the edge. The Calacatta pattern remains visible at the trimmed edge face.
The Right Edge for a Finished Stone Look
When the panel face is doing the work of a Calacatta stone pattern, the edge is where that story either holds together or falls apart. This 65mm ABS roll in GSA83 keeps the transition clean across thick substrates and featured edges, so the finished cabinet or component looks deliberate from every angle.
