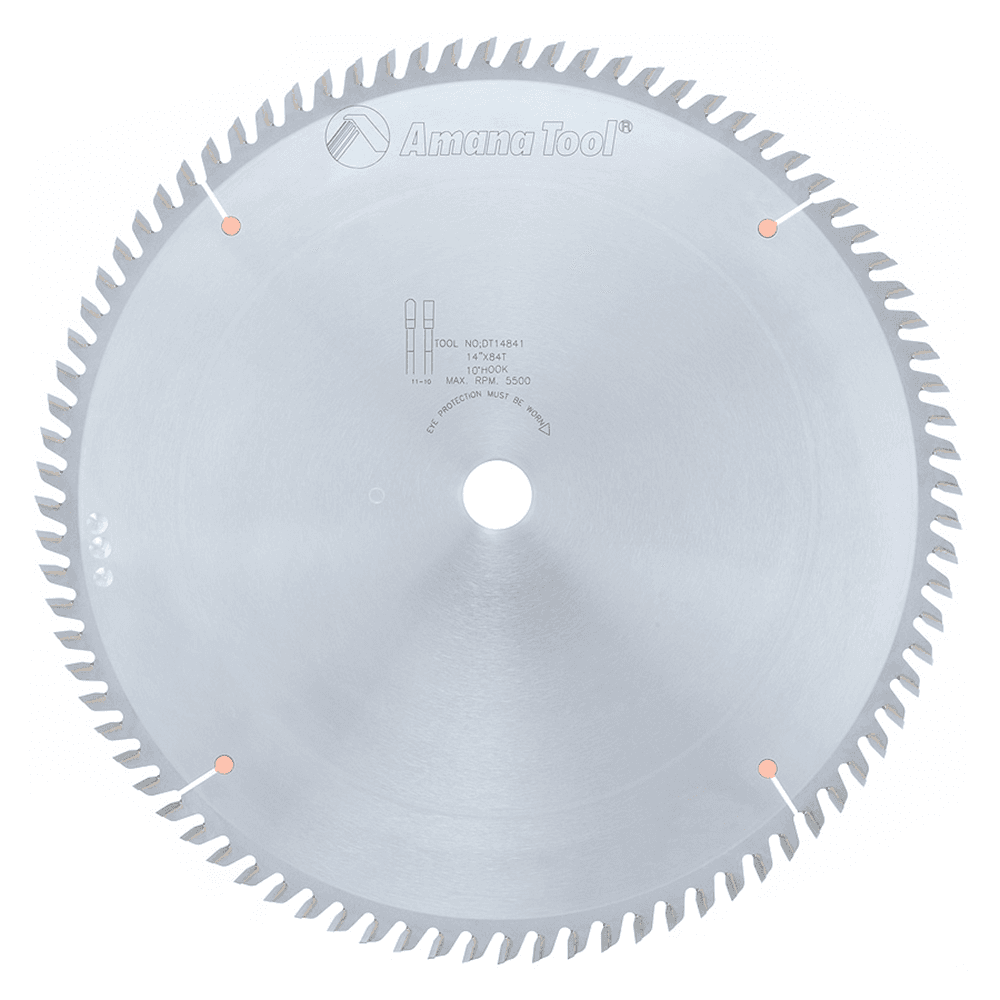

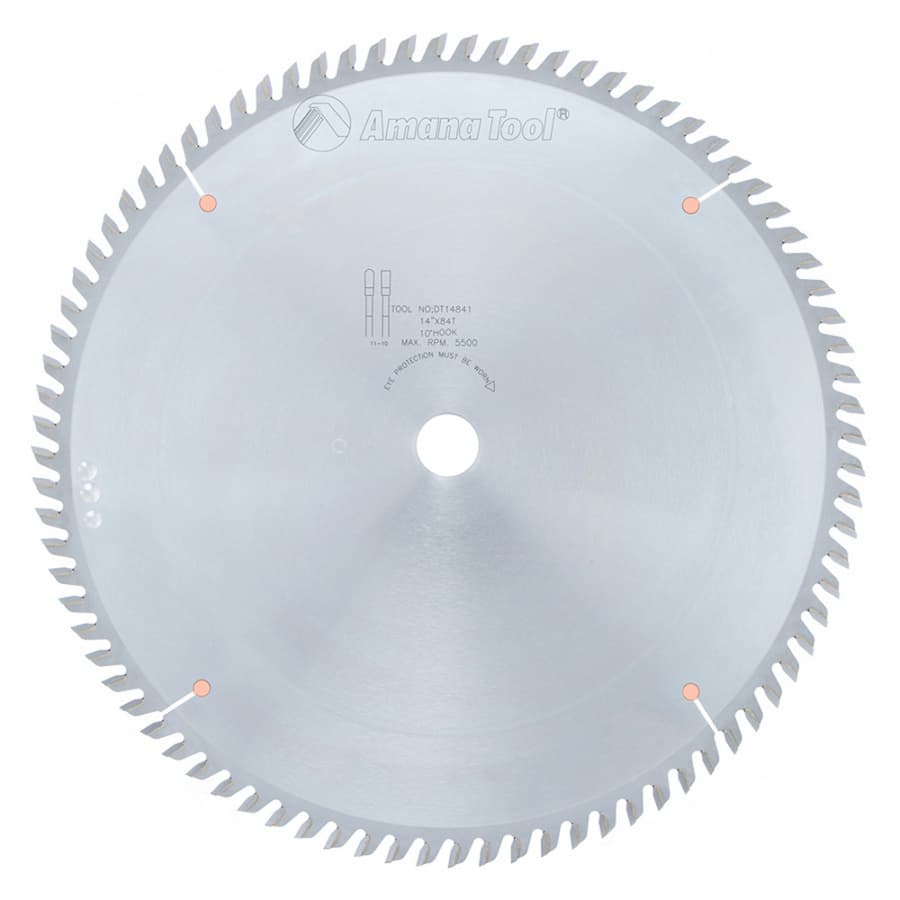

14" x 84 Teeth Cross-Cut Sliding Table Saw Blade
Item # ANDT14841
•Mfr # DT14841
$258.26
/Each
Min Order: 1
Quantity Multiple by: 1
Product Details

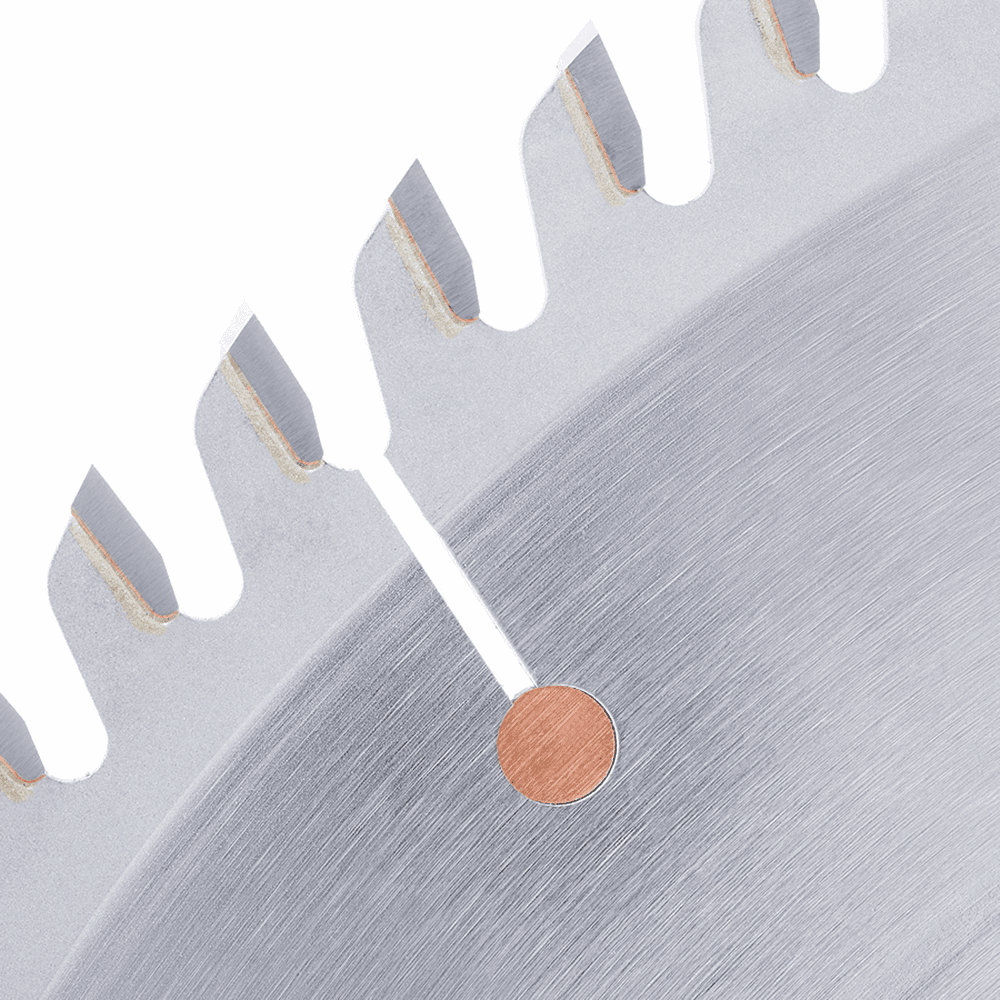

This high-performance crosscutting blade is designed primarily for use in sliding table saws, such as Striebig, Altendorf, SCMI and Delta models. They are also suitable for use in regular table saws. The blades incorporate an exceptional array of features: high tooth count, expansion slots and turbulence-dampening copper plugs. The DITEC carbide tips add exceptional sharpness and long tool life to these features. TC grind is for MDF, OSB, HDF, single or double-sided melamine and plastic laminated panels.
Features:
• Exclusive DITEC Carbide Tips
• Higher Reliability and Lower Maintenance
• Low Noise Level
• Laser Cut Saw Bodies
• Excellent Cutting Quality
Instructions for Grinding:
• For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate
• Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade
• Since the carbide in the DITEC is harder than other carbides, it is critical that you protect them from "thermal shock" if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC carbide
Features:
• Exclusive DITEC Carbide Tips
• Higher Reliability and Lower Maintenance
• Low Noise Level
• Laser Cut Saw Bodies
• Excellent Cutting Quality
Instructions for Grinding:
• For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate
• Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade
• Since the carbide in the DITEC is harder than other carbides, it is critical that you protect them from "thermal shock" if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC carbide
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Application | Plastic Laminate |
| Arbor | 1" |
| Blade Diameter | 14" |
| Blade Type | Cross-Cut |
| Blade Material | Carbide Tipped |
| Kerf | 3.5mm |
| Number of Teeth | 84 |
| Bore Diameter | 1" |
| Hook Angle | 10° |
| Tooth Grind Type | Triple Chip Grind |
