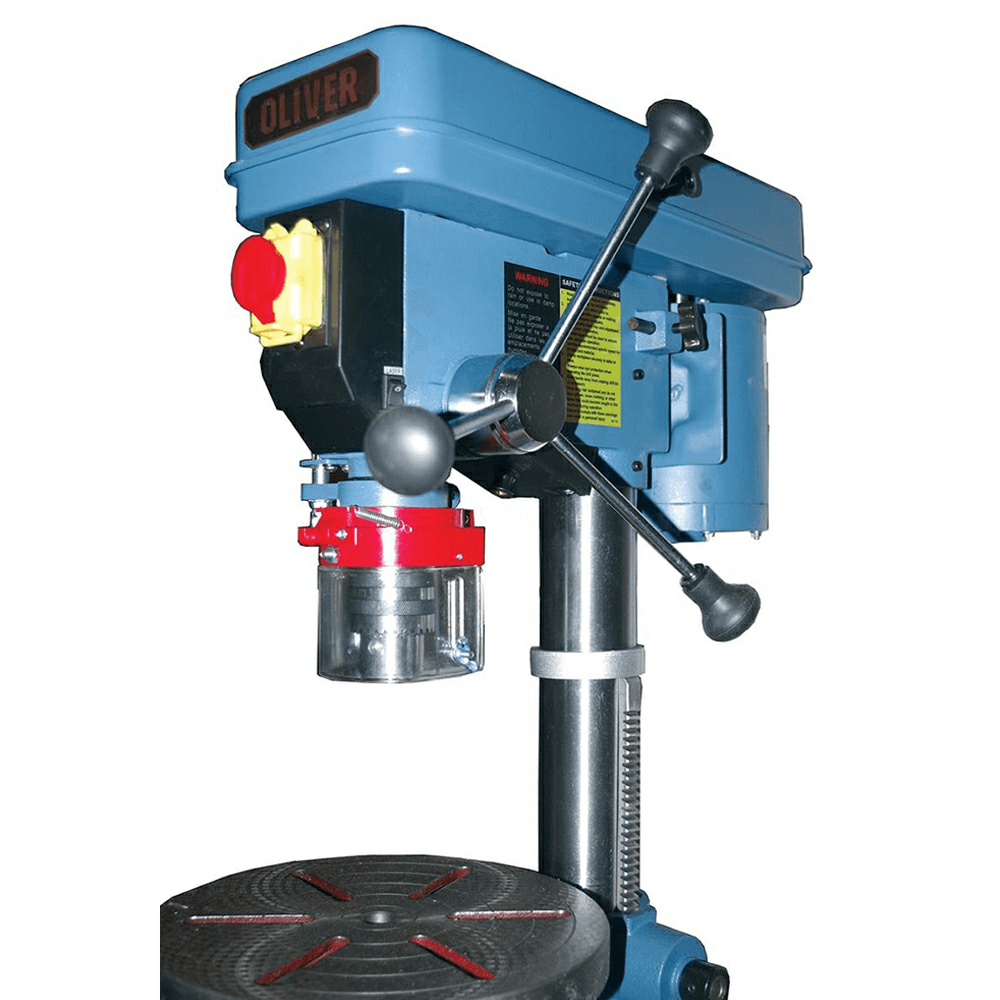

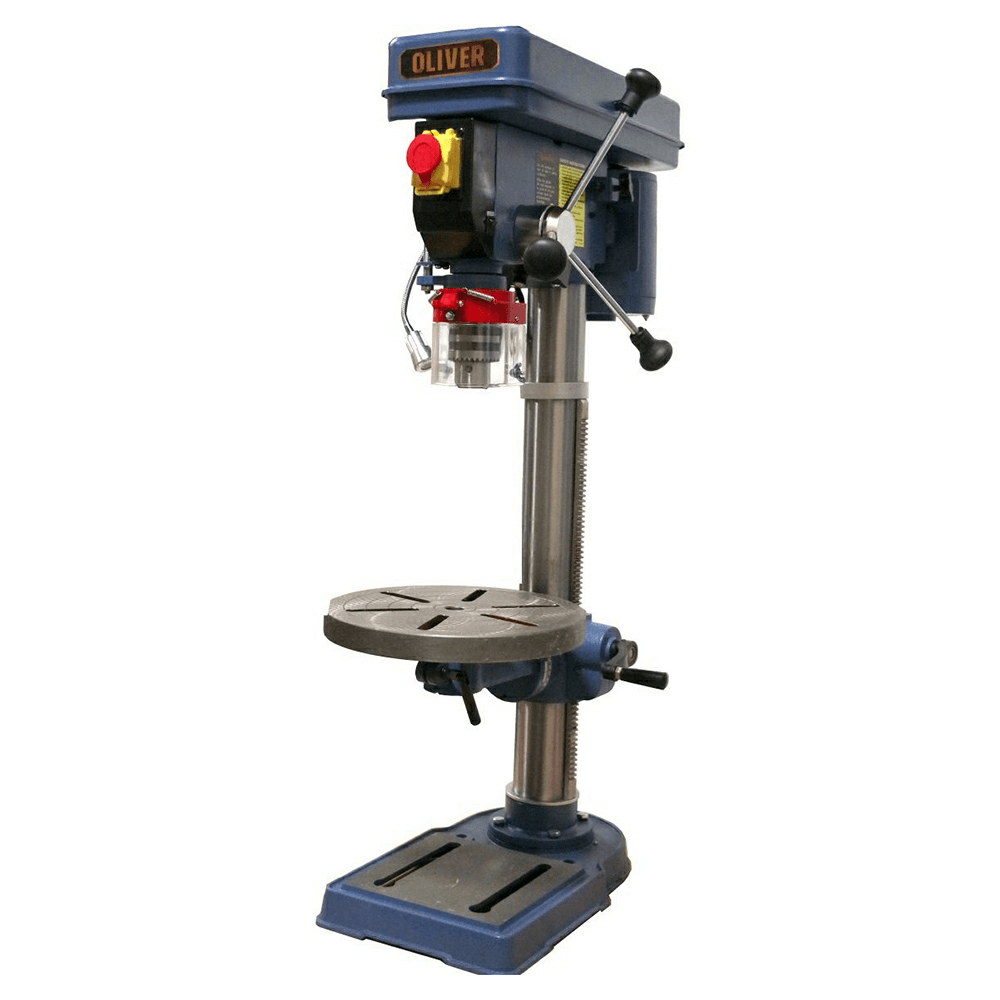

Oliver 14" 1/2HP Swing Bench Model Drill Press, 115V/1 Phase

Features:

• Available in bench model version

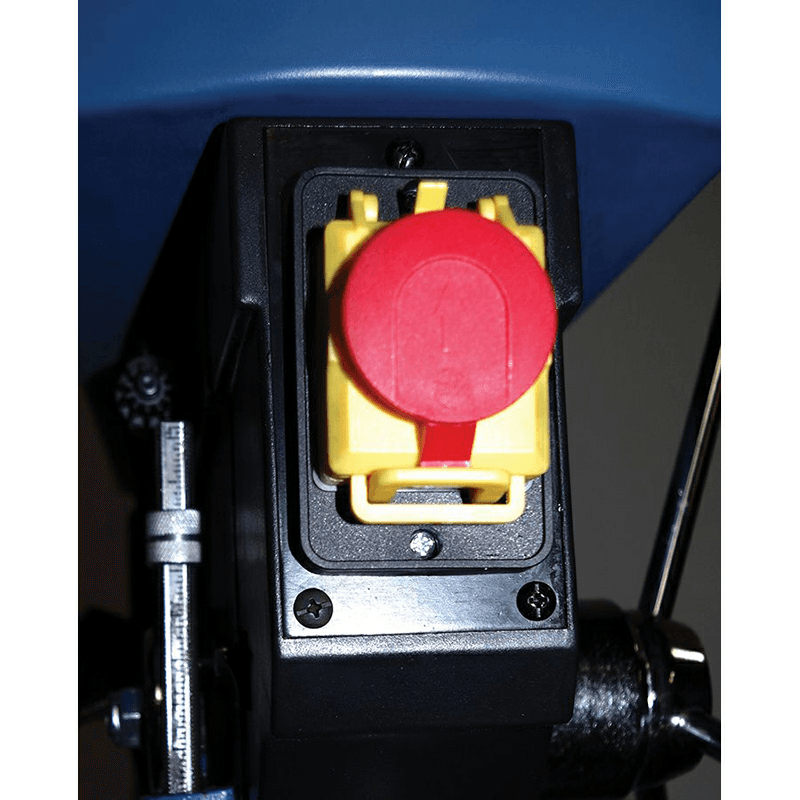

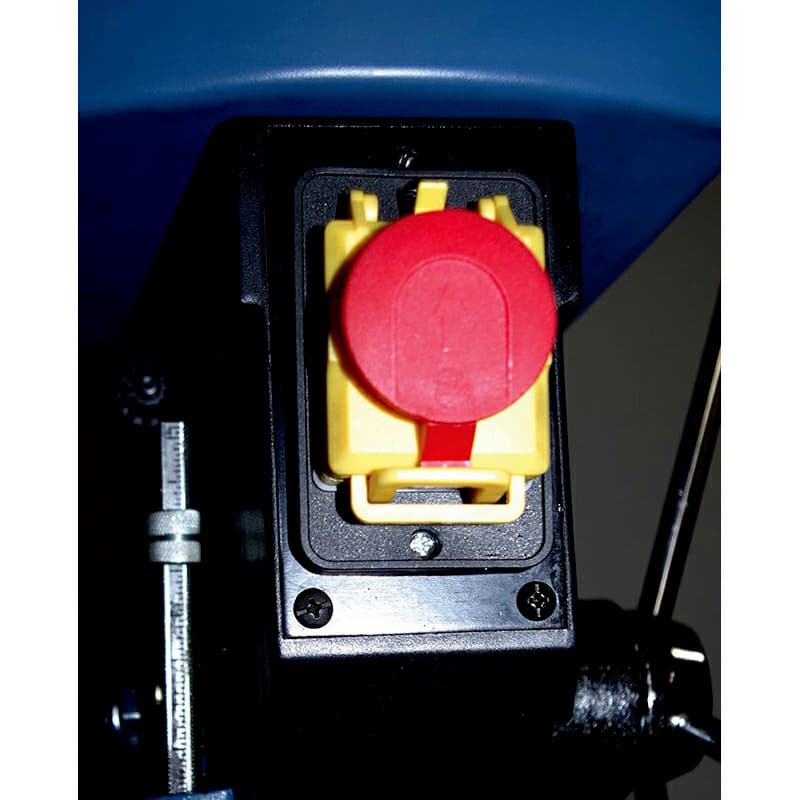

• Line interrupt switch requires manual start in the event of a power loss

• Spindle is supported by high quality sealed ball bearings

• LED lamp provides a well lit work area

• Table rotates 360° and tilts 45°

• Crank operation moves table up and down with locking clamp

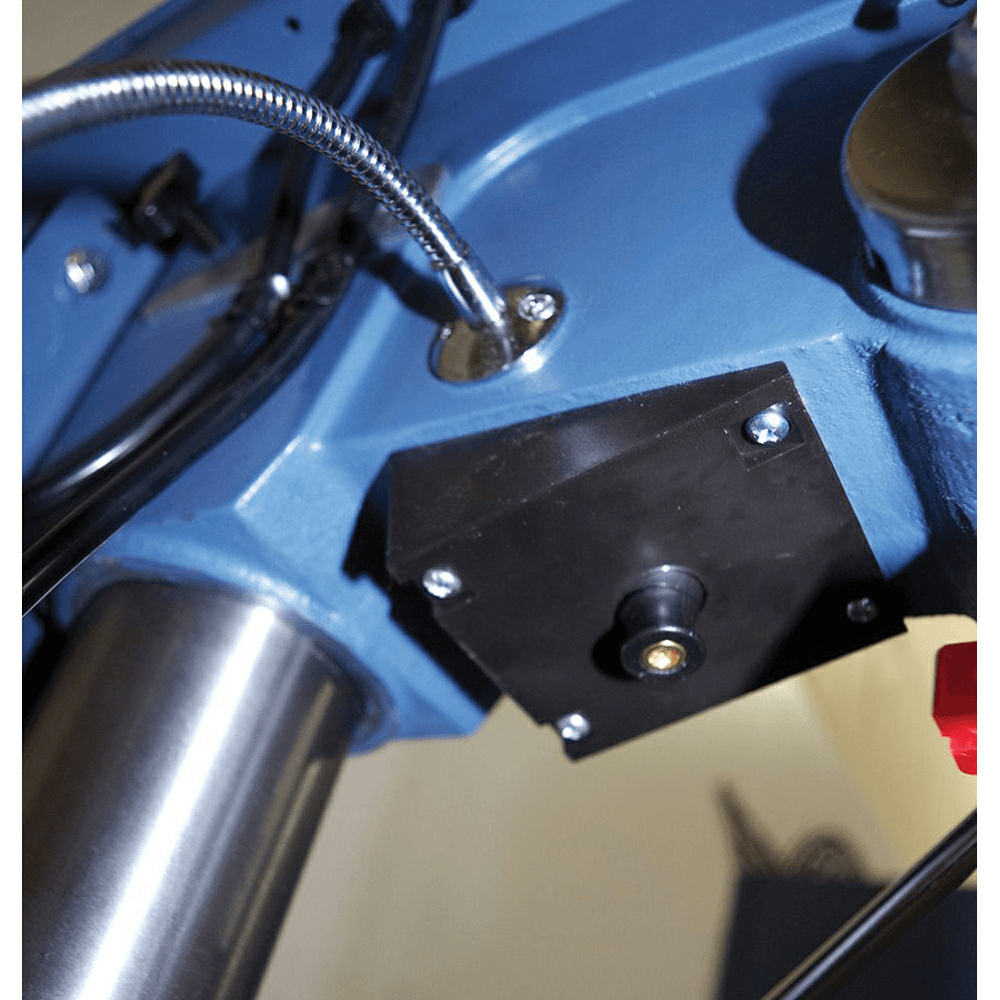

• Laser pointer is built-in for precise repeat drilling

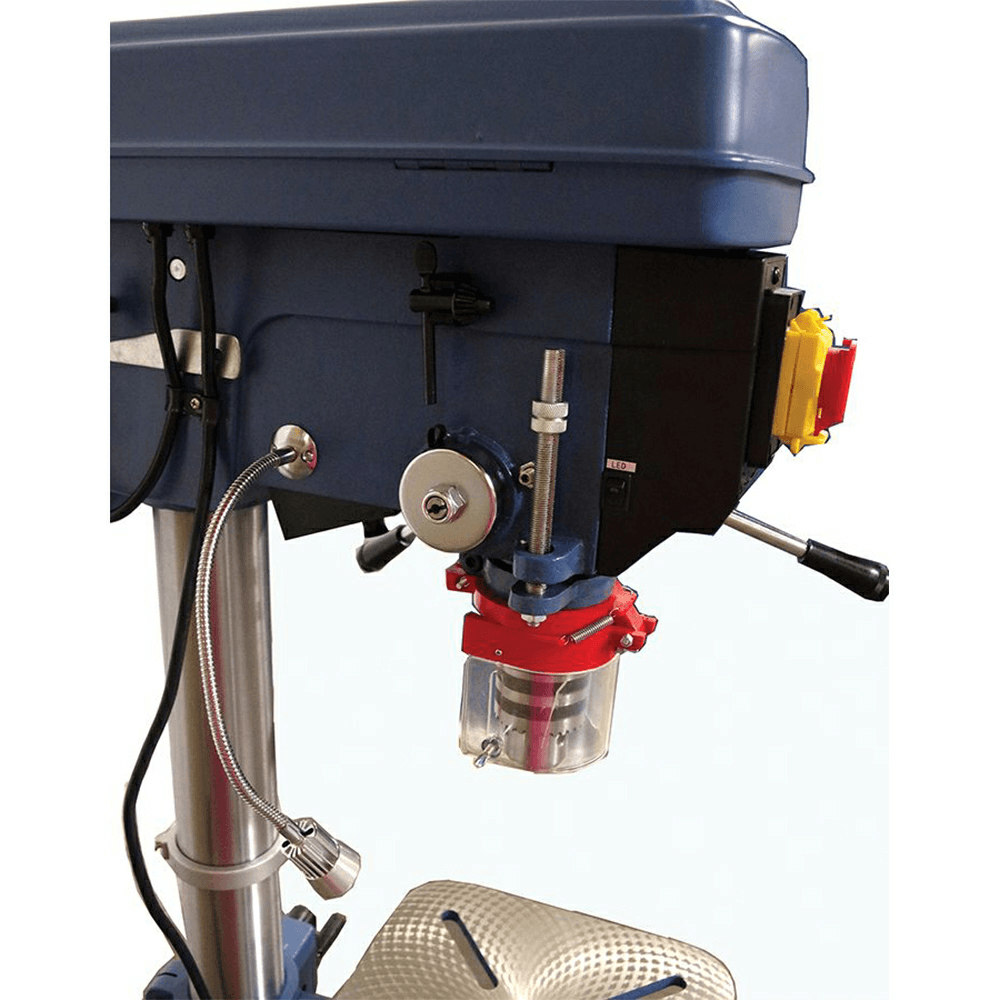

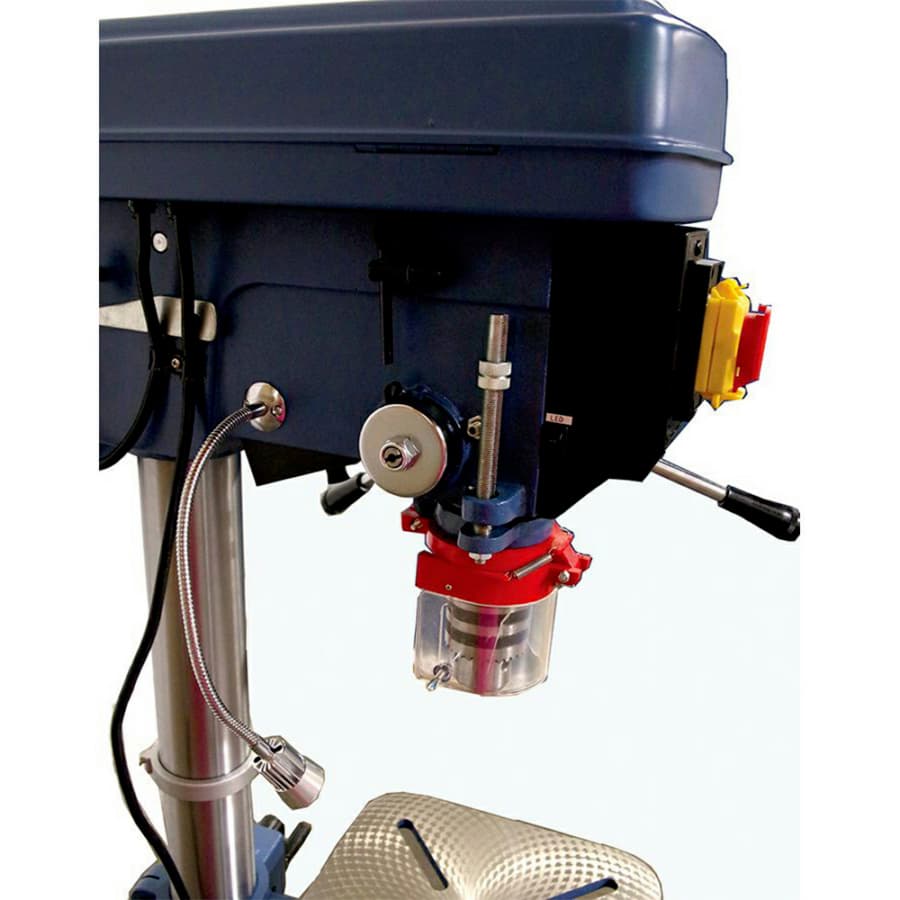

• Drill chuck guard included

• 5/8" chuck and key holder included

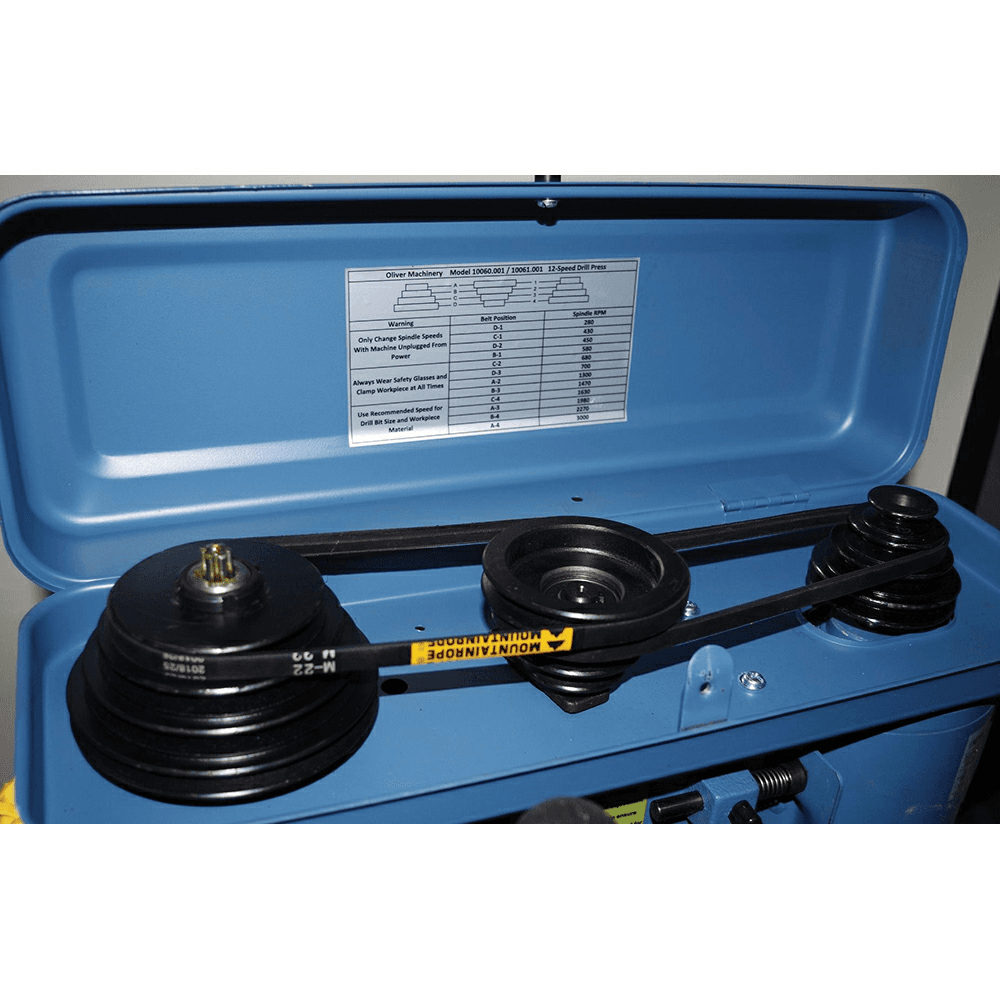

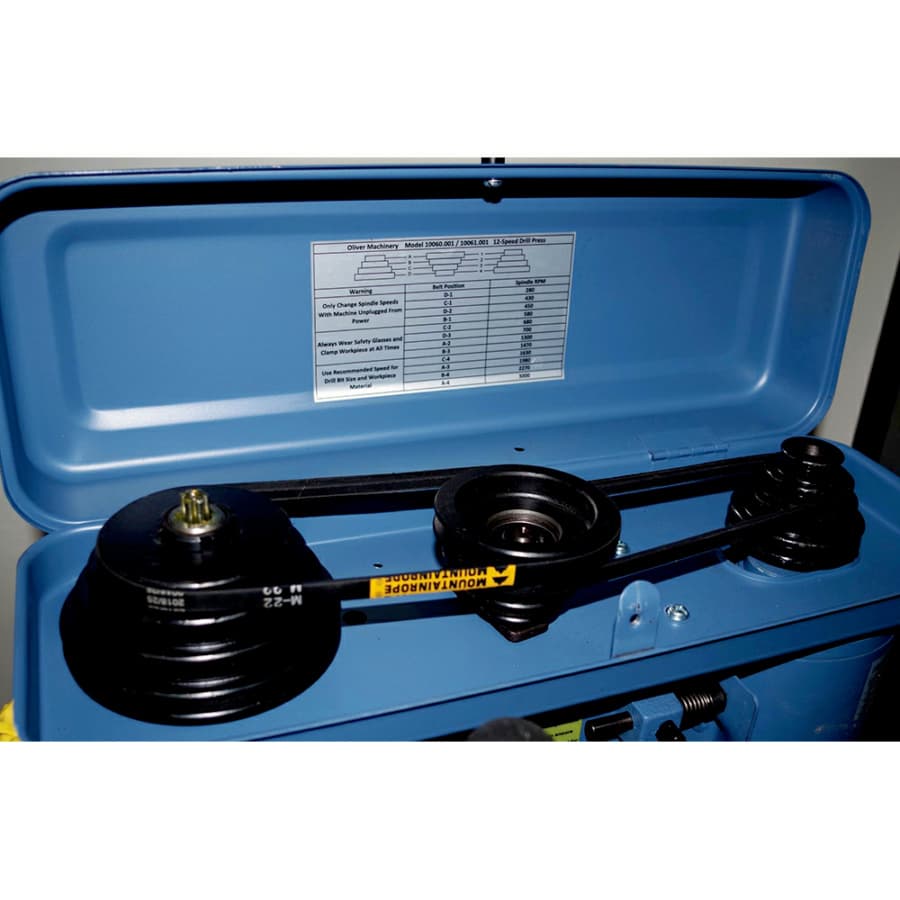

• Cast iron pulleys reduce vibration

• Positive depth stop allows repeated operations with ease

• Powerful 1/2 HP motor

Application Specifications:

• Type: 14" Bench

• Swing: 13-1/4"

• Drilling Capacity: 3/4"

• Chuck Capacity: 5/8"

• Chuck Taper: JT-3

• Spindle Taper: MT-2

• Spindle Travel: 3-1/8"

• Spindle Speeds: 12

• Spindle to Table: 17-3/4"

• Spindle to Base: 25-1/4"

Drive Package Specifications:

• Motor Horsepower: 1/2 HP

• Motor Phase: 1

• Motor Voltage: 115V (8 Amps)

• Speed Range RPM: 280 to 3,000 RPM

Dimension Specifications:

• Table Size: 11-1/2" Round

• Table Tilt: +/- 45°

• Column Diameter: 2-7/8"

• Base Size: 9-5/8" x 16-3/4"

• Overall Height: 38-1/2"
