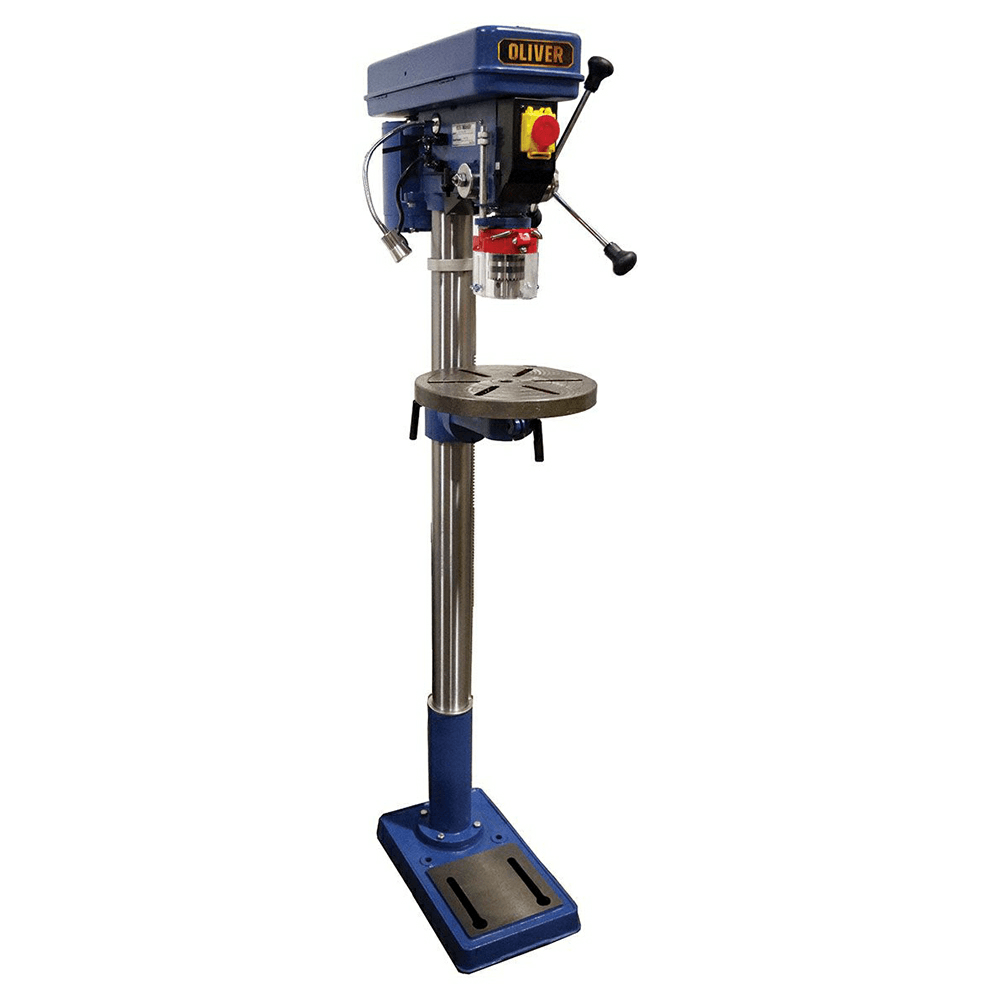

Oliver 22" 1.5HP Swing Floor Drill Press, 115V/1 Phase

Features:

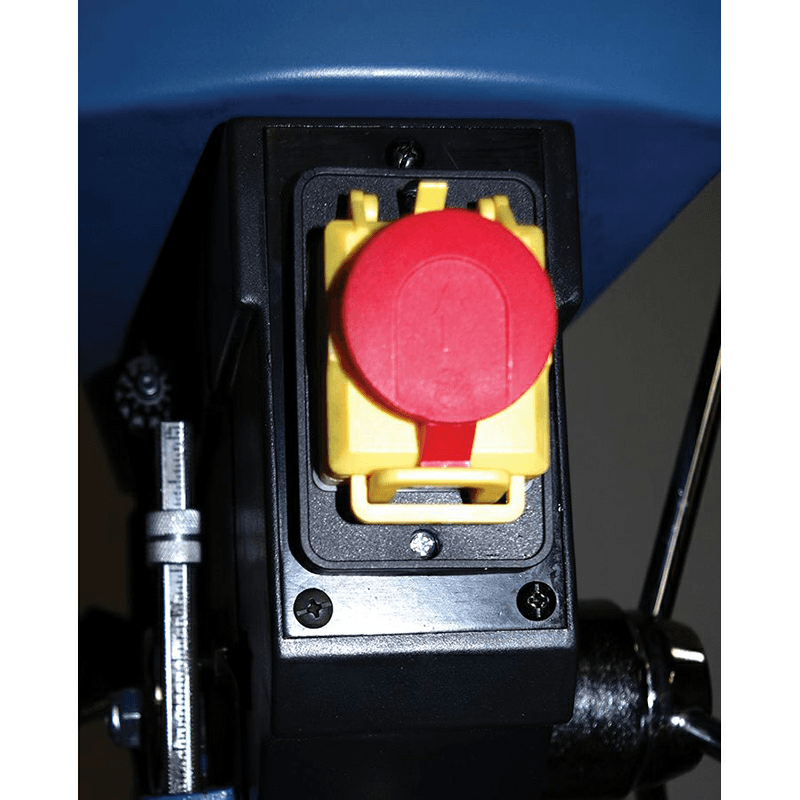

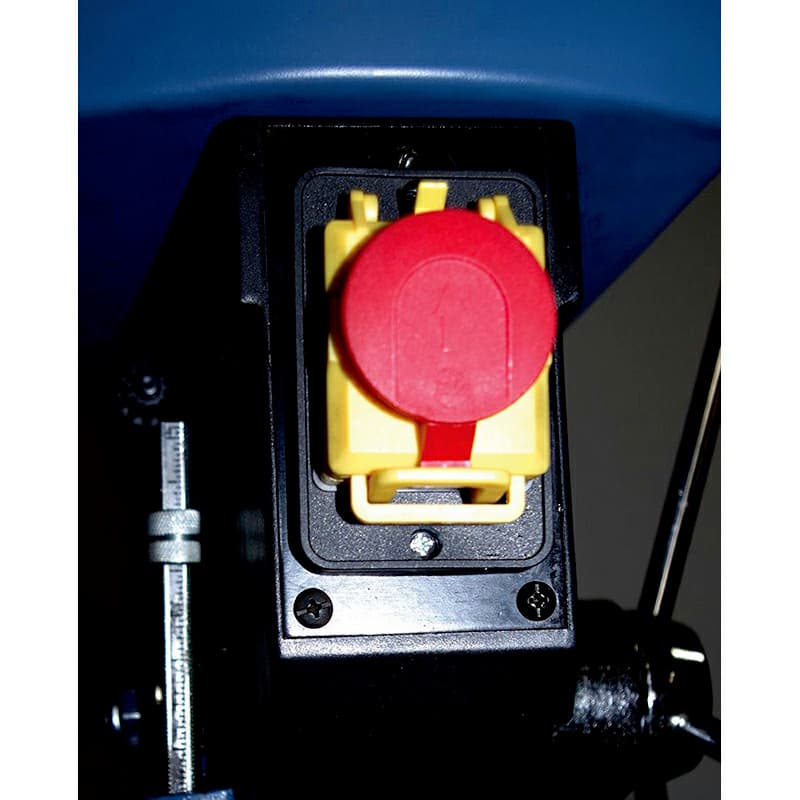

• Line interrupt switch requires manual start in the event of a power loss

• Spindle is supported by high quality sealed ball bearings

• LED lamp provides a well lit work area

• Table rotates 360° and tilts 45°

• Crank operation moves table up and down with locking clamp

• Precision ground table features T-Slots

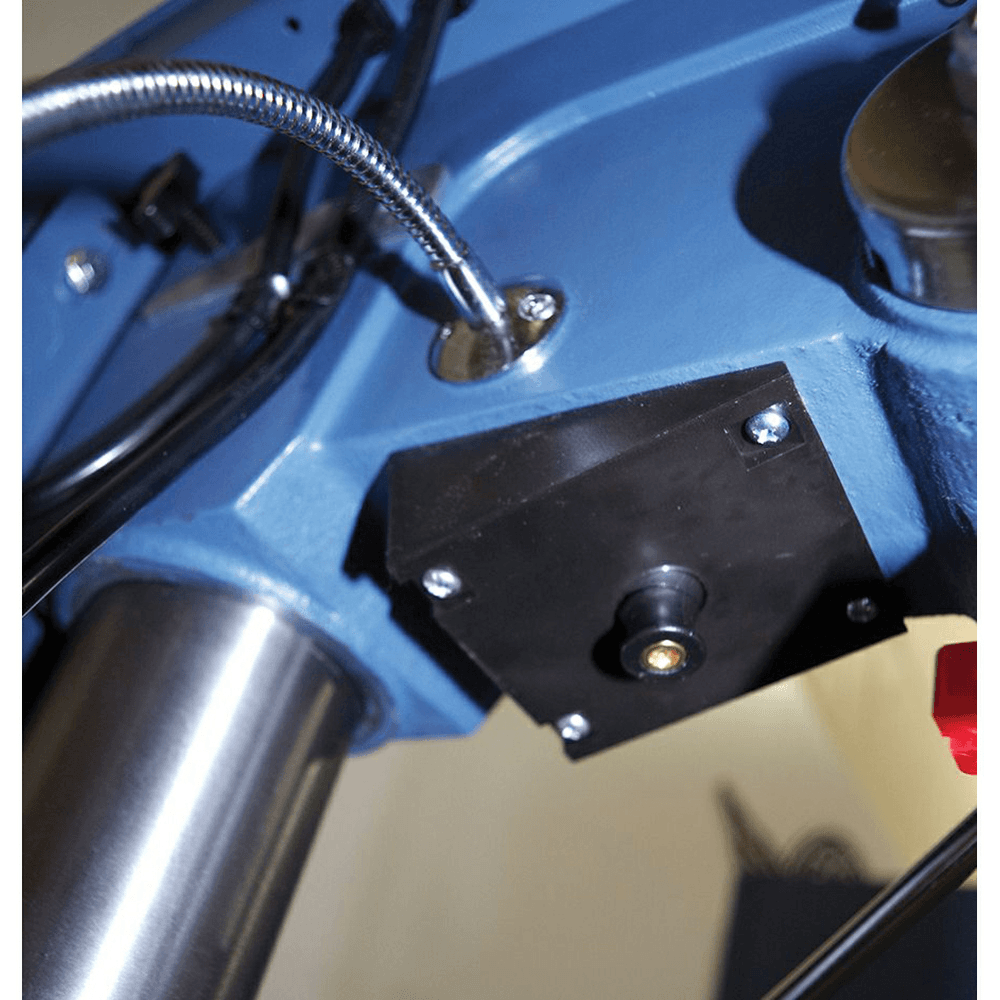

• Laser pointer is built-in for precise repeat drilling

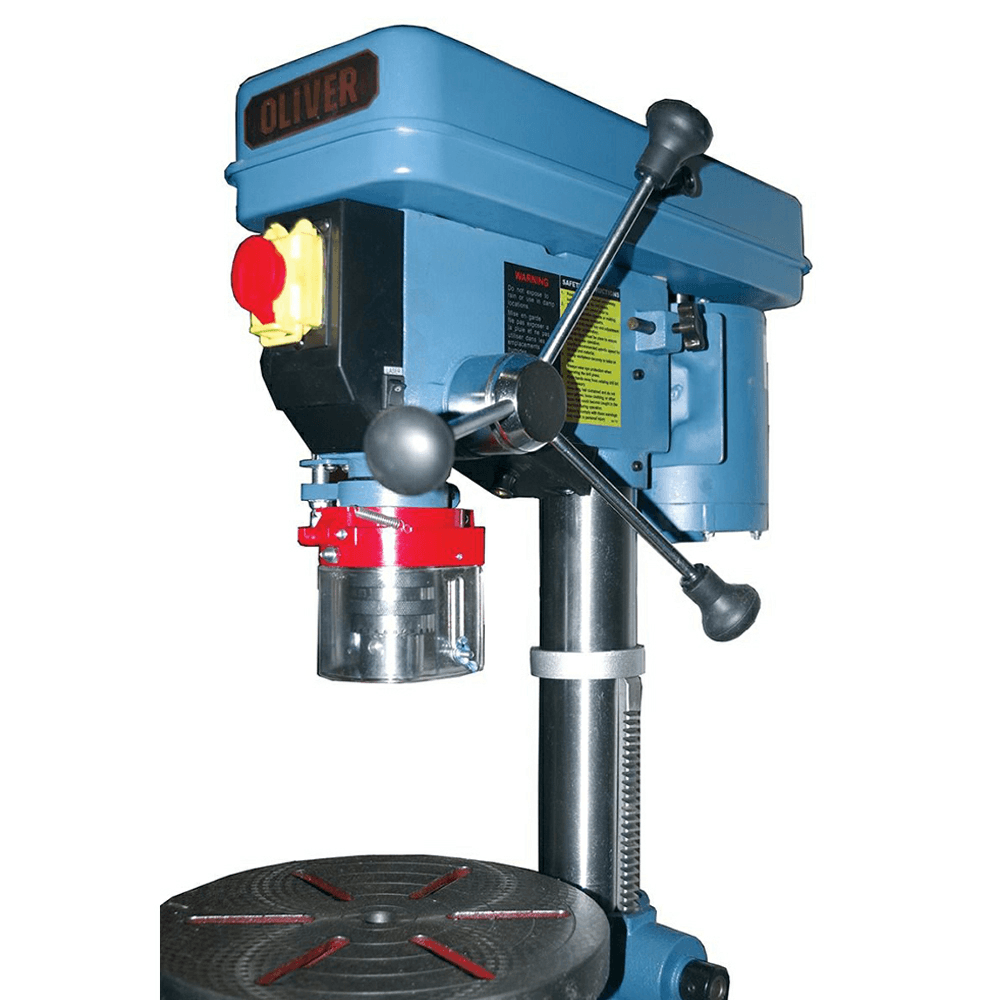

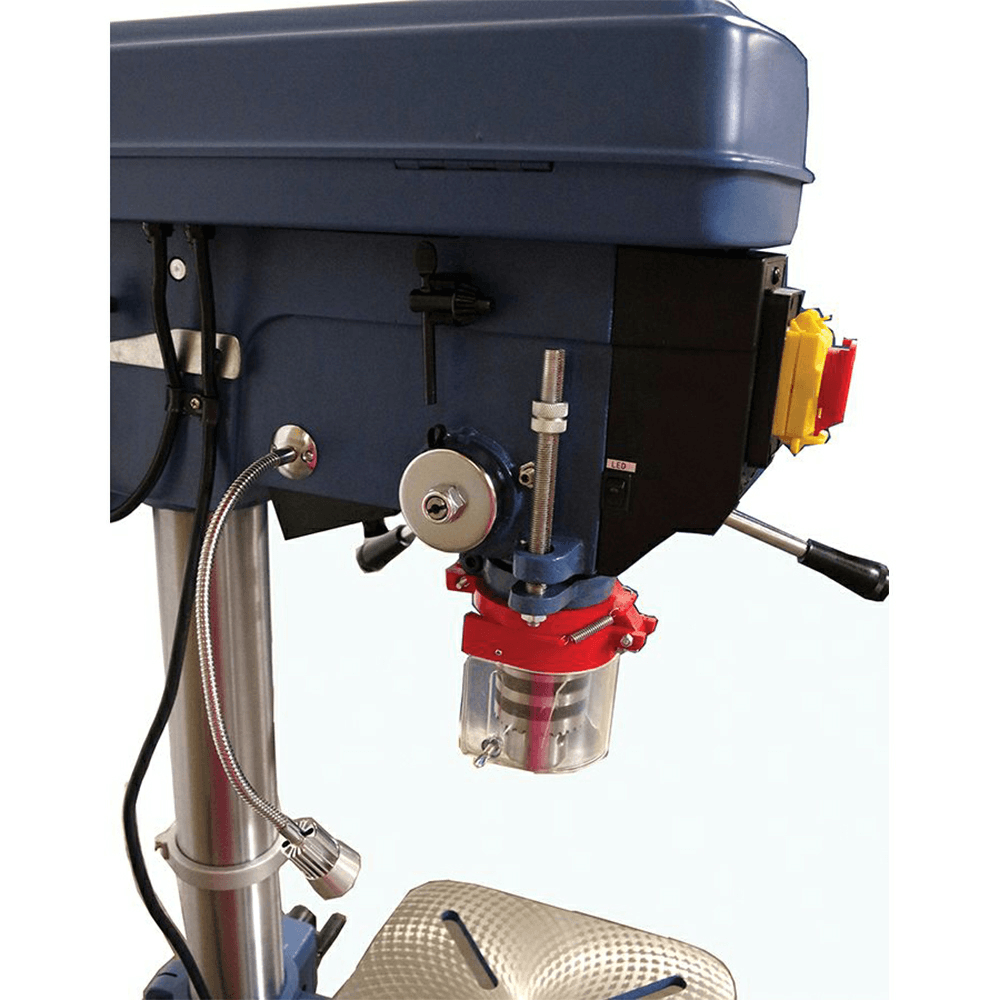

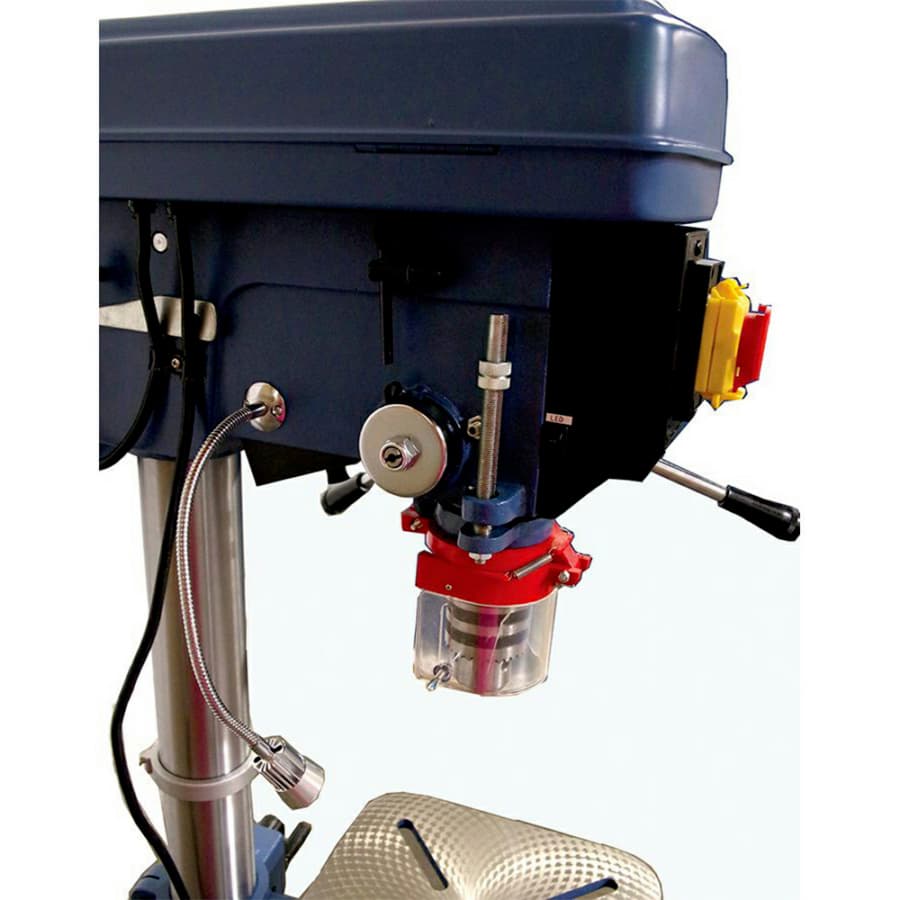

• Drill chuck guard included with safety interlock

• 3/4" chuck and key holder included

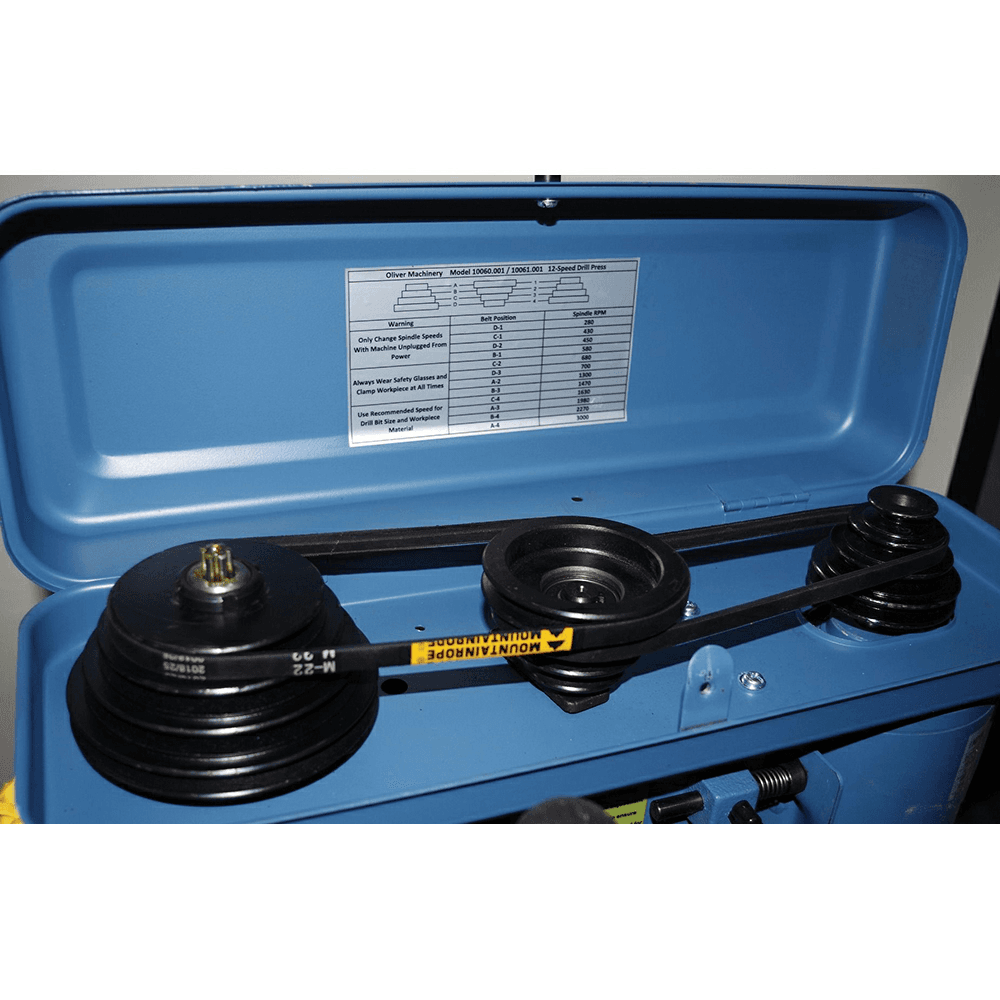

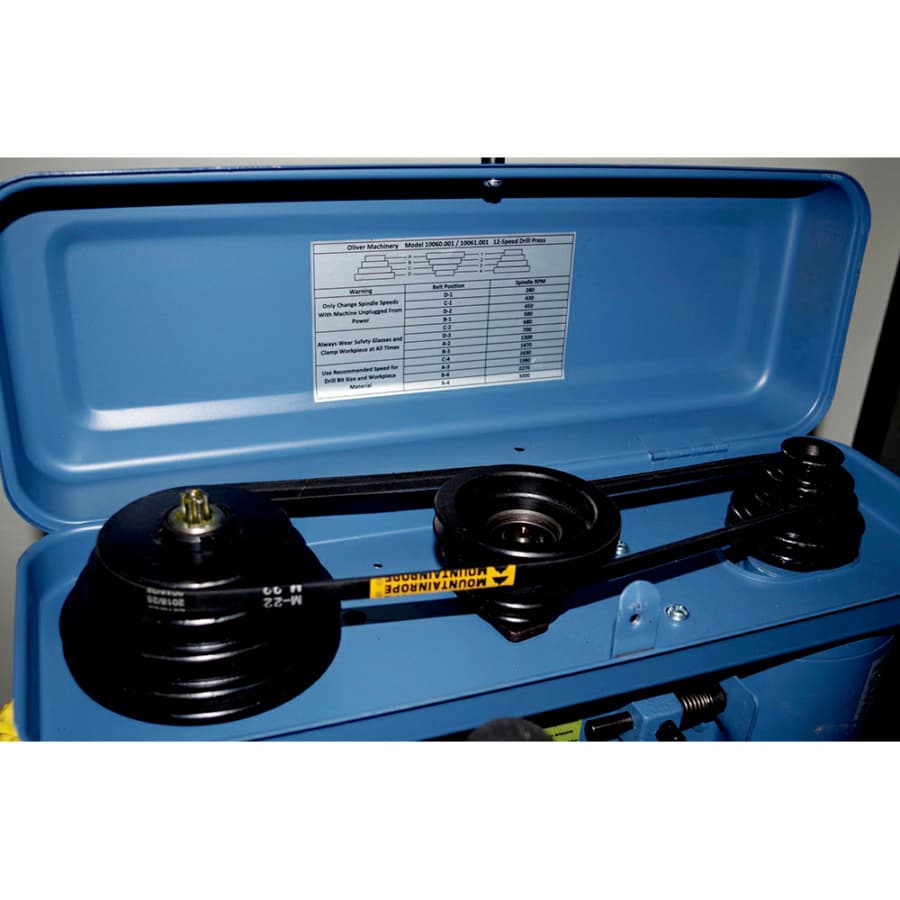

• Cast iron pulleys reduce vibration

• Positive depth stop allows repeated operations with ease

• Powerful 1.5 HP motor

Application Specifications:

• Type: 22" Floor

• Swing: 22"

• Drilling Capacity: 1-1/4"

• Chuck Capacity: 3/4"

• Chuck Taper: JT-3

• Table Tilt: +/- 45°

• Spindle Taper: MT-3

• Spindle Travel: 4-1/2"

• Spindle Speeds: 12

Drive Package Specifications:

• Motor Horsepower: 1.5 HP

• Motor Phase: 1

• Motor Voltage: 115V (21 Amps)

• Speed Range RPM: 180 to 3,420 RPM

Dimension Specifications:

• Table Size: 16" x 18-1/2"

• Spindle to Table: 26-3/4"

• Spindle to Base: 48"

• Column Diameter: 3-7/8"

• Base Size: 19-5/8" x 22-3/4"

• Overall Height: 68-3/4"
