Tandem 563/569 Right-Hand Standard Locking Device
Left or Right: Right
Product Details
Tandem 563/569 Standard Locking Device, no Side-to-Side Adjustment
RIGHT SIDE ONLY. LEFT ALSO REQUIRED
Features:
• For use with standard applications
• Captive right device and self-aligning left device
• Self-adjusting drawer length tolerance
• Zinc die-cast with synthetic, spring-loaded release levers
• Minimum inside drawer width 124 (4-7/8")
• Height adjustment +3 (1/8")

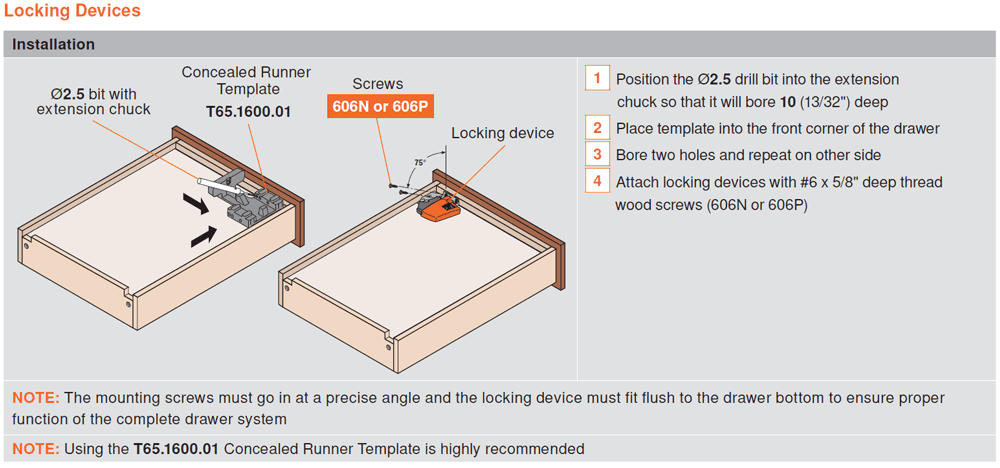

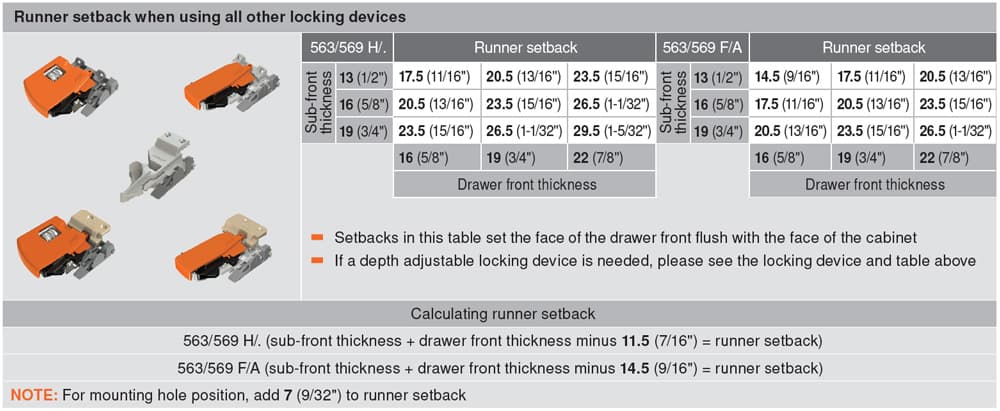

See diagram for slide setback for inset drawers
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 300 |
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Tandem 563/569 |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Right |
| Cabinet Type | |
| Mounting Type | Standard |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
