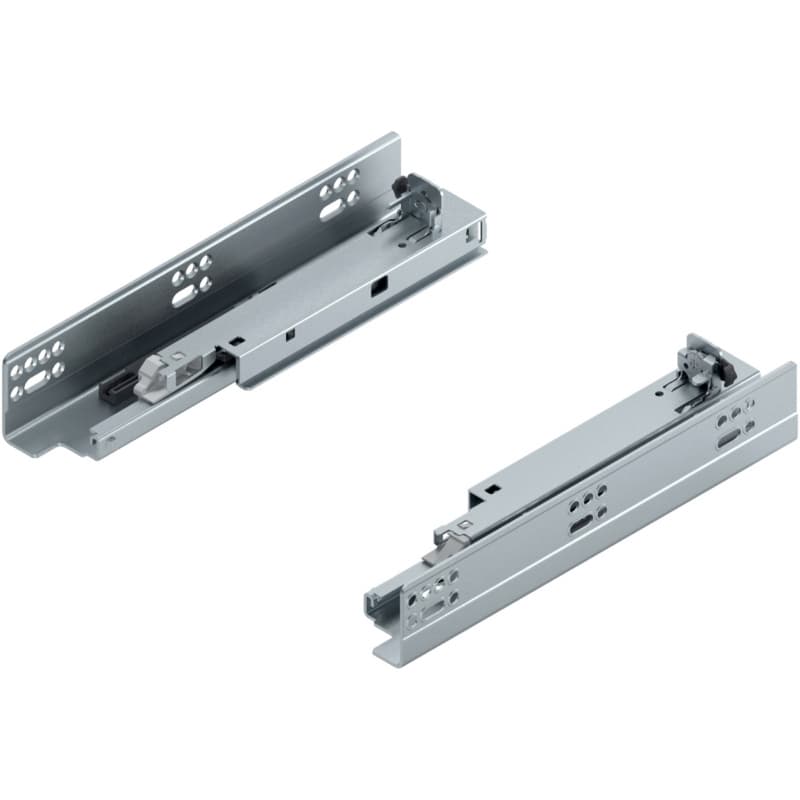

9" Tandem Plus B563F Undermount Drawer Slide for 3/4" Material, 100lb Capacity Full Extension with BLUMOTION Soft-Closing

TANDEM plus BLUMOTION 563F Undermount Slides for Drawer Thickness up to 3/4"

TANDEM plus BLUMOTION concealed runners offer four-dimensional adjustment, elongated holes for depth adjustment, bottom mount holes and exceptional load capacity.
The availability of a wide variety of locking devices, rear mounting brackets, sockets and templates make installation virtually effortless.

These concealed runners are the perfect solution for virtually any drawer. Kitchens, vanities, closets, home office and furniture all benefit from the smooth running and soft closing action of TANDEM plus BLUMOTION.
The customer only sees the beauty of the wood drawers while experiencing the quality of motion and soft closing they have come to expect from Blum products.

Features:
• Four-dimensional adjustment
• Wide range of drawer lengths from 9" to 30" in 3" increments
• Runners for 3/4" drawer material thickness
• Bottom mount holes for mounting to a fixed shelf or a flush bottom cabinet
• Available for standard and heavy-duty applications
• Exceeds ANSI/BHMA A156.9 2010 grade 1 specifications
• Excellent stability and less sag even when drawer is fully loaded
• Bearing block for consistent reveal even in fully loaded drawer

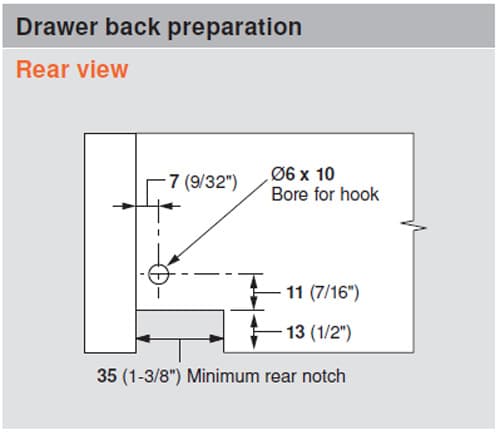

• Rear notch increases to 35 mm to accommodate side-to-side adjustment
• Same drawer box construction as the current TANDEM runners
• Same boring pattern as current 562/568 TANDEM plus BLUMOTION concealed runners

Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw

Setback on Standard Drawers: 3mm (1/8")
See Locking Device for Inset Drawer Setbacks

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
