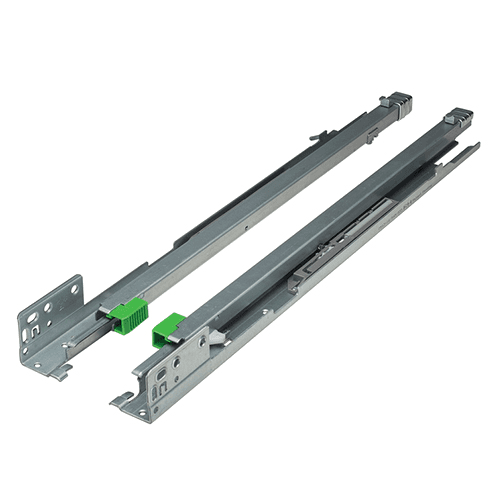

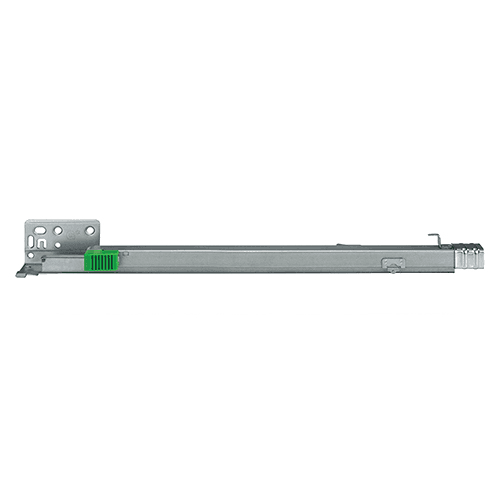

21" Maxcess 16 Undermount Drawer Slide for 5/8" Material, 100lb Capacity, 7/8 Extension, Soft-Closing

Maxcess 16 Undermount Slides for Face Frame Cabinets for 5/8" Material

If you can imagine a full access slide with features such as higher quality and better value, then you have the power to see Maxcess, Grass' full access concealed undermount slide. Maxcess is an economical, soft-close, undermount slide that offers a high degree of convenience and satisfaction.
Designed for face frame and frameless cabinetry, the Maxcess easily fits conventional drawer construction with material thickness ranging from 12.7mm (1/2") to 19mm (3/4").
A new liquid damper, created with German technology, is integrated into the slide and provides a continuous smooth, easy close.

Features:
• Face frame applications from 12.7mm (1/2") up to 16mm (5/8") drawer material
• Zinc plated, roll formed steel components
• Precision, smooth-running synthetic roller carriages
• German technology liquid damper with smooth closing action
• Self-latching front locking devices have easy release levers for drawer removal and installation
• Height adjustment +2.5mm (3/32") with suitable front locking device
• Side adjustment ?1.5mm (1/16") with suitable front locking device
• Weight capacity: 75 lb dynamic; 100 lb static
• Meets and exceeds ANSI/BHMA A156.9 Standard, Grade 1

Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw

Setback on Standard Drawers: 4mm (5/32")

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
