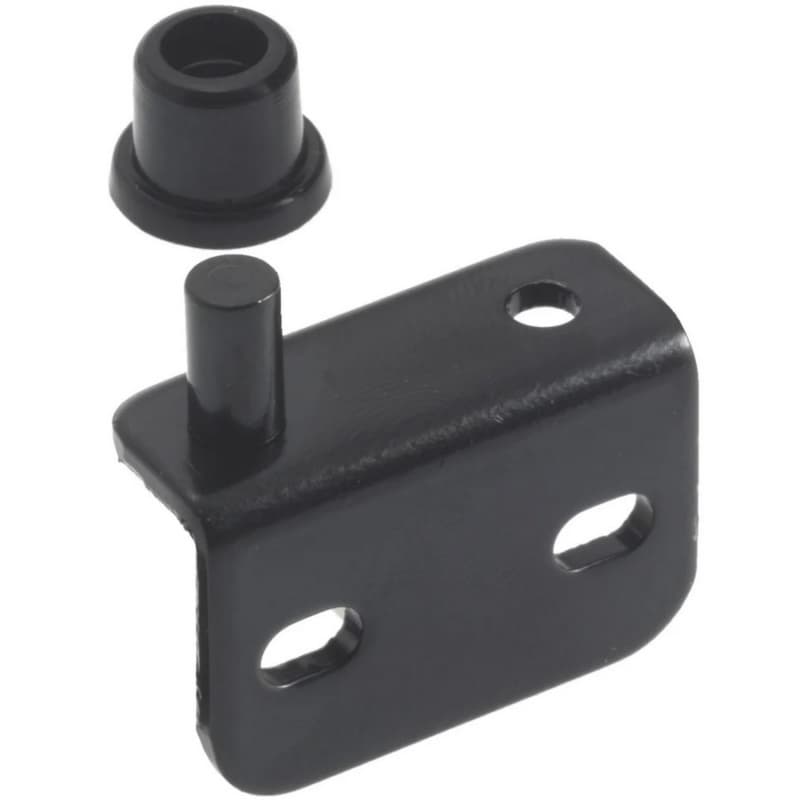

Flush Door Permanent Concealed Pivot Hinge, Inset, Black Oxidized
Item # SYHT-57
•Mfr # HT57S
$2.49
/Pair
300 items
$2.40/Pair
600 items
$2.31/Pair
Finish: Black Oxidized
Min Order: 1
Qty mult. by: 1
Product Details
Features:\r
• Die-cast metal mounting plates fasten to top and bottom of door back\r
• Pivot section fastens to plate with machine screw\r
• Requires a 9mm hole for the nylon bushing\r
• Adjusts 3/16" side-to-side and 1/8" front-to-back\r
• For wood door thicknesses 9/16" to 3/4"\r
• Non-Handed\r
• Uses (4) #4 P.H. x 1/2" screws, sold separately\r
• Steel construction\r
• Includes hinge set for one door\r
• \r
• Die-cast metal mounting plates fasten to top and bottom of door back\r
• Pivot section fastens to plate with machine screw\r
• Requires a 9mm hole for the nylon bushing\r
• Adjusts 3/16" side-to-side and 1/8" front-to-back\r
• For wood door thicknesses 9/16" to 3/4"\r
• Non-Handed\r
• Uses (4) #4 P.H. x 1/2" screws, sold separately\r
• Steel construction\r
• Includes hinge set for one door\r
• \r
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Black Oxidized |
| Overlay | Inset Overlay |
| Opening Angle | |
| Hinge Type | Concealed Pivot Hinge |
| Material | Steel |
| Width | |
| Door Thickness | 9/16"- 3/4" |
