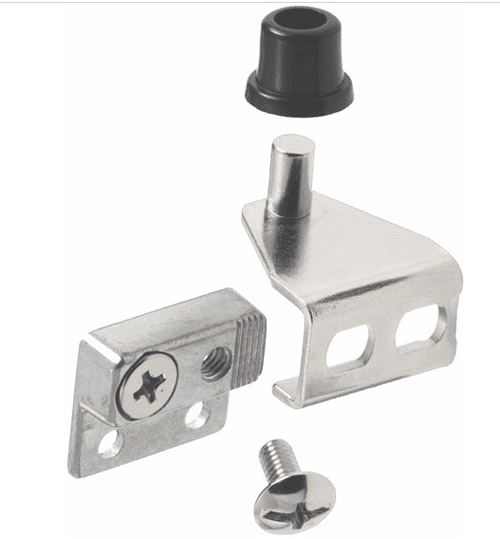

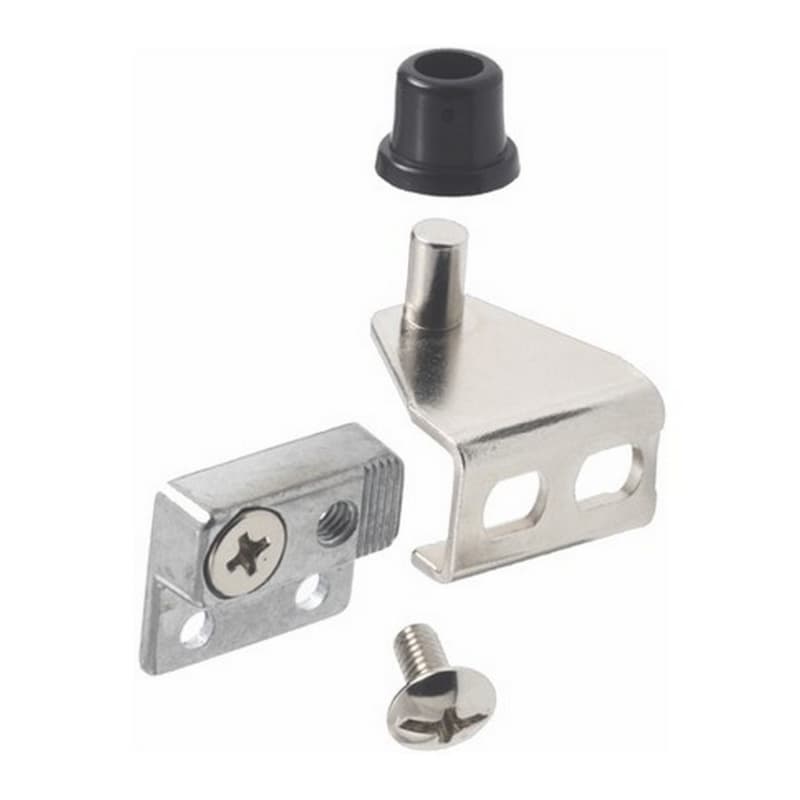

Flush Door Removable Concealed Pivot Hinge, Inset, Bright Nickel-Plated
Item # SYH-704U
•Mfr # H704U
$3.69
/Each
50 items
$3.67/Each
150 items
$3.54/Each
300 items
$3.42/Each
Finish: Bright Nickel
Min Order: 1
Qty mult. by: 1
Product Details
Features:\r
• Die-cast metal mounting plates fasten to top and bottom of door back\r
• Pivot section fastens to plate with machine screw\r
• Requires a 9mm hole for the nylon bushing\r
• Adjusts 3/16" side-to-side and 1/8" front-to-back\r
• For wood door thicknesses 9/16" to 3/4"\r
• Non-Handed\r
• Uses (4) #4 P.H. x 1/2" screws, sold separately\r
• Steel construction\r
• Includes hinge set for one door\r
• \r
• Die-cast metal mounting plates fasten to top and bottom of door back\r
• Pivot section fastens to plate with machine screw\r
• Requires a 9mm hole for the nylon bushing\r
• Adjusts 3/16" side-to-side and 1/8" front-to-back\r
• For wood door thicknesses 9/16" to 3/4"\r
• Non-Handed\r
• Uses (4) #4 P.H. x 1/2" screws, sold separately\r
• Steel construction\r
• Includes hinge set for one door\r
• \r
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Bright Nickel |
| Overlay | Inset Overlay |
| Opening Angle | |
| Hinge Type | Concealed Pivot Hinge |
| Material | Steel |
| Width | |
| Door Thickness | 9/16"- 3/4" |
