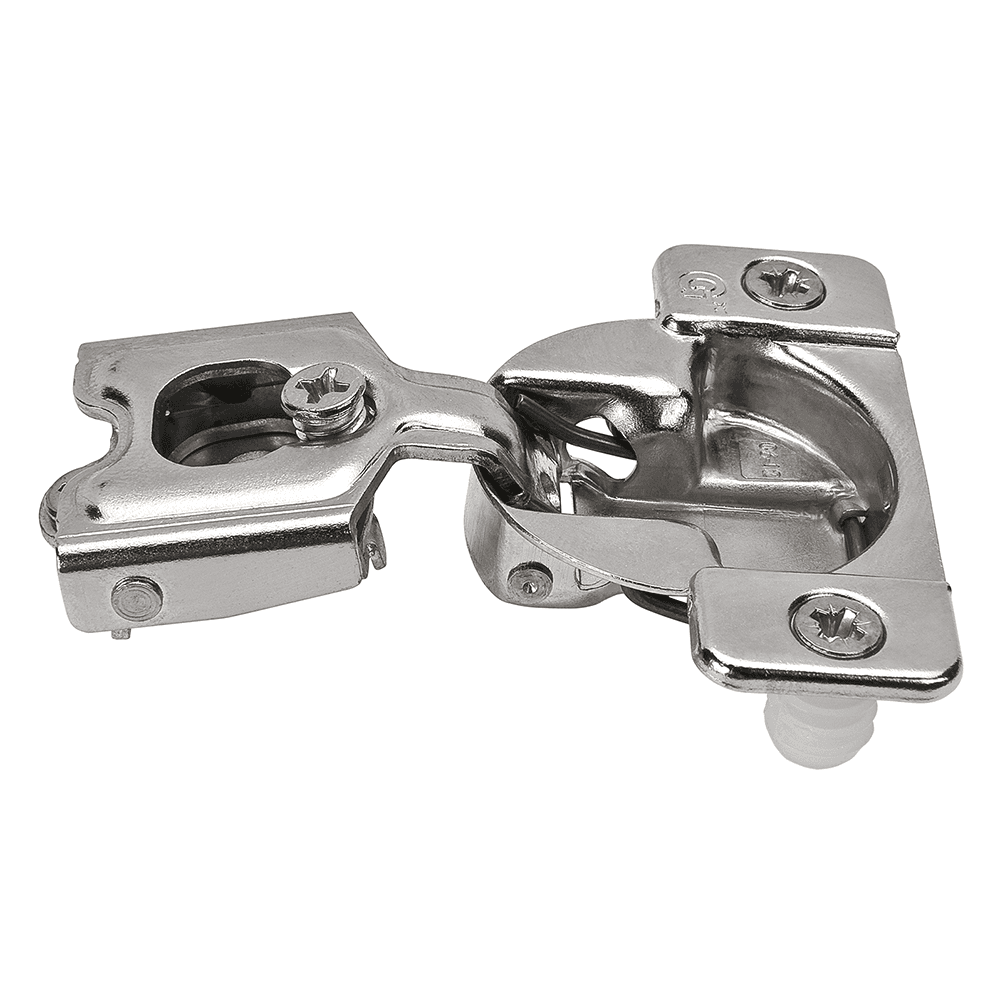

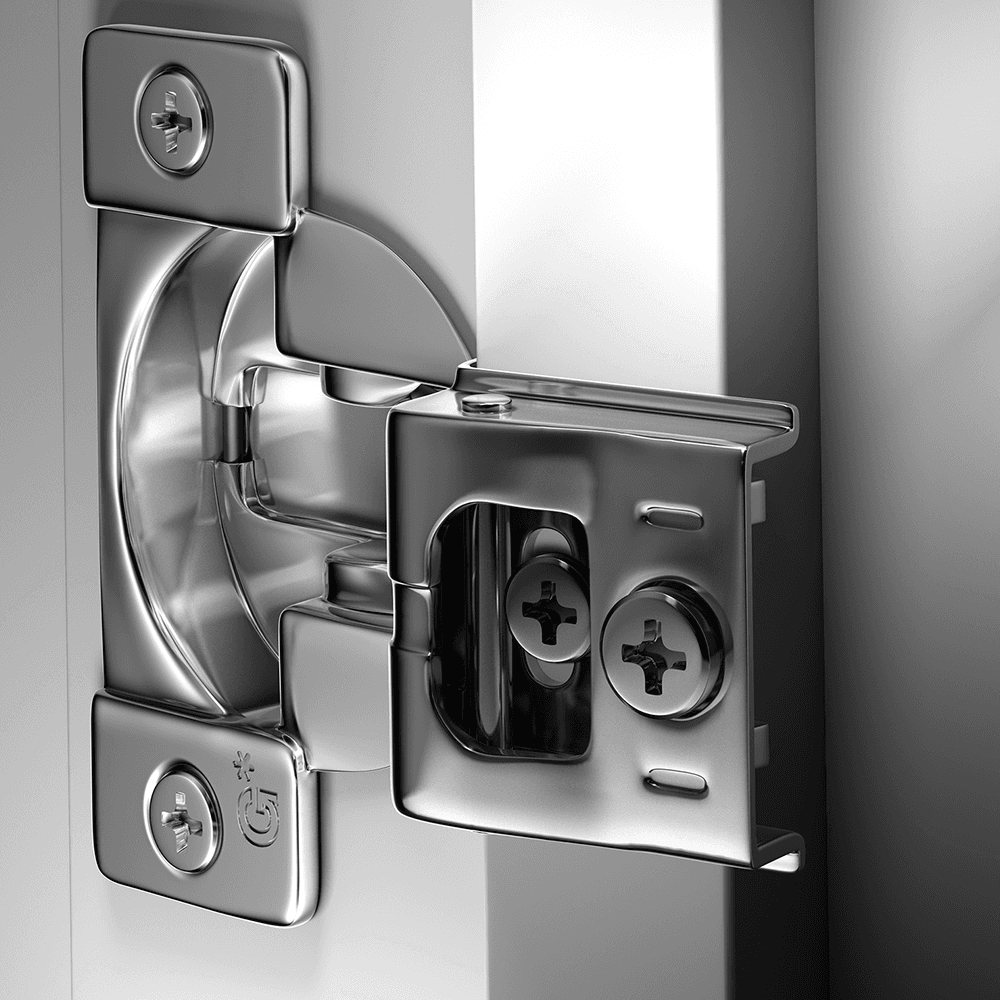

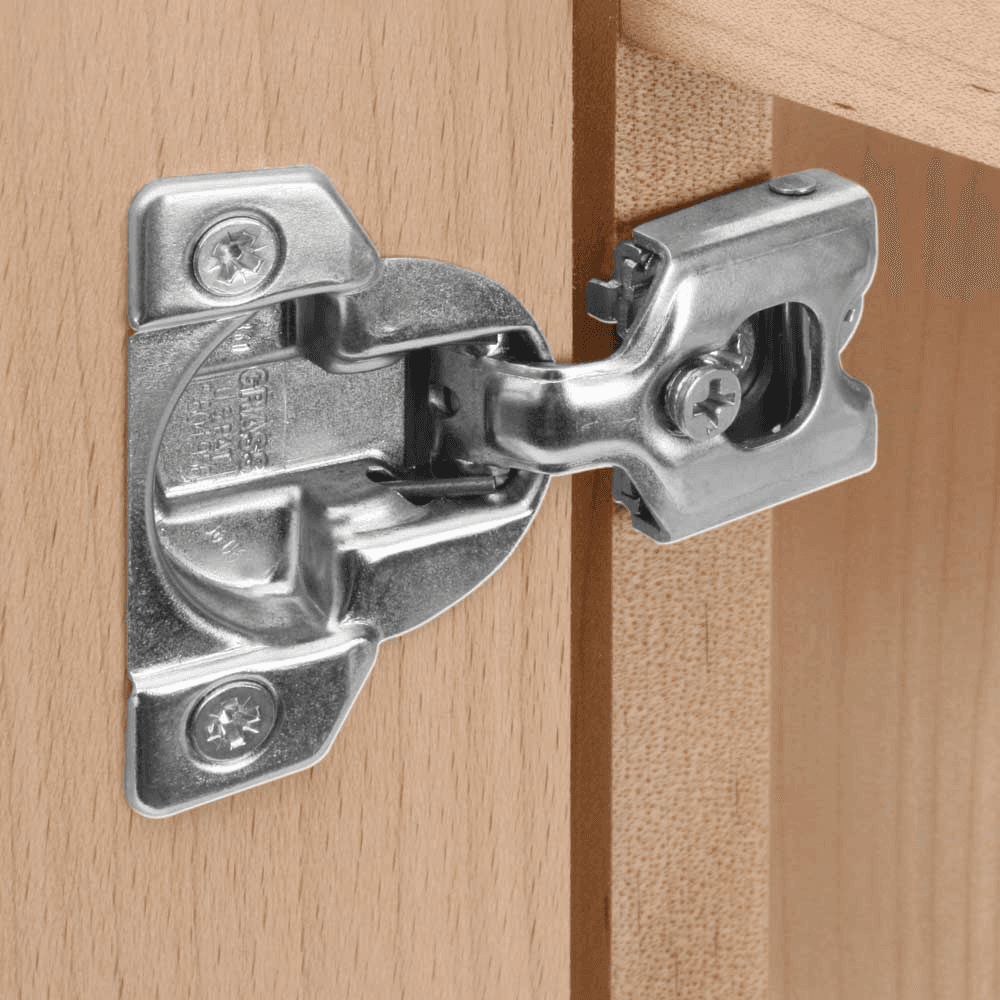

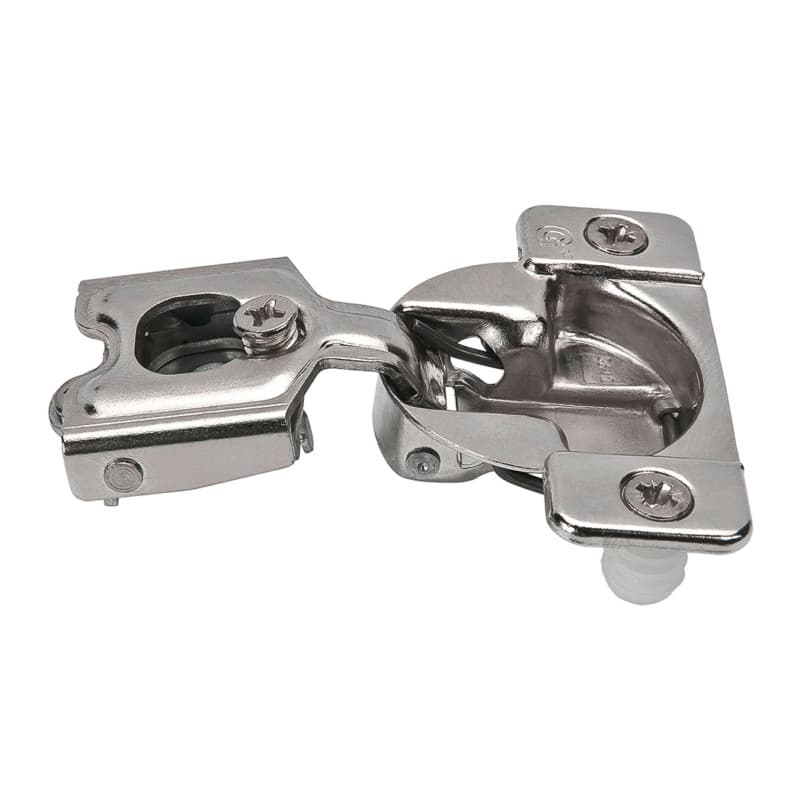

TEC 864 108° Opening Side-Mount Face Frame Hinge, 42mm Boring Pattern, Self-Closing, 1-1/4" Overlay, Dowelled
Item # GTEC864VS8-45-1-14
•Mfr # 02894-15
Overlay: 1-1/4"
Product Details
Features:
• Three-dimensional hinge
• One piece hinge and plate combination with micro side adjustment and cam depth adjustment
• Locating tabs for easy mounting on frames
• Height adjustment in elongated screw hole
• Works on door thickness from 13 mm (1/2") to 19 mm (3/4")
• Three-dimensional hinge
• One piece hinge and plate combination with micro side adjustment and cam depth adjustment
• Locating tabs for easy mounting on frames
• Height adjustment in elongated screw hole
• Works on door thickness from 13 mm (1/2") to 19 mm (3/4")
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 1-1/4" |
| Closing Type | Self-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Side-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 42mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
