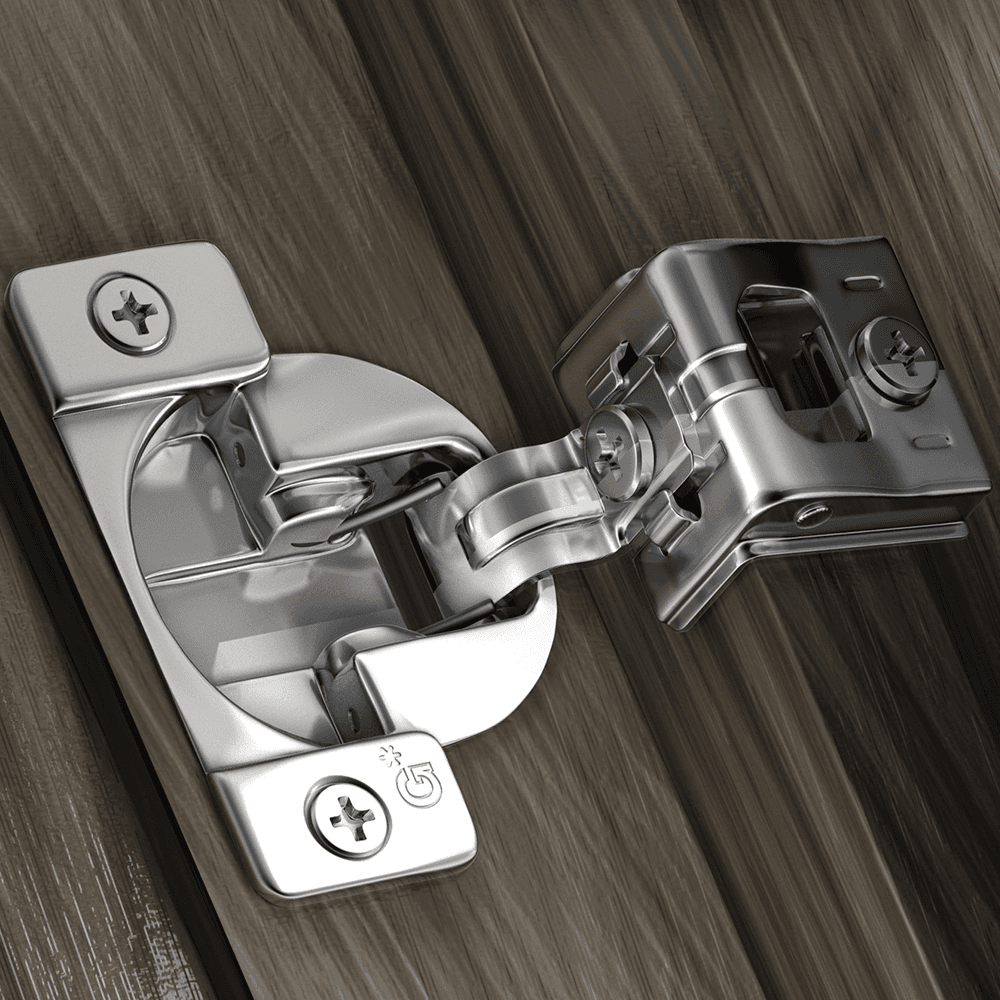

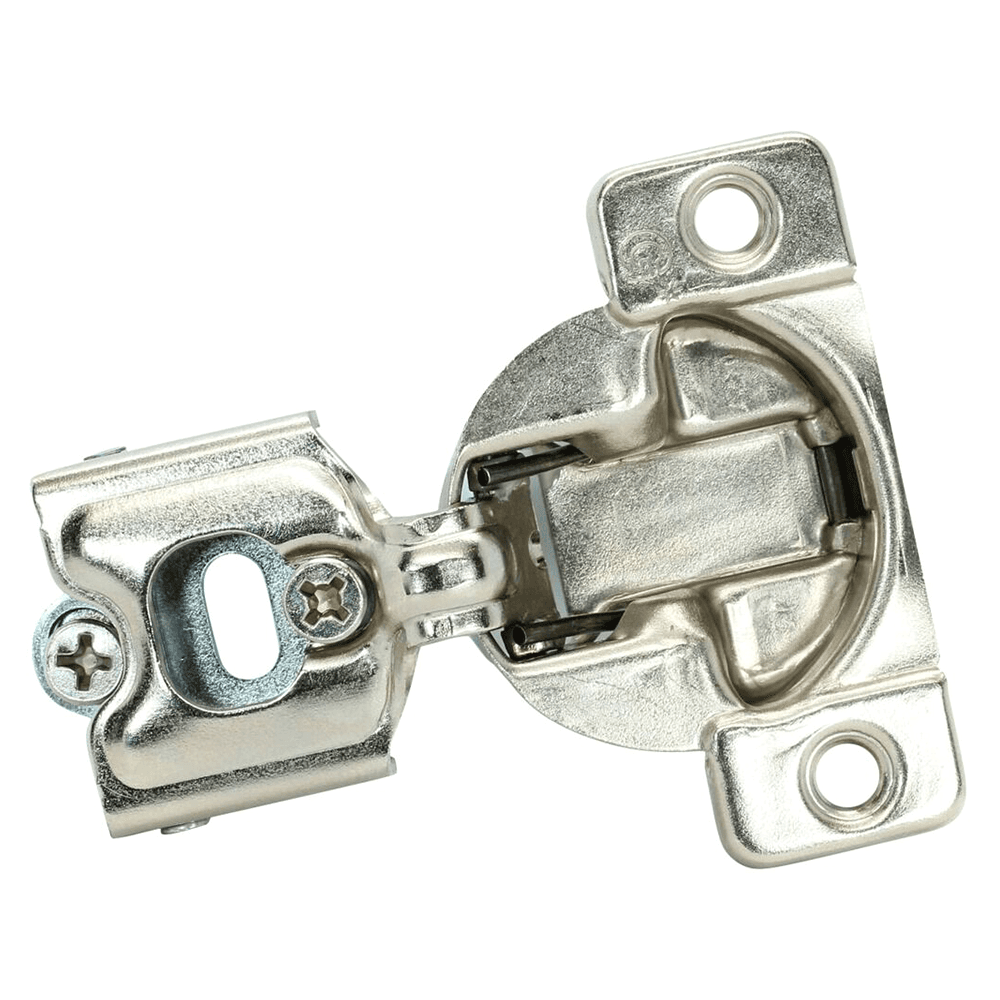

TEC 864 108° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 1/4" Overlay, Screw-On
Item # GTEC4396-15
•Mfr # 04396-15
$1.94
/Each
300 items
$1.65/Each
1500 items
$1.54/Each
Mounting Type: Screw-On
Overlay: 1/4"
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Screw-on mounting hinge, 1/4" overlay
• One piece hinge and base plate combination\r
• 3-dimensional adjustment\r
• Front locating tabs position hinge on face frame\r
• Cam side adjustment\r
• Cam depth adjustment\r
• Height adjustment at mounting screw\r
• 85? angle reduction clip available\r
• Works with current Grass insertion machinery
• Screw-on mounting hinge, 1/4" overlay
• One piece hinge and base plate combination\r
• 3-dimensional adjustment\r
• Front locating tabs position hinge on face frame\r
• Cam side adjustment\r
• Cam depth adjustment\r
• Height adjustment at mounting screw\r
• 85? angle reduction clip available\r
• Works with current Grass insertion machinery
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Screw-On |
| Overlay | 1/4" |
| Closing Type | Self-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
