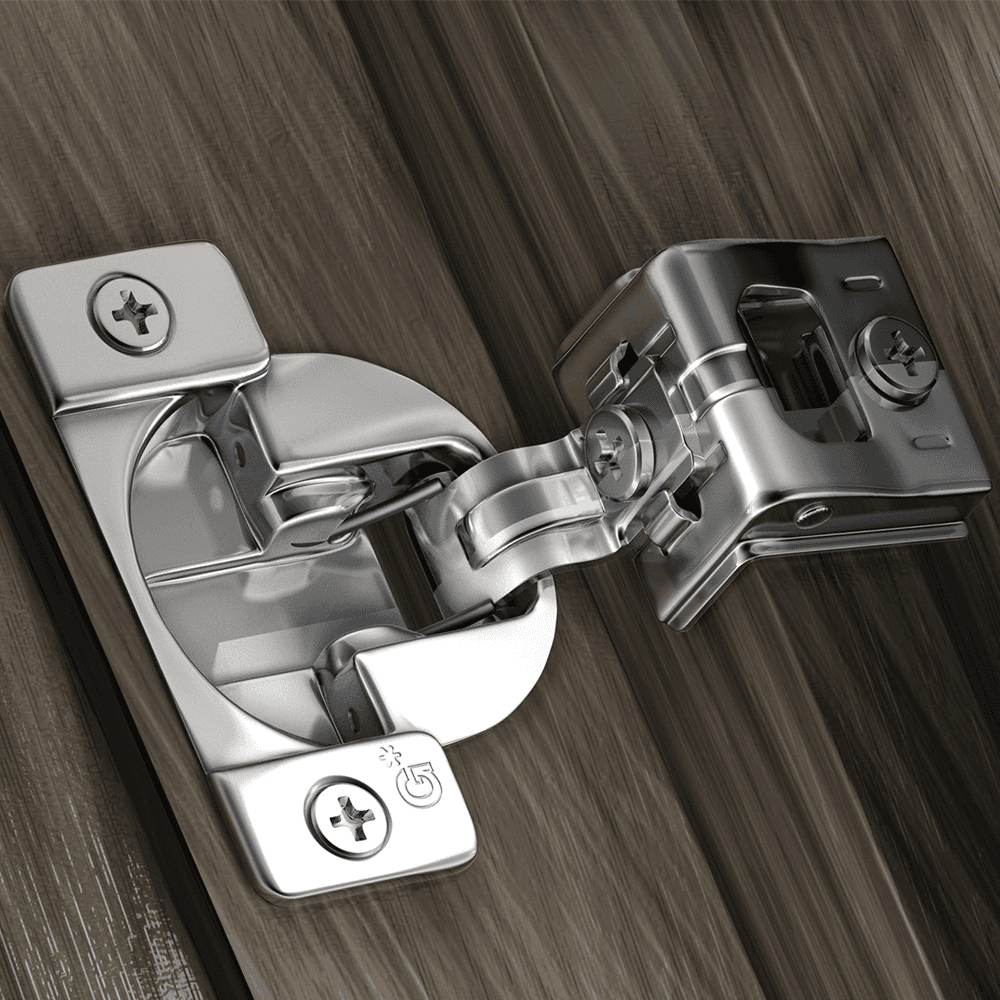

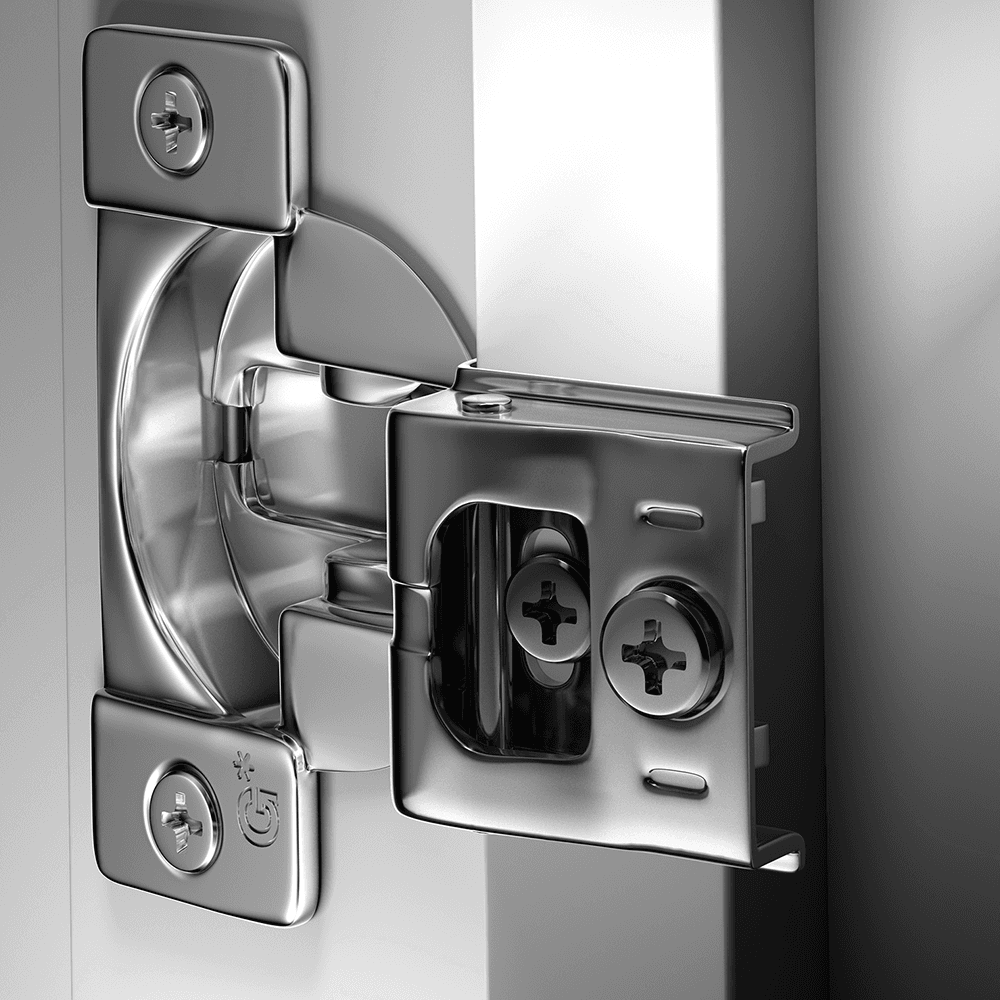

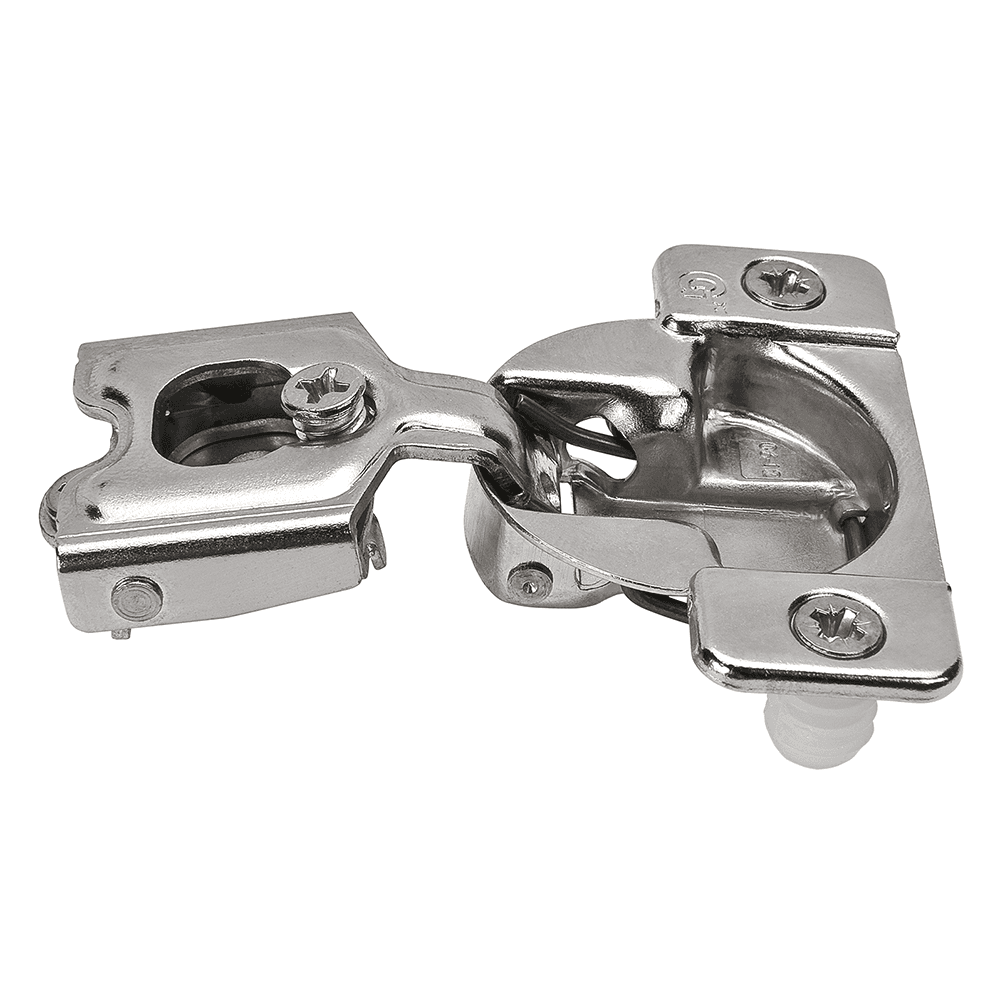

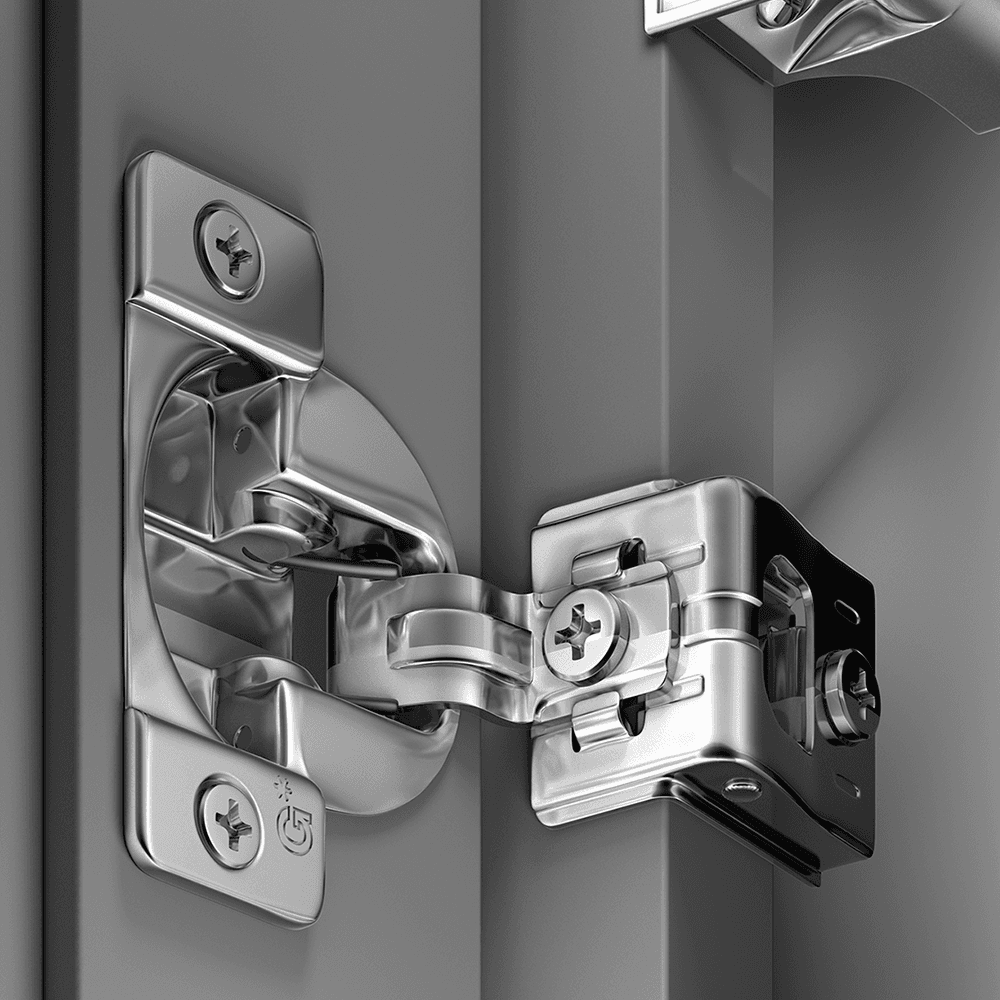

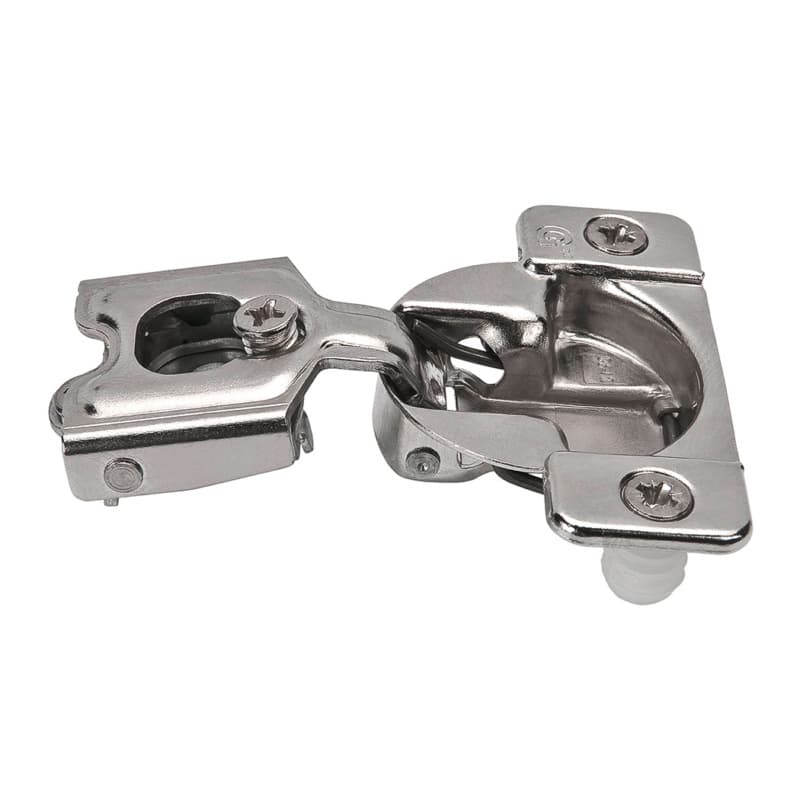

TEC 864 108° Opening Side-Mount Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 1/2" Overlay, Dowelled
Item # GTEC864VS8-45
•Mfr # 02872-15
Product Details
Features:
• Three-dimensional hinge
• One piece hinge and plate combination with micro side adjustment and cam depth adjustment
• Locating tabs for easy mounting on frames
• Height adjustment in elongated screw hole
• Works on door thickness from 13 mm (1/2") to 19 mm (3/4")
• Three-dimensional hinge
• One piece hinge and plate combination with micro side adjustment and cam depth adjustment
• Locating tabs for easy mounting on frames
• Height adjustment in elongated screw hole
• Works on door thickness from 13 mm (1/2") to 19 mm (3/4")
Specifications
| Box Quantity | 300 |
| Mounting Type | Dowelled |
| Overlay | 1/2" |
| Closing Type | Self-Closing |
| Opening Angle | 108° |
| Hinge Type | Side-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
