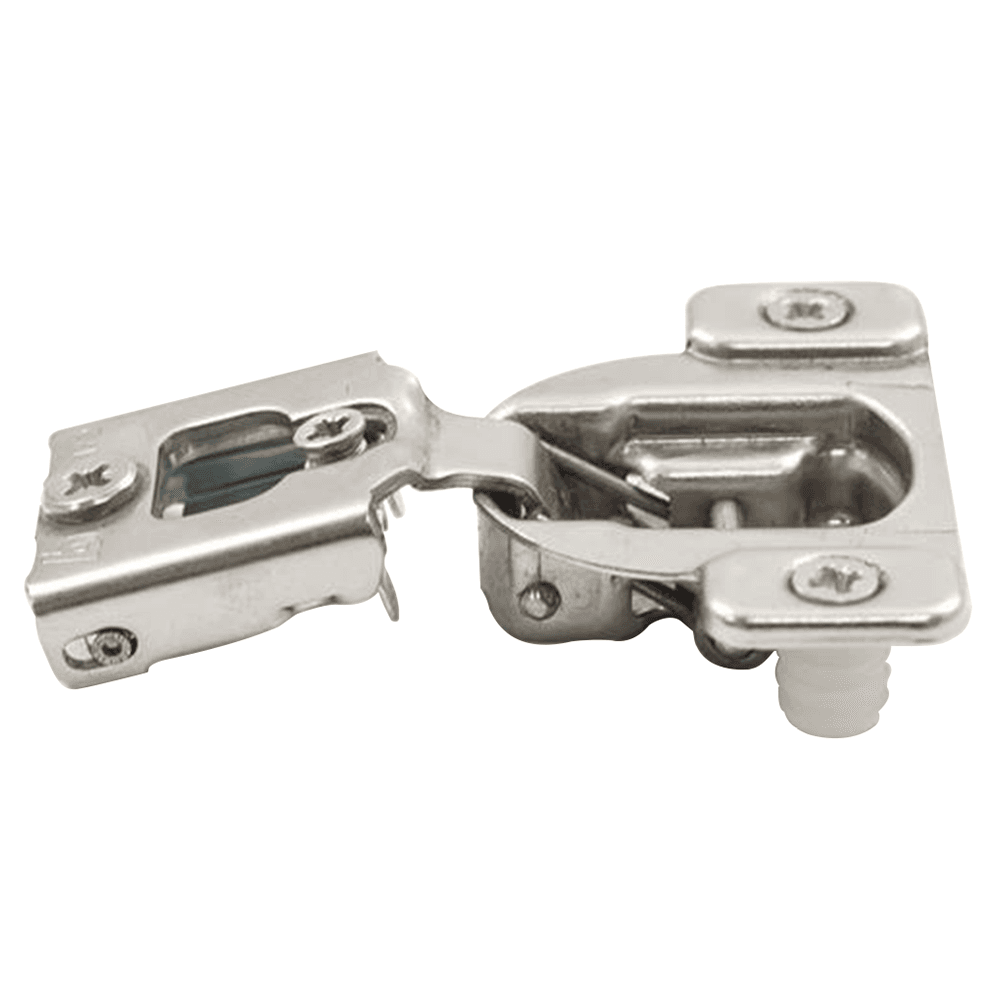

Compact 38N 105° Opening Edge-Mount Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 1/2" Overlay, Dowelled
Item # B38N358CE.08
•Mfr # 38N358CE08
$1.23
/Each
250 items
$1.22/Each
1250 items
$1.19/Each
Mounting Type: Dowelled
Min Order: 1
Qty mult. by: 1
Product Details
COMPACT hinges are concealed hinges for face frame cabinets. These hinges have a small profile, and they work in almost any face frame application. The BLUMOTION soft close adapter is also available for COMPACT hinges.
Features
• 105˚ opening angle
• One piece assembly
• Edge mount
• ?1/8" height adjustment
• ?1/16" side adjustment
• +3/32" - 1/32" cam depth adjustment
• Can be used with BLUMOTION 971A9700
Features
• 105˚ opening angle
• One piece assembly
• Edge mount
• ?1/8" height adjustment
• ?1/16" side adjustment
• +3/32" - 1/32" cam depth adjustment
• Can be used with BLUMOTION 971A9700
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 1/2" |
| Closing Type | Self-Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Edge-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
