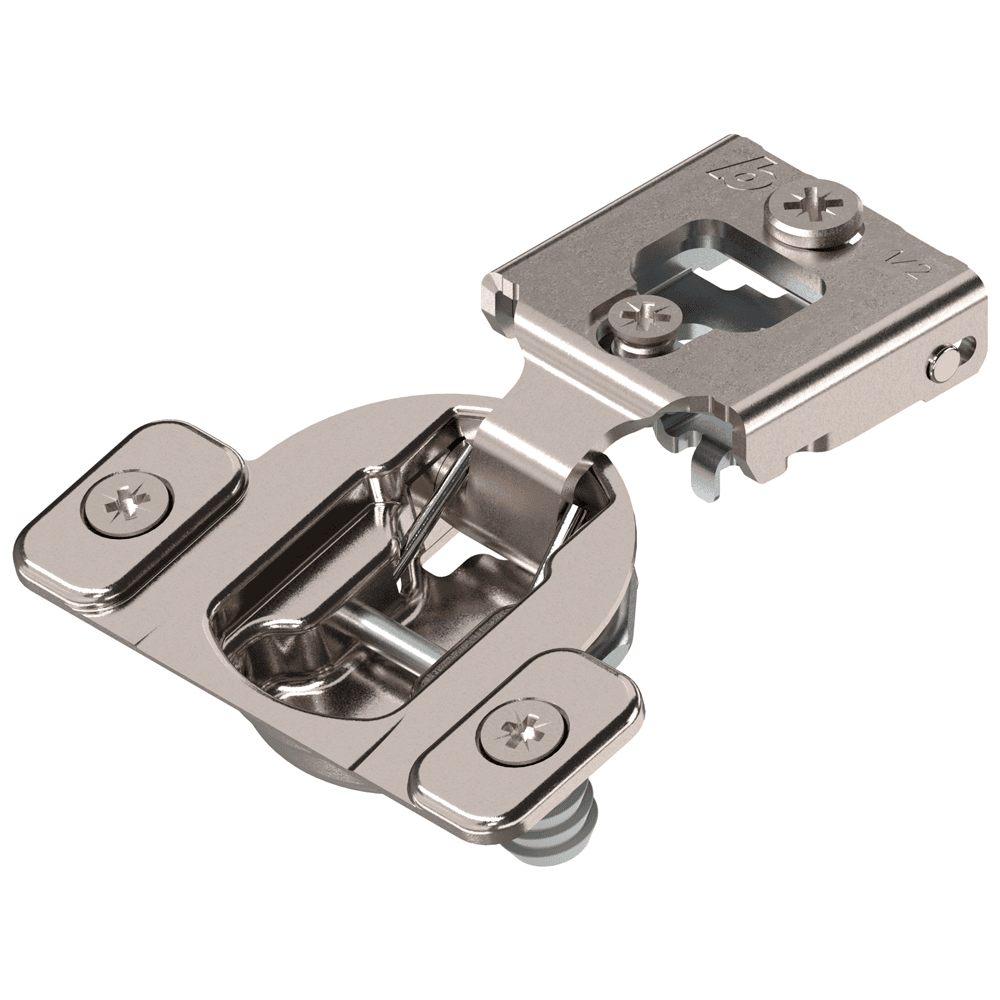

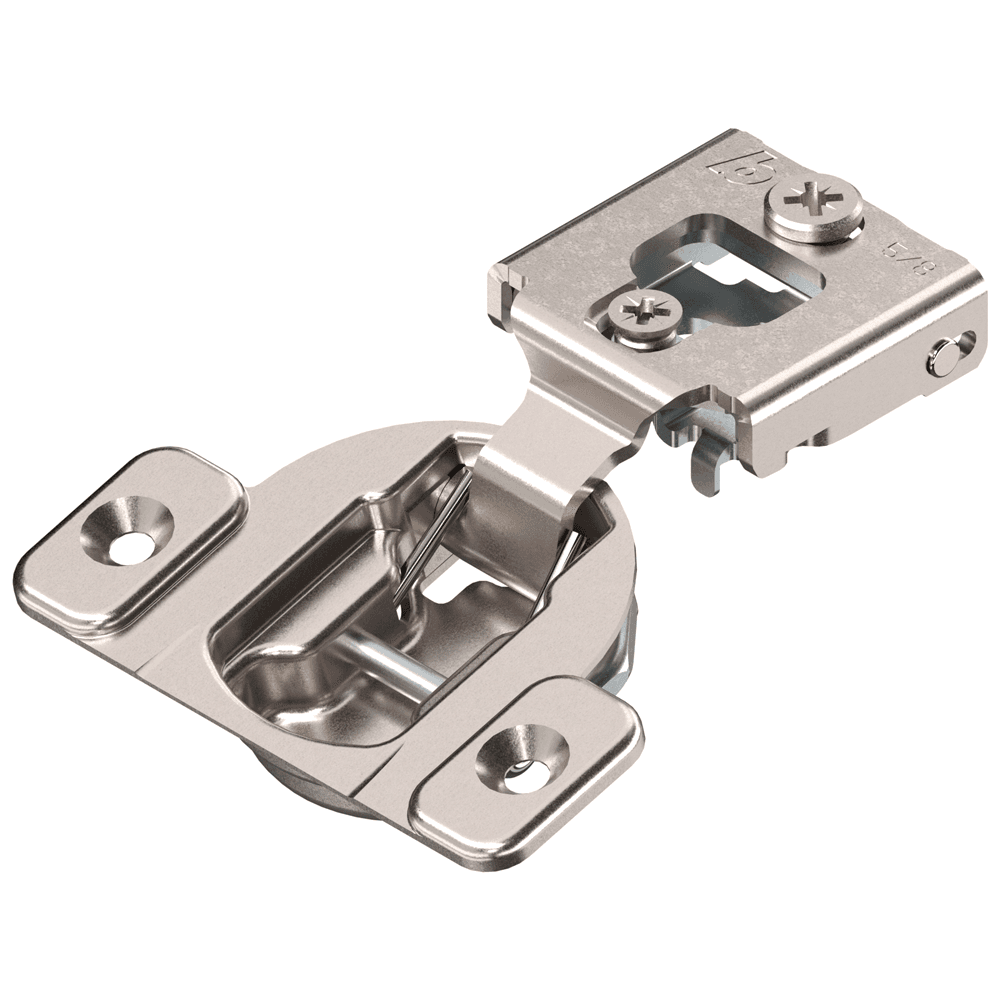

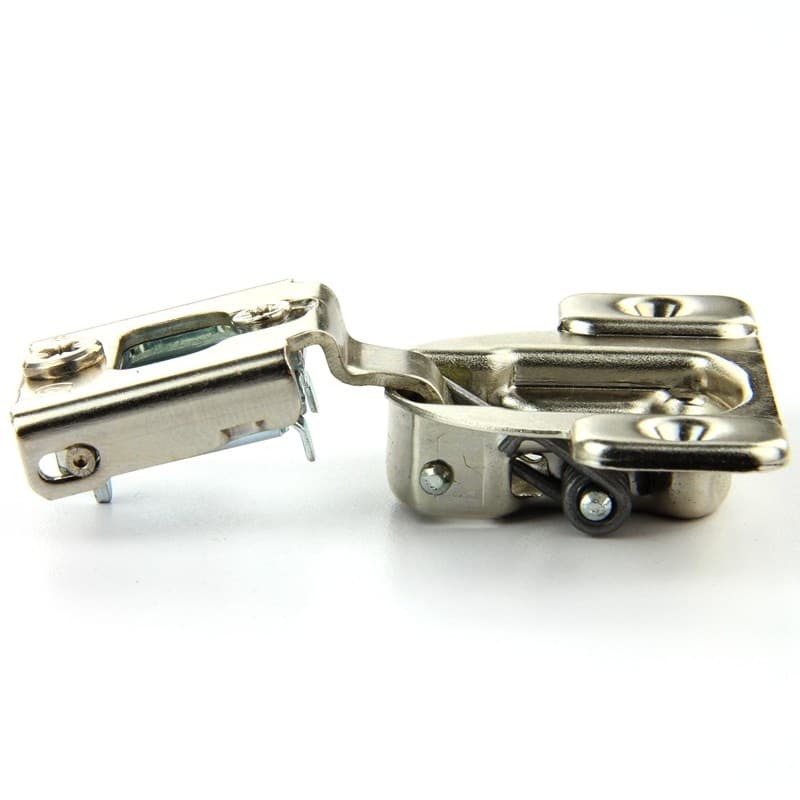

Compact 38N 105° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 5/8" Overlay, Screw-On
Item # B38N355C.10
•Mfr # 38N355C.10
$1.49
/Each
250 items
$1.46/Each
1250 items
$1.40/Each
Mounting Type: Screw-On
Overlay: 5/8"
Min Order: 1
Qty mult. by: 1
Product Details
COMPACT hinges are concealed hinges for face frame cabinets. These hinges have a small profile, and they work in almost any face frame application. The BLUMOTION soft close adapter is also available for COMPACT hinges.
Features
• 105˚ opening angle
• BLUMOTION integrated into the hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• One-piece Edge Mount hinge
• 7/16" cup depth
Features
• 105˚ opening angle
• BLUMOTION integrated into the hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• One-piece Edge Mount hinge
• 7/16" cup depth
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | 5/8" |
| Closing Type | Self-Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |

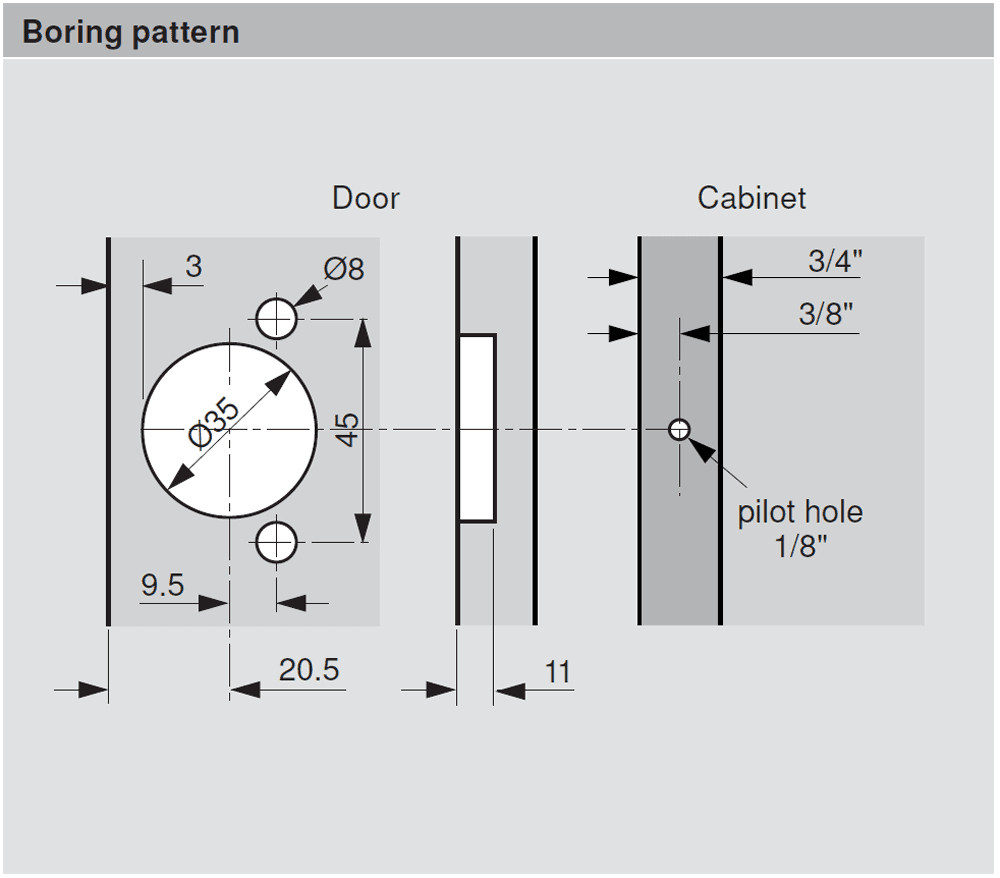

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
