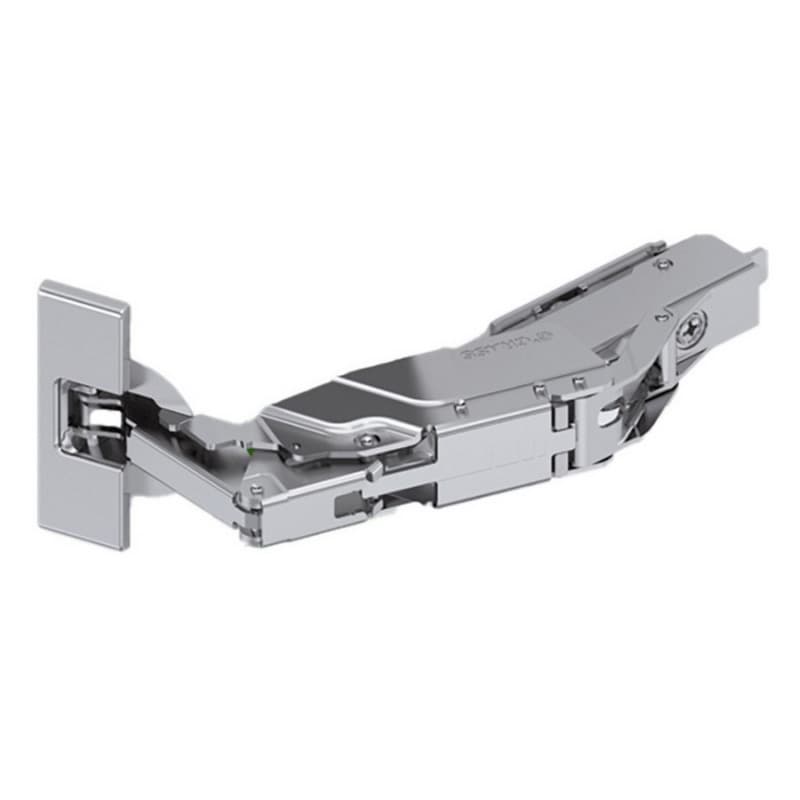

Tiomos 160° Opening Hinge, 42/45mm Bore Pattern, Soft-Closing, Full Overlay, Nickel-Plated, Impresso
Item # GTIOF017139435217
•Mfr # F017139435217
$11.42
/Each
50 items
$9.72/Each
250 items
$9.14/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
The GRASS Tiomos 160˚ full-overlay hinge is designed to provide effective soft-closing action for your cabinets. It is flexible to use in both face-frame and frameless cabinets. Its 3-dimensions can be easily adjusted by combining with appropriate base plates. With a zinc die cast and nickel-plating, this soft-closing hinge looks sleek and is durable. It accommodates doors up to 25.4mm overlays and displays zero protrusion when the door is opened 90˚.
Features:
• Convenient depth adjustment with worm gear
• Minimum reveals and gaps
• Tool-free damper adjustment
• Optimum lever effect enabling easy door opening
• Durable construction
Features:
• Convenient depth adjustment with worm gear
• Minimum reveals and gaps
• Tool-free damper adjustment
• Optimum lever effect enabling easy door opening
• Durable construction
Downloads
Specifications
| Mounting Type | Tool-Free |
| Overlay | Full Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 160° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 42/45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
