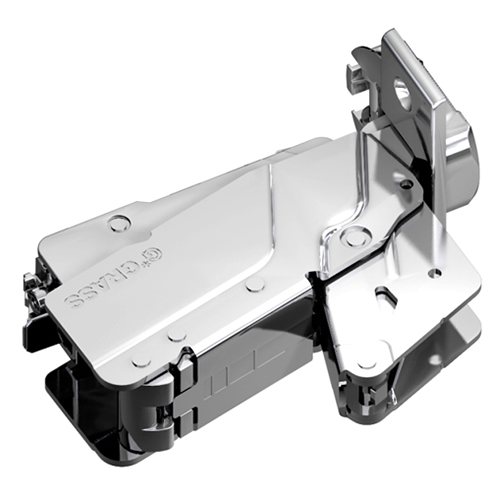

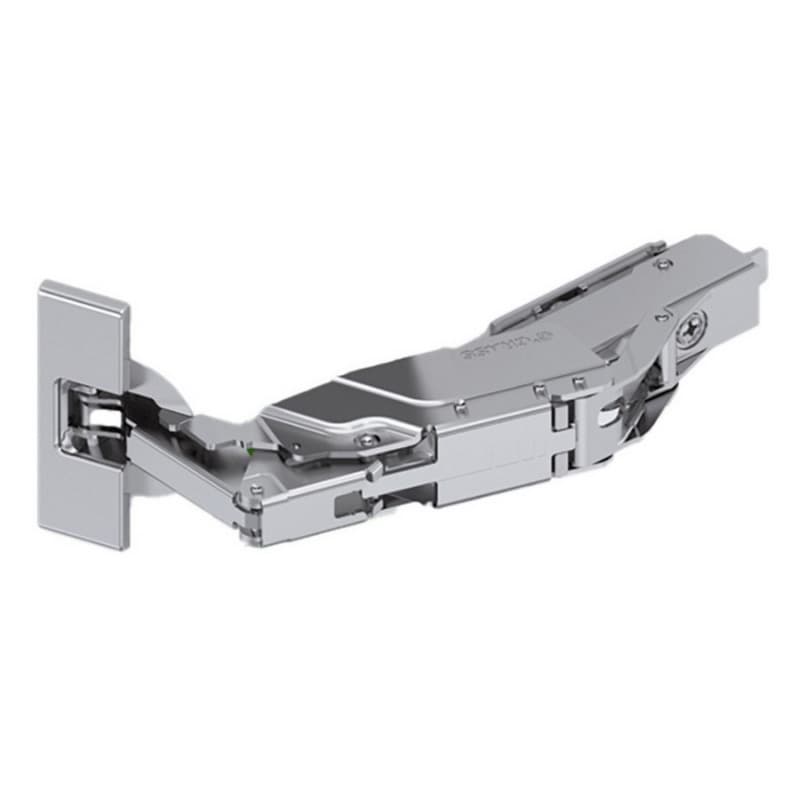

Tiomos 160° Opening Hinge, 45mm Bore Pattern, Soft-Closing, Overlay, Nickel-Plated, Screw-On
Item # GTIOF028138562217
•Mfr # F028138562217
$10.49
/Each
50 items
$8.93/Each
250 items
$8.39/Each
Mounting Type: Screw-On
Min Order: 1
Quantity Multiple by: 1
Product Details

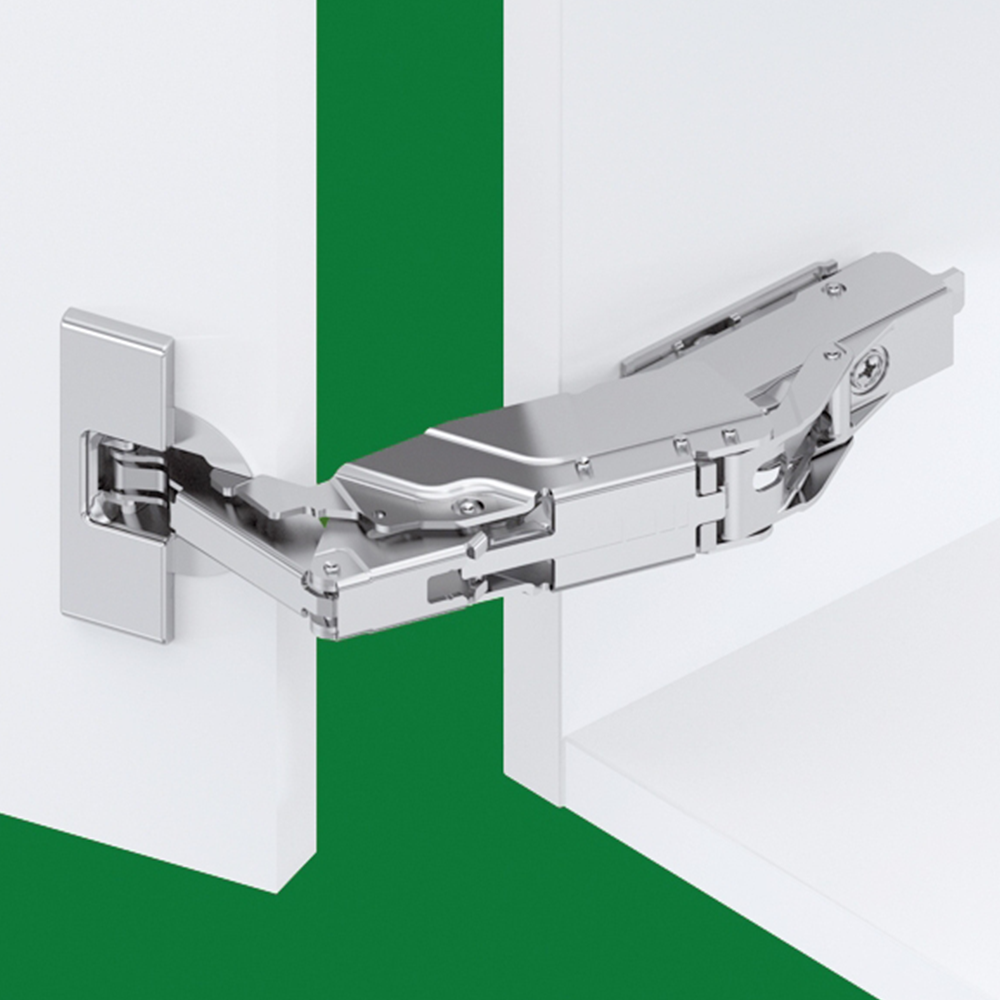

A perfect blend of style and functionality, the GRASS Tiomos 160˚ overlay hinge is the right choice for your face-frame and frameless cabinet projects. The soft-closing mechanism enhanced with damper technology, is integrated into its hinge cup. The stepless height adjustment feature helps it to be in stable position always. This 45mm bore pattern hinge is compatible with current GRASS insertion machinery. Its 3-dimensions are easily adjusted when combined with suitable base plate.
Features:
• Minimum gaps and reveals
• Zero protrusion at 90˚ door opening
• Optimum lever effect
• Durable construction resists corrosion
Features:
• Minimum gaps and reveals
• Zero protrusion at 90˚ door opening
• Optimum lever effect
• Durable construction resists corrosion
Downloads
Specifications
| Mounting Type | Screw-On |
| Overlay | Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 160° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
