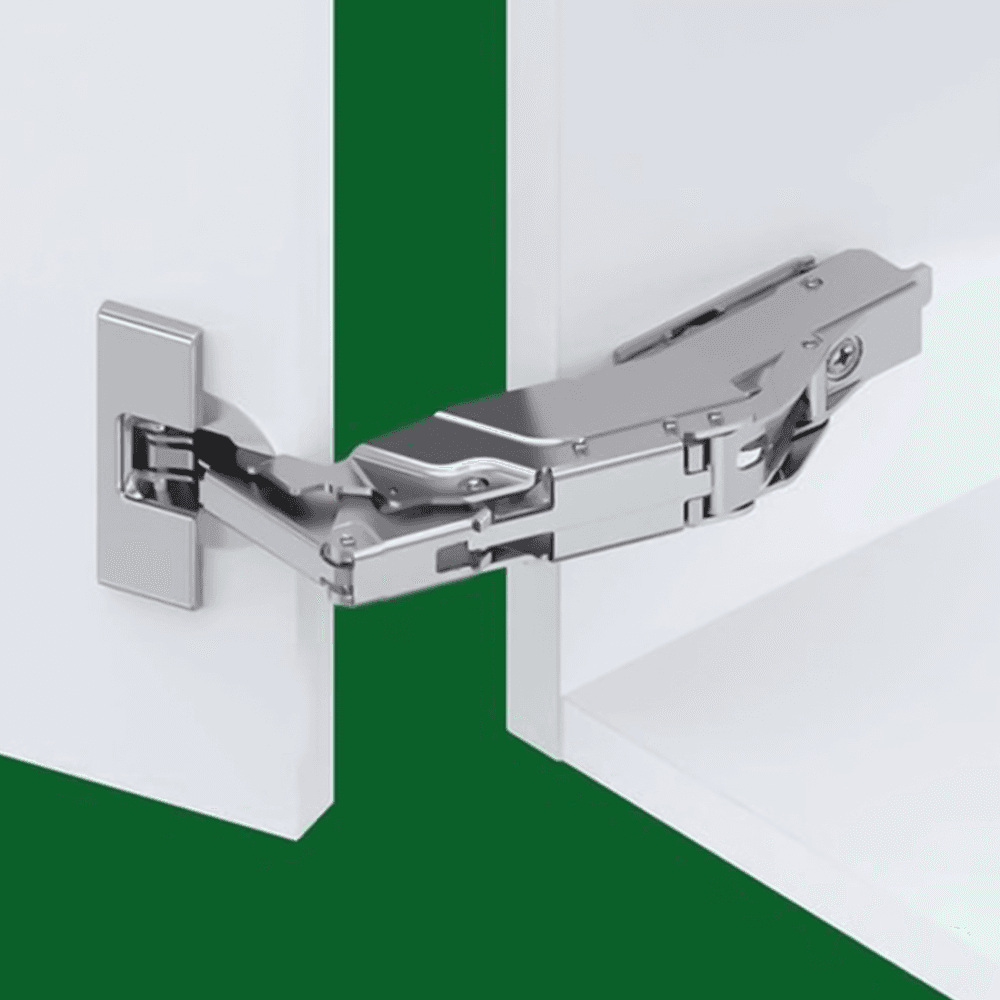

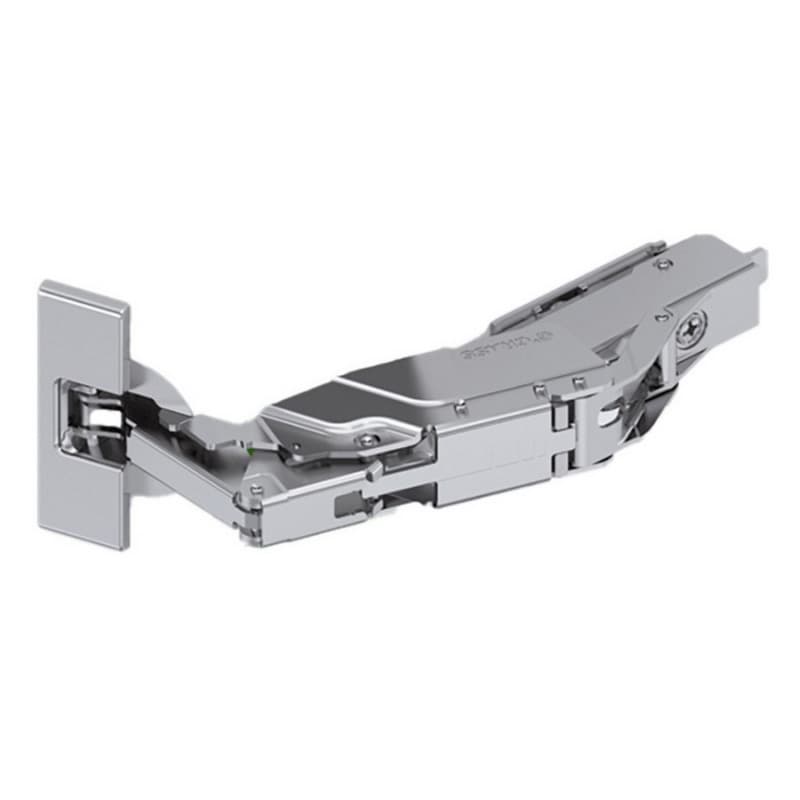

Tiomos 160° Opening Hinge, 42mm Bore Pattern, Self-Closing, Overlay, Nickel-Plated, Dowelled
Item # GTIOF045138321217
•Mfr # F045138321217
$6.90
/Each
50 items
$5.86/Each
250 items
$5.51/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Boring Pattern: 45mm
• Material: Zinc, nickel-plated
• 3-dimensional adjustment with suitable base plate

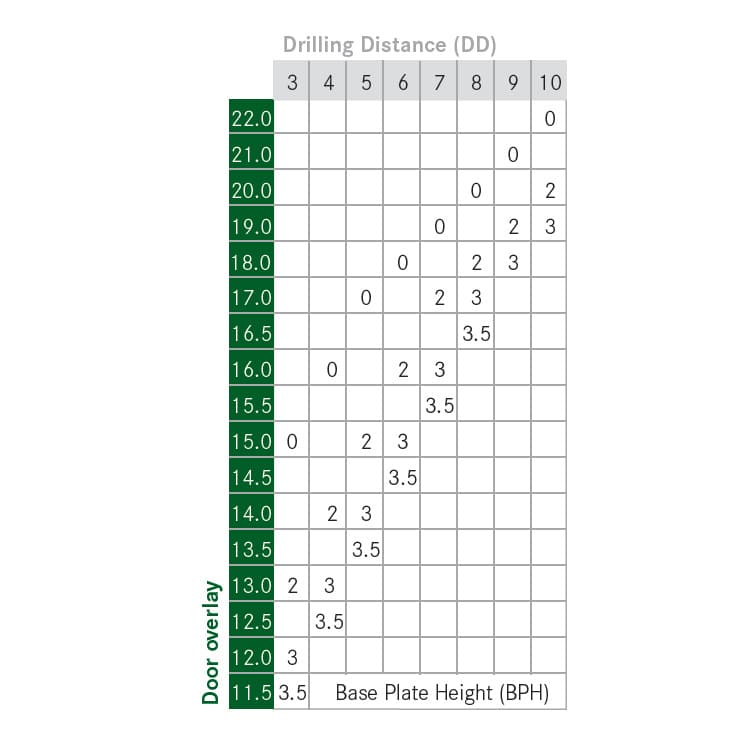

• Accommodates overlays up to 25.4mm (1")
• For face frame or frameless cabinets
• Convenient depth adjustment with worm gear
• Zero protrusion when door is opened 90˚
• 10mm cup depth
• For door thicknesses up to 32mm (1 1/4")

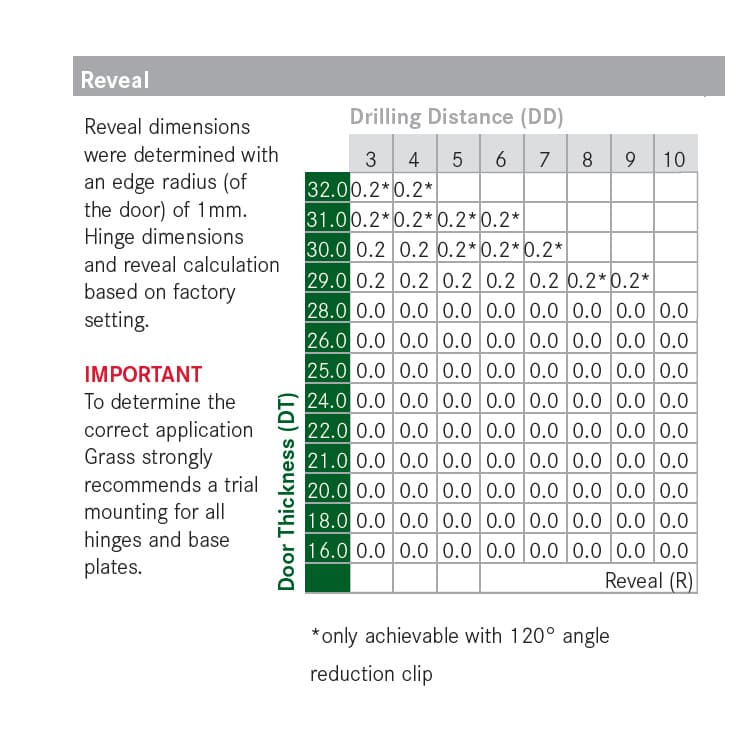

• Minimal reveal
• Boring Pattern: 45mm
• Material: Zinc, nickel-plated
• 3-dimensional adjustment with suitable base plate
• Accommodates overlays up to 25.4mm (1")
• For face frame or frameless cabinets
• Convenient depth adjustment with worm gear
• Zero protrusion when door is opened 90˚
• 10mm cup depth
• For door thicknesses up to 32mm (1 1/4")
• Minimal reveal
Specifications
| Box Quantity | 50 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 160° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 42mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
