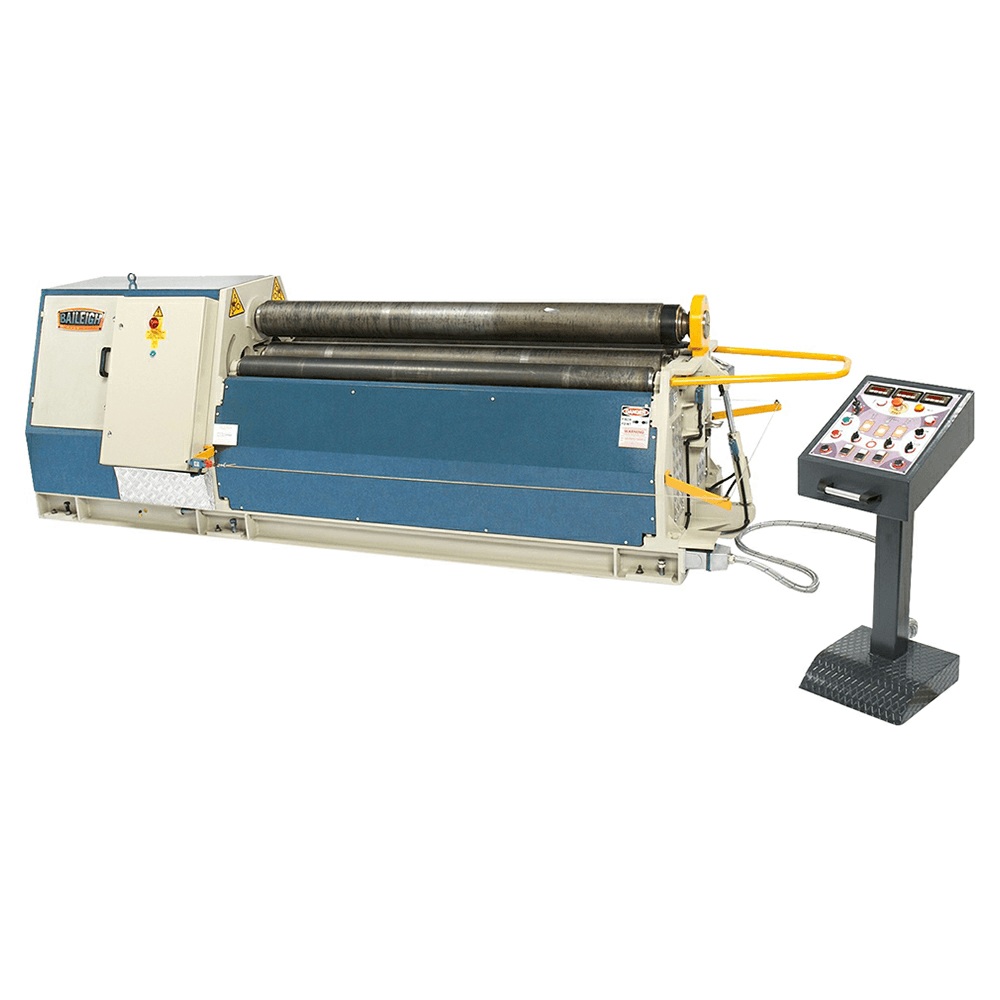

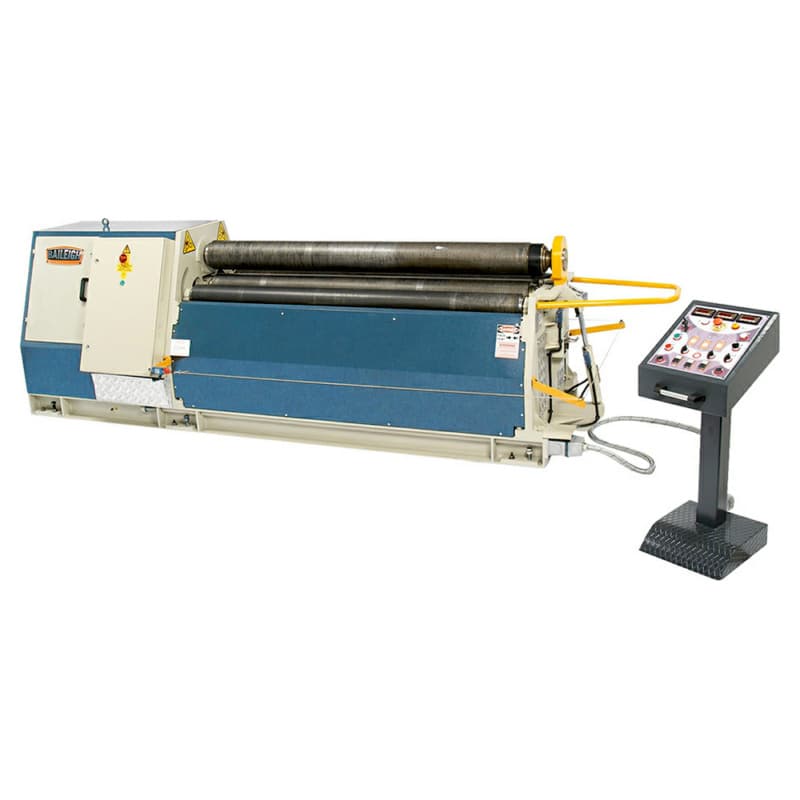

Baileigh PR-603-4 4 HP Four Roll Plate Roll, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

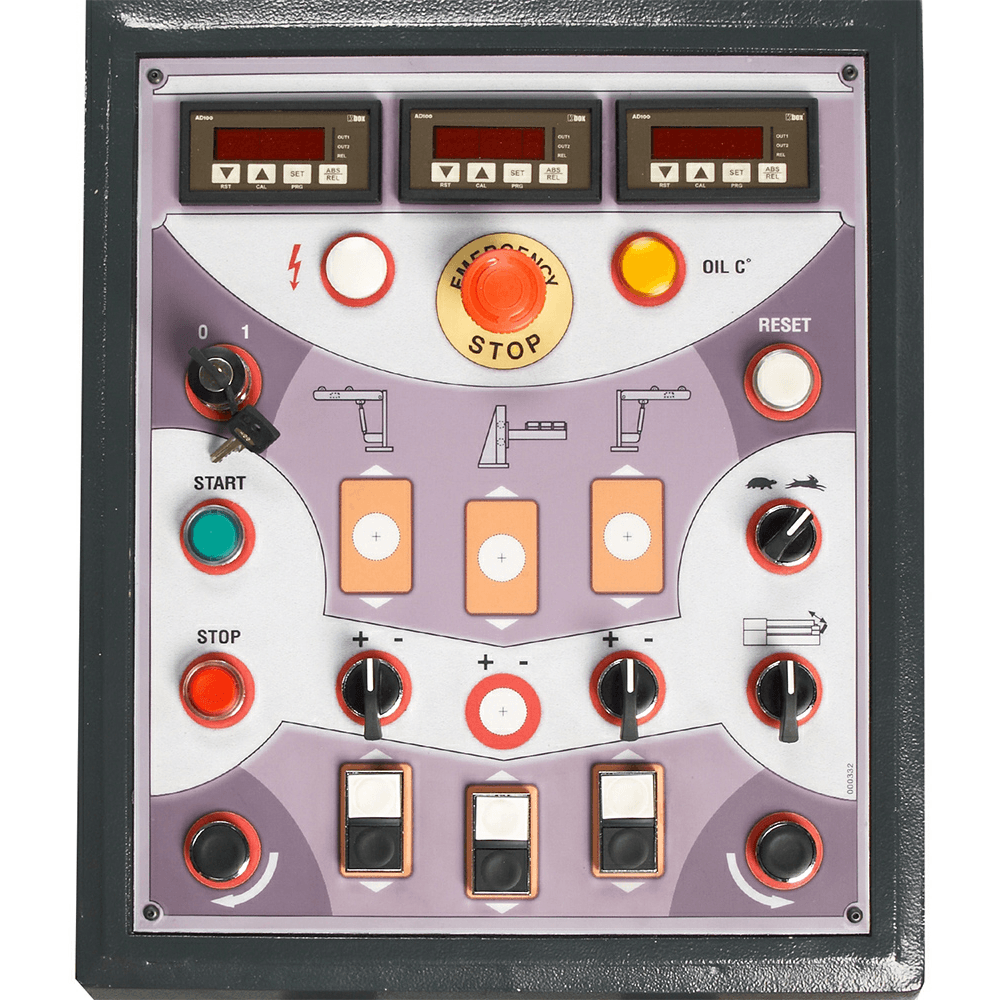

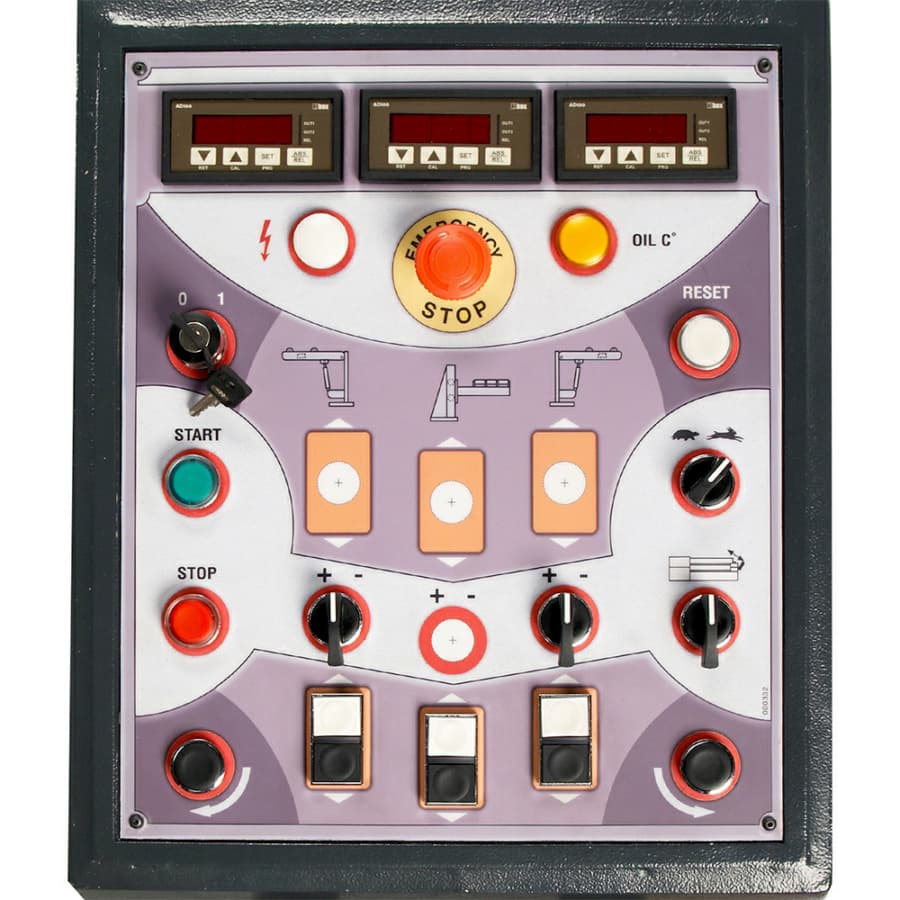

We designed this plate roll for years of trouble-free use. Direct movement on the lateral rolls can form tighter diameters with less work, whereas many plate rolls rely on orbital movement. • Rolls up to 1/4" mild steel in 6-foot lengths • Robust 4 hp motor runs on 220-volt 3-phase power • Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute • Direct linear piston movement for the lateral and forming rolls delivers even more power • Industrial 1.5 hp hydraulic motor moves the lateral rolls • 3 digital readouts give accurate roll locations for easy repeatability • Operator control pedestal lets you conveniently manage all movements of the machine • Welded steel plate frame keeps the machine rigid and helps prevent flex • Covered by a 1-year parts warranty
Special Capacities:
• Capacity at 5x roll diameter without pre bending .315" • Capacity at 1.5x roll diameter without pre bending .236" • Capacity at 1.5x roll diameter with pre bending .157". Features: • 4-roll double-pinch plate roll • 6-foot length • ¬º " mild steel maximum capacity • Main 4 hp 220-volt 3-phase motorSpecifications
| Box Quantity | 1 |
| Configurable Base Item | |
| Product Type | Four Roll Plate Rolls |
| Overall Dimensions (L x W x H) | |
| Number and Diameter of Rolls | |
| Motor Voltage (V.) | 220V |
| Motor Phase | |
| Motor (HP) | 4 HP |
| Minimum Forming Radius | |
| Mild Steel Capacity (Gauge) | |
| Mild Steel Capacity | |
| Maximum Forming Length | 80" |
| Wire Grooves |
