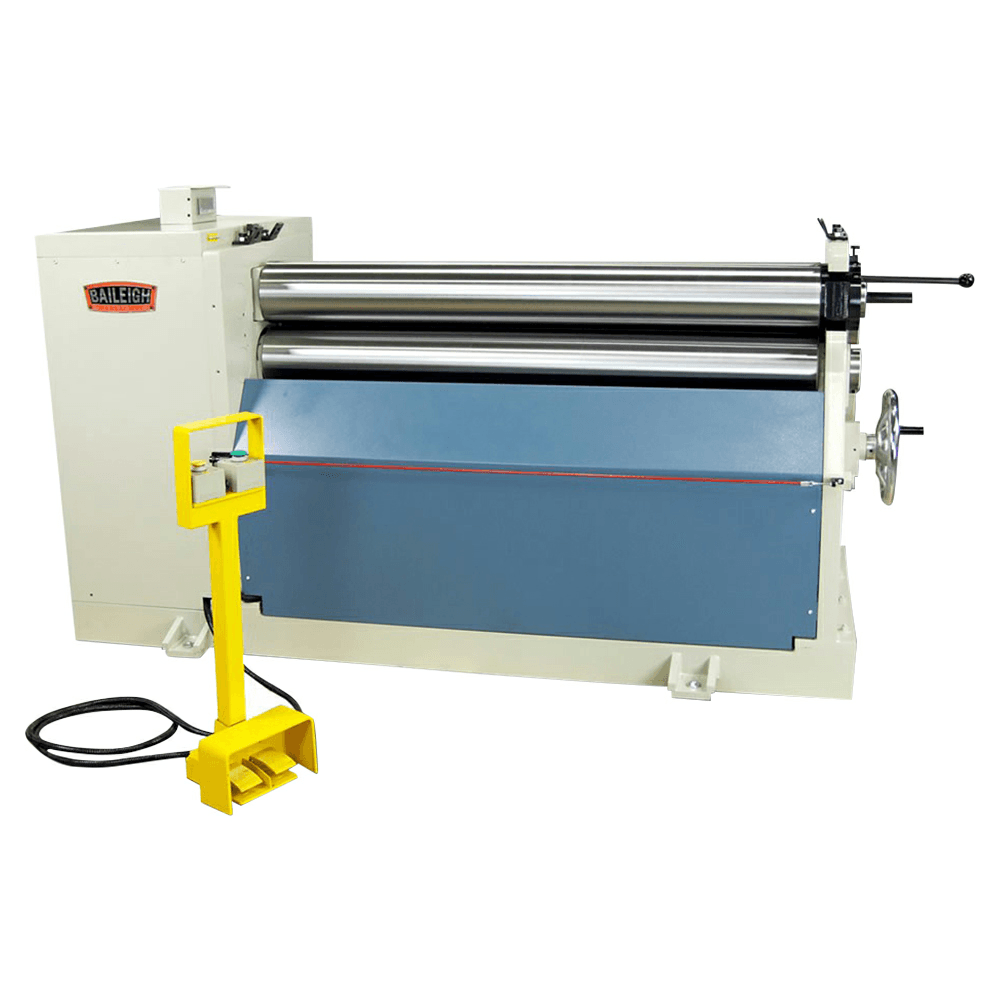

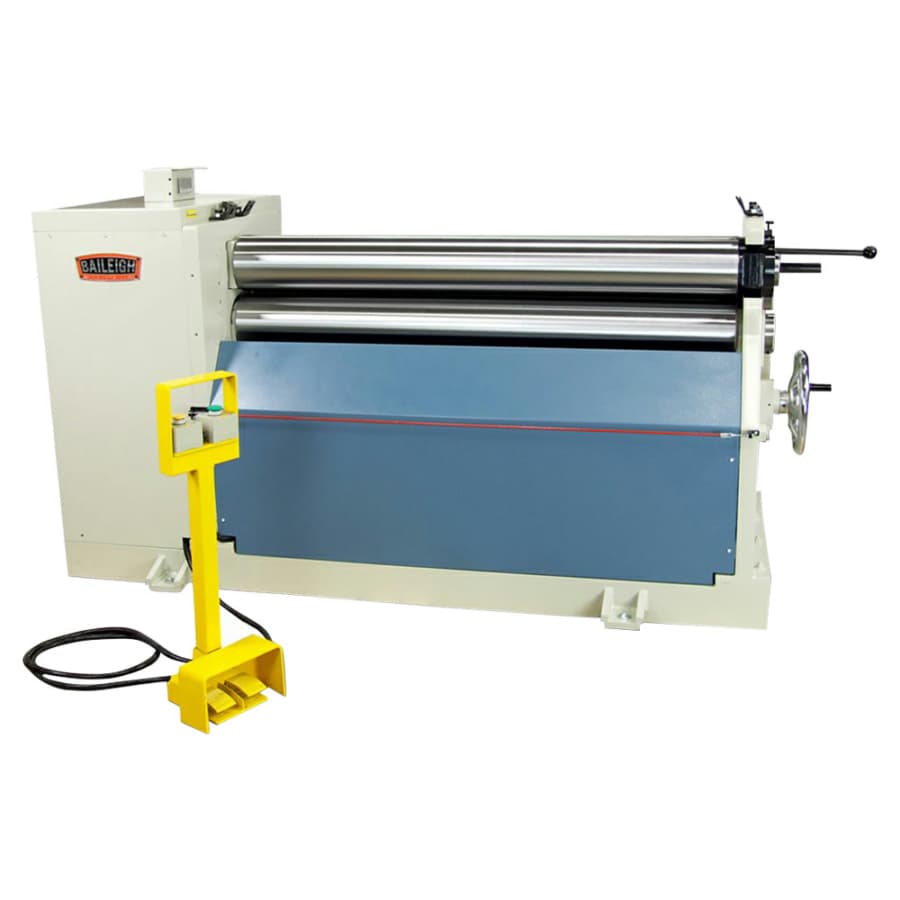

Baileigh PR-503 5 HP Plate Roll, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

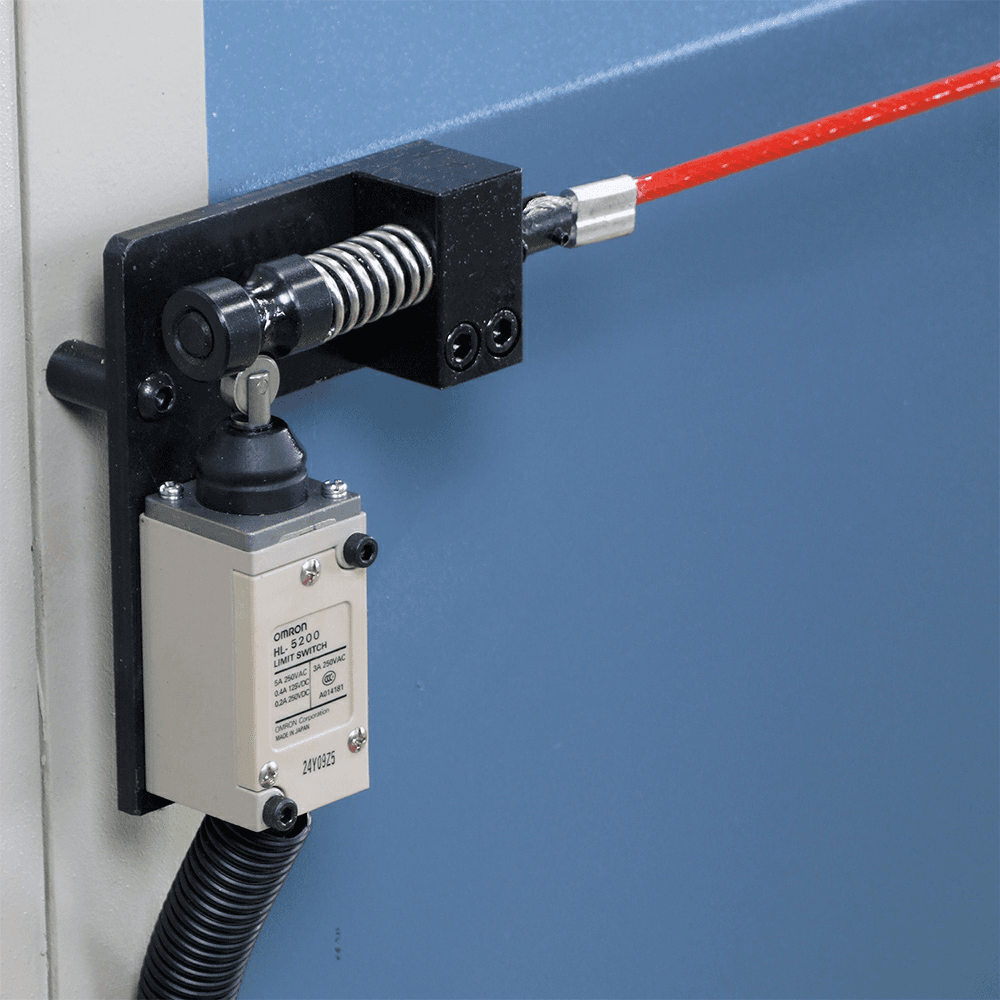

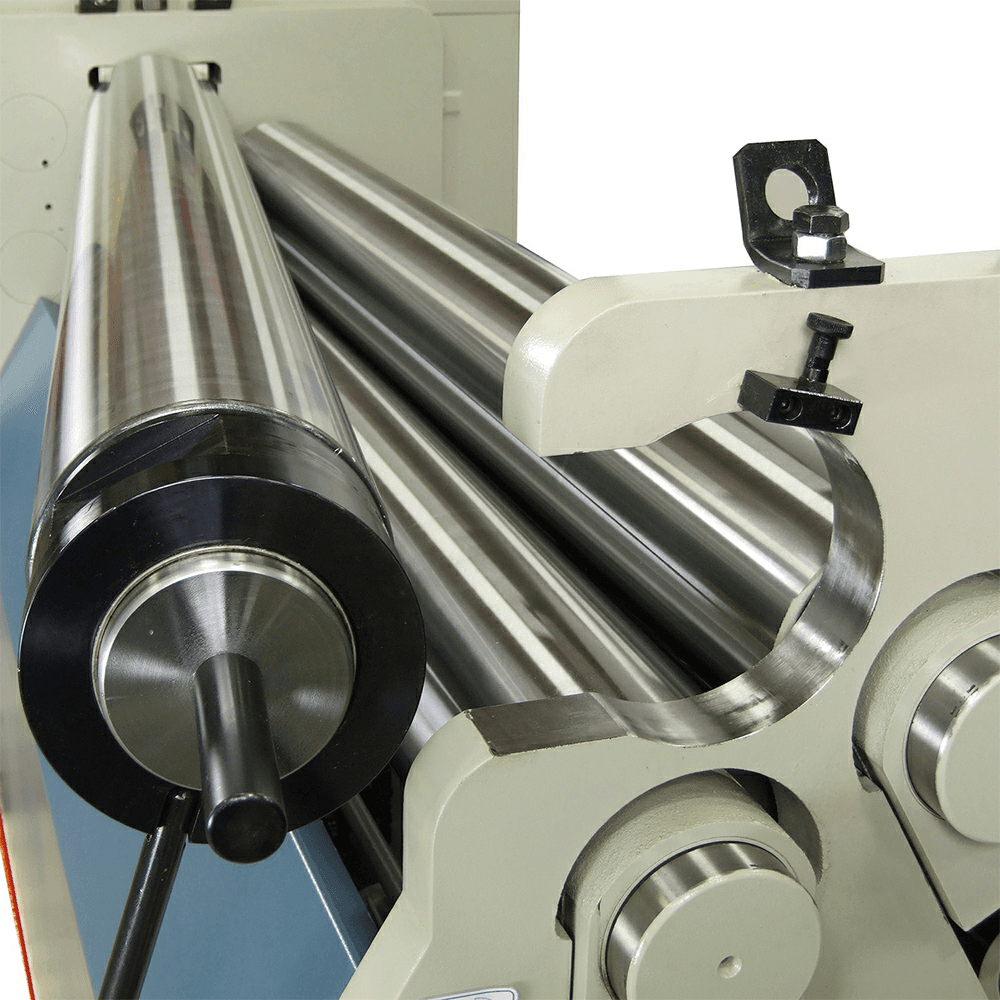

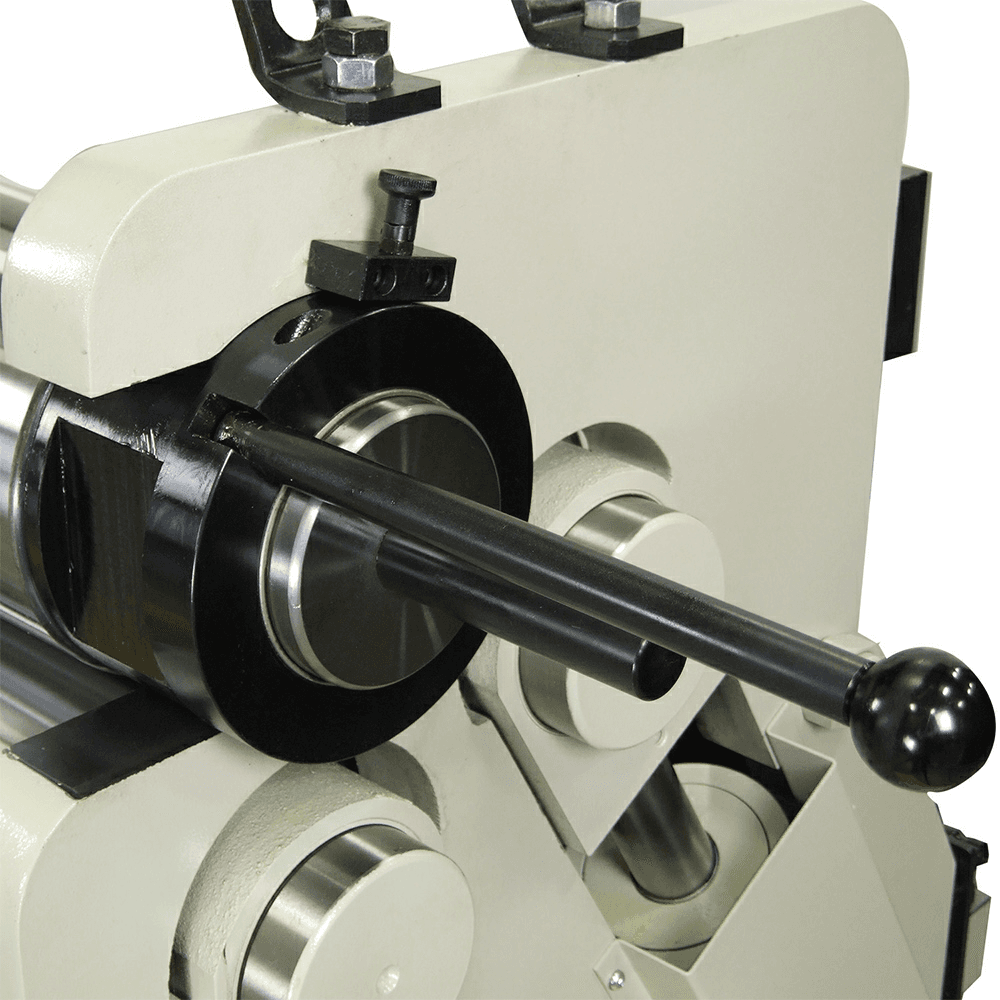

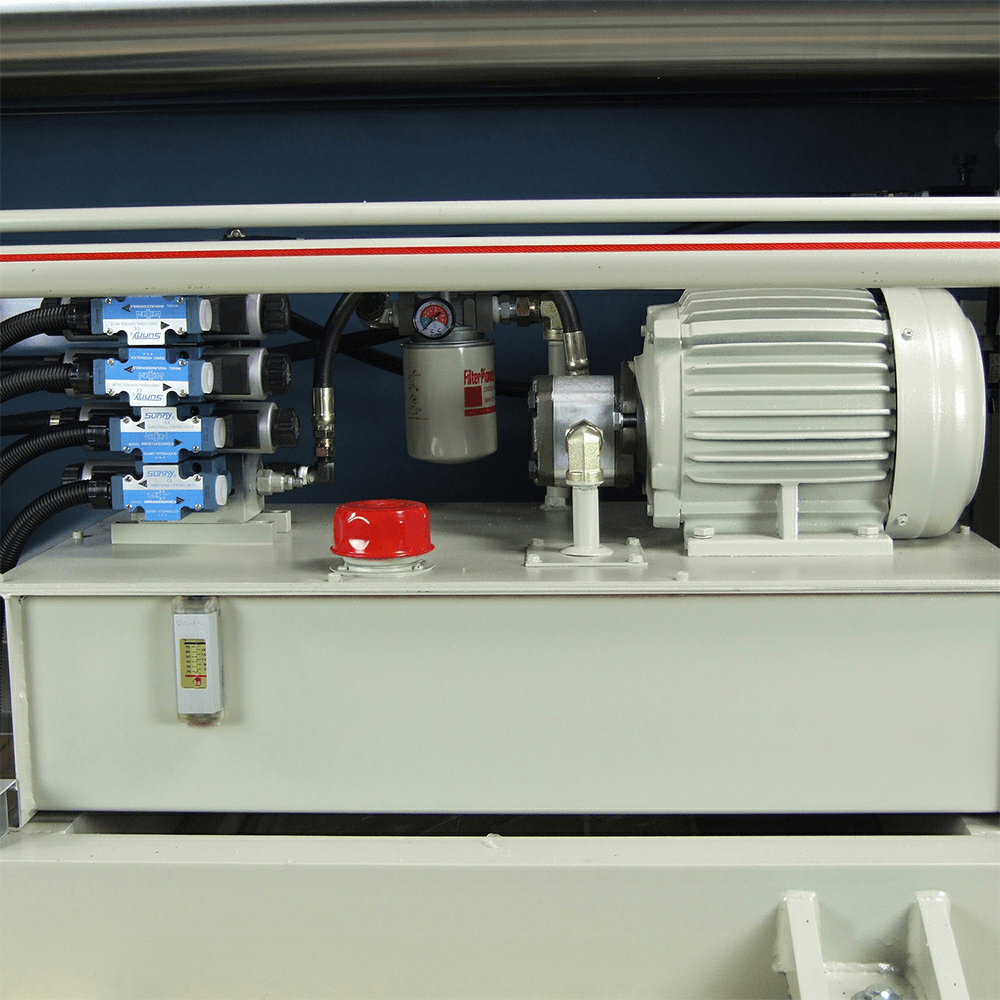

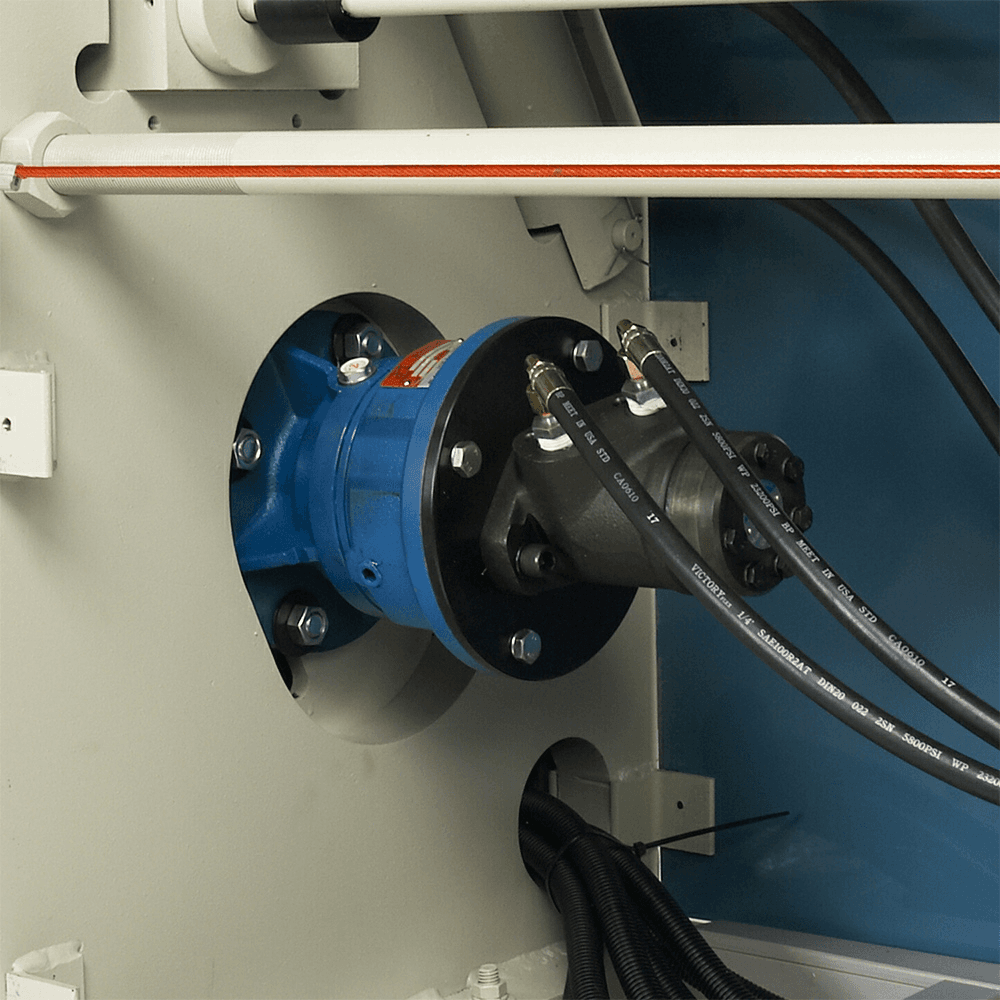

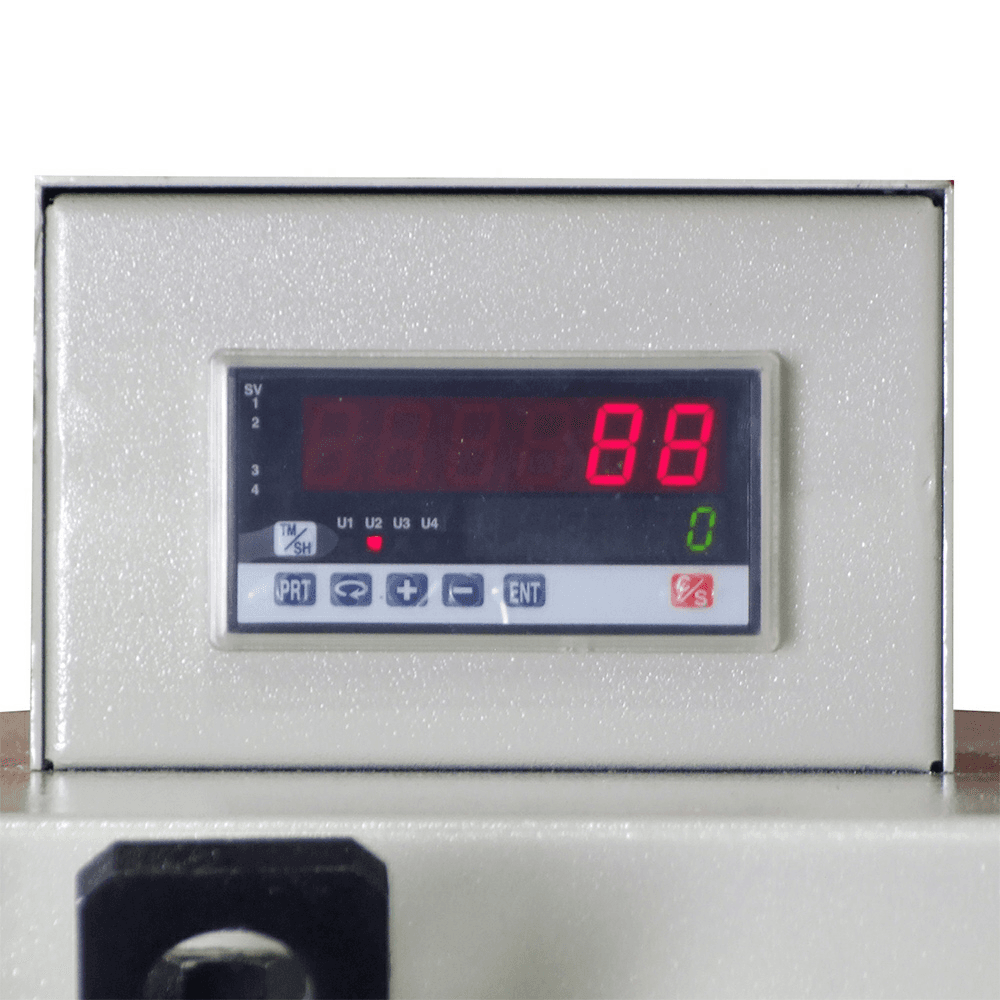

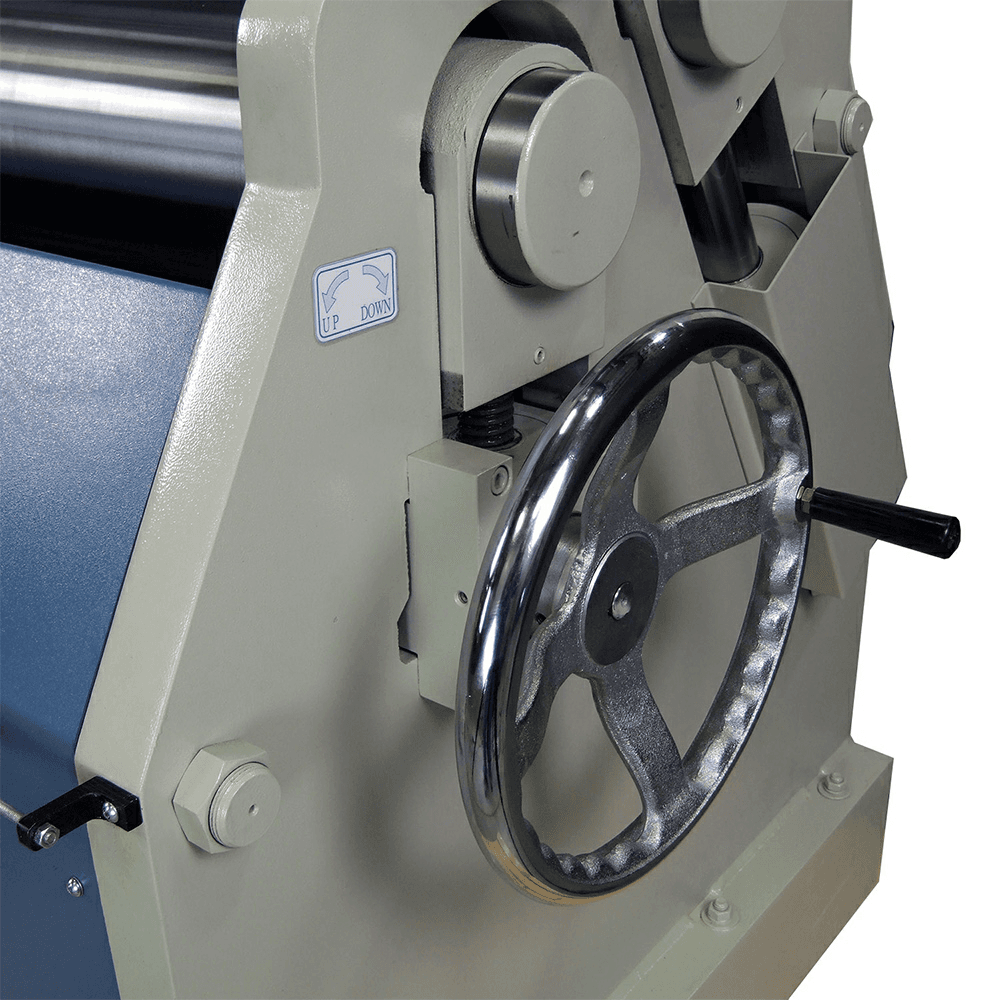

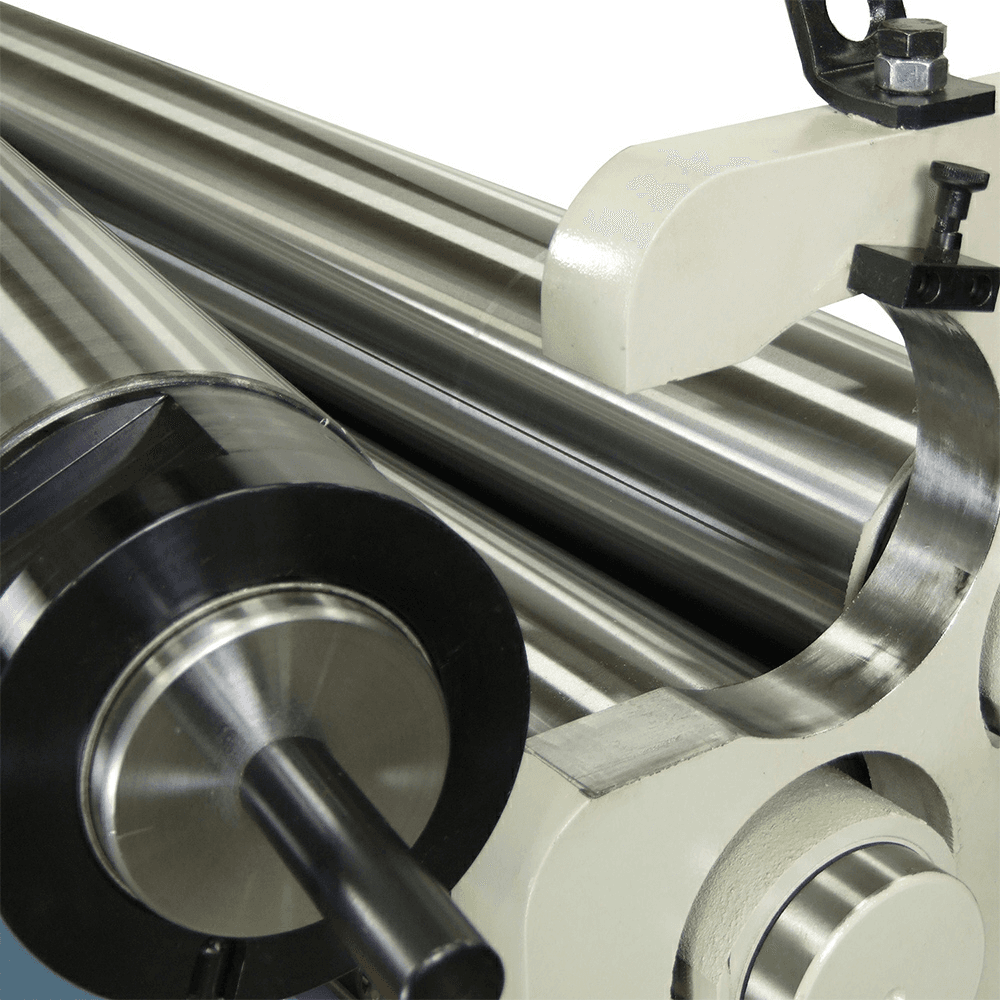

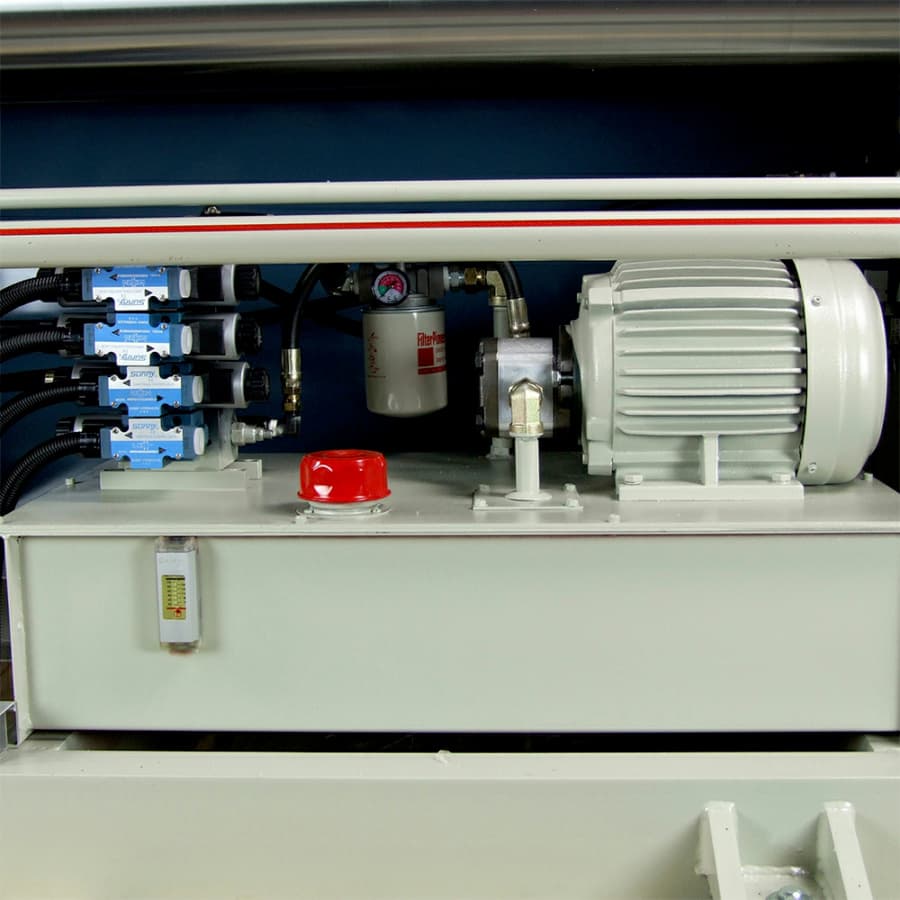

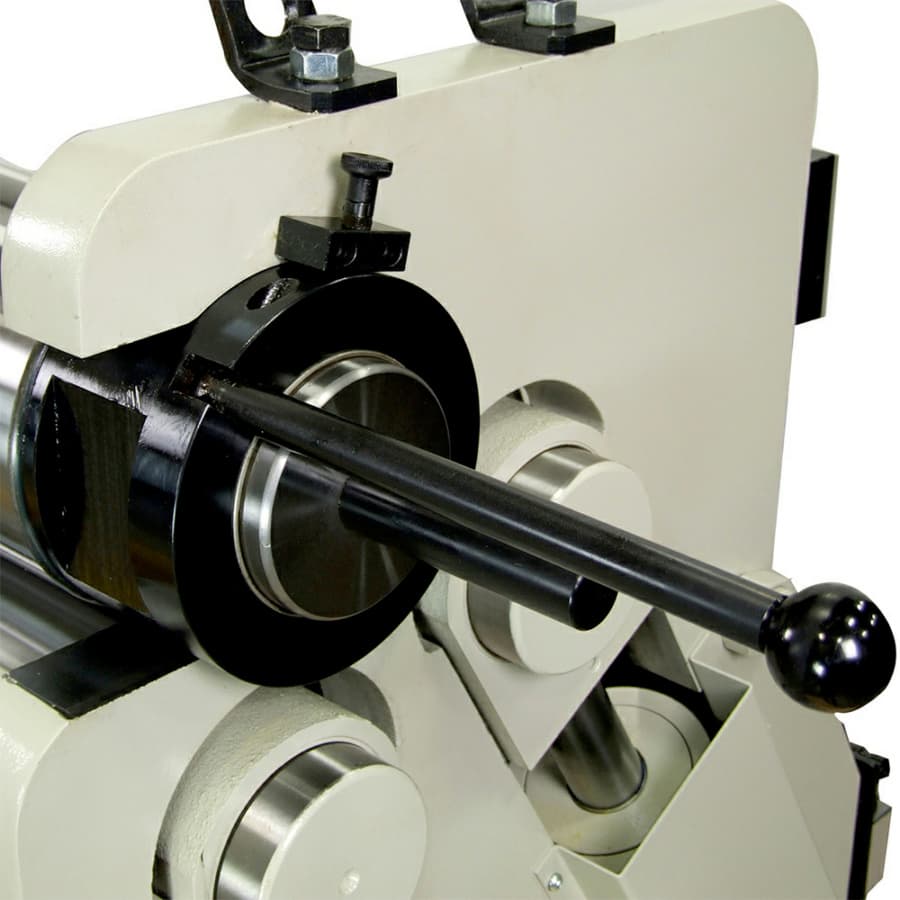

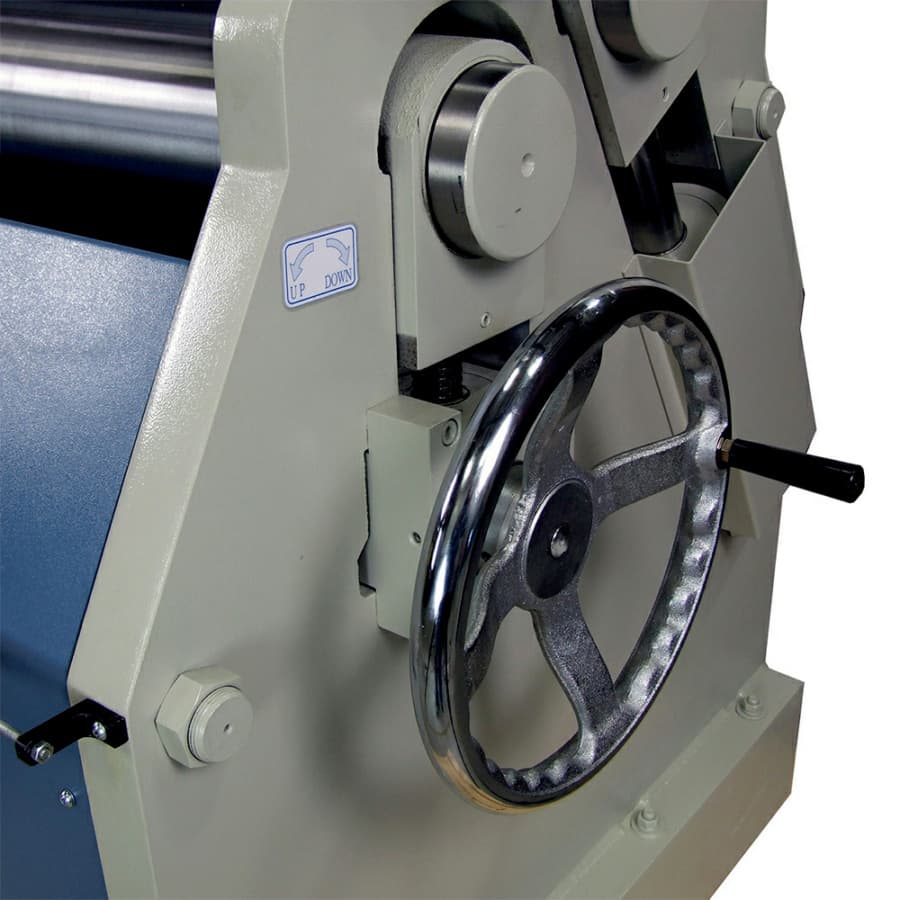

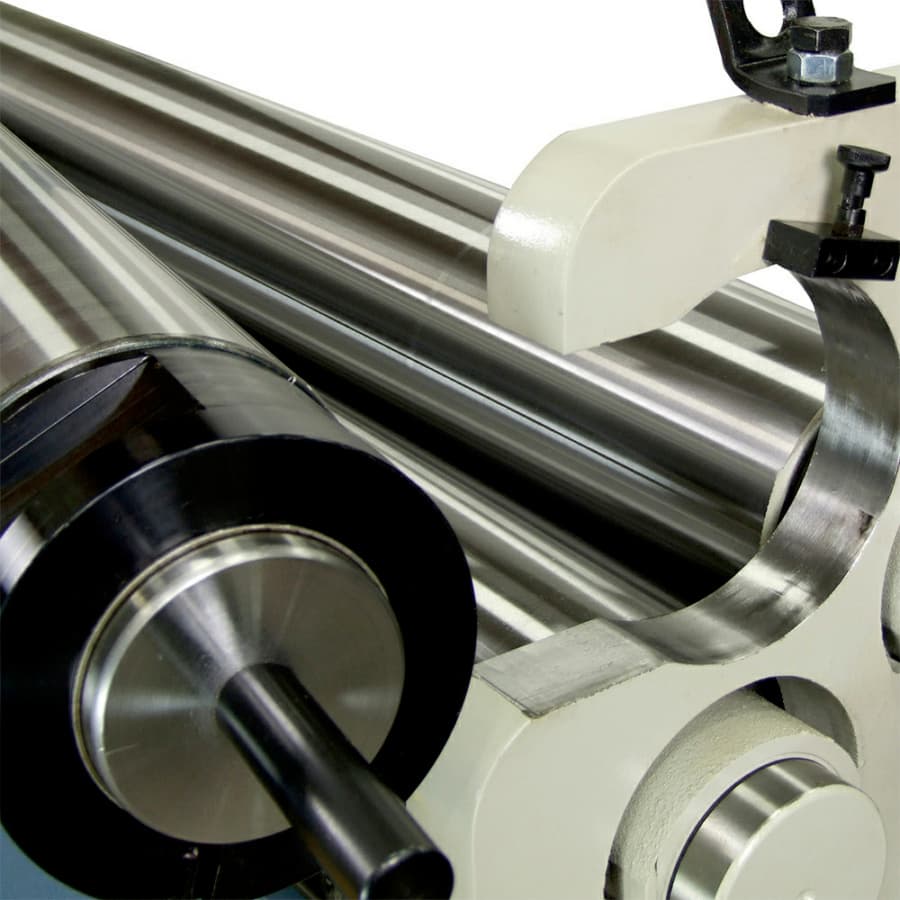

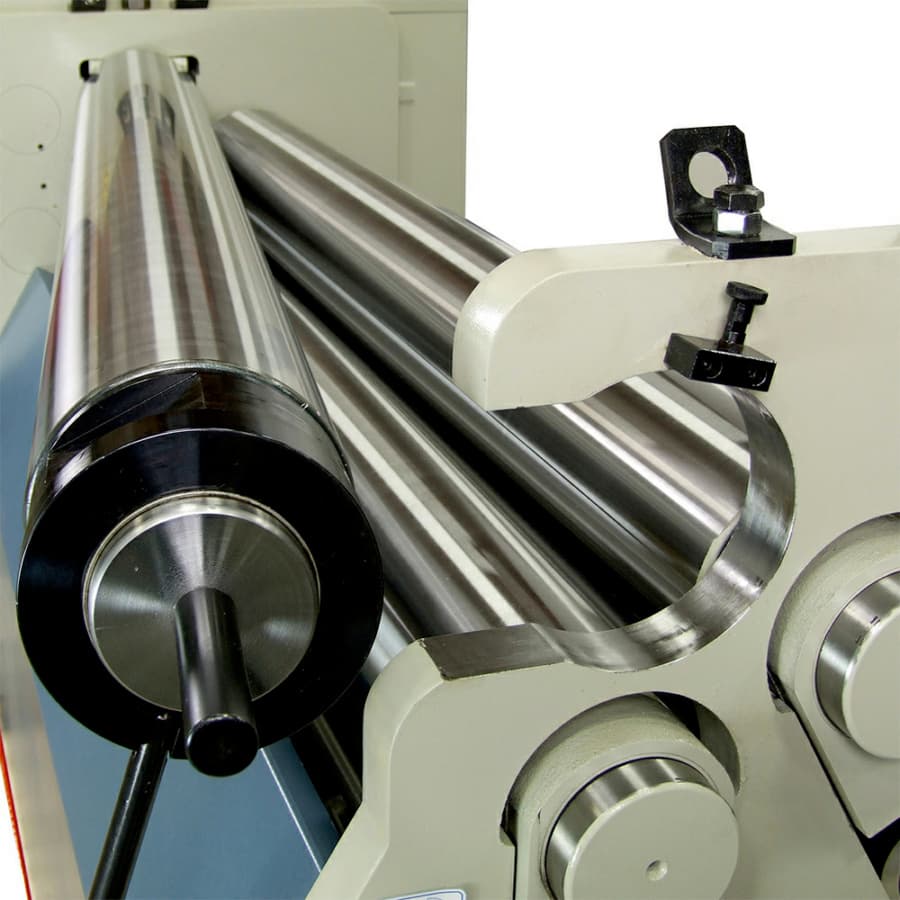

A true workhorse and a staple of Baileigh's plate roll line, the PR-503 was built for small to medium fabrication shops. Its welded steel frame maintains accuracy. Features: • Maximum 61" forming width • Rolls up to 3 gauge 1/4" mild steel sheet metal across its full width • 5 hp motor runs on 220-volt 3-phase power • 3 driven rolls let you shape more material faster and increase productivity • Completely hydraulically driven for durability and reliability • Digital readout comes standard, so you can track the position of the back roll for increased accuracy and less waste • Quick-release mechanism on the top roll makes it simple to remove work that's wrapped around roll • Dual emergency stop cables that are located on both the front and back of the machine • Heavy steel frame helps prevent flex for longer machine life • Comes with a 1-year parts warranty
Specifications
| Box Quantity | 1 |
| Configurable Base Item | |
| Product Type | Three Roll Plate Rolls |
| Overall Dimensions (L x W x H) | |
| Number and Diameter of Rolls | |
| Motor Voltage (V.) | |
| Motor Phase | |
| Motor (HP) | 5 HP |
| Minimum Forming Radius | |
| Mild Steel Capacity (Gauge) | |
| Mild Steel Capacity | |
| Maximum Forming Length | 61" |
| Wire Grooves |
