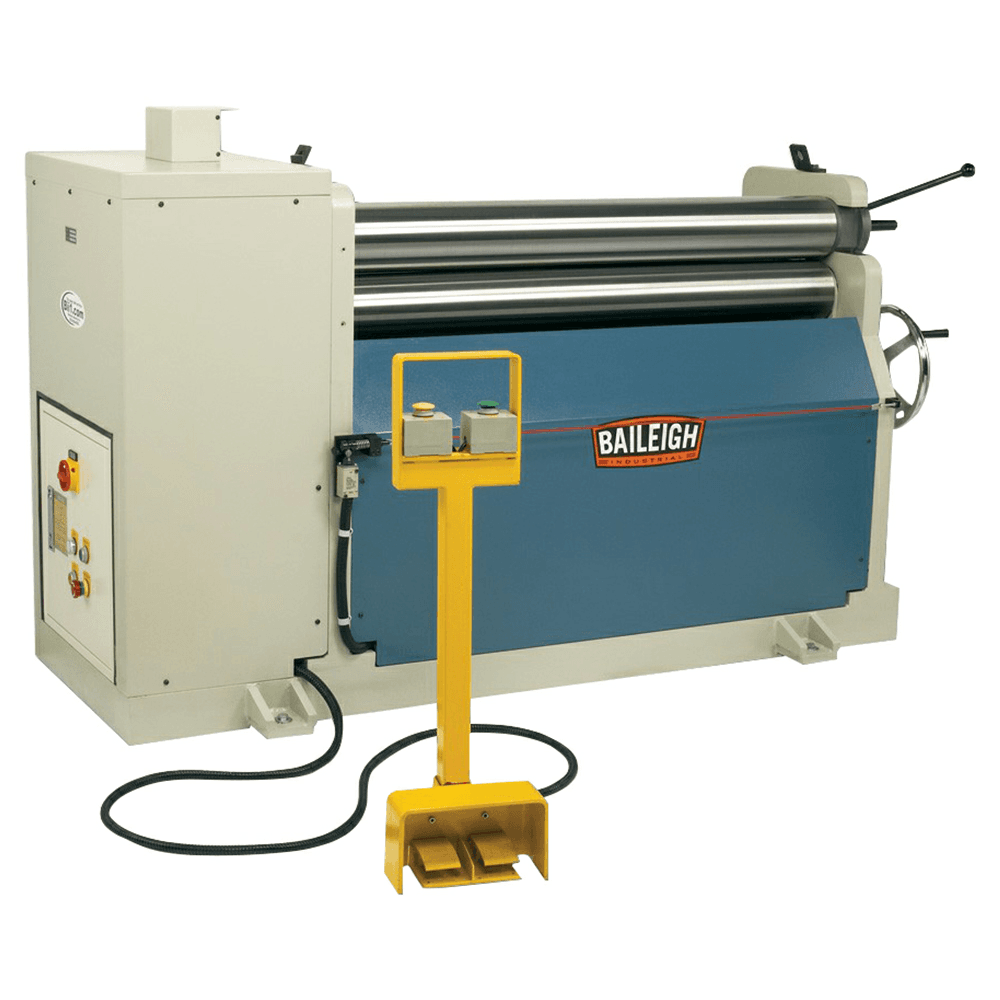

Baileigh PR-403 3 HP Plate Roll, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

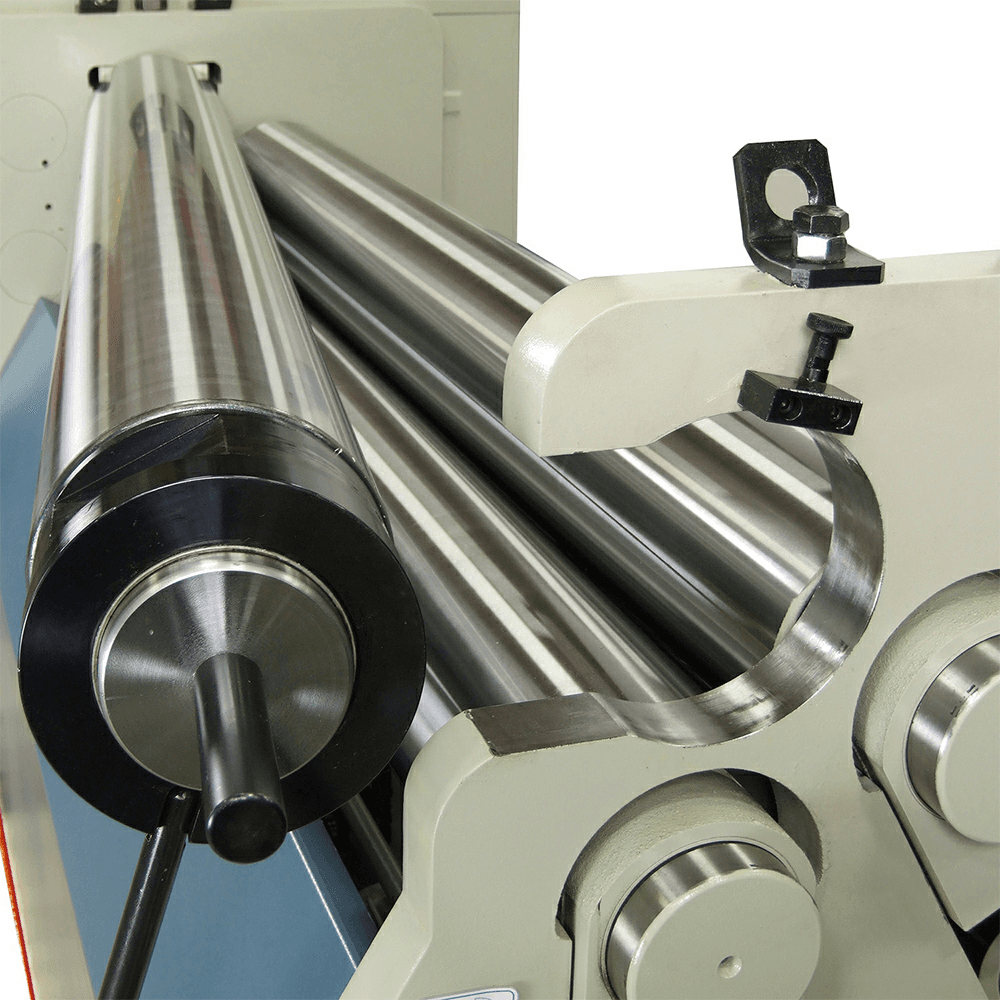

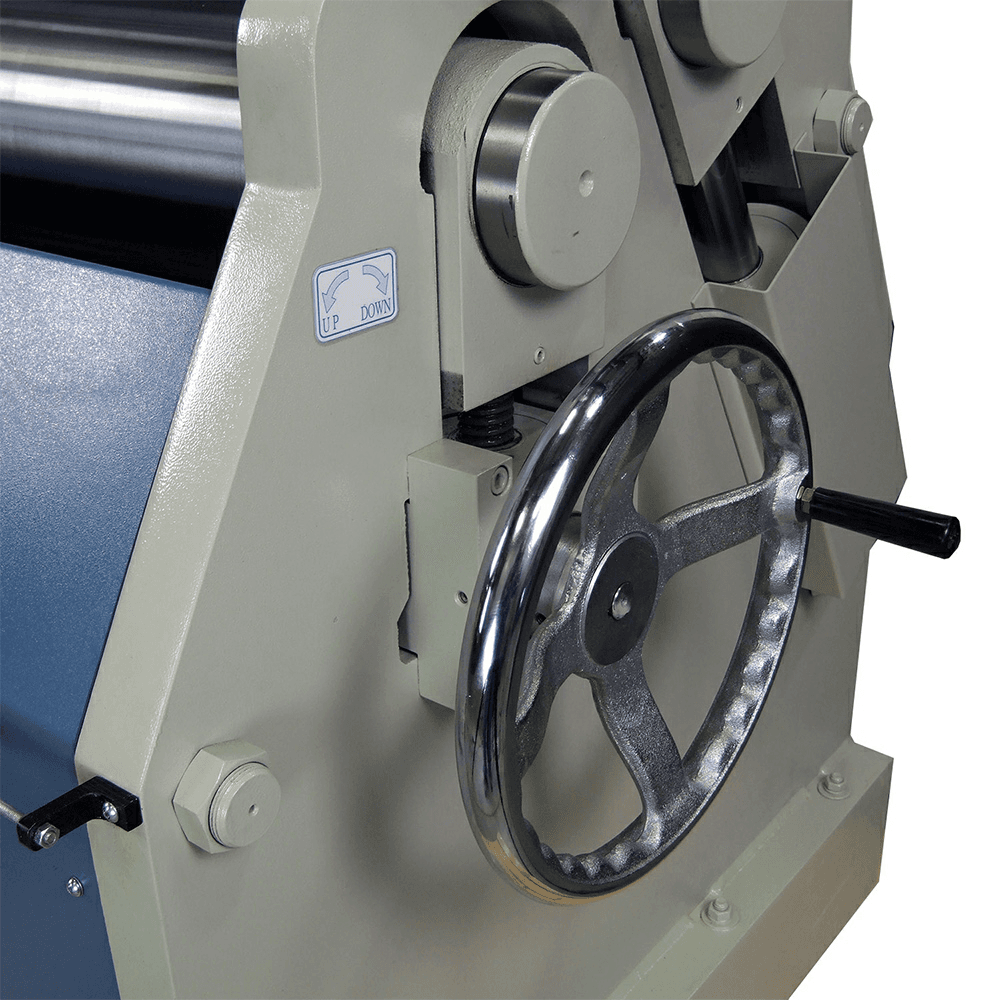

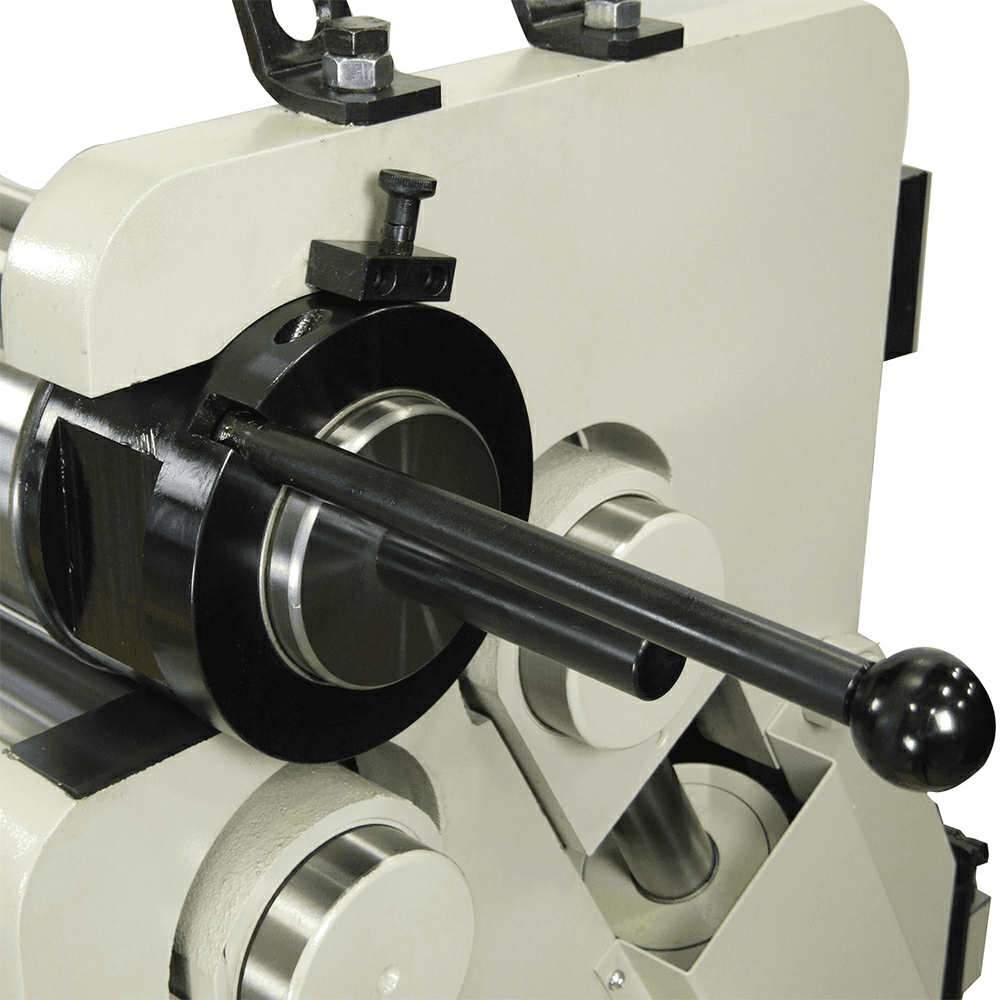

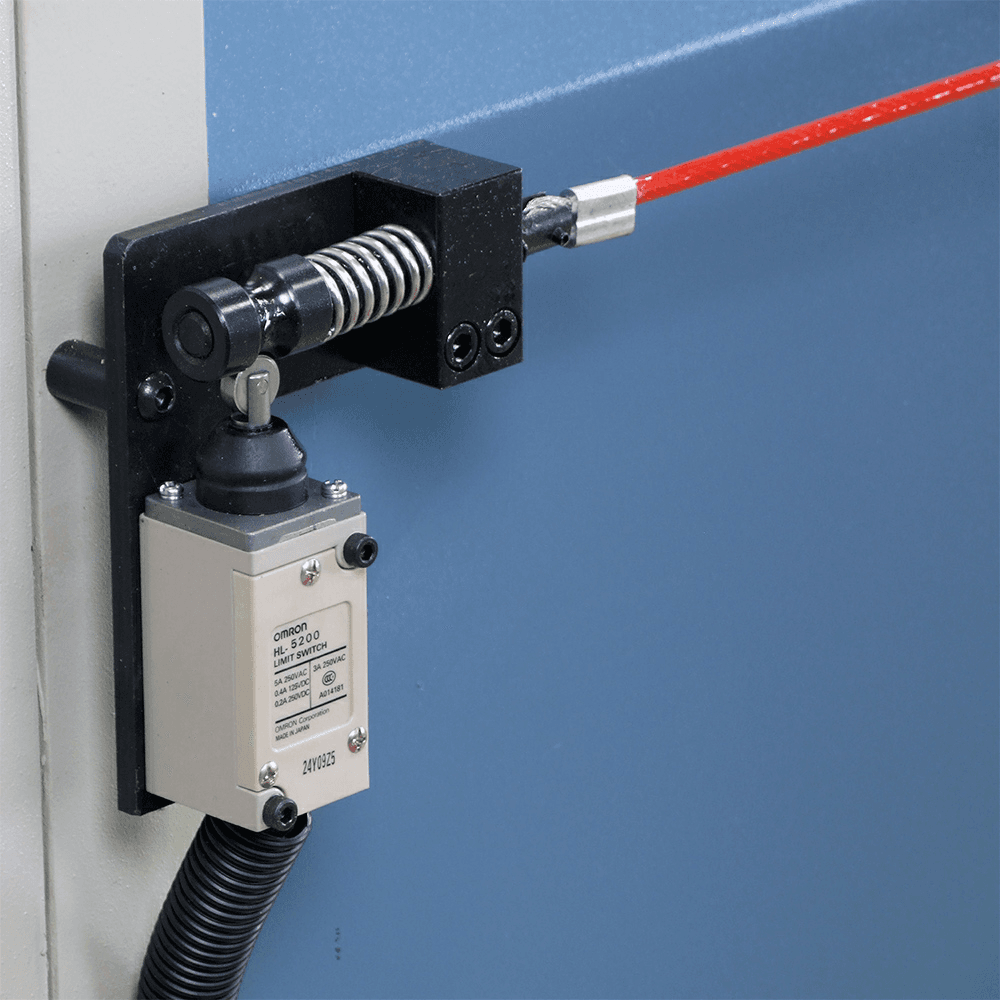

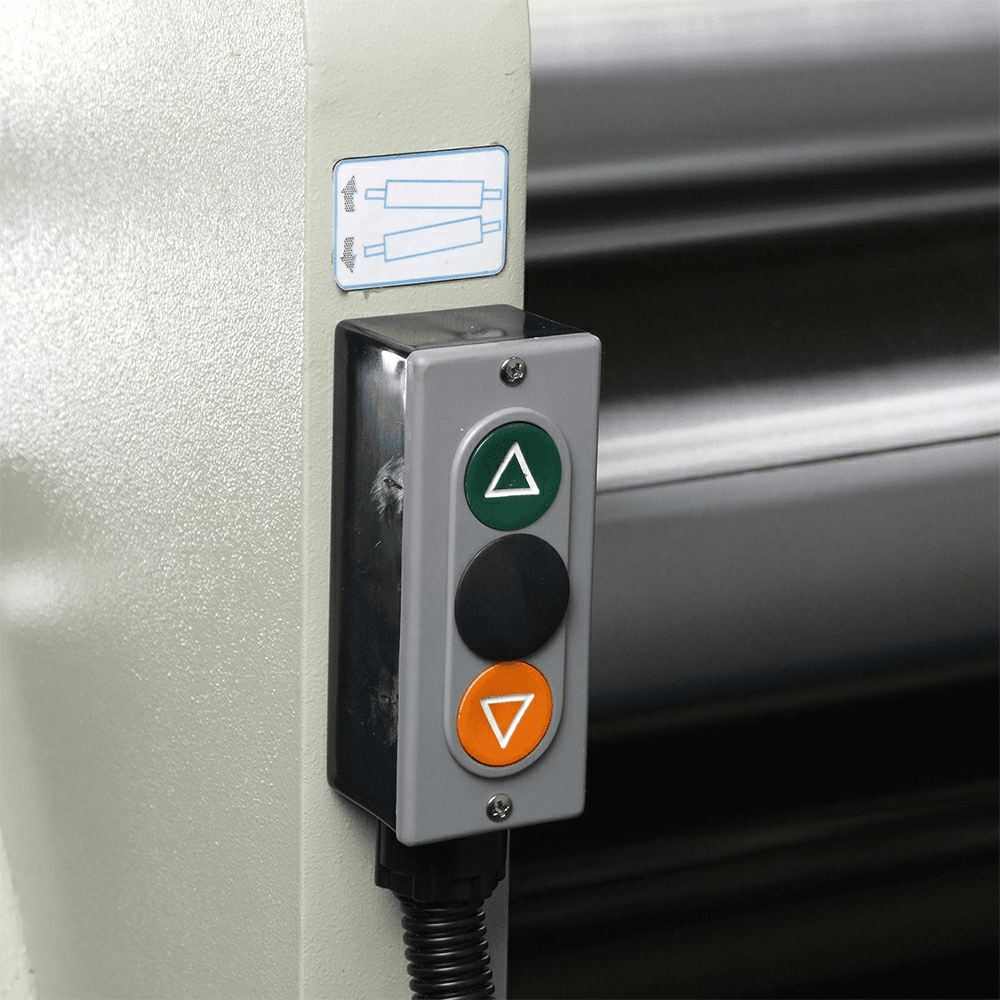

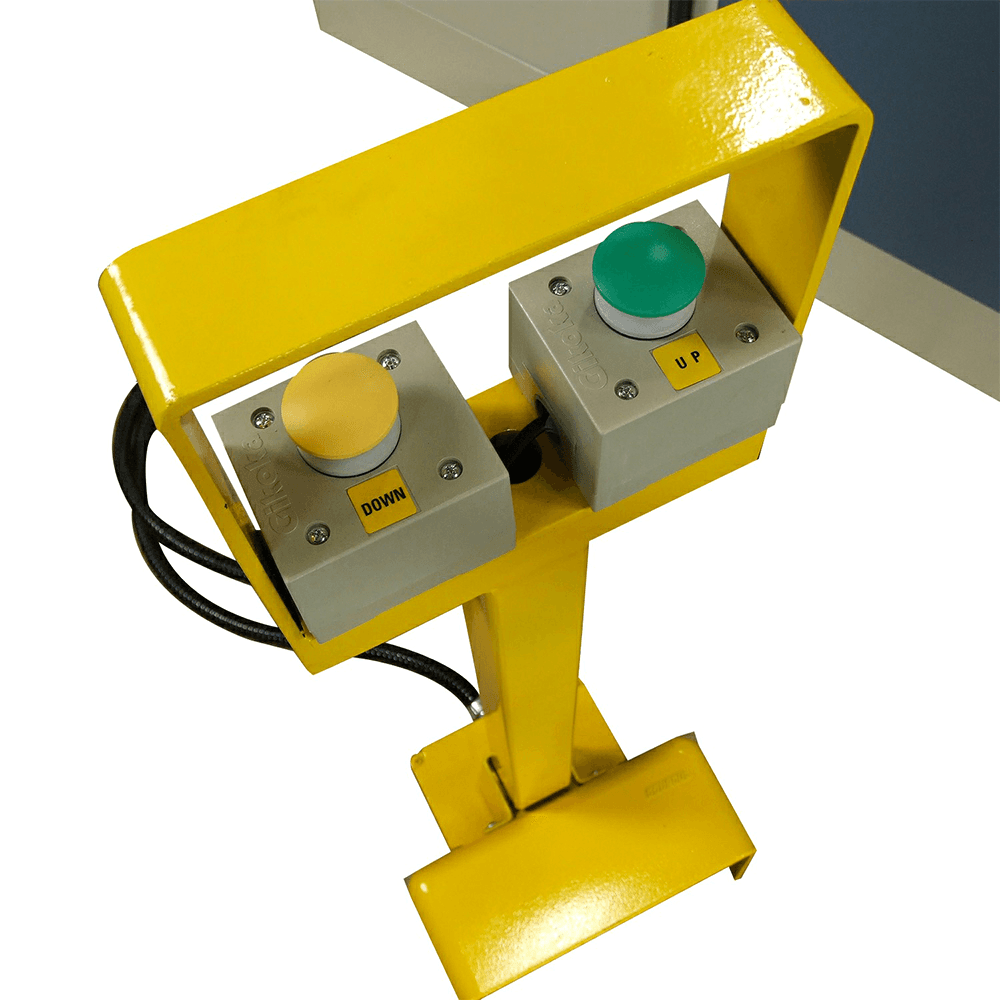

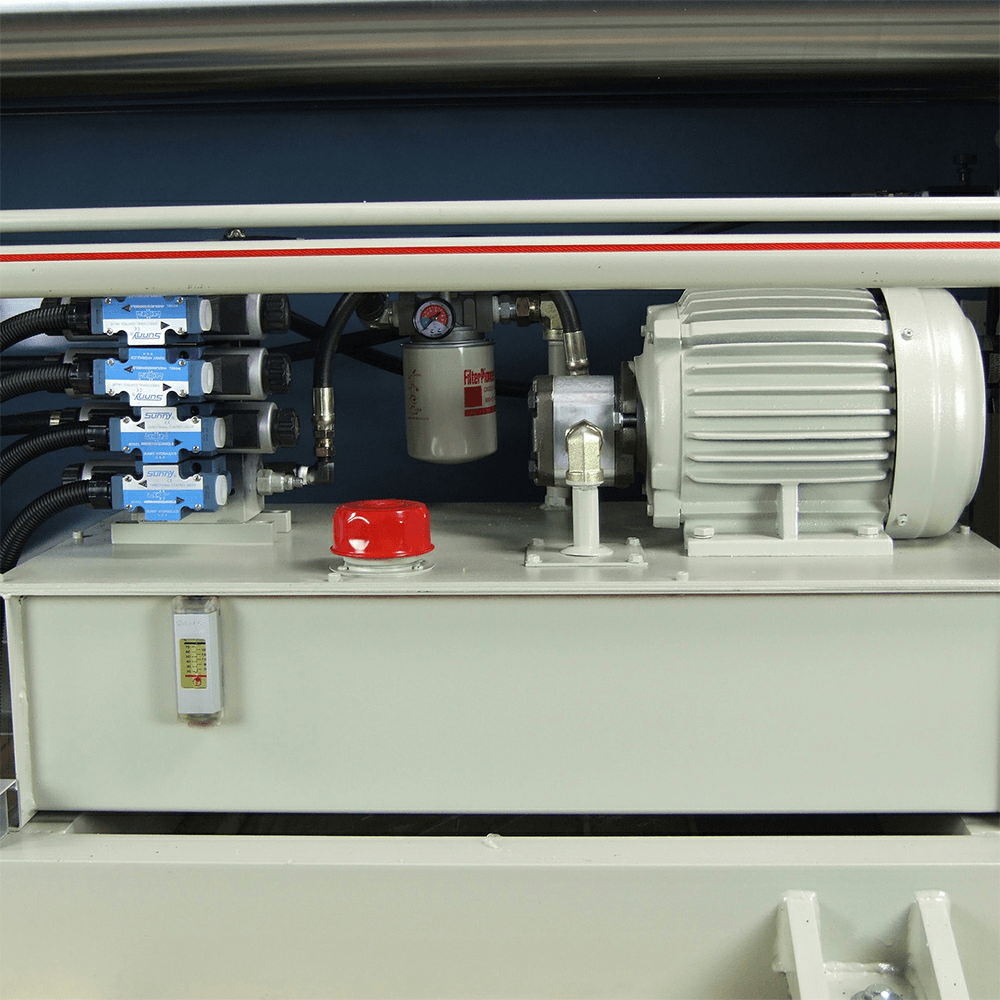

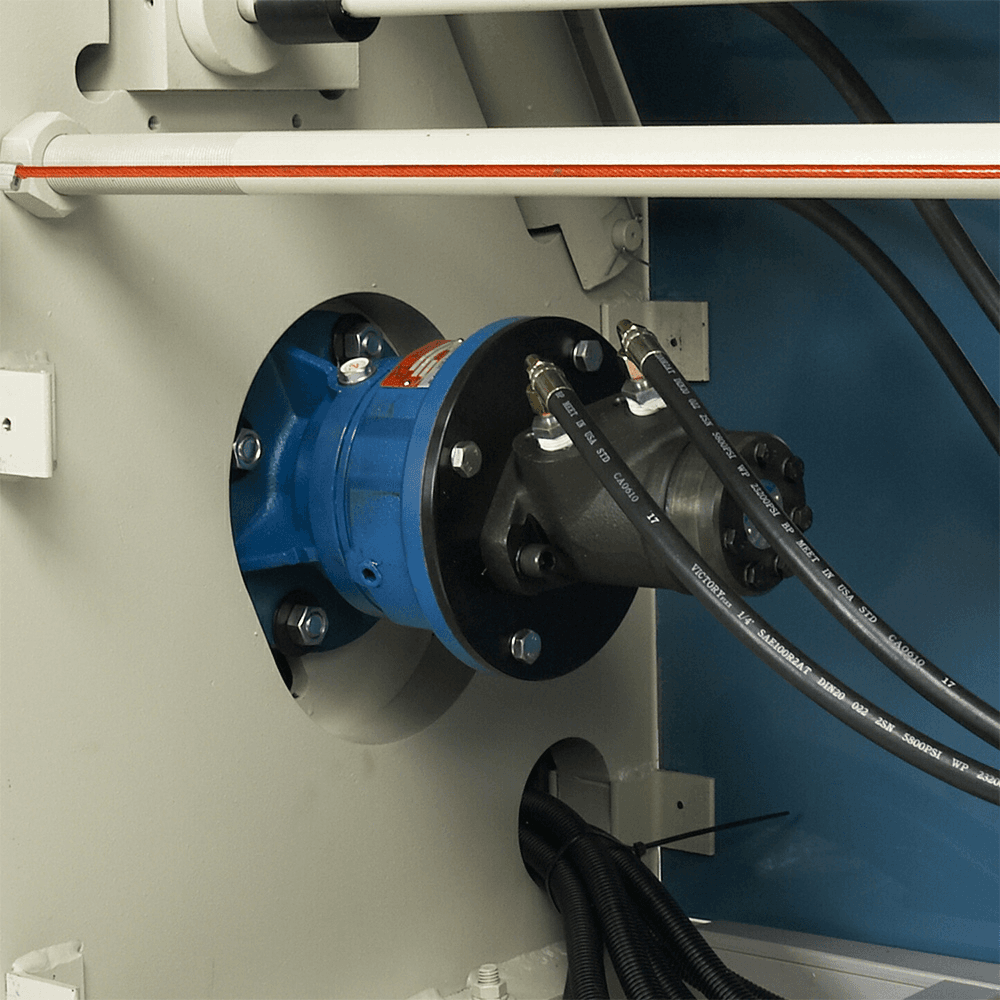

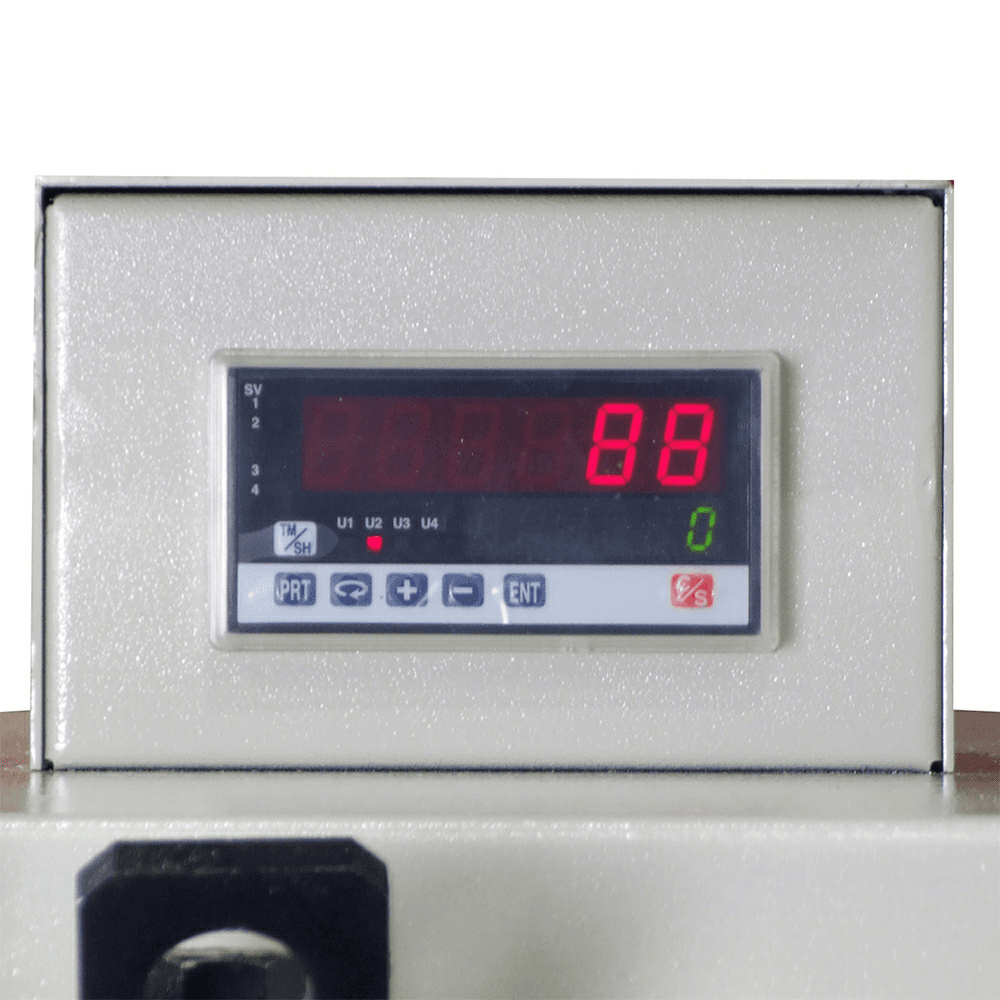

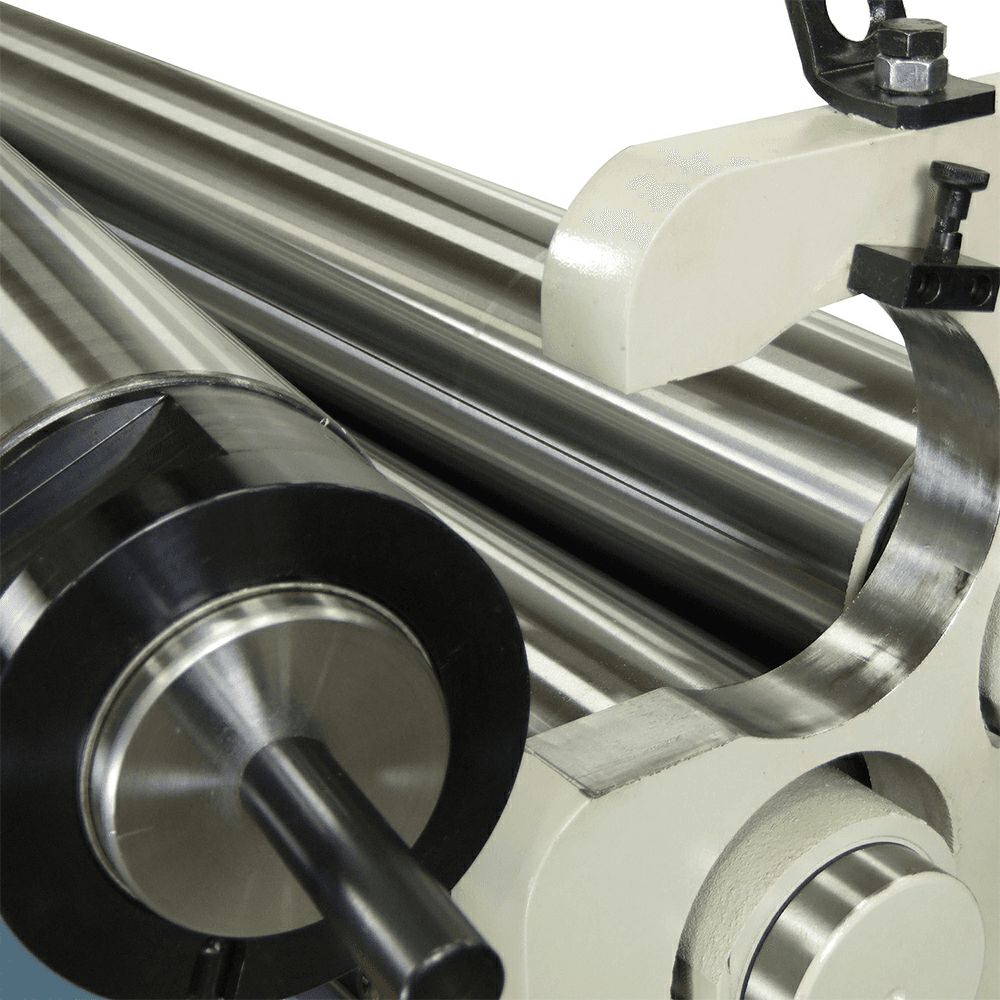

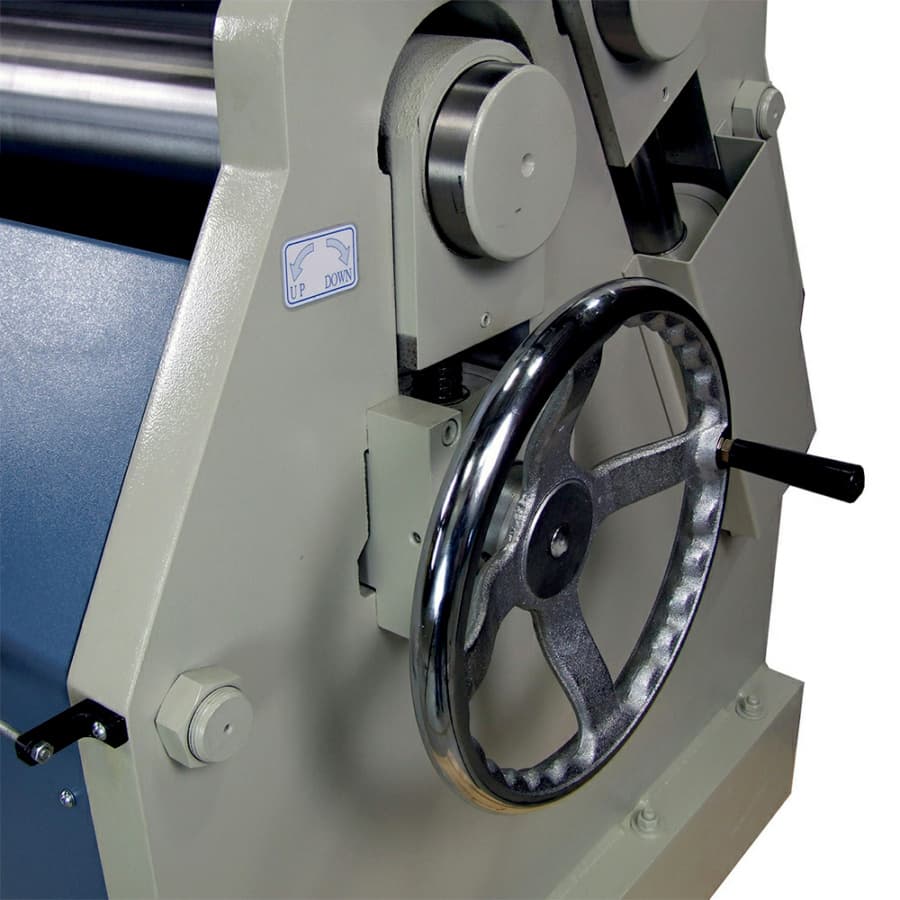

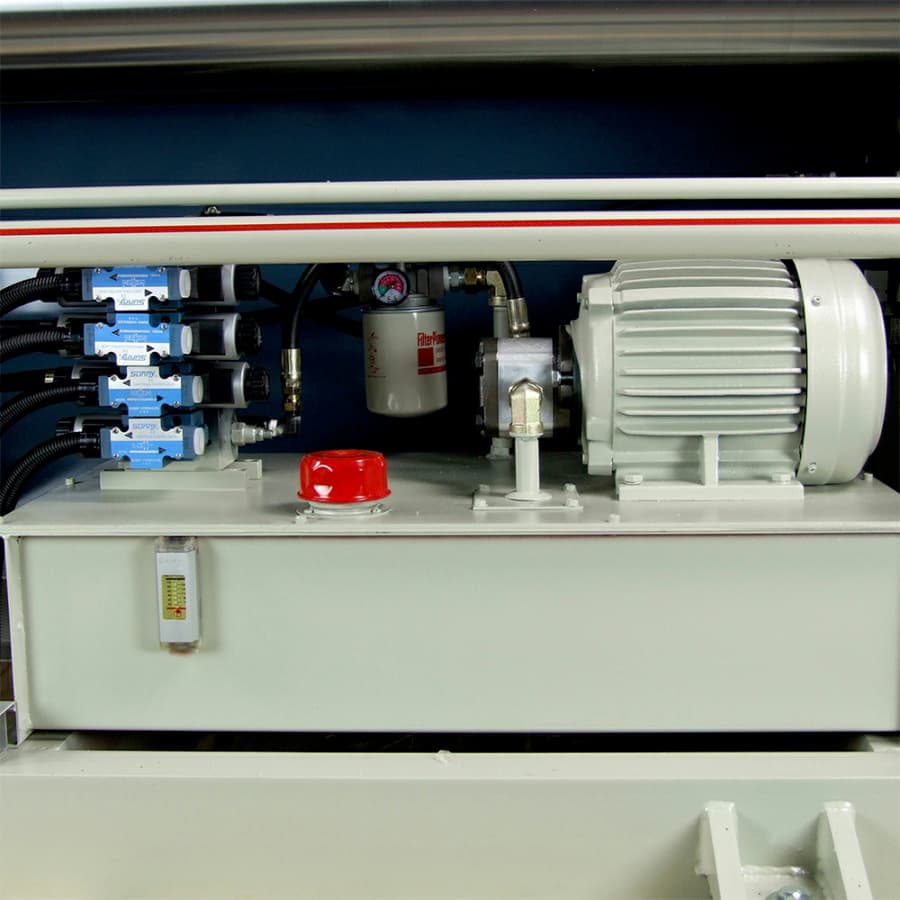

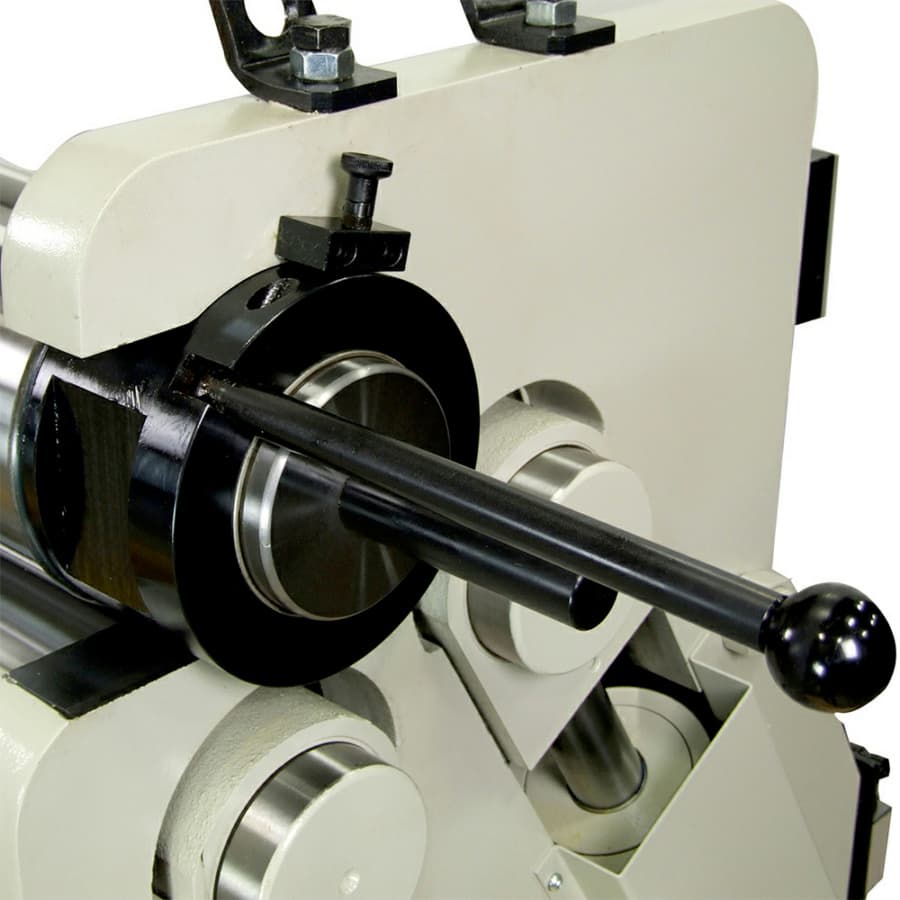

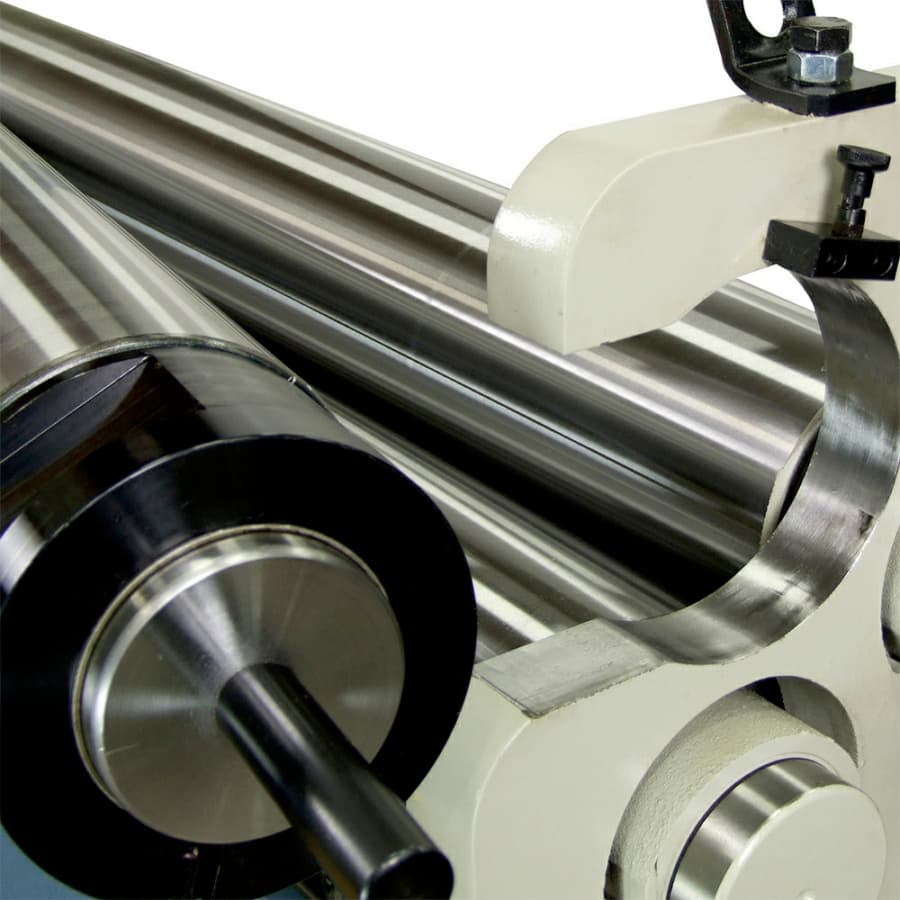

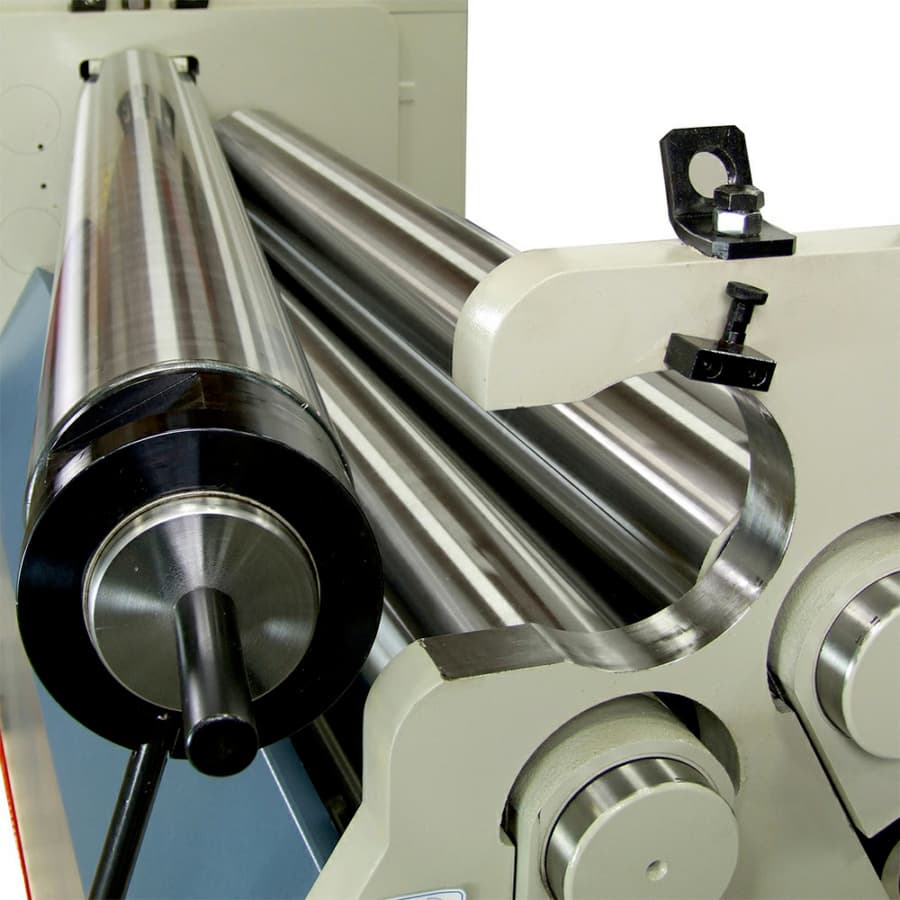

This durable, easy-to-use plate roll will last for many years in small to medium shops. Its 3 hydraulically driven rolls can handle maximum capacity with ease and finish jobs faster. Features: • 4' forming width • 3 gauge 1/4"mild sheet steel capacity • 3 hp motor runs on 220-volt 3-phase power • Large planetary gearbox, connected to main motor, drives the top and bottom rolls • Industrial-grade hydraulic system drives all 3 rolls • Movable control pedestal includes foot pedals to run the rolling and buttons to move the forming roll up and down • Easy to operate: insert material, turn the handwheel to bring up the pinch roll, then use the foot pedals to start rolling • Just flip a switch to bring the back roll up at an angle for coning • Quick-release mechanism on the top roll makes it easy to slide off the finished work • Digital readout tracks the position of the back roll so you can make repeatable bends • Robust welded steel frame maintains accuracy and rigidity by keeping the rolls in alignment • Dual emergency stop cables are located on the front and back of the machine for your safety • Covered by a 1-year parts warranty
Specifications
| Box Quantity | 1 |
| Configurable Base Item | |
| Product Type | Three Roll Plate Rolls |
| Overall Dimensions (L x W x H) | |
| Number and Diameter of Rolls | |
| Motor Voltage (V.) | |
| Motor Phase | |
| Motor (HP) | 3 HP |
| Minimum Forming Radius | |
| Mild Steel Capacity (Gauge) | |
| Mild Steel Capacity | |
| Maximum Forming Length | 48" |
| Wire Grooves |
