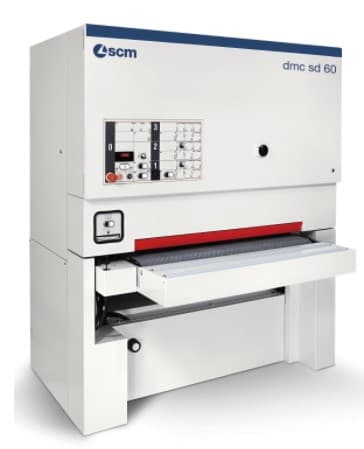

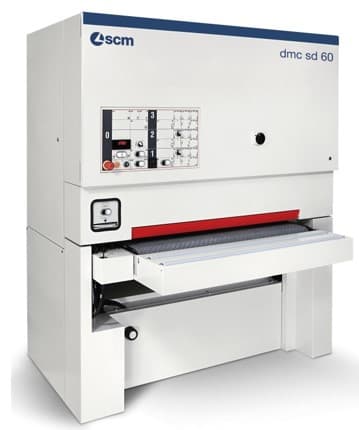

SCM DMC SD 60 RRCS 135 S 53" Automatic Wide Belt Sander with Steel & Rubber Drum Combi Head & Elastic Pad

Machine Standard Features

• Grooved rubber coated pressing rollers before and after 2nd and 3rd working unit

• Pneumatic floating pressure shoes  in first working position

• 3HP variable speed feed motor 3.5-18 m/min (12-60 FPM)

• Y-Delta two-stage reduced voltage starter on main motor

• Automatic Electronic Table Positioning Device

• In-feed / Out-feed extended tables for easier part feeding

• Adjustable sanding drum and pad position for micro precision adjustment and pneumatic On/Off

• Electronic digital thickness readout of work table position

• Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability

•  Electronic tracking of abrasive belt

• Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt

• Front and rear emergency stop buttons

• Automatic emergency stop of machine for:

• sanding belt breaking, tensioning, over tracking

•  opening of the access door to the operating groups

• absence of compressed air

• overload on main motors

• Amperage meter for main motors allows maximum utilization of available horsepower

• Main disconnect switch with the ability to be locked out by padlock

• In feed flexible steel hold down, and anti-kickback plate

• 50 shore, negative profile (waffle style) rubber feed mat

• LOGIC SC Electronic Programmer for timing/anti-dubbing of the pad

WORKING UNIT SPECIFICATIONS:
Working Unit Type Roller Motor HP 30 HP Motor Type Single Speed Abrasive Belt Speed 18 mps Drum Size 140 mm Drum Type Steel Abrasive Belt Length 85" Working Unit Type Roller Motor HP 24 HP Motor Type Single Speed Abrasive Belt Speed 18 mps Drum Size 175 mm Drum Type 65 Sh Rubber Abrasive Belt Length 85" Working Unit Type Combination Head Motor HP 18 HP Motor Type Single Speed Abrasive Belt Speed 18 mps Drum Size 160mm Drum Type 45 Sh Rubber Platen Size 60 mm Platens Included Two Abrasive Belt Length 85"
TECHNICAL SPECIFICATIONS:
Working Width 1350 mm Number of Heads Available 3 Feed Motor 3 HP Maximum Work Piece Thickness 170 mm Minimum Work Piece Length 12.5" Abrasive Belt Size 53" X 85" Compressed Air Requirements 6 Bar (88 PSI) Dust Outlets 3 outlets @ 195 mm Exhaust Requirements 3750 CFM Power requirements 96 amps @ 460V Three Phase
