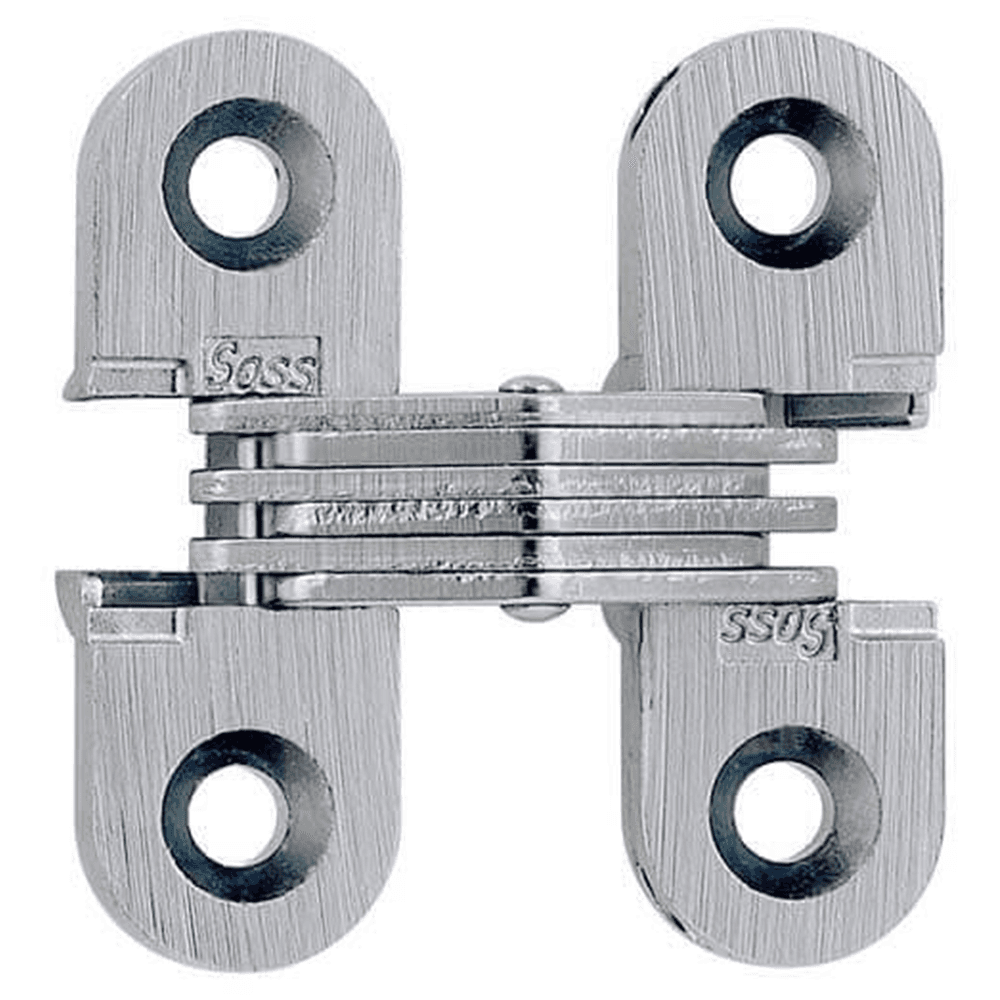

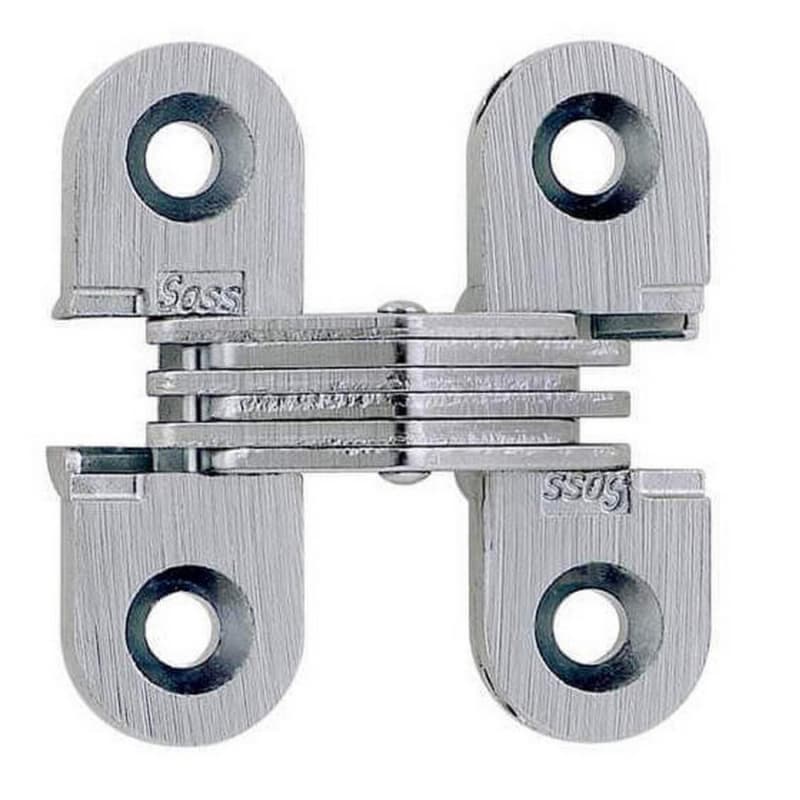

103 Invisible 180° Opening Hinge, Satin Chrome
10 items
Finish: Satin Chrome
Product Details
Invisible Hinge model #103 is for use in wood or metal applications that are 3/4" to 1" thick. The model #103 is made of zinc and steel materials. This cabinet style hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. Invisible Hinges open a full 180° and are a single action hinge. Feature: • 103 Invisible 180° opening hinge in satin chrome • Wood Screw Sizes: #6 × 1" • Soft Wood Pilot Hole: No. 52 • Hard Wood Pilot Hole: No. 44 • Machine Screw Sizes: #6-40×1/2" • Hinge Weight: .09 lbs
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Satin Chrome |
| Opening Angle | |
| Hinge Type | Invisible Hinge |
| Material | Zinc/Steel |
| Length | 1-1/2" |
| Barrel Diameter | |
| Material Thickness | 3/4" - 1" |
| Screw Hole | |
| Door Thickness | |
| Height | |
| Width | |
| Closing Type |
