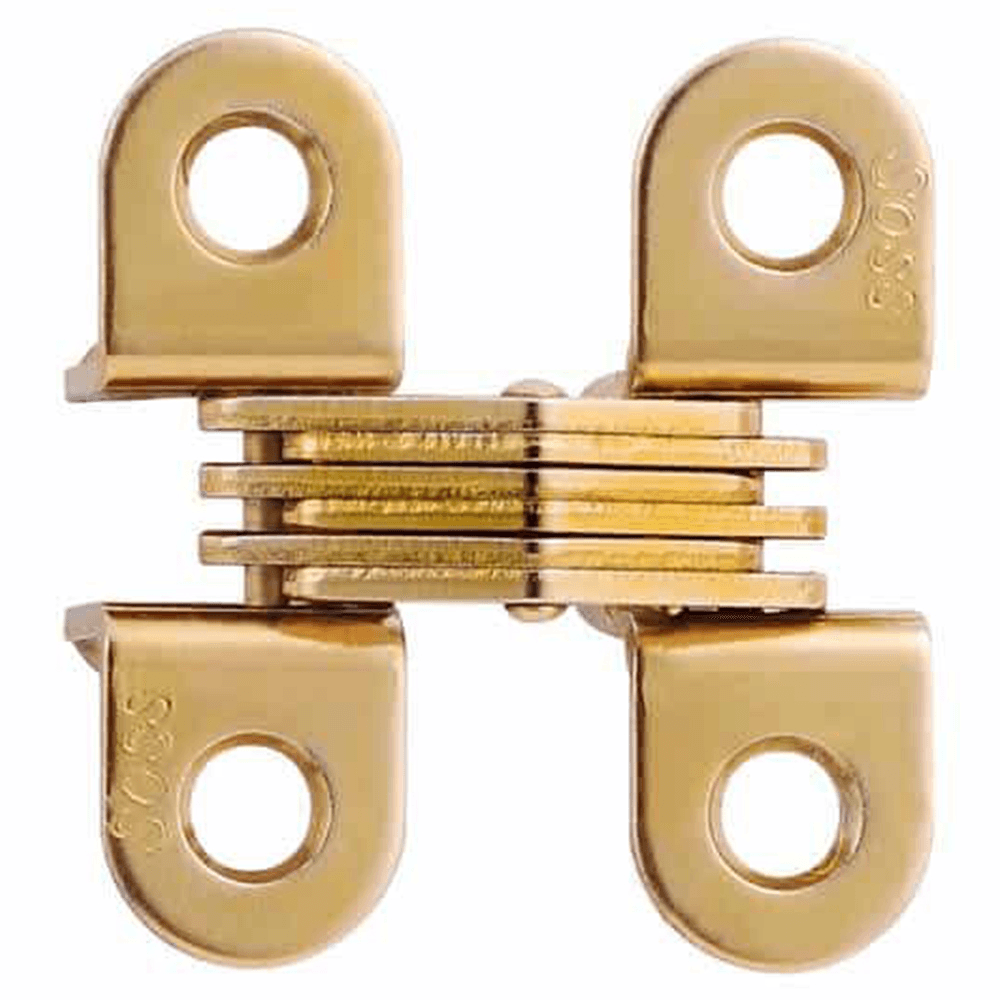

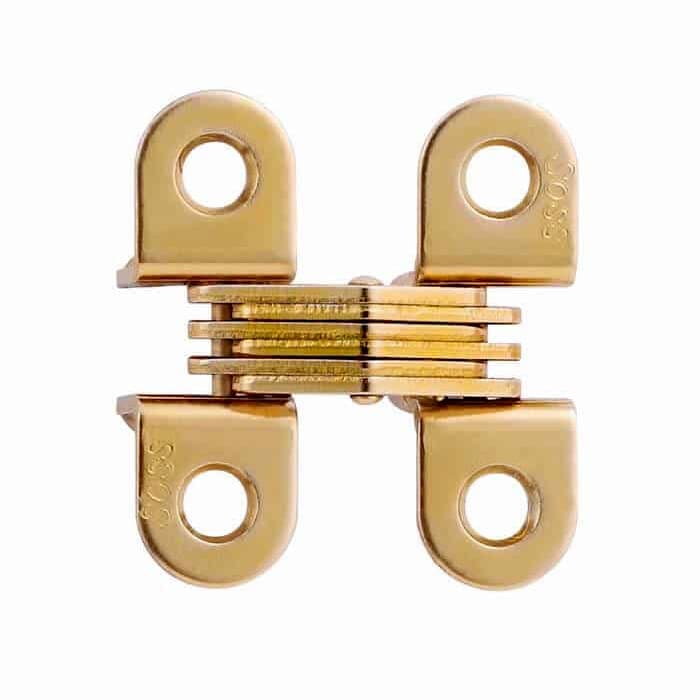

11/16" 303 Invisible Hinge, Satin Brass
10 items
Finish: Satin Brass
Product Details
Invisible Hinge model #303 is for use in wood or metal applications that are 11/16" to 1" thick. The model #303 is made of steel. This cabinet style hinge will provide superior appearance and durability. Our hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. Invisible Hinges open a full 180° and are a single action hinge. Wood screws are included. Machine screws are available for an additional charge. Features: • 11/16" 303 Invisible hinge in satin brass finish • Wood Screw Sizes: #5 × 3/4" • Soft Wood Pilot Hole: No. 53 • Hard Wood Pilot Hole: No. 47 • Machine Screw Sizes: #5-40 × 1/2" • Hinge Weight: .05 lbs
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Satin Brass |
| Opening Angle | 180° |
| Hinge Type | Invisible Hinge |
| Material | Steel |
| Length | 1-33/64" |
| Barrel Diameter | |
| Material Thickness | 11/16" - 1" |
| Screw Hole | |
| Door Thickness | |
| Height | |
| Width | |
| Closing Type |
