| Box Quantity | 1 |
| Opening Angle | 180 Degree |
| Product Type |
| Invisible Hinge |
| Weight Rating per Pair | 121 lb |
| Minimum Door Thickness (in) | 1-3/8 in |
| Minimum Door Thickness (mm) | 36 mm |
| Maximum Door Height (in) | 94-1/2 in |
| Maximum Door Width | 35-7/16 in |
| Manufacturer Series | HES3D |
| Material Type | Zinc |
| Color/Finish | Dull Chrome |
| Height (mm) | 160 mm |
| Width (mm) | 30 mm |
| Adjustment Type | 3D |








| Box Quantity | 1 |
| Opening Angle | 180 Degree |
| Product Type | Invisible Hinge |
| Weight Rating per Pair | 121 lb |
| Minimum Door Thickness (in) | 1-3/8 in |
| Minimum Door Thickness (mm) | 36 mm |
| Maximum Door Height (in) | 94-1/2 in |
| Maximum Door Width | 35-7/16 in |
| Manufacturer Series | HES3D |
| Material Type | Zinc |
| Color/Finish | Dull Chrome |
| Height (mm) | 160 mm |
| Width (mm) |
| 30 mm |
| Adjustment Type | 3D |
Features:

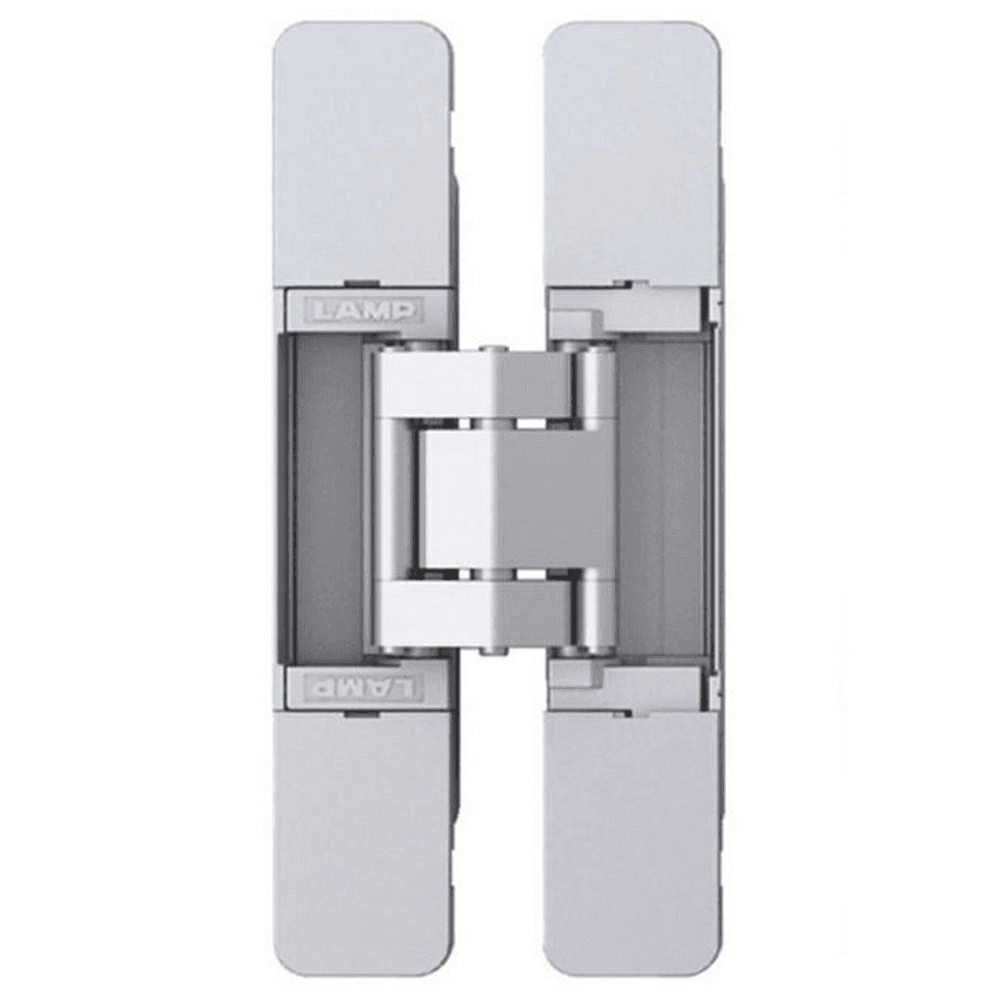

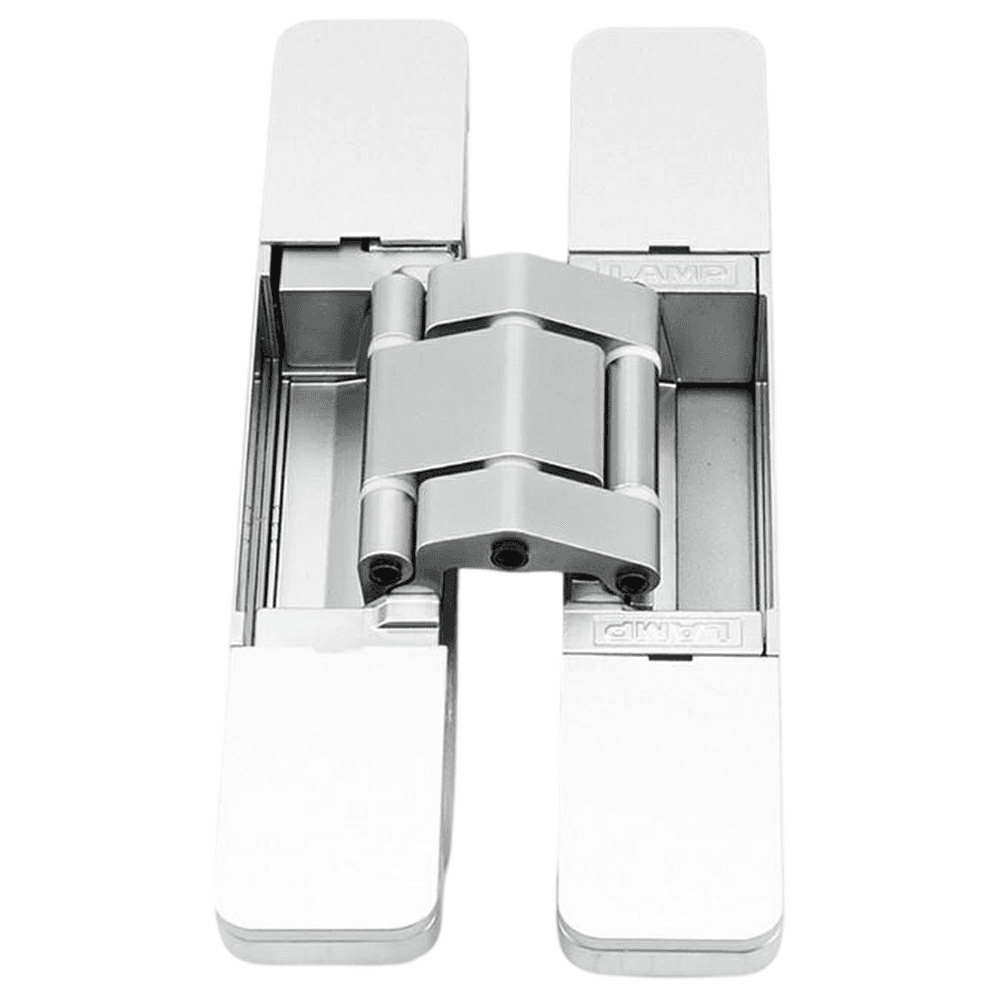

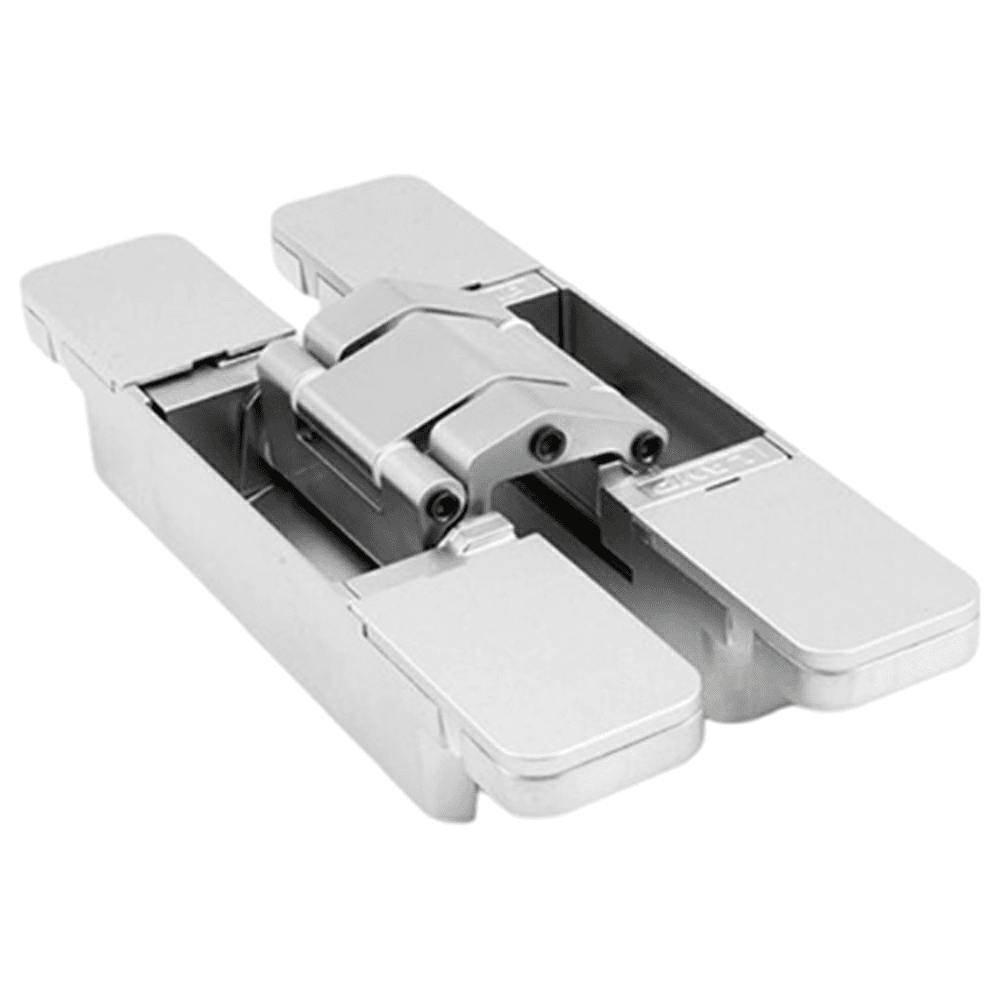

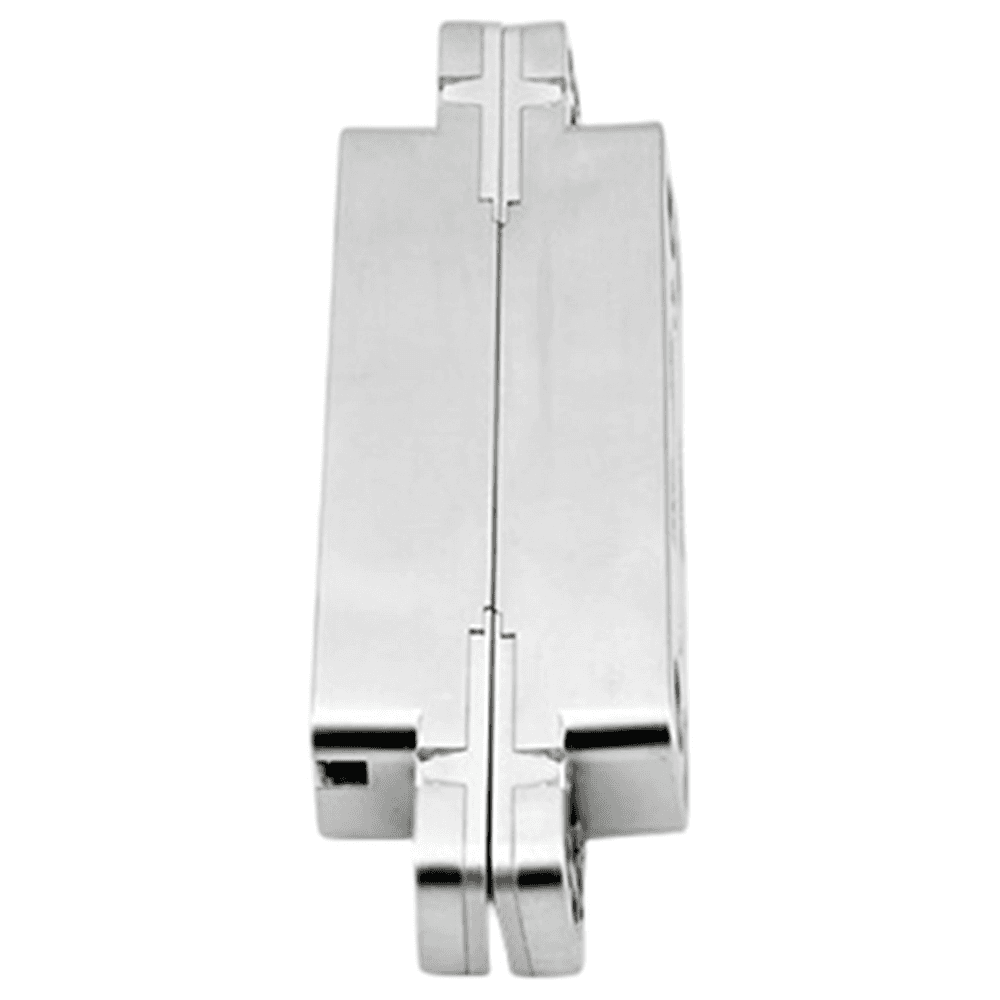

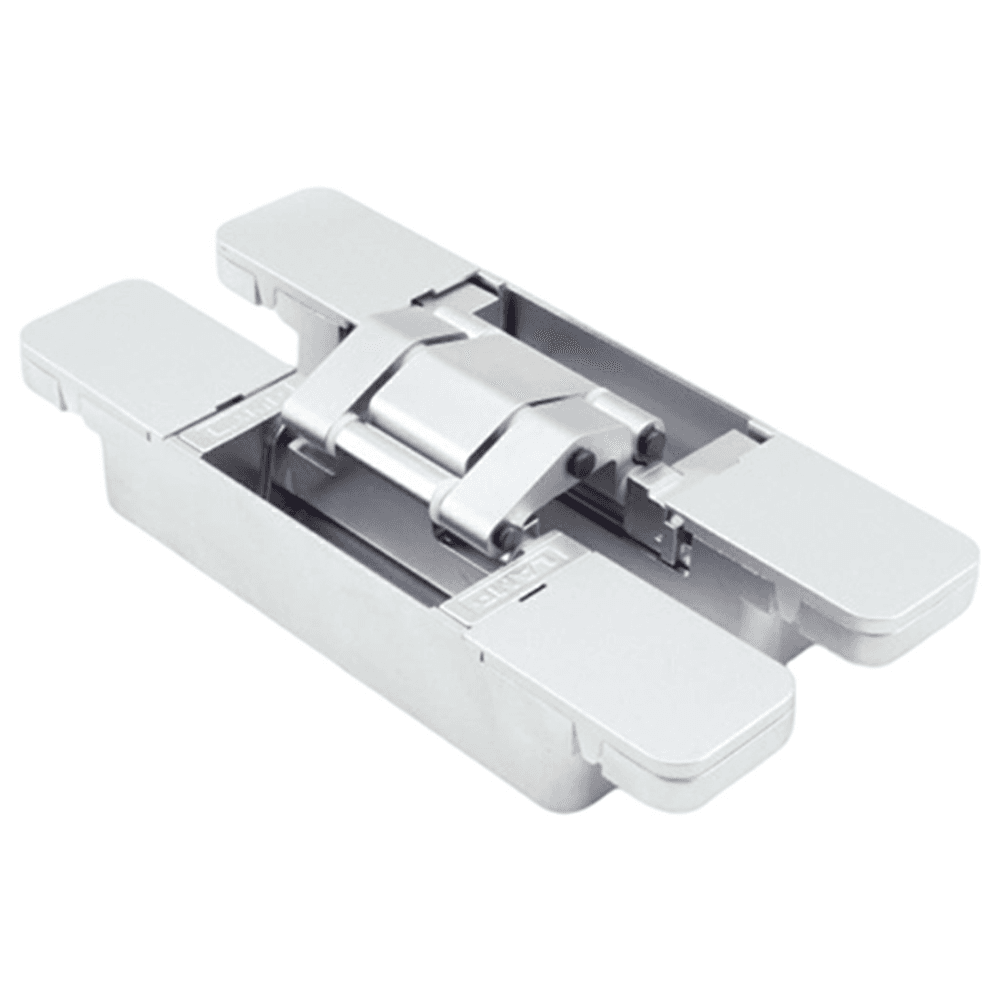

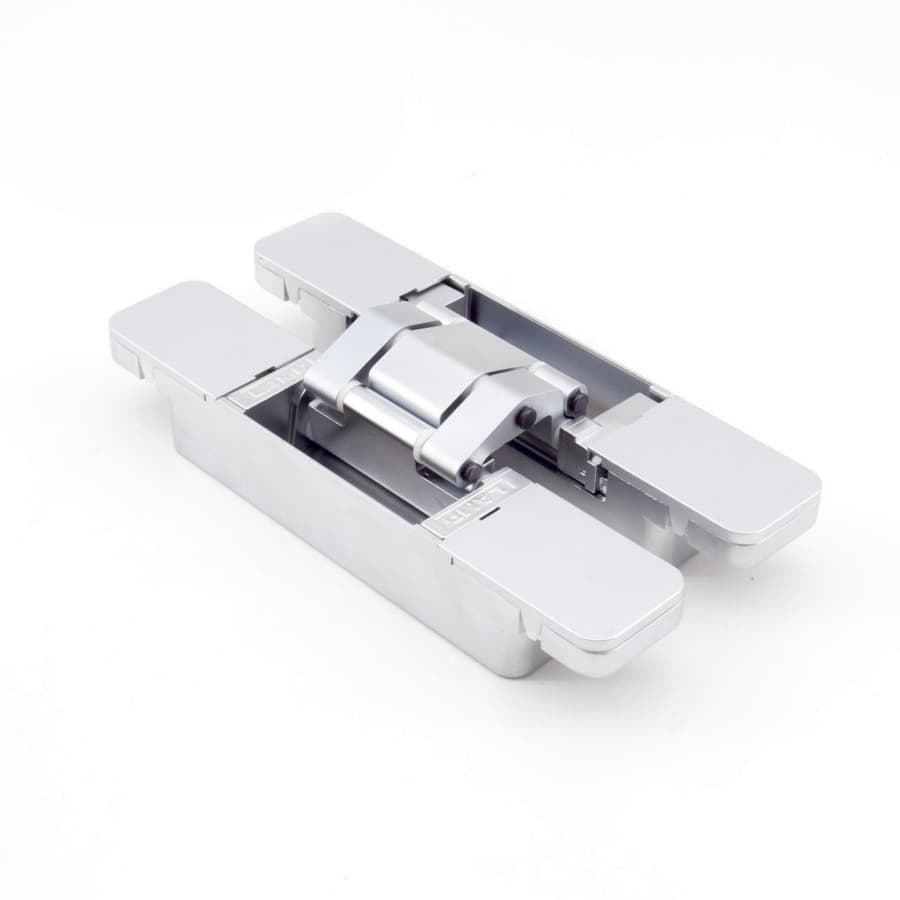

• HES3D-E160 3-Way adjustable concealed hinge in dull chrome finish
• Easy installation with symmetrical leaves and lift-off feature

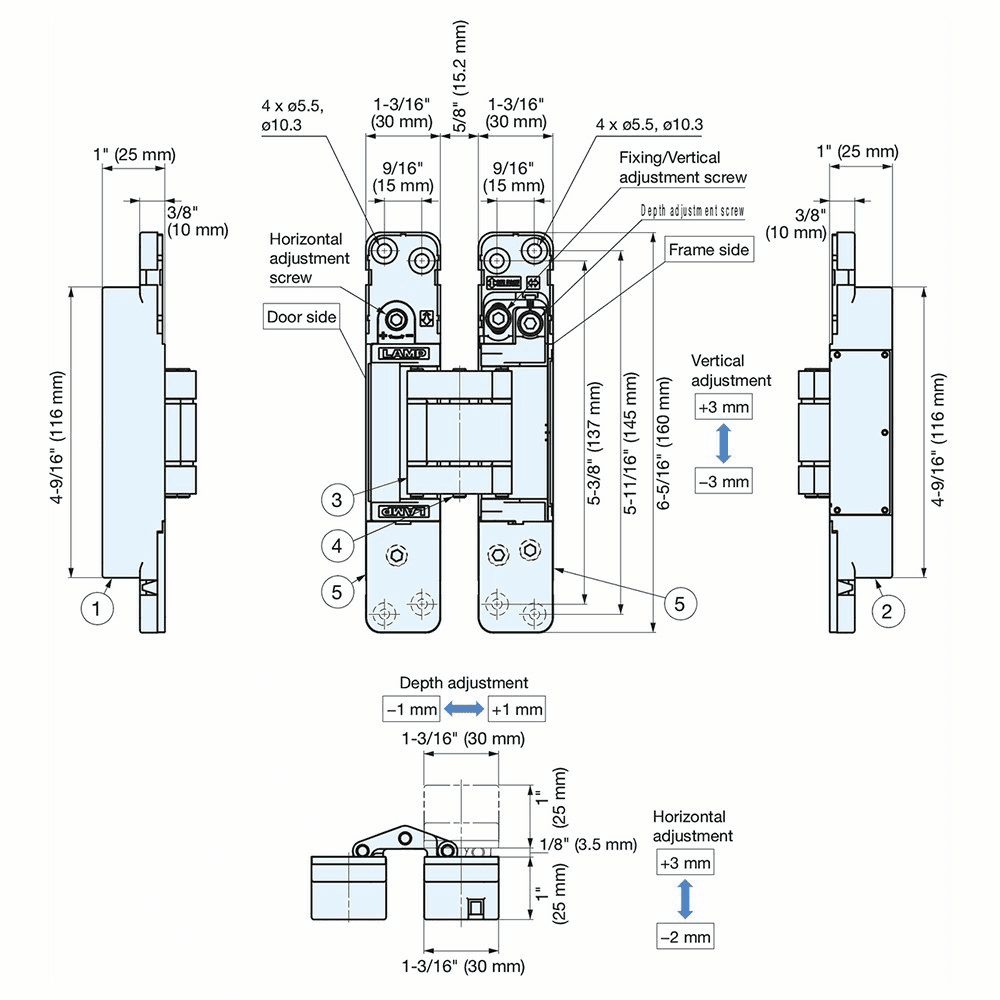

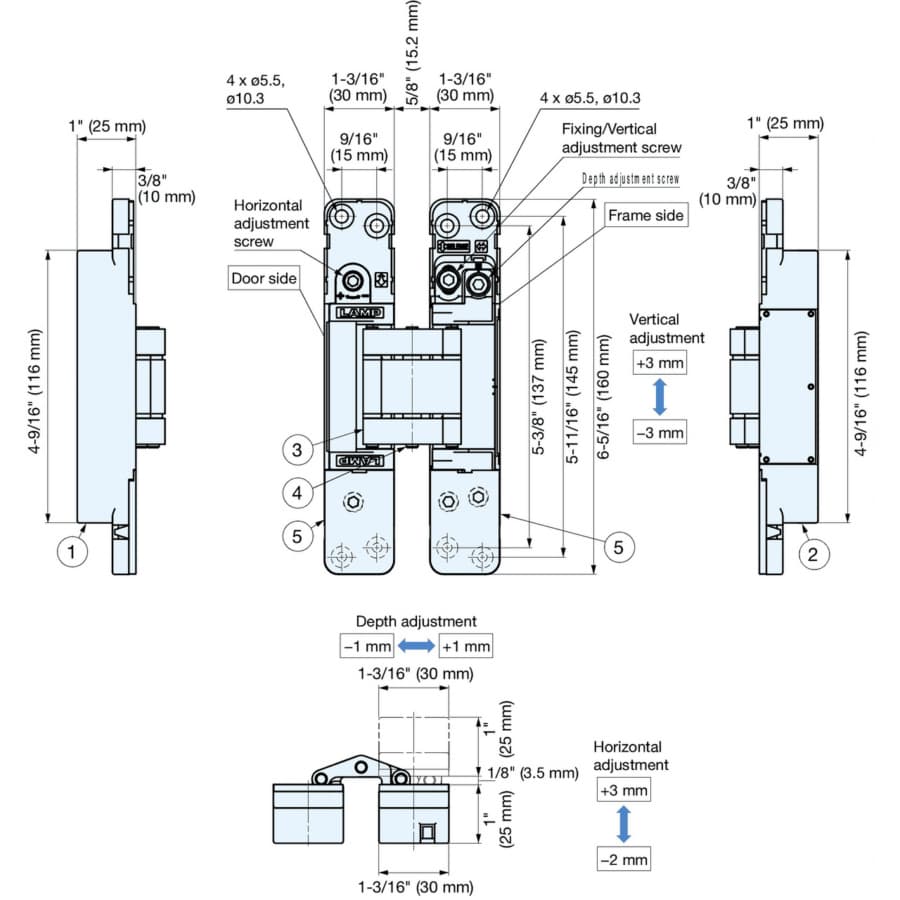

• 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed
• Door Weight Capacity: Max. 121 lbs (55 kg)/2 pcs, 154 lbs (70 kg)/3 pcs
• Compatible with 1-3/4" (44 mm) Door Thickness
• Actual Specified Door Thickness: Min. 1-7/16" (36 mm)
• Max. Door Dimensions: H 94-1/2" x W 35-7/16" (H 2400 mm x W 900 mm)
• Successfully passed 300,000 open/ close private cycle tests
• Included 5 x 25 Flat Head Screws
Features:
• HES3D-E160 3-Way adjustable concealed hinge in dull chrome finish
• Easy installation with symmetrical leaves and lift-off feature
• 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed
• Door Weight Capacity: Max. 121 lbs (55 kg)/2 pcs, 154 lbs (70 kg)/3 pcs
• Compatible with 1-3/4" (44 mm) Door Thickness
• Actual Specified Door Thickness: Min. 1-7/16" (36 mm)
• Max. Door Dimensions: H 94-1/2" x W 35-7/16" (H 2400 mm x W 900 mm)
• Successfully passed 300,000 open/ close private cycle tests
• Included 5 x 25 Flat Head Screws
