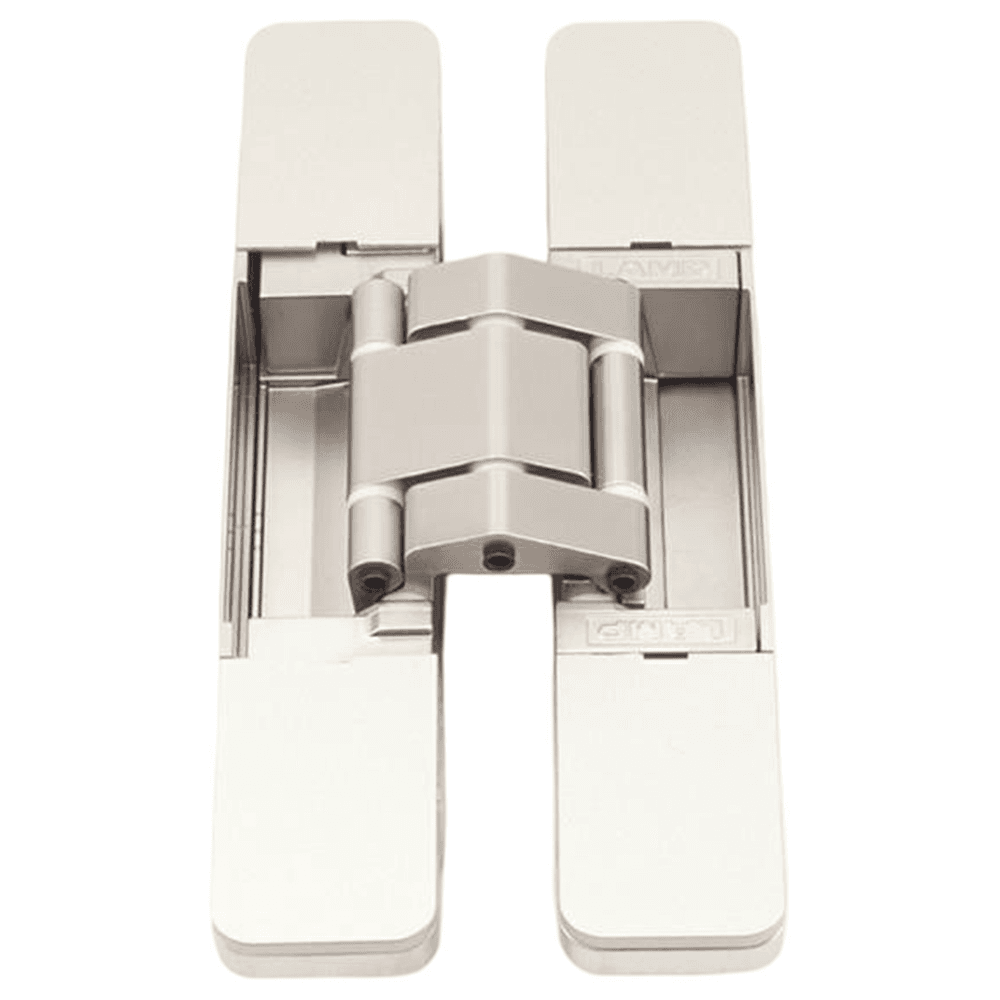

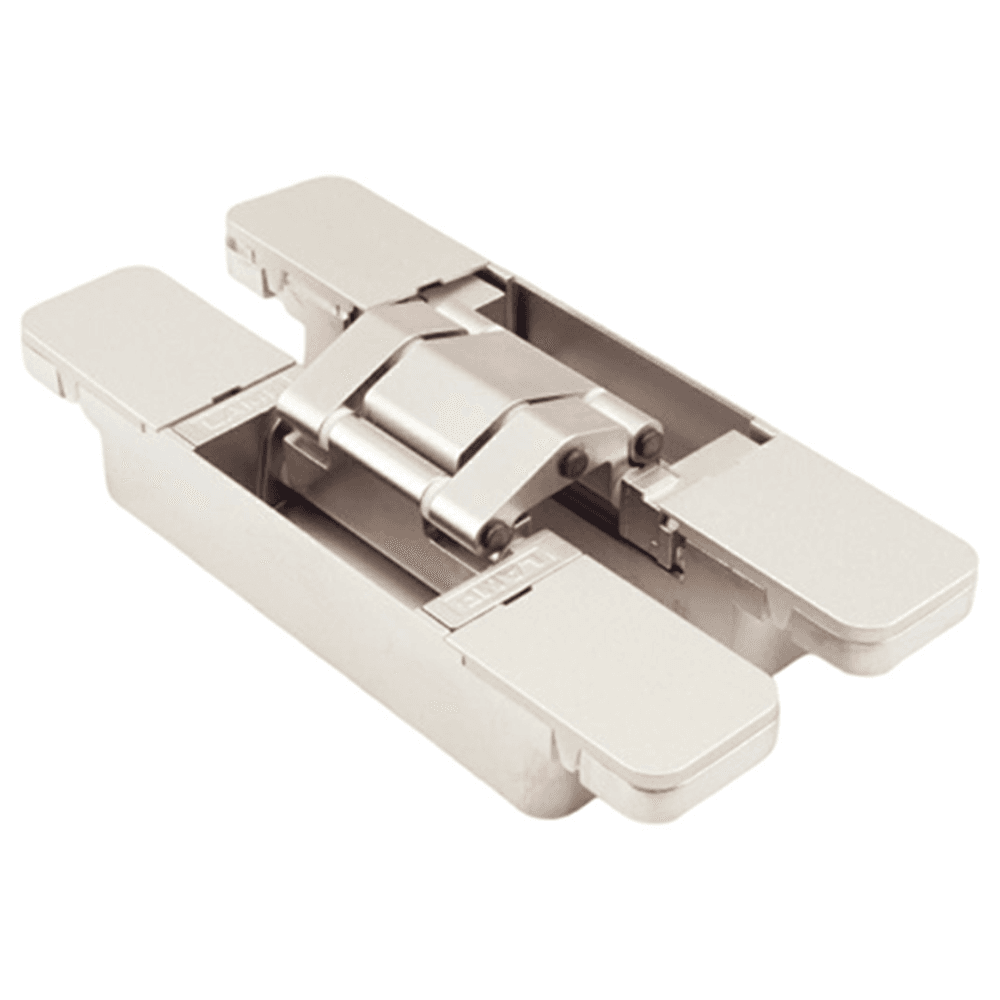

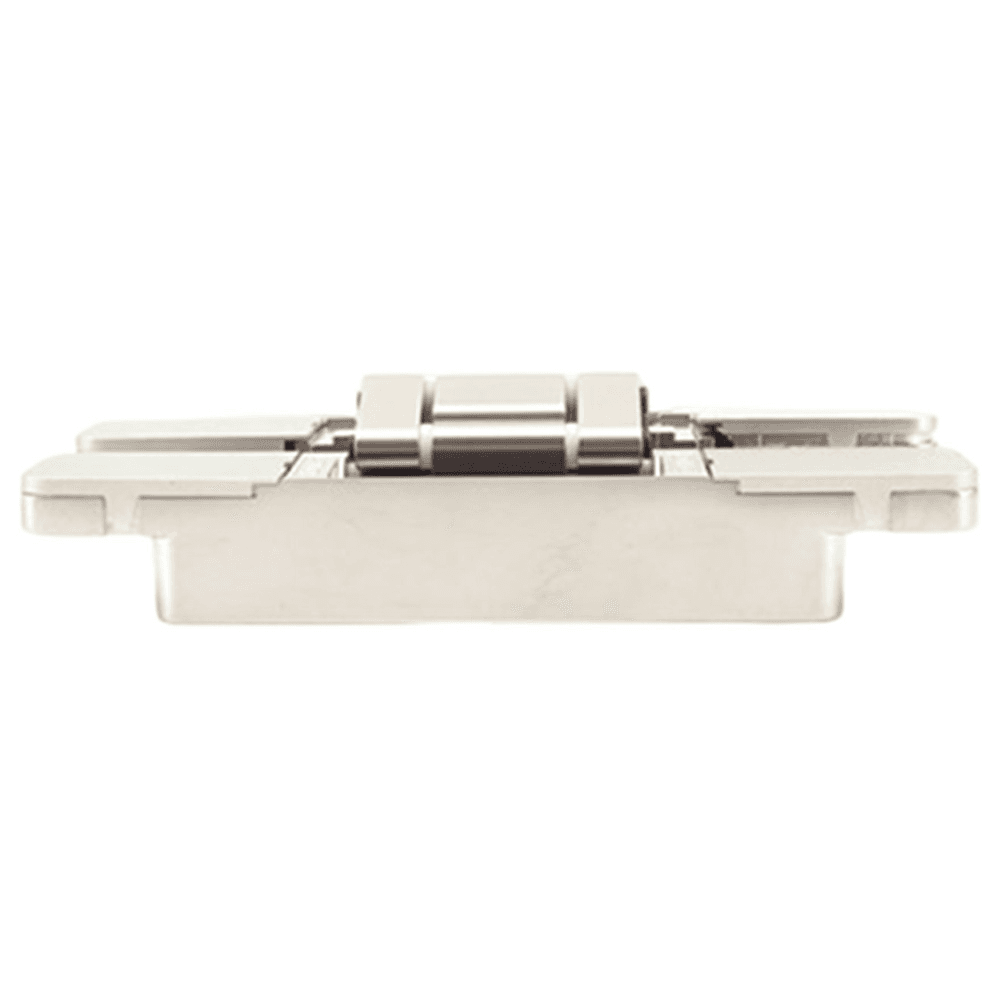

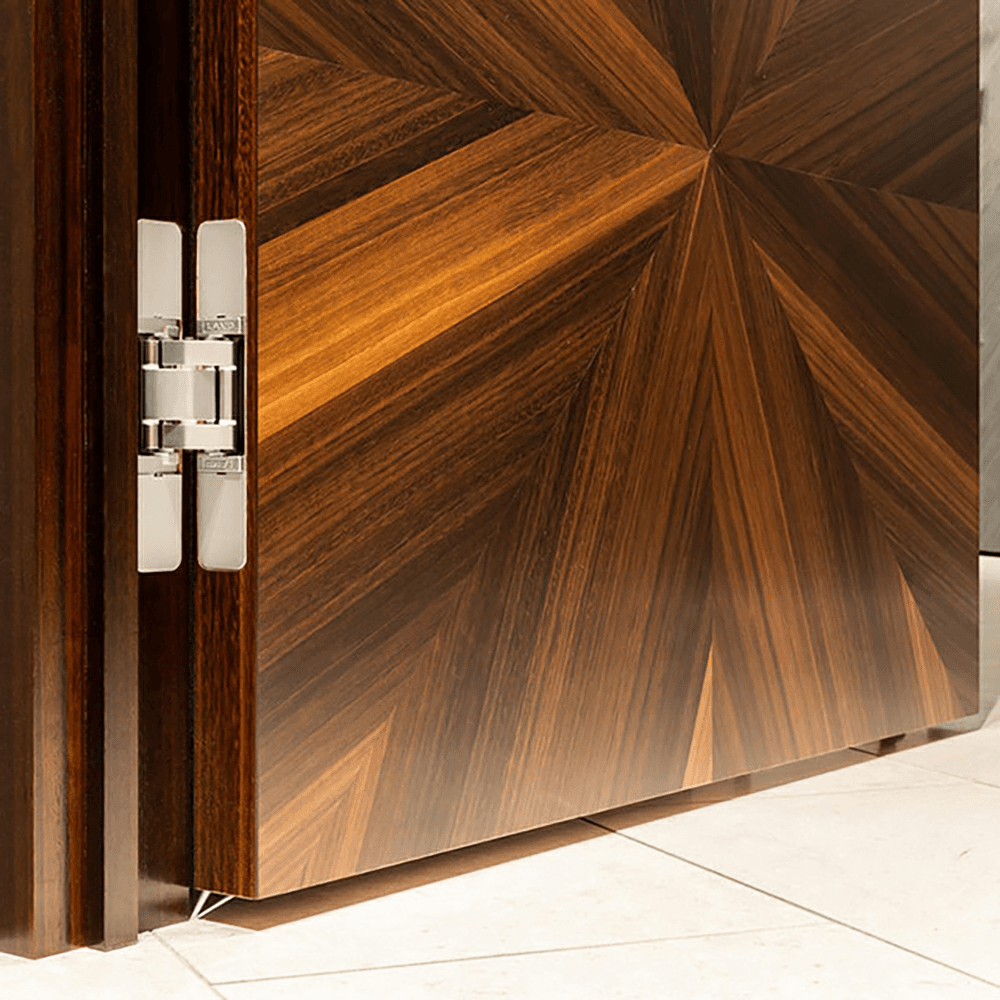

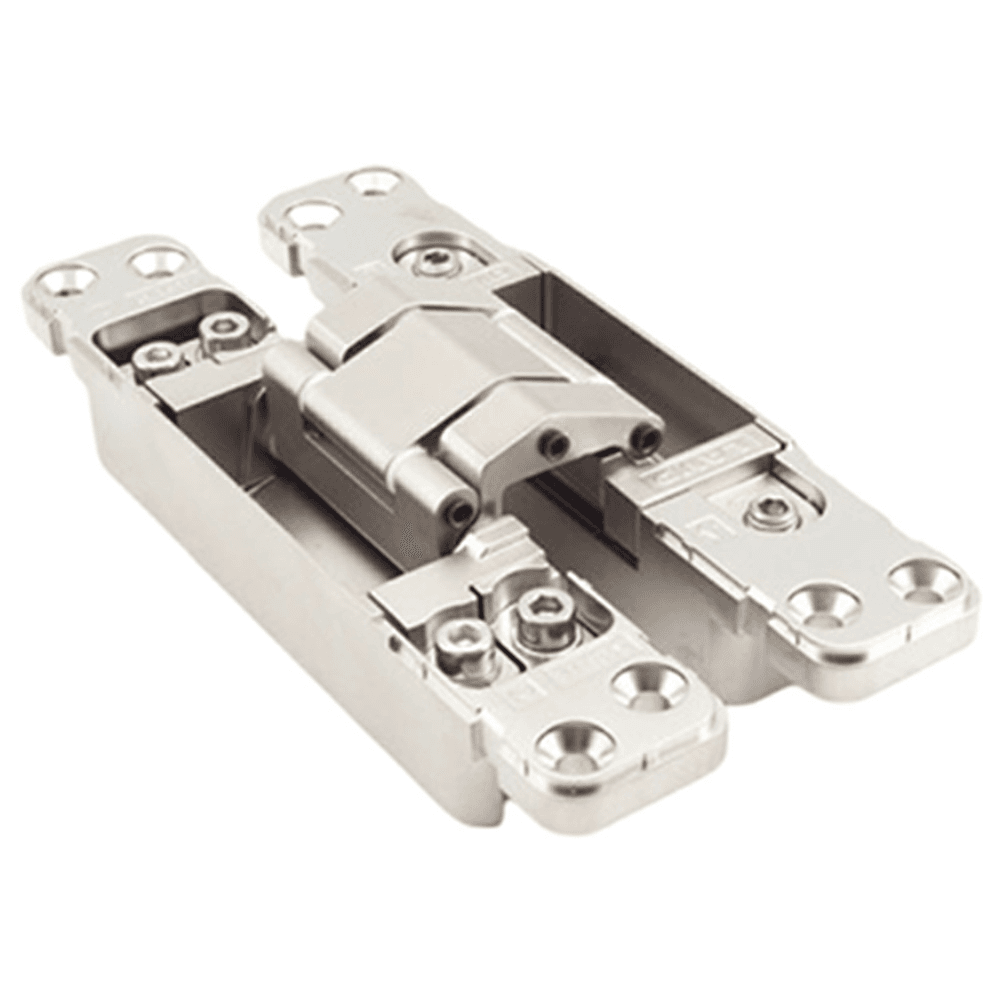

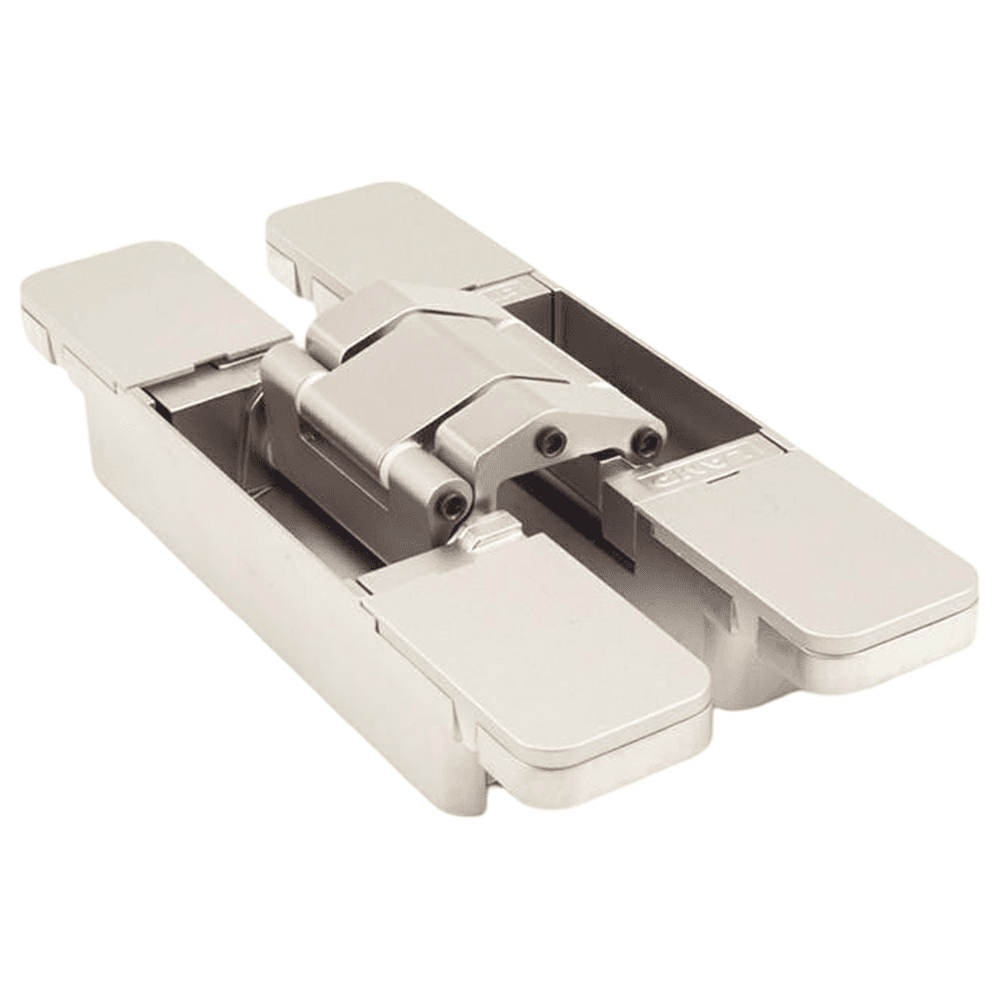

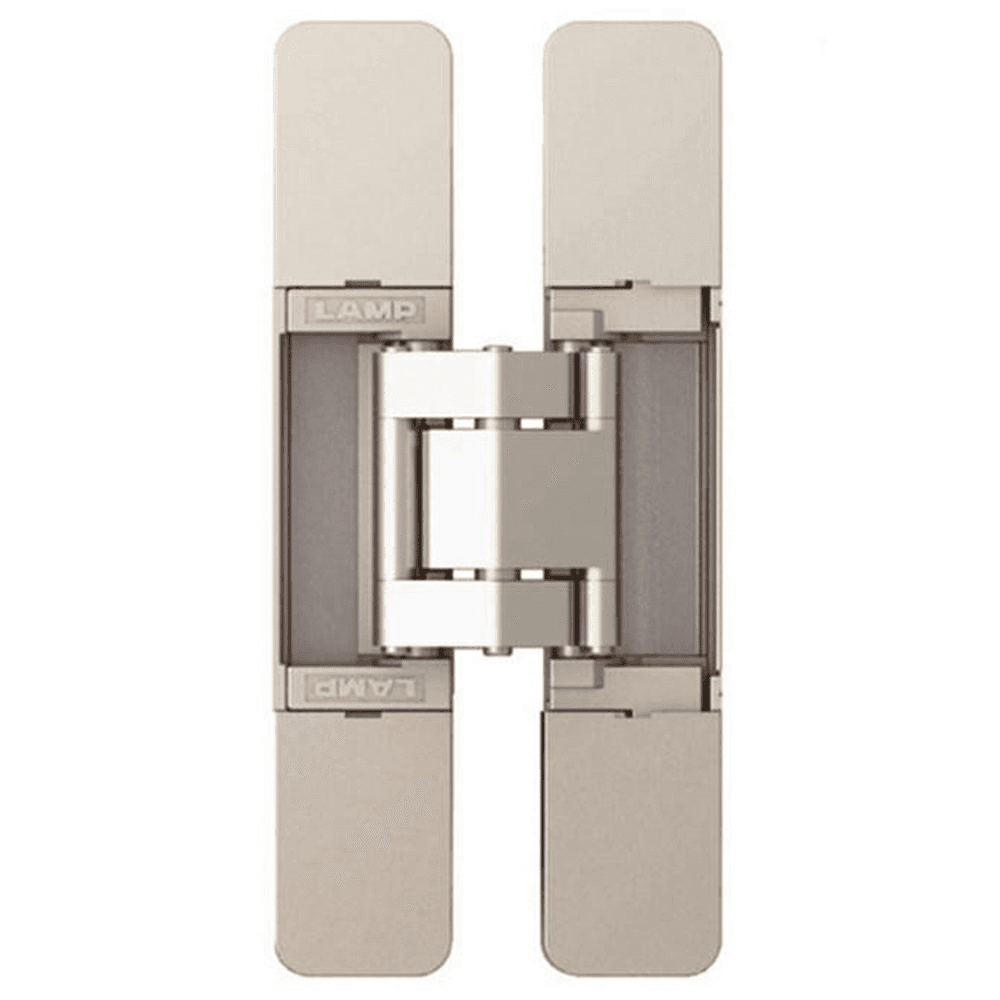

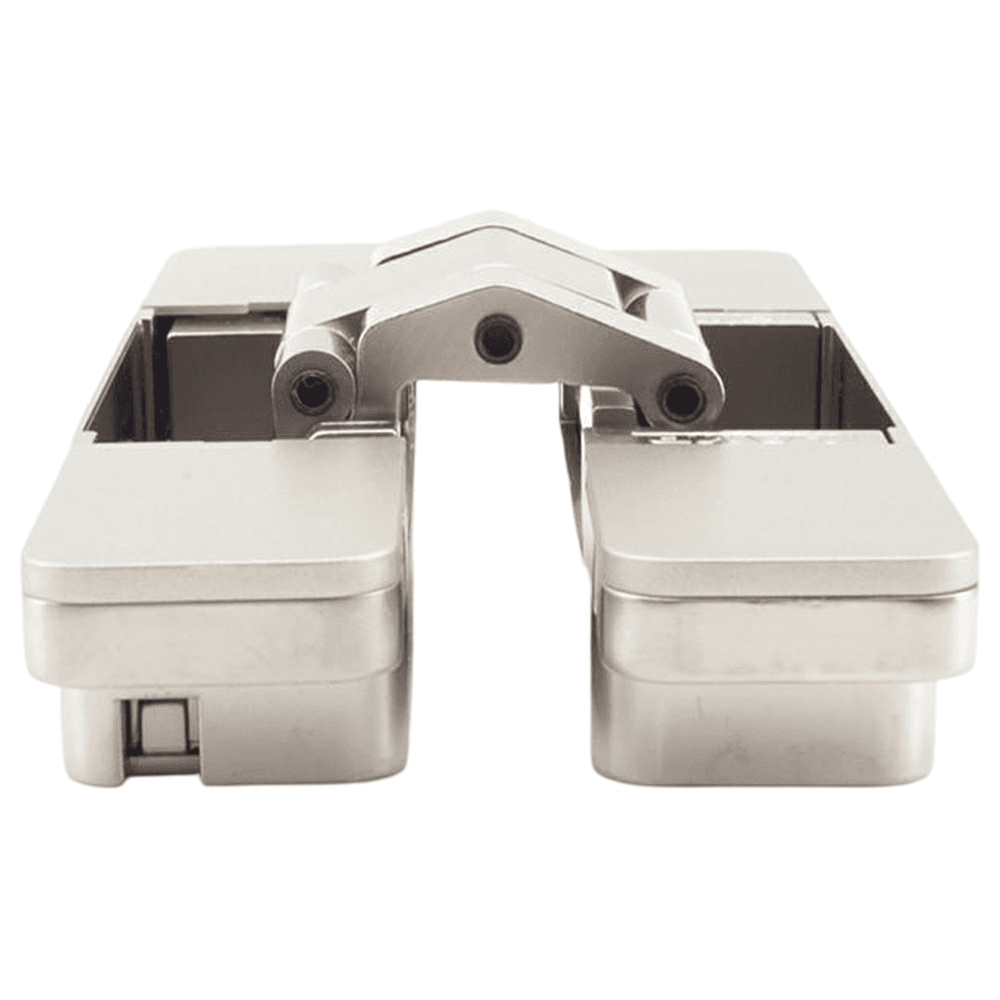

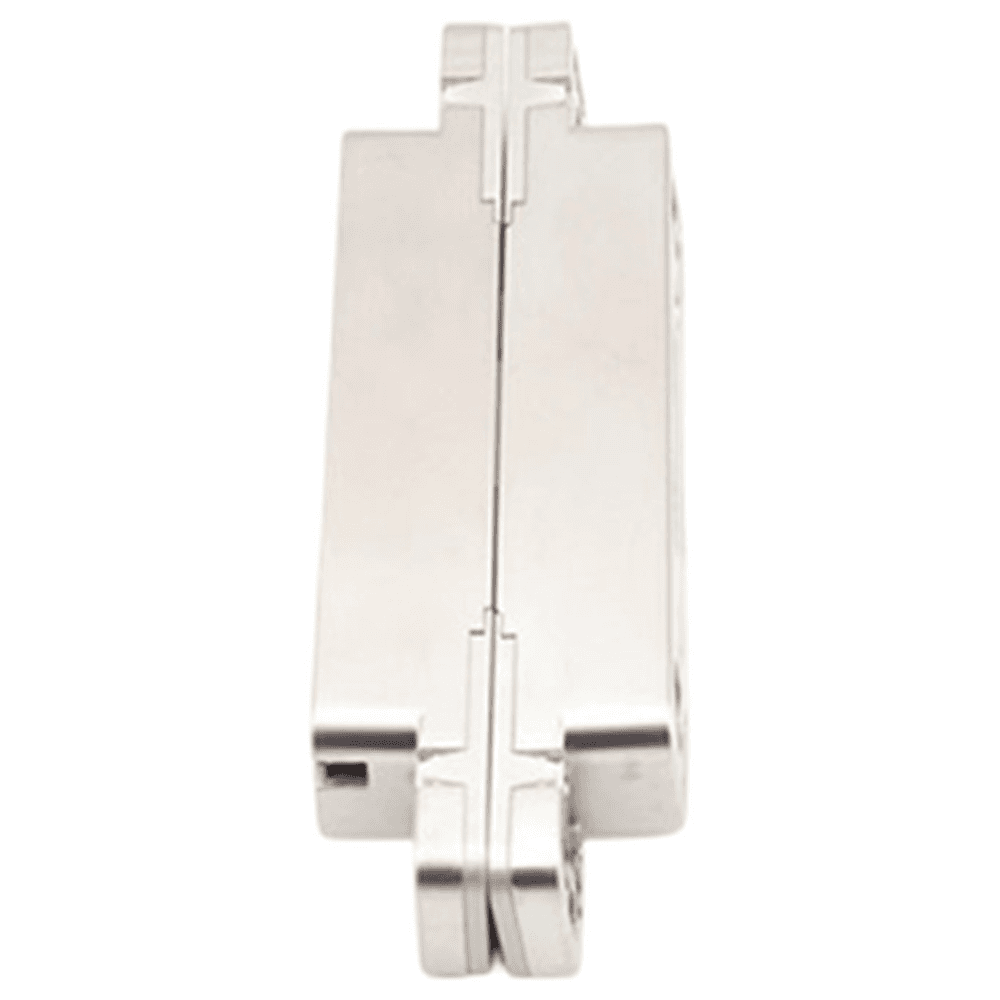

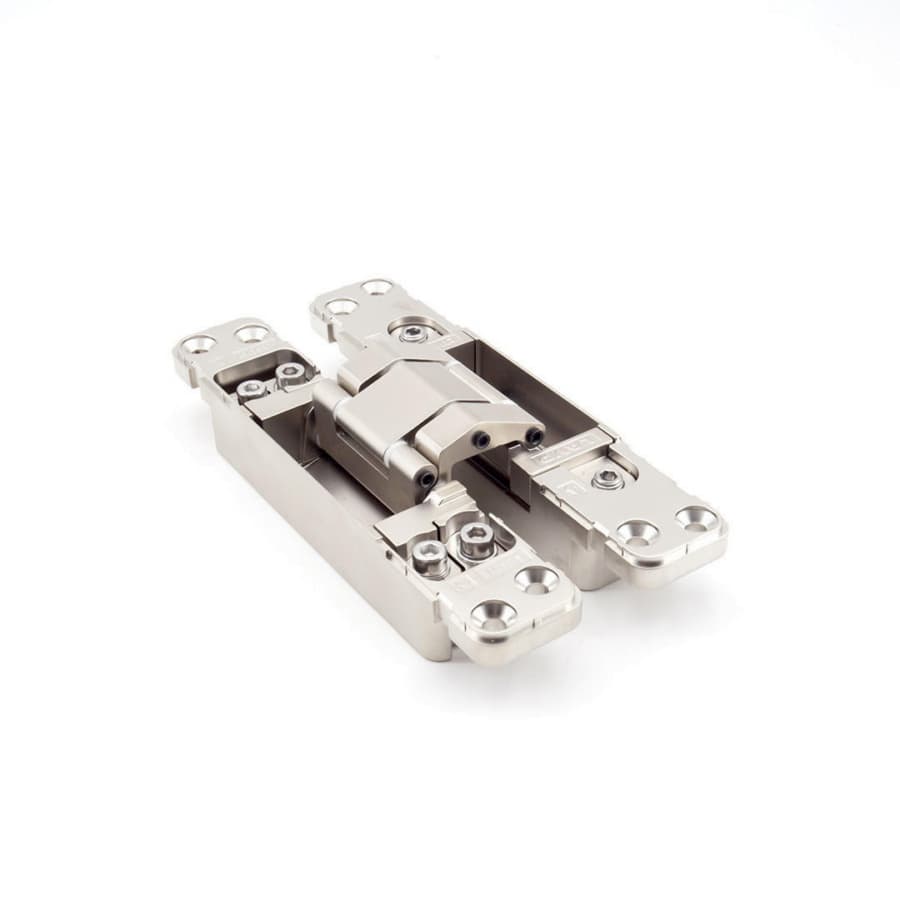

HES3D-E160 3-Way Adjustable Concealed Hinge, Dull Nickel
Finish: Dull Nickel
Product Details

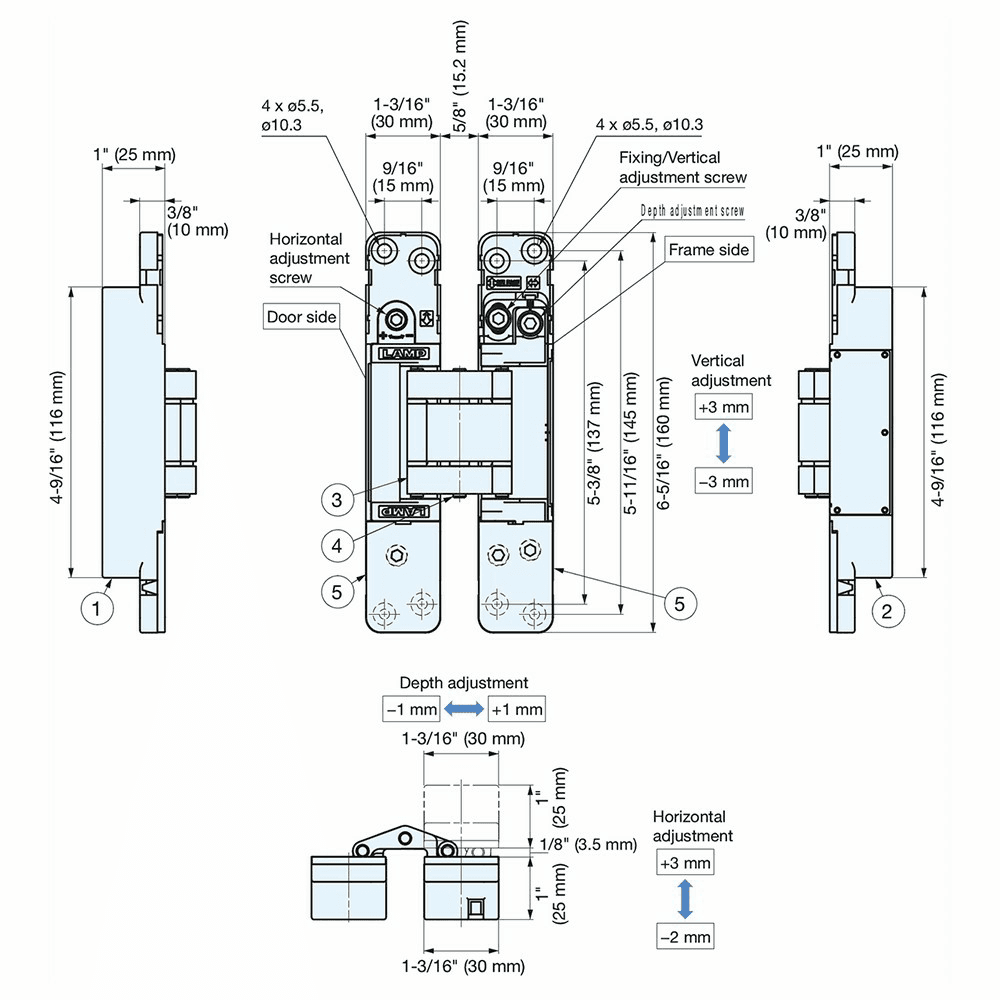

Features: • HES3D-E160 3-Way adjustable concealed hinge in dull nickel finish • Easy installation with symmetrical leaves and lift-off feature • 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed • Door Weight Capacity: Max. 121 lbs (55 kg)/2 pcs, 154 lbs (70 kg)/3 pcs • Compatible with 1-3/4" (44 mm) Door Thickness • Actual Specified Door Thickness: Min. 1-7/16" (36 mm) • Max. Door Dimensions: H 94-1/2" × W 35-7/16" (H 2400 mm × W 900 mm) • Successfully passed 300,000 open/ close private cycle tests • Included 5 x 25 Flat Head Screws
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Dull Nickel |
| Opening Angle | |
| Hinge Type | Adjustable Hinge |
| Material | Zinc Alloy |
| Length | |
| Barrel Diameter | |
| Material Thickness | |
| Screw Hole | |
| Door Thickness | |
| Height | 6-5/16" |
| Width | |
| Closing Type |
