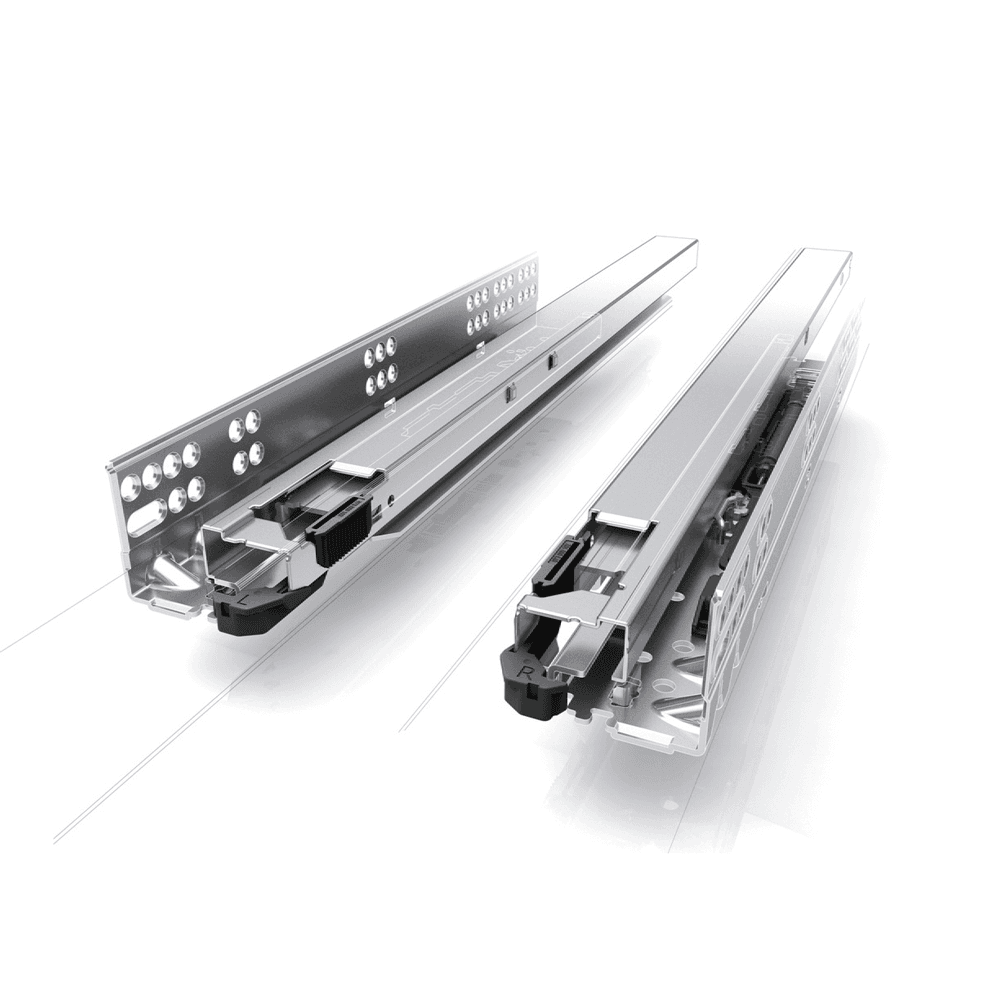

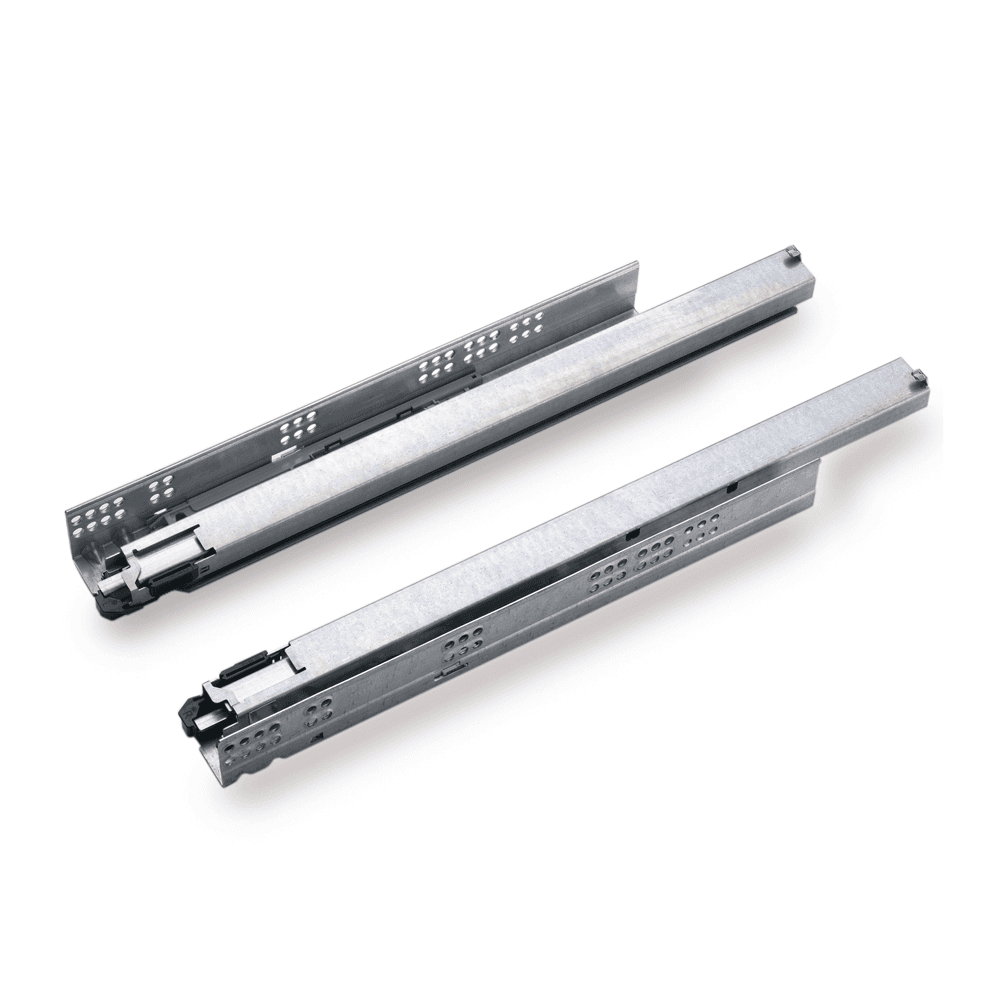

27" Dynapro 19 3D Undermount Extended Length Drawer Slide for 3/4" Material, 110lb Capacity Full Extension Soft-Closing
5 items
Drawer Length: 27"
Model: Dynapro 3D 19 HD
Load Capacity: 132lb
Material Thickness: 5/8" to 3/4"
Product Details
Dynapro 16 3D Heavy Duty Undermount Slides for Drawer Material Thickness 5/8" to 3/4"
EXTENDED LENGTH
With a drawer as technically advanced as Dynapro, you will find many enhanced features. The ease in which Dynapro pulls open is smooth and comfortable. But Dynapro’s closing action is what makes an impression. Whether it is the standard soft-closing action or a mechanically enhanced soft-closing action, Dynapro drawers pull closed with a smooth, gentle motion that is nothing short of amazing.
Features:

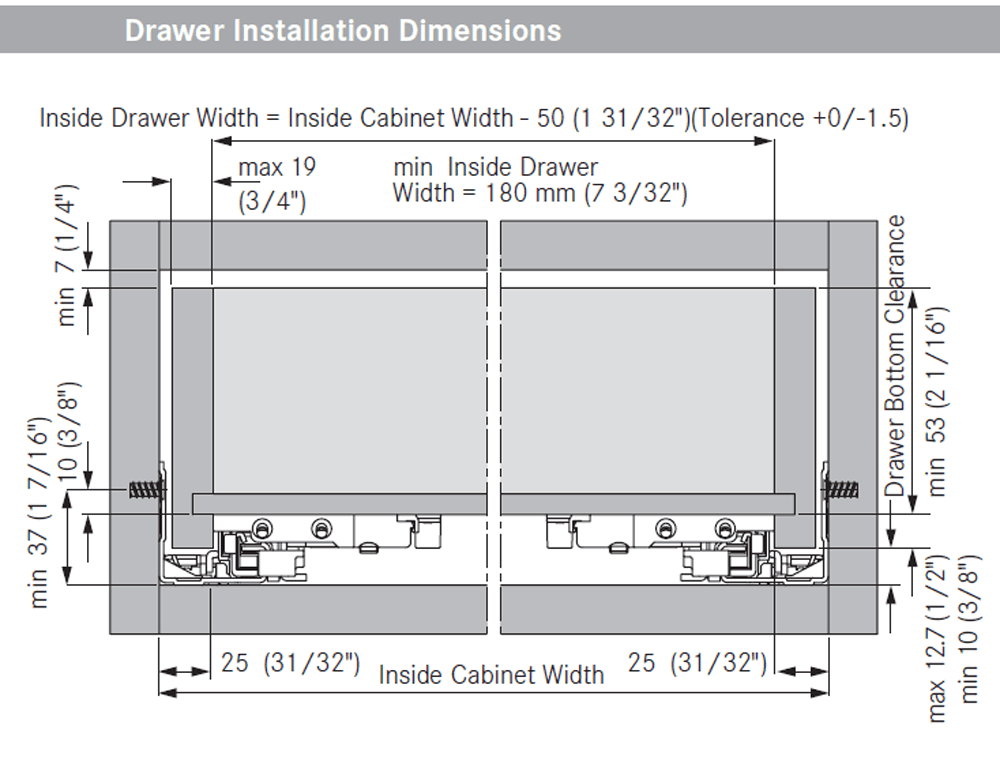

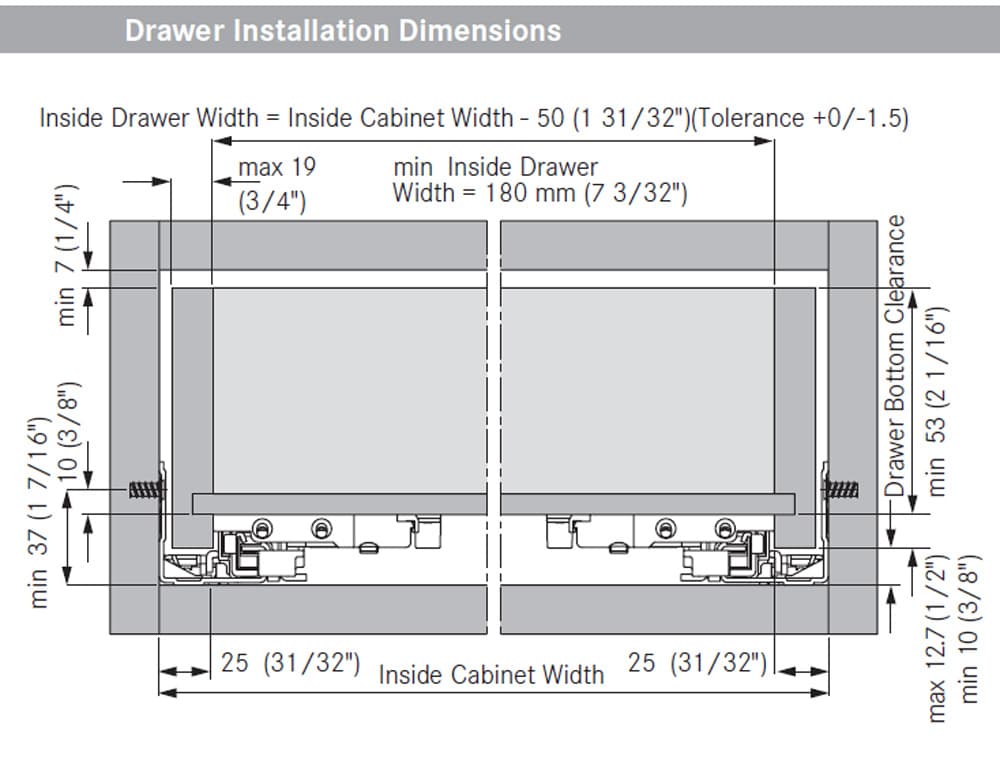

• Face frame or frameless applications from 16mm (5/8") to19mm (3/4") drawer material
• FACE FRAME APPLICTIONS MUST BE BLOCKED OUT
• Full extension with a synchronized mechanism
• Fully enclosed soft-close liquid damping system
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Height adjustment +3.5mm
• Side adjustment ±1.5mm
• Tilt adjustment +4.0mm
• Depth adjustment +4.5mm (optional)
• 110 lb load rating (50 kg) extended length

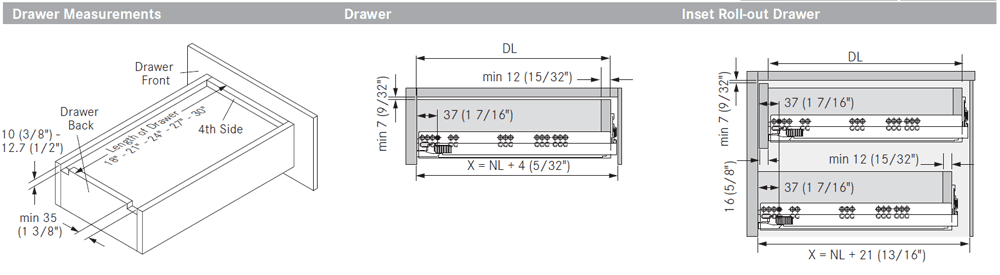

Drawer Setback: 4mm (5/32")
See Locking Device for Inset Drawer Setbacks
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Specifications
| Box Quantity | 5 |
| Length | |
| Finish | Zinc |
| Drawer Length | 27" |
| Closing Type | Soft-Closing |
| Model | Dynapro 3D 19 HD |
| Load Capacity | 132lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Undermount |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 5/8" to 3/4" |
| Cabinet Width | |
| Thickness | |
| Overlay |
