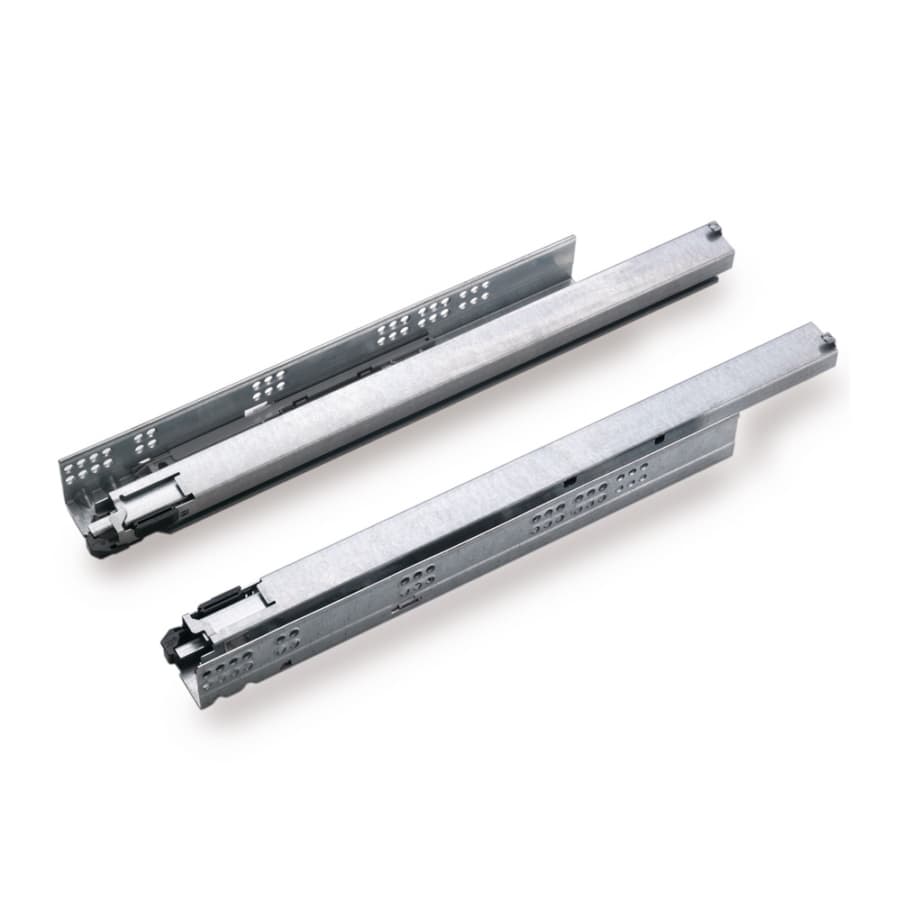

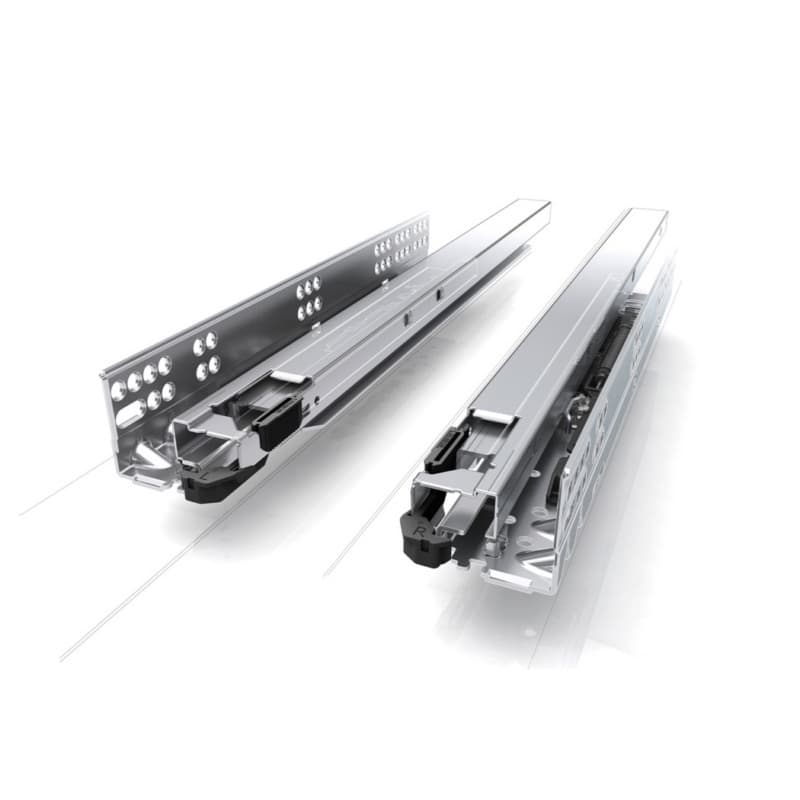

24" DynaPro 3D 16 Undermount Drawer Slide for 5/8" Drawer Material, 132 lb Capacity Full Extension, Soft-Closing

Dynapro 16 3D Heavy Duty Undermount Slides for Drawer Material Thickness 1/2" to 5/8"

With a drawer as technically advanced as Dynapro, you will find many enhanced features. The ease in which Dynapro pulls open is smooth and comfortable. But Dynapro's closing action is what makes an impression. Whether it is the standard soft-closing action or a mechanically enhanced soft-closing action, Dynapro drawers pull closed with a smooth, gentle motion that is nothing short of amazing.

Features:

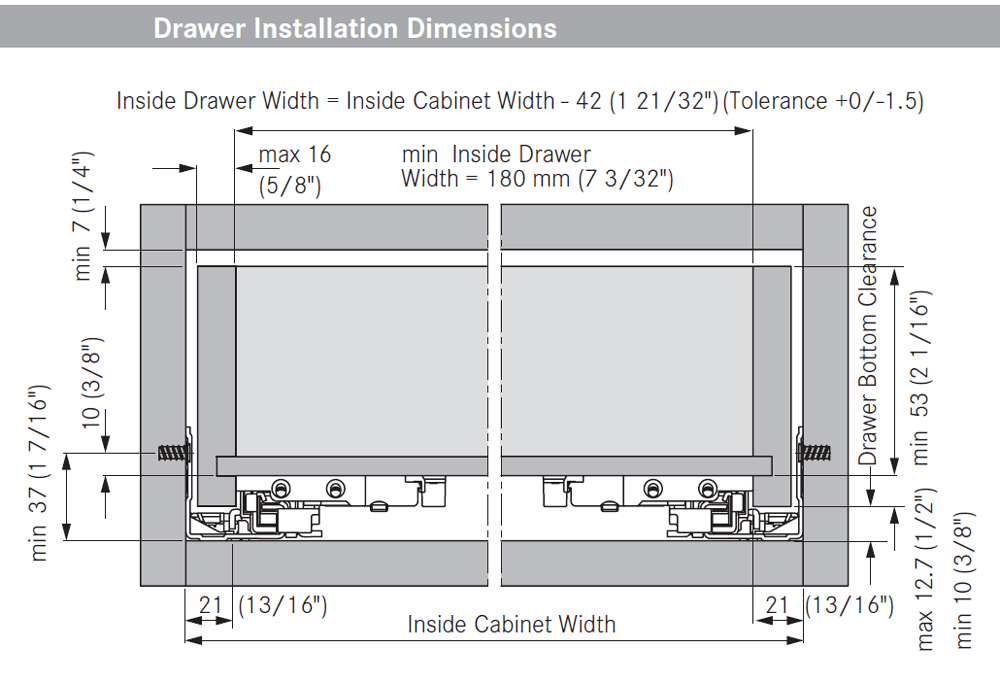

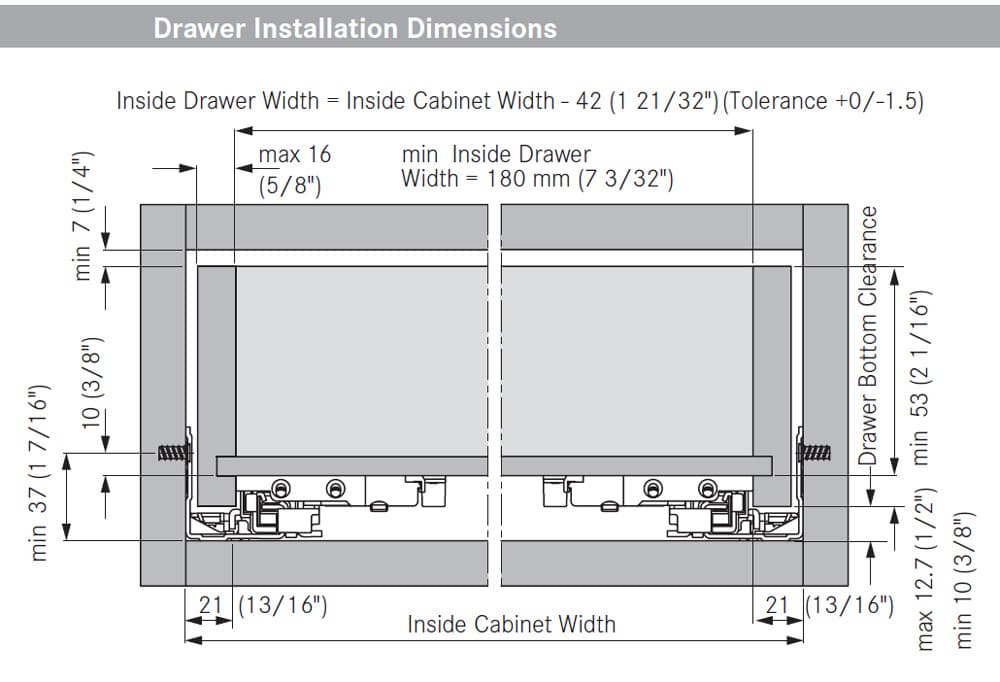

• Face frame or frameless applications from 12.7mm (1/2") to 16mm (5/8") drawer material
• FACE FRAME APPLICTIONS MUST BE BLOCKED OUT
• Full extension with a synchronized mechanism
• Fully enclosed soft-close liquid damping system
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Height adjustment +3.5mm
• Side adjustment ±1.5mm
• Tilt adjustment +4.0mm
• Depth adjustment +4.5mm (optional)
• 132 lb load rating (60 kg) heavy duty

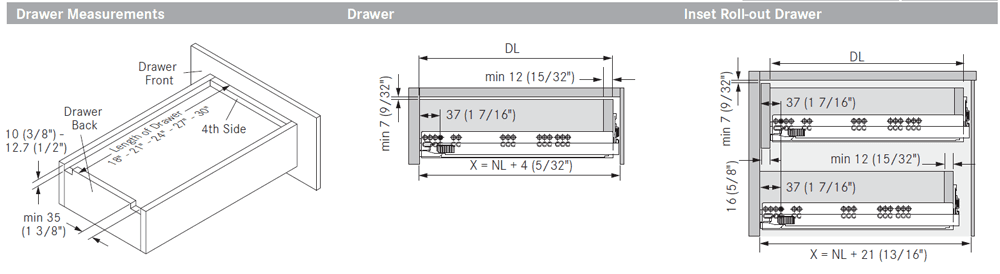

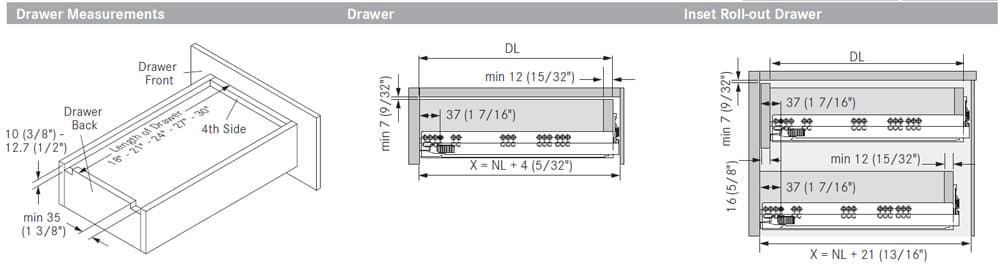

Drawer Setback: 4mm (5/32")
See Locking Device for Inset Drawer Setbacks

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
